Produkt overview
The Front Runner Slimline II 1/2 Roof Rack Kit is designed for the Jeep Wrangler JL 2 Door (2018-Current) to expand cargo carrying capacity. This robust system allows users to transport adventure gear on the vehicle's roof, freeing up interior space. Constructed from black epoxy powder-coated T6 aluminum and high-strength steel, it is engineered for durability and reliability in various conditions.
Figure 1: Front Runner Slimline II 1/2 Roof Rack installed on a Jeep Wrangler JL 2 Door.
Pakkens indhold
Før du starter installationen, skal du kontrollere, at alle nedenstående komponenter er til stede i din pakke:
- 1x LASS027 - Leg Spacer 6mm (Pair)
- 3x LASS035 - JL/JT Mounting Leg / 130mm (Pair)
- 1x RRSTM05 - SLII Tray - 1475mm(W) X954mm(L)
- 1x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W)
- All necessary fasteners and installation instructions.
The approximate installed weight of the complete kit is 26.41kg (58.22lbs).
Figure 2: Slimline II Tray components before assembly.
Opsætning og installation
Installation of the Front Runner Slimline II Roof Rack Kit requires careful attention to detail. It is recommended to have a second person assist with the installation due to the size and weight of the components. Note: Drilling is required for installation.
Trin før installation:
- Pak alle komponenter ud, og kontroller dem med pakkens indholdsliste.
- Read the entire installation manual provided with the kit before starting.
- Gather all necessary tools, which typically include drills, wrenches, and measuring tape.
Mounting the Tray:
The kit includes 6 Gutter Mount Legs designed to secure the Slimline II Tray to your vehicle's roof gutters. Follow the detailed instructions provided in the kit for precise placement and secure fastening of these legs.
Figure 3: Detail of a Gutter Mount Leg attachment.
Securing the Wind Deflector:
Attach the wind deflector to the front of the Slimline II Tray as per the instructions. This component helps reduce wind noise and drag.
Betjening og brug
The Slimline II Roof Rack is designed for versatile cargo management. Its robust design ensures secure transport of various items.
Cargo Securing:
The rack features T-slots on the tops and bottoms of the tray slats and edge profiles. These slots are designed to accommodate standard 8mm bolts, allowing for a wide range of Front Runner accessories and tie-down points to be securely attached.

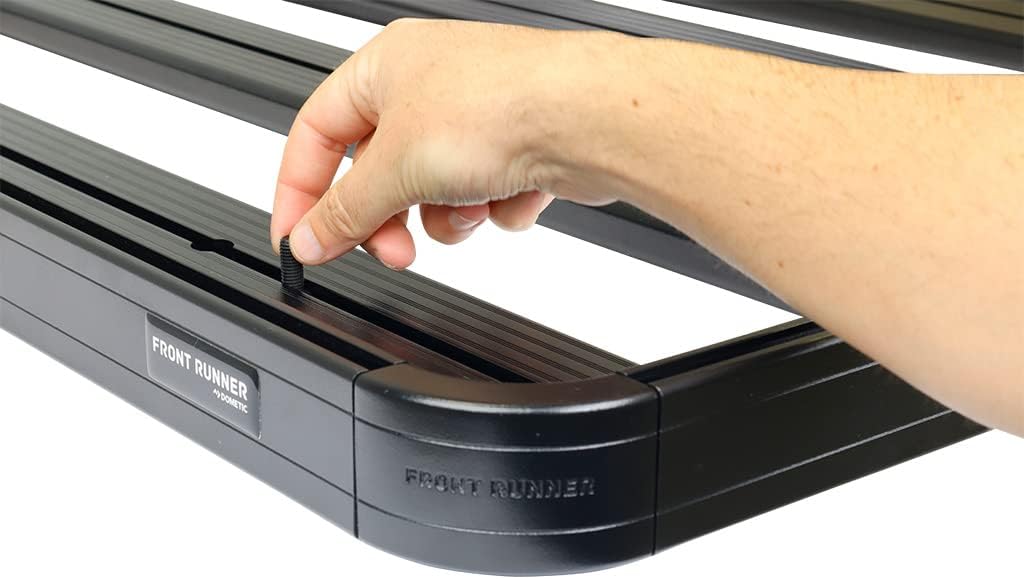

Figure 4: Utilizing the T-slot for cargo attachment.
Vægt kapacitet:
Always adhere to the maximum dynamic and static load capacities specified by Front Runner and your vehicle manufacturer. Overloading the roof rack can compromise vehicle stability and safety.
Opretholdelse
Regular maintenance will ensure the longevity and safe operation of your Slimline II Roof Rack.
- Inspektion: Periodically inspect all mounting bolts and fasteners for tightness. Vibrations during driving can cause fasteners to loosen over time.
- Rensning: Clean the rack with mild soap and water. Avoid abrasive cleaners or solvents that could damage the powder-coated finish.
- Korrosionsforebyggelse: While the rack is made from corrosion-resistant materials, regular cleaning and inspection for any signs of wear or damage to the coating will help prevent corrosion, especially in harsh environments.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på med dit tagbøjle.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Overdreven vindstøj | Improperly installed wind deflector or accessories. | Ensure the wind deflector is securely attached and positioned correctly. Check that all mounted accessories are streamlined and tightly secured. |
| Rack Feels Loose | Mounting bolts or leg fasteners have loosened. | Inspect and re-tighten all mounting bolts and leg fasteners according to the installation instructions. Do not overtighten. |
| Difficulty Attaching Accessories | T-slots obstructed or incorrect bolt size. | Ensure T-slots are clear of debris. Use only standard 8mm bolts as specified for the T-slots. |
Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | KRJW026T |
| Mærke | Frontløber |
| Kompatibilitet | Jeep Wrangler JL 2 Door (2018-Current) |
| Materiale | Black epoxy powder-coated T6 aluminum and high-strength steel |
| Racklængde | 954 mm (37.6 tommer) |
| Tray Dimensions (L x W) | 1475mm (W) x 954mm (L) |
| Approximate Installed Weight | 26.41 kg (58.22 lbs) |
| Monteringstype | 6 tagrendemonteringsben |
| T-Slot Compatibility | Standard 8mm bolts |
| Sammenfoldelig | Ingen |
Garantioplysninger
Alle Front Runner-reoler er understøttet af en Begrænset livstidsgaranti. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and to file a warranty claim, please refer to the official Front Runner webwebstedet eller kontakt deres kundesupport direkte.
Kundesupport
For further assistance, technical support, or inquiries regarding your Front Runner Slimline II Roof Rack Kit, please visit the official Front Runner website or contact their customer service department. Detailed contact information can typically be found on their webwebstedet eller i produktemballagen.
Online ressourcer: www.frontrunneroutfitters.com
