Amewi Sport Car Breaker Pro 1:16 RC Car Instruction Manual

Indledning

Tak for købetasing the Amewi Sport Car Breaker Pro 1:16 RC Car. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new remote-controlled vehicle. Please read this manual thoroughly before operating the model to ensure proper function and longevity.

Sikkerhedsoplysninger

Advarsel:

• This model is not suitable for children under 14 years of age.
• Children operating this model must do so under direct adult supervision.
• Kør altid køretøjet i åbne områder, væk fra mennesker, kæledyr og forhindringer.
• Do not operate near public roads or in crowded areas.
• Ensure all batteries are charged correctly and handled safely.
• Disconnect the battery from the model when not in use.
• Undgå kontakt med bevægelige dele under drift.

Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Amewi Sport Car Breaker Pro 1:16 Model (fully assembled)
• 2.4 GHz fjernbetjening
• Li-ion 7.4V 1200mAh Battery
• USB Charger with 1.5A charging current
• Additional Road Tires (set of 4)
• Forskellige værktøjer
• Instruktionsmanual (dette dokument)

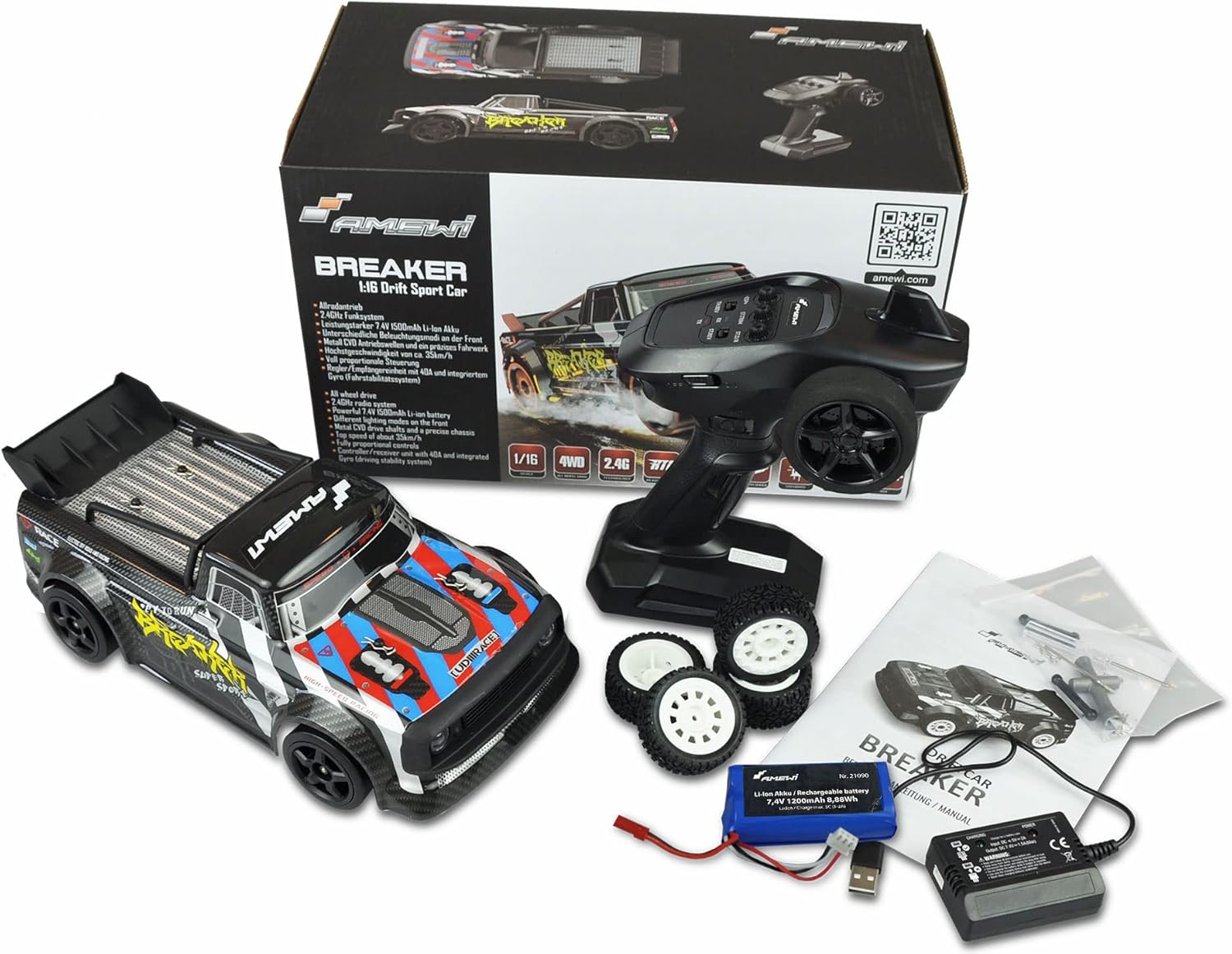

Image: The complete package contents, showing the RC car, remote control, battery, USB charger, additional road tires, and tools.

Opsætningsvejledning

1. Opladning af køretøjets batteri

1. Connect the Li-ion 7.4V 1200mAh battery to the supplied USB charger.
2. Slut USB-opladeren til en passende USB-strømkilde (f.eks. en computers USB-port eller en USB-vægadapter).
3. The charging indicator on the USB charger will show the charging status. Refer to the charger's specific instructions for light indications.
4. Charging time is approximately 40-60 minutes. Do not overcharge the battery.
5. Når det er fuldt opladet, skal du frakoble batteriet fra opladeren.

2. Montering af køretøjets batteri

1. Carefully remove the body shell of the RC car. This usually involves detaching body clips.
2. Find batterirummet.
3. Insert the charged Li-ion battery into the compartment and securely connect it to the vehicle's power connector (BEC plug).
4. Ensure all wires are tucked away safely and do not interfere with moving parts.
5. Reattach the body shell.

Image: The RC car chassis with the body removed, illustrating the placement of the battery and electronic components.

3. Installation af fjernbetjeningsbatterier

1. Open the battery compartment on the back of the 2.4 GHz remote control.
2. Insert 4x 1.5V AA batteries, ensuring correct polarity (+/-).
3. Luk batterirummets dæksel forsvarligt.

Image: The 2.4 GHz remote control for the Amewi Sport Car Breaker Pro.

4. Binding the Remote Control and Vehicle

The vehicle and remote control are typically pre-bound from the factory. If re-binding is necessary:

1. Ensure both the vehicle and remote control are powered off.
2. Tænd for fjernbetjeningen.
3. Turn on the vehicle. The indicator lights on both devices should show a successful connection. Refer to the specific instructions for your ESC/receiver for detailed binding procedures if automatic binding fails.

Betjeningsvejledning

Fjernbetjeningsfunktioner

• Rat: Styrer venstre og højre styring.
• Gashåndtag: Træk for at accelerere fremad, skub for at bremse/bakke.
• Styring Trim (ST.TRIM): Adjusts the neutral steering position if the car pulls to one side when the steering wheel is centered.
• Gashåndtag Trim (TH.TRIM): Adjusts the neutral throttle position. Use if the car moves slightly forward or backward when the trigger is centered.
• Gyro Sensitivity (ESP+): Adjusts the sensitivity of the integrated gyro system. Increase for more stability, decrease for more direct control.
• LED-lystilstande: Use the designated button on the transmitter to cycle through three different front LED lighting types. Red LED light is also present at the back.

Kørsel i din fjernstyrede bil

1. Tænd: Turn on the remote control first, then the vehicle.
2. Starter: Gently pull the throttle trigger to move forward. Practice smooth acceleration and braking.
3. Styretøj: Turn the steering wheel to guide the car. The integrated gyro system provides additional stabilization for precise handling, especially during drifts.
4. Drifting: The car is designed for drifting. Experiment with throttle and steering inputs to initiate and maintain drifts. The adjustable gyro sensitivity can assist in controlling drifts.
5. Tophastighed: The car can reach speeds of 40-45 km/h. Always be aware of your surroundings.
6. Køretid: Expect approximately 10-13 minutes of driving time on a full charge.
7. Sluk: Always turn off the vehicle first, then the remote control, after use. Disconnect the battery from the vehicle.

Image: The Amewi Sport Car Breaker Pro 1:16 RC car, showcasing its design and included drift tires.

Opretholdelse

Almen pleje

• Rensning: After each use, especially if driven in dusty or dirty conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronics.
• Opbevaring: Store the model in a dry, cool place, away from direct sunlight. Always disconnect the battery before storage.
• Batteripleje: Do not leave batteries fully charged or fully discharged for extended periods. For long-term storage, charge Li-ion batteries to approximately 50% capacity.

Komponentinspektion

• Ball Bearings & Drive Shafts: The vehicle is equipped with ball bearings and metal CVD drive shafts for reduced friction and direct power transmission. Periodically inspect these components for wear and ensure they are free of debris. Lubricate as needed with RC-specific lubricants.
• Affjedring: Check the shock absorbers and suspension arms for damage or excessive play.
• Dæk: Inspect tires for wear and tear. The package includes additional road tires.

Billede: En detaljeret view of the vehicle's suspension system, including the shock absorber and spring.

Changing Tires

Your Amewi Sport Car Breaker Pro comes with mounted drift tires and additional road tires. To change them:

1. Use the provided tools to carefully remove the wheel nuts from each wheel.
2. Remove the drift tires and replace them with the road tires.
3. Securely fasten the wheel nuts. Do not overtighten.
4. Changing tires allows you to adapt the car's performance for different surfaces and driving styles (drifting vs. on-road racing).

Image: The Amewi Sport Car Breaker Pro displayed with both its mounted drift tires and the included set of road tires.

Fejlfinding

Specifikationer

Garanti og support

For warranty information, technical support, or spare parts, please contact Amewi directly or visit their official webwebsted.

Officiel Webwebsted: https://amewi.com

Manufacturer: Amewi
