The PAL Lighting PCR-2Z 65W Multi Color Dual Zone 4 Wire Transformer and Controller (Model: 64-PCR-2Z-65) is designed to provide versatile and efficient control over multi-color LED lighting systems. This unit functions as both a power transformer, converting input voltage to 24VDC, and a sophisticated controller capable of managing two independent lighting zones. It supports various lighting modes and color adjustments via a dedicated remote control, making it ideal for dynamic lighting installations.

Image 1.1: The PCR-2Z controller unit, its remote control, and two AAA batteries.

The controller is housed in a durable, weather-resistant enclosure, rated IP65, suitable for various installation environments. It features multiple input and output terminals for secure wiring and includes internal DIP switches for configuring different operational modes to integrate with existing lighting systems.

2. Sikkerhedsoplysninger

Before installation or operation, read and understand all safety instructions. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med alle lokale og nationale el-forskrifter.
• Ensure power is disconnected at the circuit breaker before performing any wiring or maintenance.
• Do not operate the unit if it is damaged or if any wires are frayed.
• This unit is rated IP65 for protection against dust and low-pressure water jets. Ensure all cable glands and the enclosure lid are properly sealed after wiring.
• The unit is designed for 24VDC output. Do not connect to higher voltage lyssystemer.

3. Opsætning og installation

3.1 Montering

The PCR-2Z controller is designed for wall mount installation. Select a secure, flat surface that is easily accessible for wiring and maintenance, yet protected from direct impact. Use appropriate fasteners for the mounting surface through the four integrated mounting tabs on the enclosure.

3.2 Ledningsforbindelser

Ensure all power is OFF before proceeding with wiring. The unit requires a 100-240V AC input and provides 24V DC output for two independent lighting zones.

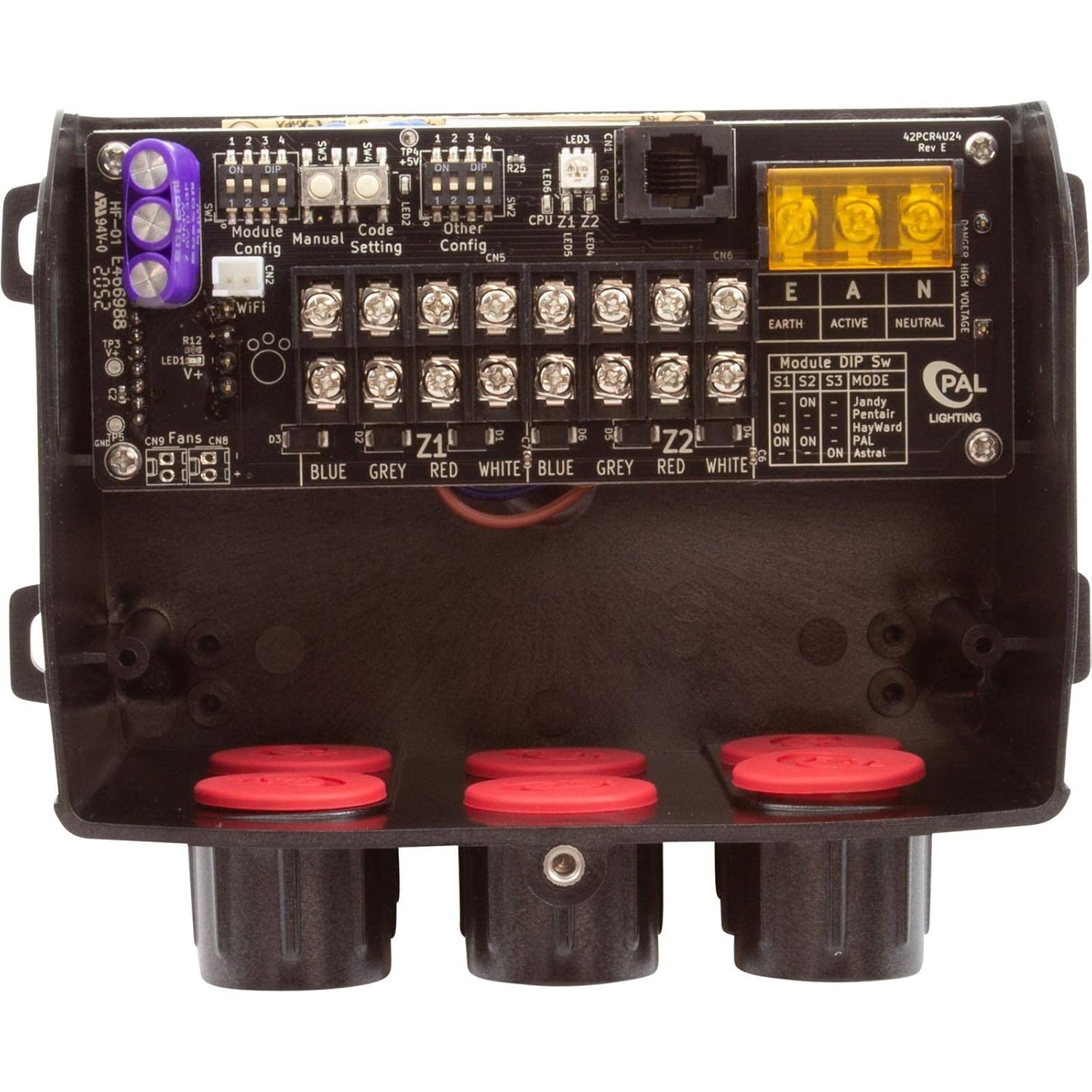

Billede 3.1: Intern view of the PCR-2Z controller showing wiring terminals and DIP switches.

1. Input Power (EARTH, ACTIVE, NEUTRAL): Connect the main AC power supply (100-240V, 50/60Hz) to the clearly labeled input terminals. Ensure proper grounding.
2. Output to Lights (Z1, Z2): The controller supports two independent zones (Z1 and Z2). Each zone has terminals for BLUE, GREY, RED, and WHITE wires. Connect your 4-wire multi-color LED lights to the corresponding terminals for each zone.
3. Fjernbetjeningsparring: The remote control is typically pre-paired. If re-pairing is needed, refer to the specific instructions provided with the remote.

3.3 DIP-switchkonfiguration

The PCR-2Z controller features internal DIP switches (S1, S2, S3) to select the operating mode, ensuring compatibility with various lighting systems. Access these switches by opening the controller's cover.

Set the DIP switches according to the lighting system you are integrating with. After setting, close the cover securely to maintain the IP65 rating.

4. Betjeningsvejledning

The PCR-2Z controller is operated using the included wireless remote control.

Image 4.1: The wireless remote control and two AAA batteries.

4.1 Fjernbetjeningsfunktioner

• Tænd/sluk-knap (⏻): Turns the connected lights ON or OFF.
• Farvehjul: Touch and slide your finger around the color wheel to select desired static colors.
• Brightness Buttons (☀+ / ☀-): Adjust the brightness level of the selected color or mode.
• Zone Selection Buttons (Z1 / Z2): Select Zone 1 or Zone 2 to control lights independently. Press the desired zone button before making color or brightness adjustments.
• Mode/Program Cycle Button (↻): Cycles through pre-programmed light shows or effects.

4.2 Batteriinstallation/udskiftning

The remote control uses two AAA batteries. To install or replace, open the battery compartment on the back of the remote, insert the batteries observing polarity, and close the compartment securely.

5. Vedligeholdelse

The PCR-2Z controller requires minimal maintenance. Regular checks can ensure optimal performance and longevity.

• Rensning: Periodically wipe the exterior of the controller with a soft, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Inspektion: Annually inspect all wiring connections for tightness and signs of corrosion or damage. Ensure the enclosure lid is securely fastened.
• Fjernbetjening: Replace remote batteries when the control range decreases or the remote becomes unresponsive.

6. Fejlfinding

If you experience issues with your PCR-2Z controller, refer to the following common problems and solutions:

• Lights not turning ON:
  • Check if the main power supply to the controller is ON.
  • Kontroller, at alle ledningsforbindelser er sikre og korrekte.
  • Sørg for, at batterierne i fjernbetjeningen ikke er opbrugt, og at de er isat korrekt.
  • Confirm the remote is within range and not obstructed.
• Incorrect colors or unresponsive lights:
  • Check the DIP switch settings to ensure they match your lighting system.
  • Verify the output wiring (BLUE, GREY, RED, WHITE) matches the light fixture's requirements.
  • Attempt to re-pair the remote control if applicable (refer to remote's specific instructions).
• Only one zone responding:
  • Ensure you have selected the correct zone (Z1 or Z2) on the remote control.
  • Check the wiring for the non-responsive zone.

If the problem persists after attempting these solutions, contact PAL Lighting customer support.

7. Specifikationer

8. Garanti og support

For specific warranty information regarding your PAL Lighting PCR-2Z controller, please refer to the documentation included with your purchase or visit the official PAL Lighting webGarantibetingelserne dækker typisk fabrikationsfejl i en bestemt periode fra købsdatoen.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact PAL Lighting directly. You can find contact information and additional resources on their official webwebsted: https://pallighting.com/product/pcr-2z/
