Indledning
The TrolMaster LMA-12 Lighting Control Adapter D is designed to integrate specific lighting fixtures, such as Dimlux Ballasts, with the TrolMaster Hydro-X control system. This adapter allows the Hydro-X system to manage and automate lighting schedules and intensity for compatible horticultural lighting equipment, enhancing control over your growing environment.
Produkt overview
Nøglefunktioner
- Enables Hydro-X system control over Dimlux Ballasts.
- Simple plug-and-play integration.
- Robust design suitable for horticultural environments.
Komponenter
The LMA-12 adapter typically includes the main adapter unit and an integrated RJ12 cable for connection to the control system.

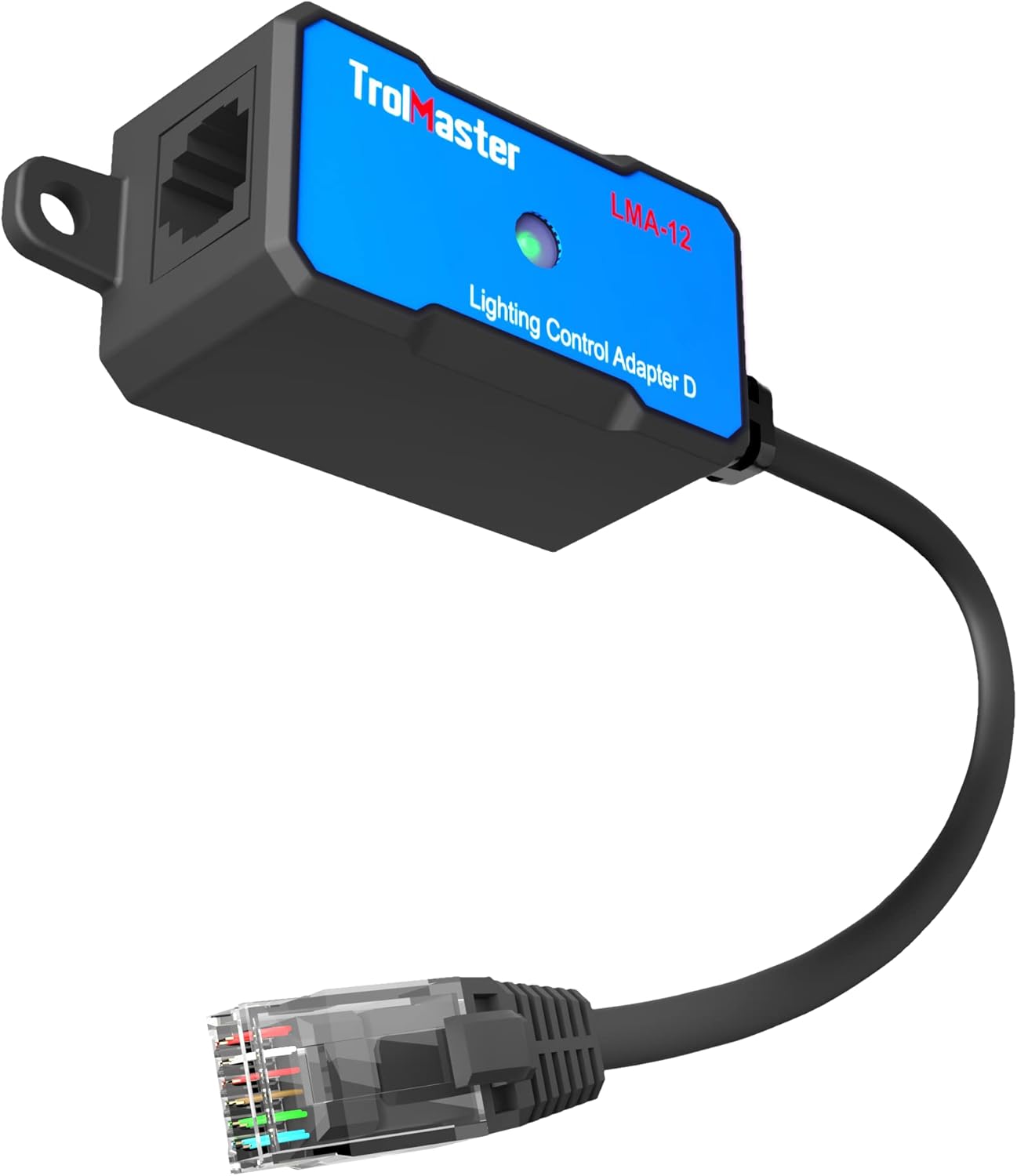

Image: The TrolMaster LMA-12 Lighting Control Adapter D, showing the main unit and its attached RJ12 cable. This adapter facilitates communication between the Hydro-X controller and compatible lighting ballasts.
Opsætningsinstruktioner
Follow these steps to properly set up your LMA-12 Lighting Control Adapter D:
- Identificer komponenter: Ensure you have the TrolMaster Hydro-X controller, the LMA-12 adapter, and your Dimlux Ballast(s).
- Connect LMA-12 to Hydro-X: Plug the RJ12 cable from the LMA-12 adapter into an available control port on your TrolMaster Hydro-X controller.
- Connect LMA-12 to Ballast: Connect the other end of the LMA-12 adapter (or a splitter, if controlling multiple ballasts) to the control port of your Dimlux Ballast.
- Tænd: Ensure all devices are properly connected and then power on your Hydro-X controller and lighting system.
- Konfiguration: Refer to your Hydro-X controller's manual for specific steps on how to detect and configure the connected lighting fixtures within the system settings.
Image: A diagram illustrating the connection sequence: 1. Controller (Hydro-X), 2. Lighting Control Adapter (LMA-12), 3. Splitter (optional), and 4. G Ballast (Dimlux Ballast). This shows how the LMA-12 integrates into the lighting control system.
Betjeningsvejledning
Once the LMA-12 adapter is connected and recognized by your Hydro-X controller, you can manage your Dimlux Ballasts through the Hydro-X interface.
- Planlægning: Use the Hydro-X controller to set daily lighting schedules, including ON/OFF times.
- Dæmpning: Adjust the light intensity (dimming) of your connected ballasts directly from the Hydro-X controller.
- Automatisering: Configure advanced automation rules based on environmental conditions monitored by your Hydro-X system.
For detailed operation of the Hydro-X controller, please consult its dedicated user manual.
Opretholdelse
The LMA-12 adapter requires minimal maintenance to ensure optimal performance.
- Rensning: Periodically wipe the adapter with a dry, soft cloth to remove dust. Do not use liquid cleaners directly on the unit.
- Inspektion: Regularly check the RJ12 cable and connectors for any signs of wear or damage. Ensure connections are secure.
- Miljø: Operate the adapter within recommended environmental conditions (temperature, humidity) to ensure longevity.
Fejlfinding
Adapter Not Detected by Hydro-X
- Tjek forbindelser: Ensure the RJ12 cable is securely plugged into both the LMA-12 and the Hydro-X controller.
- Kabelintegritet: Inspect the RJ12 cable for any visible damage. Try a different RJ12 cable if available.
- Hydro-X Port: Try connecting the LMA-12 to a different control port on the Hydro-X controller.
- Genstart systemet: Power cycle the Hydro-X controller and the connected lighting system.
Lighting Fixture Not Responding
- Ballast Connection: Verify the connection between the LMA-12 (or splitter) and the Dimlux Ballast.
- Ballast Power: Ensure the Dimlux Ballast is powered on and functioning correctly independently of the control system.
- Hydro-X Settings: Confirm that the lighting fixture is correctly configured and enabled within the Hydro-X controller's settings.
- Kompatibilitet: Ensure your specific Dimlux Ballast model is compatible with the LMA-12 adapter.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | LMA-12 |
| Fabrikant | TrolMaster |
| Varenummer | LMA-12 |
| Produktdimensioner | 5.12 x 7.36 x 3.47 tommer |
| Varens vægt | 1 pund |
| Farve | Sort |
| Inkluderede komponenter | modul |
| Batterier påkrævet? | Ingen |
Garantioplysninger
TrolMaster products are typically covered by a manufacturer's warranty. For specific details regarding the warranty period and terms for your LMA-12 adapter, please refer to the warranty card included with your product or visit the official TrolMaster webwebsted. Gem din købsbevis i tilfælde af garantikrav.
Støtte
If you encounter issues not covered in this manual or require further assistance, please contact TrolMaster customer support.
- Online ressourcer: Visit the official TrolMaster website for FAQs, additional documentation, and software updates.
- Kontakt support: Refer to the contact information provided on the TrolMaster website or in your product packaging for direct support.
When contacting support, please have your product model (LMA-12) and purchase information ready to expedite assistance.
