AMBITFUL FL80RGB 80W RGB LED-videolampe brugermanual

1. Introduktion

Thank you for choosing the AMBITFUL FL80RGB 80W RGB Full Color LED Video Light. This professional lighting solution is designed for photography studios, video production, and various creative shooting scenarios. It features high color rendering (CRI ≥96, TLCI ≥95), a wide color temperature range (2800K-10000K), full RGB color adjustment, and 10 special effects modes. With Bluetooth app control and a Bowens mount, the FL80RGB offers versatility and ease of use for both indoor and outdoor applications.

2. Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte din forhandler.

• AMBITFUL FL80RGB LED Video Light
• Standard reflektor
• Strømadapter
• Strømkabel
• Handle (for handheld operation)
• Rengøringsklud

3. Produktet er slutview

The AMBITFUL FL80RGB is a versatile 80W LED video light designed for professional use. Key features include:

• Høj farvenøjagtighed: CRI ≥96 and TLCI ≥95 for precise color reproduction.
• Bredt farvetemperaturområde: Justerbar fra 2800K til 10000K.
• Full RGB Color Mode (HSL): 360 hues and 100 saturation levels for creative lighting.
• 10 Special Lighting Effects: Pre-programmed effects for dynamic scenes.
• Bluetooth app kontrol: Remote control via mobile application (iOS and Android).
• Bowens Mount-kompatibilitet: Muliggør montering af forskellige lysmodifikatorer.
• Large LCD Panel: Intuitive display for easy setting adjustments.
• Effektivt kølesystem: Built-in heat sink and fan for stable operation.

4. Opsætning

Follow these steps to set up your AMBITFUL FL80RGB LED Video Light:

1. Fastgør reflektoren: Align the standard reflector with the Bowens mount on the front of the light. Rotate it clockwise until it locks securely into place.
2. Monter lyset: Attach the light to a light stand using the integrated mounting bracket. Secure it by tightening the knob on the bracket.
3. Tilslut strøm: Insert the power cable into the power adapter, then connect the adapter to the DC input port on the light. Plug the power cable into a suitable electrical outlet.
4. (Optional) Attach Handle: For handheld operation, attach the provided handle to the side of the light's mounting bracket.
5. (Optional) Battery Power: For outdoor use, the light supports 2 NP970 batteries (not included). Insert the batteries into the designated slots on the optional battery plate (if purchased separately).

5. Betjeningsvejledning

5.1 Tænd/sluk

Press the power button located on the back of the light to turn it on or off. The LCD screen will illuminate upon power-on.

5.2 CCT Mode (Color Temperature)

In CCT mode, you can adjust the color temperature and brightness.

• Select CCT Mode: Use the mode button to navigate to CCT mode.
• Juster farvetemperatur: Use the dedicated knob to adjust the color temperature from 2800K (warm) to 10000K (cool).
• Juster lysstyrke: Use the brightness knob to set the desired light intensity from 0% to 100%.

5.3 HSL Mode (RGB Full Color)

The HSL mode allows for full color adjustment with 360 hues and 100 saturation levels.

• Select HSL Mode: Use the mode button to navigate to HSL mode.
• Hue Adjustment: Use the corresponding knob to select a hue from 0-360 degrees.
• Saturation Adjustment: Use the knob to adjust saturation from 0-100%.
• Justering af lysstyrke: Use the brightness knob to set the light intensity.

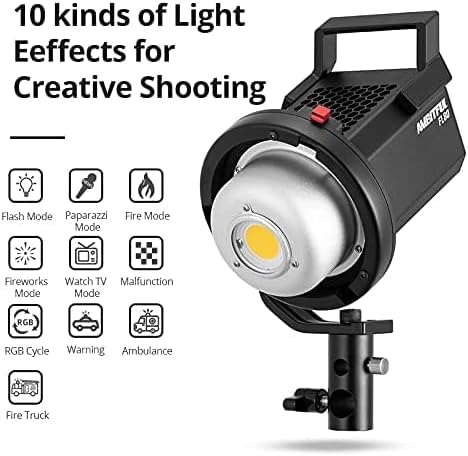

5.4 Special Effects Mode

The FL80RGB includes 10 pre-programmed special effects to enhance your creative shooting.

• Select FX Mode: Use the mode button to navigate to FX (Effects) mode.
• Vælg effekt: Use the knob to cycle through the 10 available effects: Flash, Paparazzi, Fire, Fireworks, Watch TV, Malfunction, RGB Cycle, Warning, Ambulance, and Fire Truck.
• Juster parametre: Some effects allow for adjustment of frequency or intensity using the control knobs.

5.5 App kontrol

The AMBITFUL FL80RGB can be controlled remotely via a mobile application, compatible with both iOS and Android systems.

1. Download app: Søg efter the 'AMBITFUL' app in your device's app store.
2. Aktiver Bluetooth: Sørg for, at Bluetooth er aktiveret på din mobilenhed.
3. Forbind til lys: Open the app and follow the on-screen instructions to connect to your FL80RGB light via Bluetooth 5.0.
4. Fjernbetjening: Once connected, you can adjust all light settings, including CCT, HSL, FX modes, and brightness, directly from your phone.

6. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your AMBITFUL FL80RGB LED Video Light.

• Rensning: Use the provided cleaning cloth or a soft, dry cloth to wipe the light body and lens. Avoid using harsh chemicals or abrasive materials.
• Opbevaring: When not in use, store the light in a dry, dust-free environment. It is recommended to use the original packaging or a padded case for protection during transport and storage.
• Ventilation: Ensure the ventilation holes are clear of obstructions to allow for proper heat dissipation.
• Power Cable Care: Avoid bending or crimping the power cable excessively. Always grasp the plug, not the cable, when disconnecting from power.

7. Fejlfinding

If you encounter issues with your AMBITFUL FL80RGB, refer to the following common problems and solutions:

8. Specifikationer

Detailed technical specifications for the AMBITFUL FL80RGB LED Video Light:

9. Garanti og support

AMBITFUL products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official AMBITFUL website. If you require technical assistance or have questions about your FL80RGB LED Video Light, please contact AMBITFUL customer support through their official channels.
