Indledning
This manual provides detailed instructions for the assembly, operation, and maintenance of your COSTWAY 4-Drawer Mobile Storage Cart. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product. Keep this manual for future reference.

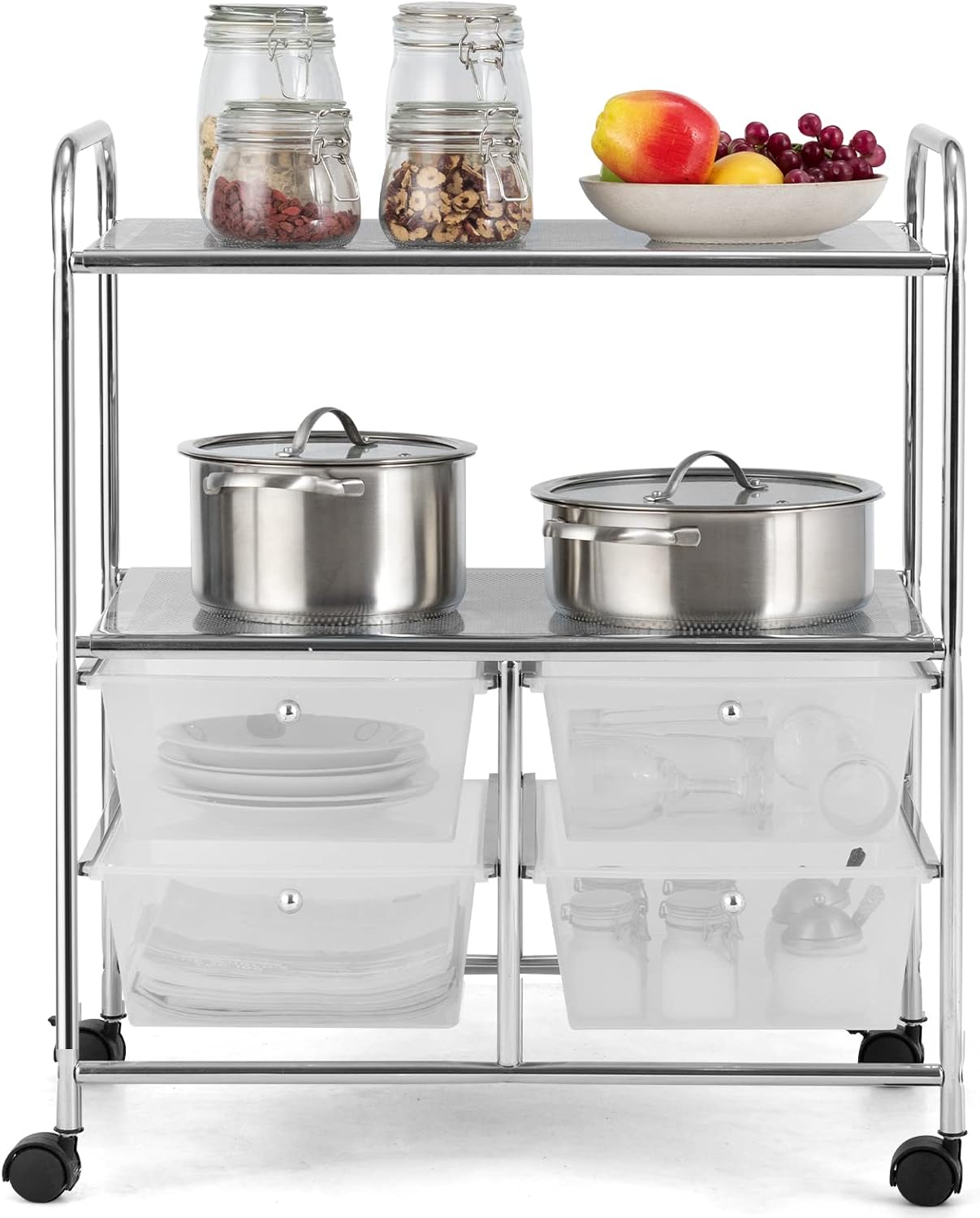

Image: The COSTWAY 4-Drawer Mobile Storage Cart, showcasing its two open shelves and four clear drawers filled with various household items.
Sikkerhedsoplysninger
Overhold følgende sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af produktet:
- Always lock the wheels when the cart is stationary to prevent unintended movement.
- Do not exceed the maximum weight recommendation of 11 lbs (5 kg) per drawer to ensure stability and safety.
- Do not exceed the maximum weight recommendation of 55 lbs (25 kg) per shelf.
- Hold små dele væk fra børn under montering.
- Sørg for, at alle forbindelser er forsvarligt fastspændt før brug.
- Avoid placing hot items directly on the shelves or in the drawers.
Pakkens indhold
Before beginning assembly, unpack all components and verify that you have received all parts listed below. If any parts are missing or damaged, please contact customer support.
- Steel Frame Components (Uprights, Crossbars)
- 2 x nethylder
- 4 x Clear PP Drawers
- 4 x Caster Wheels (2 with locking mechanism)
- Samlebeslag (skruer, skruenøgle)
- 1 x brugsanvisning
Monteringsvejledning
Follow these steps carefully for proper assembly. It is recommended to assemble the cart on a soft, clean surface to prevent scratches.
- Fastgør hjul: Carefully turn the base frame upside down. Insert the four caster wheels into the designated holes at the bottom of the frame. Ensure two of the wheels with locking mechanisms are placed on the same side for easier access. Tighten them securely with the provided wrench.
- Saml ramme: Connect the upright steel frame components using the provided screws. Ensure all connections are firm and stable.
- Installer hylder: Place the two mesh shelves onto the designated support bars of the steel frame. The shelves should rest securely on the frame.
- Indsæt skuffer: Slide the four clear PP drawers into their respective slots within the frame. Ensure they slide smoothly.
Billede: Detaljeret view of the cart's components, including the smooth handrail, metal mesh panel, rounded drawer handle, and reinforced connections, illustrating the quality of construction.
Betjeningsvejledning
Your COSTWAY storage cart is designed for versatile use and easy mobility.
- Flytning af vognen: To move the cart, unlock the two lockable caster wheels by flipping their levers upwards. Gently push or pull the cart to your desired location. The 360° rotatable wheels allow for smooth movement in any direction.
- Sikring af vognen: Once the cart is in its desired position, engage the locking mechanism on the two caster wheels by pressing their levers downwards. This will prevent the cart from rolling unintentionally.
- Using Drawers and Shelves: Utilize the four deep drawers for storing items that require containment or privacy. The two open shelves are suitable for displaying items or storing frequently accessed objects.

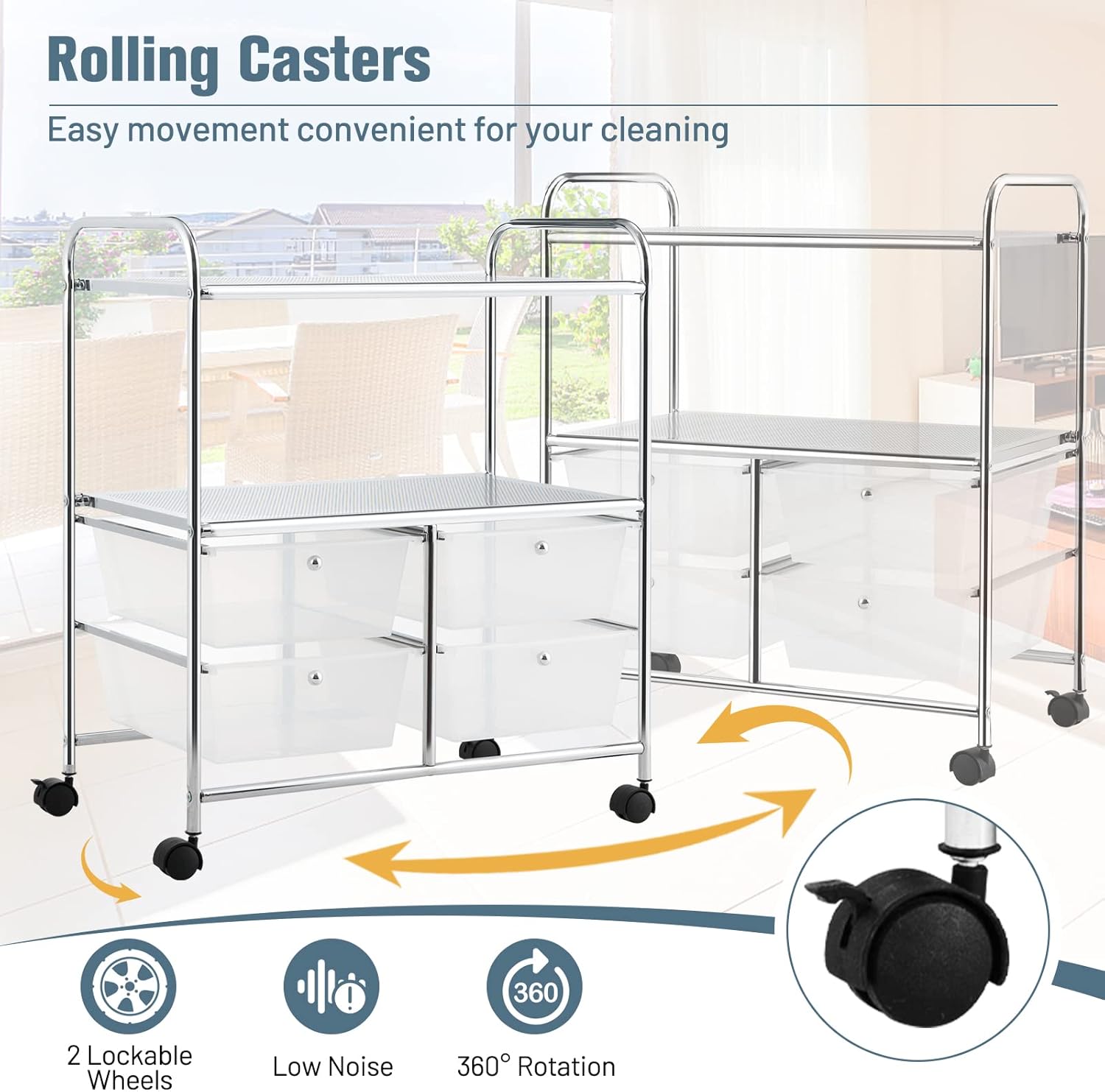

Image: Illustration of the cart's rolling casters, highlighting their 360° rotation, low noise operation, and the lockable feature on two of the wheels for stability.
Opretholdelse
Regular maintenance will help keep your storage cart in optimal condition.
- Rensning: Wipe the steel frame and PP drawers with a soft, damp klud. Til genstridige pletter kan en mild sæbeopløsning bruges, efterfulgt af tørring med en ren klud. Undgå slibende rengøringsmidler eller barske kemikalier.
- Inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Efterspænd om nødvendigt.
- Skuffepleje: The PP drawers can be removed for thorough cleaning if needed.
Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Vognen er ustabil eller vaklende. | Løse skruer eller ujævn overflade. | Check and tighten all assembly screws. Ensure the cart is on a flat, level surface. |
| Skufferne glider ikke gnidningsløst. | Drawer rails are dirty or misaligned. | Remove drawers and clean the tracks. Ensure drawers are inserted correctly. |
| Hjulene ruller ikke frit. | Hjullåse er aktiveret, eller der er snavs i hjulene. | Ensure wheel locks are disengaged. Check for and remove any debris caught in the wheels. |
| Manglende dele ved ankomst. | Emballagefejl. | Contact COSTWAY customer support immediately for replacement parts. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | GT-CL07045-HW |
| Produktmål (L x B x H) | 25" x 14.5" x 29.5" (63.5 cm x 36.8 cm x 74.9 cm) |
| Skuffemål (L x B x H) | 14.5" x 11" x 5" (36.8 cm x 27.9 cm x 12.7 cm) |
| Materiale | Alloy Steel Frame, Polypropylene (PP) Drawers |
| Farve | Clear Drawers, Chrome Frame |
| Antal skuffer | 4 |
| Antal hylder | 2 |
| Hjultype | 360° Swivel Casters (2 lockable) |
| Varens vægt | 10 lbs (4.5 kg) |
| Maks. vægtkapacitet (pr. hylde) | 55 lbs (25 kg) |
| Max. Weight Capacity (per drawer) | 11 lbs (5 kg) |
| Montering påkrævet | Ja |
Image: A detailed diagram illustrating the dimensions and weight capacities of the storage cart, including overall measurements and individual shelf and drawer load limits.
Støtte
For any questions, missing parts, or assistance with your COSTWAY 4-Drawer Mobile Storage Cart, please contact our customer support team. Refer to your purchase documentation for specific contact details or visit the official COSTWAY webwebsted.
