INGCO Højtryksrenser HPWR15028 Brugermanual

1. Introduktion

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your INGCO High Pressure Washer, model HPWR15028. Please read these instructions carefully before using the appliance to ensure optimal performance and user safety. Keep this manual for future reference.

2. Sikkerhedsinstruktioner

Overhold altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at reducere risikoen for brand, elektrisk stød og personskade.

• Elektrisk sikkerhed: Sørg for, at strømforsyningen matcher voltage specified on the pressure washer. Do not operate the unit with damaged cords or plugs. Always use a ground fault circuit interrupter (GFCI) for protection.
• Vandtryk: The high-pressure jet can be dangerous if misused. Never direct the water jet at people, pets, electrical equipment, or the unit itself.
• Personligt beskyttelsesudstyr: Wear appropriate eye protection, hearing protection, and protective clothing during operation.
• Stabil overflade: Brug højtryksrenseren på en stabil, plan overflade for at forhindre, at den vælter.
• Børn og tilskuere: Hold børn og omkringstående væk fra betjeningsområdet.
• Opretholdelse: Afbryd strømforsyningen, før der udføres vedligeholdelse eller rengøring.

3. Pakkens indhold

Carefully unpack the pressure washer and check that all items are present and undamaged. If any parts are missing or damaged, contact your retailer.

• INGCO High Pressure Washer Unit
• Højtrykssprøjtepistol
• 8-Meter High-Pressure Hose
• Vandindtagsfilter
• Quick Connector
• 4.5-Meter PVC Hose (for water intake)
• Brugermanual

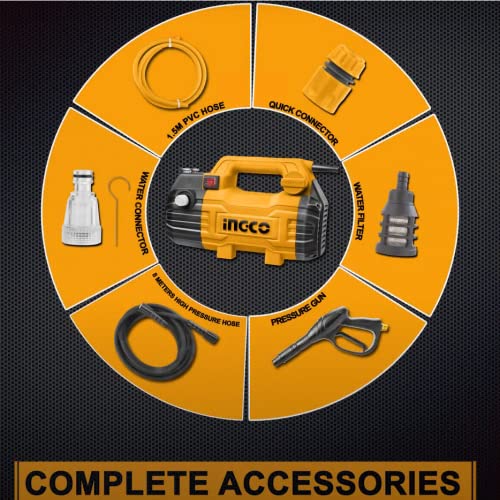

Figur 3.1: Complete Accessories. This diagram illustrates all components included with your INGCO High Pressure Washer, such as the main unit, various hoses, connectors, and the spray gun.

4. Samling og opsætning

Follow these steps to assemble your pressure washer before first use.

1. Attach Water Inlet Filter: Screw the water inlet filter onto the water inlet connection of the pressure washer unit.
2. Connect Quick Connector: Attach the quick connector to the water inlet filter.
3. Tilslut vandforsyningsslange: Connect your garden hose (4.5M PVC hose provided or similar) to the quick connector. Ensure a secure fit to prevent leaks.
4. Tilslutning af højtryksslange: Connect one end of the 8-meter high-pressure hose to the high-pressure outlet on the pressure washer unit and the other end to the high-pressure spray gun. Tighten all connections firmly.
5. Tilslut strøm: Sæt netledningen i en passende jordet stikkontakt.

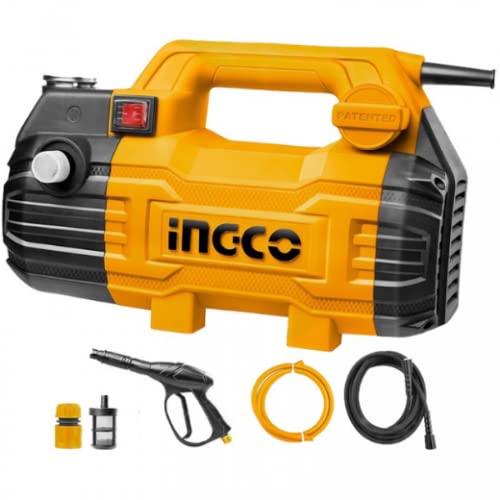

Figur 4.1: Pressure Washer and Accessories. This image displays the main INGCO pressure washer unit along with its accompanying accessories, including the spray gun, hoses, and connectors, ready for assembly.

5. Betjeningsvejledning

Før du starter, skal du sørge for, at alle forbindelser er sikre, og at vandforsyningen er tændt.

1. Udluftning af systemet: Før du tænder for strømmen, skal du trykke på aftrækkeren på sprøjtepistolen for at lade vandet strømme gennem systemet og uddrive eventuel luft. Fortsæt, indtil en jævn vandstrøm kommer ud af dysen.
2. Start enheden: Drej tænd/sluk-knappen til 'ON'-positionen. Motoren starter.
3. Begynd rengøring: Aim the spray gun at the surface to be cleaned, maintaining a safe distance. Squeeze the trigger to activate the high-pressure jet. Release the trigger to stop the water flow.
4. Justering af sprøjtemiddel: The spray gun may feature an adjustable nozzle to change the spray pattern from a concentrated jet to a wider fan spray. Adjust as needed for different cleaning tasks.
5. Stop af drift: To stop the unit, release the spray gun trigger and turn the power switch to the 'OFF' position. Turn off the water supply.
6. Lindre trykket: After turning off the unit and water supply, squeeze the spray gun trigger to release any remaining pressure in the system before disconnecting hoses.

6. Vedligeholdelse

Regular maintenance ensures the longevity and efficient operation of your pressure washer.

• Rent vandindløbsfilter: Periodically check and clean the water inlet filter to prevent debris from entering the pump. Rinse it under running water.
• Rengøring af dyse: If the nozzle becomes clogged, use a small pin or wire to clear any obstructions.
• Opbevaring: Before storing, ensure all water is drained from the pump and hoses, especially in freezing temperatures. Store the unit in a dry, frost-free location.
• Motorpleje: The unit features a 100% pure copper motor designed for durability and longer service life. No specific user maintenance is required for the motor itself, but ensuring proper water flow and preventing overheating will contribute to its lifespan.

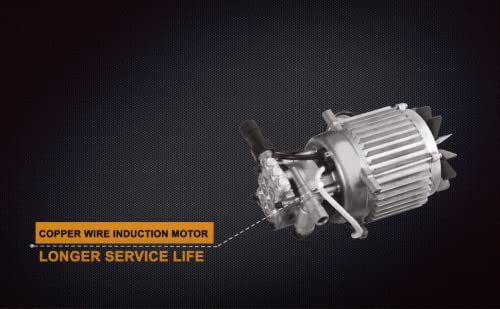

Figur 6.1: Copper Wire Induction Motor. This internal view emphasizes the copper wire induction motor, a key component contributing to the pressure washer's durability and extended operational life.

7. Fejlfinding

Se dette afsnit for almindelige problemer og deres løsninger.

• Enheden starter ikke:
  • Kontroller strømtilslutningen og sørg for, at stikkontakten fungerer.
  • Kontroller, at tænd/sluk-knappen er i 'ON'-positionen.
  • Kontroller for udløste afbrydere eller sprungne sikringer.
• Lavt tryk:
  • Ensure the water supply is fully open and adequate.
  • Clean the water inlet filter for obstructions.
  • Check the nozzle for clogs and clear if necessary.
  • Inspect hoses for kinks or leaks.
• Vandlækager:
  • Spænd alle slangeforbindelser.
  • Check O-rings and seals for damage and replace if needed.
• Motoren stopper under drift:
  • The thermal protector may have activated due to overheating. Turn off the unit and allow it to cool for 15-30 minutes before restarting.
  • Sørg for korrekt ventilation omkring enheden.

8. Specifikationer

9. Garanti og support

For warranty information, service, or technical support, please refer to the warranty card included with your product or contact INGCO customer service directly. Keep your purchase receipt as proof of purchase.

Fabrikant: INGCO

Dato først tilgængelig: 9. november 2021
