KAIWEETS Smart Digitalt Multimeter ST600X Brugsanvisning

1. Introduktion

The KAIWEETS ST600X is a smart digital multimeter designed for accurate and safe electrical measurements. It features auto-ranging capabilities, a large backlit display, and a robust design for various applications, from household electrical work to automotive diagnostics.

2. Sikkerhedsoplysninger

Vigtige sikkerhedsforanstaltninger:

• This device is IEC CAT IV 600V rated, CE, and RoHS compliant, ensuring high safety standards.
• Always inspect the multimeter and test leads for any damage before use.
• Ensure proper connection of test leads to the correct input jacks for the intended measurement.
• Forsøg ikke at måle voltages or currents exceeding the specified maximum ratings.
• Avoid using the multimeter in wet conditions or in the presence of explosive gases or dust.
• Refer to the full safety guidelines in the printed manual for detailed information.

3. Hvad er der i æsken

Upon opening your KAIWEETS ST600X package, you should find the following items:

• 1x KAIWEETS ST600X Smart Digital Multimeter
• 1x opbevaringspose
• 2x testledninger (rød og sort)
• 1x Thermocouple (for temperature measurement)
• 4 x 1.5V AAA batterier
• 1x Brugsanvisning (dette dokument)

Image 3.1: KAIWEETS ST600X Multimeter, storage bag, test leads, and batteries.

4. Produktet er slutview

The KAIWEETS ST600X features a user-friendly design with a large display and intuitive controls. Key components include:

• Stort baggrundsbelyst display: Provides clear readings in various lighting conditions.
• Funktionsknapper: Replaces traditional rotary knobs for mode selection.
• Indgangsstik: Clearly labeled ports for test lead connection.
• Indbygget lommelygte: Assists in dimly lit environments.
• Protective Rubber Case: Enhances durability and provides drop protection.

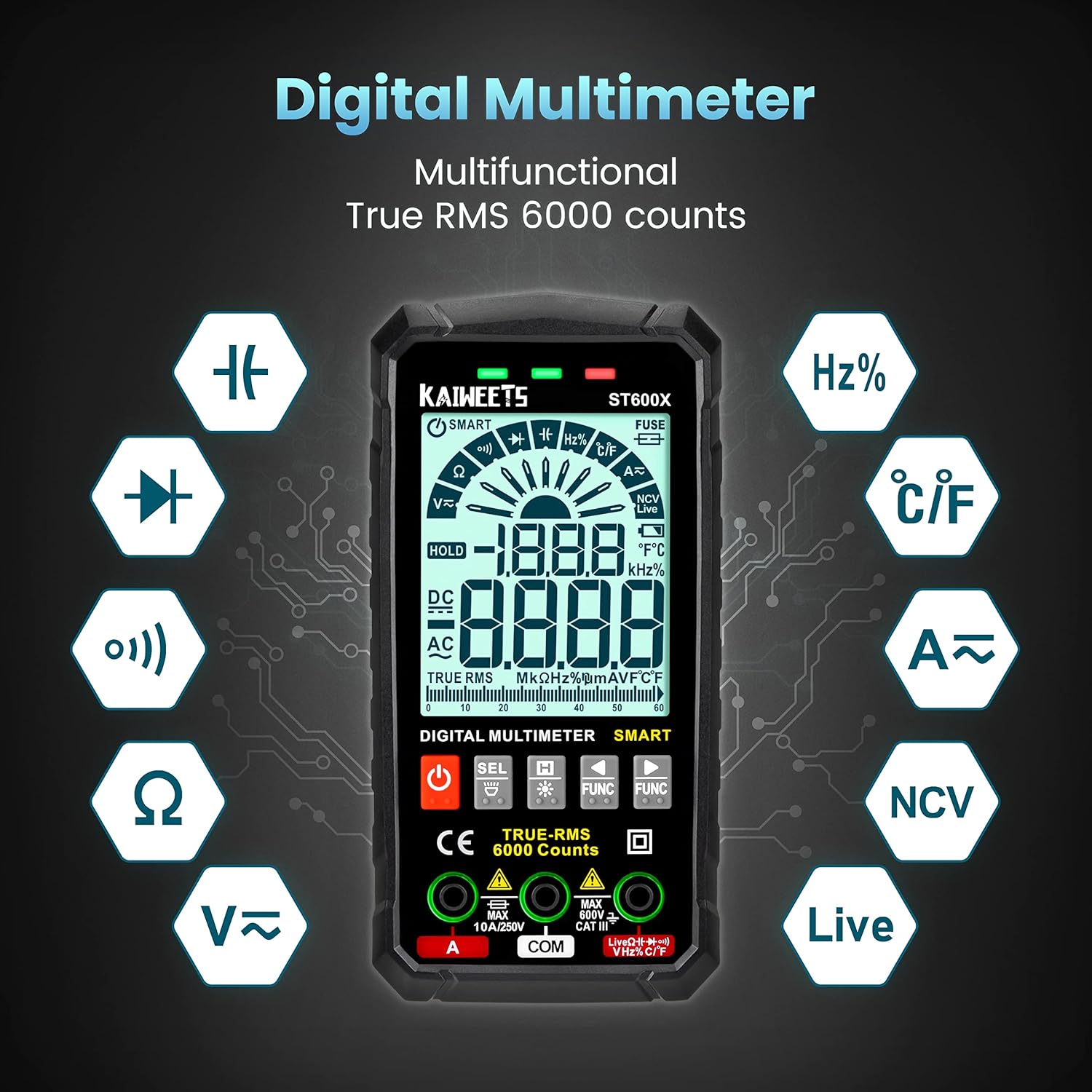

Billede 4.1: Overview of the KAIWEETS ST600X Digital Multimeter highlighting its multifunctional capabilities.

Billede 4.2: Detaljeret view of the large backlit display and input jacks for fast measurement.

5. Opsætning

5.1 Batteriinstallation

The multimeter requires 4 AAA batteries. To install or replace batteries, locate the battery compartment on the rear of the device. Use a screwdriver to open the compartment, insert the batteries according to the polarity markings, and secure the cover.

5.2 Tilslutning af testledninger

Connect the red test lead to the "VΩHz" or "A" input jack and the black test lead to the "COM" input jack. Ensure the leads are securely inserted. The multimeter may indicate the correct lead connection for specific functions with a blinking green light.

6. Driftstilstande og målinger

The KAIWEETS ST600X offers both Smart Mode (Auto-ranging) and Manual Mode for various electrical measurements.

6.1 Smart Mode (Auto-ranging)

In 'Auto' mode, the multimeter automatically detects and responds to common measurements such as DC/AC voltage, resistance, or continuity. Simply attach the probes, and the device will identify the measurement type and display the reading with the best resolution.

Image 6.1: The multimeter displaying "Auto" mode, indicating automatic detection for voltage, resistance, and continuity tests.

6.2 Manual Mode and Function Selection

For specific measurements not automatically detected or to override Smart Mode, you can manually select functions using the "FUNC" buttons. Pressing the "FUNC" buttons allows you to cycle through available measurement types from left to right or right to left.

Image 6.2: Illustration of using the "FUNC" buttons to manually select measurement functions.

6.3 Specific Measurement Procedures

The following procedures demonstrate how to perform various tests using the KAIWEETS ST600X multimeter. Many of these are covered in the video below.

6.3.1 DC Voltage Test

For at måle DC voltage, ensure the multimeter is in Smart Mode or manually select DC Voltage. Connect the red probe to the positive terminal and the black probe to the negative terminal of the DC source. The display will show the voltage læsning.

Image 6.3.1: Measuring the DC voltage of a car battery using the multimeter.

6.3.2 Modstandstest

For resistance measurement, select the resistance function (Ω) or use Smart Mode. Ensure the circuit is de-energized before connecting the probes across the component to be measured. The display will show the resistance in Ohms.

6.3.3 Kontinuitetstest

Select the continuity function (buzzer icon) or use Smart Mode. Place the probes on two points of a circuit. If there is continuity (a complete path), the multimeter will emit an audible beep and display a low resistance value.

6.3.4 Diodetest

Select the diode test function. Connect the red probe to the anode and the black probe to the cathode of the diode. The display will show the forward voltage drop. Reverse the probes to check for open circuit (OL) in the reverse direction.

6.3.5 Kapacitanstest

Select the capacitance function. Ensure the capacitor is discharged before testing. Connect the probes across the capacitor terminals. The display will show the capacitance value in Farads.

Image 6.3.5: Performing a capacitance test on a component.

6.3.6 Test af strømførende ledninger

Select the Live Wire function. Insert the red probe into the live wire or socket. The multimeter will indicate the presence of live voltage with an audible and visual alert.

6.3.7 Non-Contact Voltage (NCV) Test

Select the NCV function. Hold the top of the multimeter near an AC voltage source without direct contact. The device will detect the electromagnetic field and indicate voltage presence with beeps and visual signals.

Image 6.3.7: Performing a Non-Contact Voltage (NCV) test.

6.3.8 Temperaturtest

Connect the thermocouple to the appropriate input jacks and select the temperature function. Place the thermocouple tip on or in the object whose temperature you wish to measure. The display will show the temperature in Celsius or Fahrenheit.

Image 6.3.8: Performing a temperature test using the included thermocouple.

6.3.9 AC/DC Current, Frequency, and Duty-Cycle

The ST600X can measure up to 10A AC/DC current, frequency, and duty-cycle. Refer to the detailed instructions in the full manual for specific connection and measurement procedures for these functions, as they often require breaking the circuit to measure current.

7. Yderligere funktioner

7.1 Lommelygte og baggrundsbelysning

The ST600X is equipped with a large backlit display for easy reading in low-light conditions. A small LED flashlight is also integrated on the rear of the device to illuminate the work area. Activate these features using the dedicated buttons.

Image 7.1: The multimeter's flashlight in use, illuminating a dark area.

7.2 Automatisk slukning

To conserve battery life, the multimeter will automatically turn off after approximately 15 minutes of inactivity. This feature helps prevent accidental battery drain.

7.3 Protective Design

The multimeter is encased in a durable rubber case, providing protection against drops and impacts, enhancing its longevity and safety during use.

8. Vedligeholdelse

• Rensning: Brug en blød, damp klud til at rengøre enheden. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Udskiftning af batteri: Udskift batterierne, når indikatoren for lavt batteriniveau vises på displayet.
• Udskiftning af sikring: If the fuse prompt appears, refer to the full manual for instructions on replacing the internal fuse.
• Opbevaring: Store the multimeter in its provided storage bag in a cool, dry place when not in use.

9. Fejlfinding

If you encounter issues with your KAIWEETS ST600X multimeter, consider the following common troubleshooting steps:

• Ingen skærm/strøm: Kontroller batteriinstallationen, og sørg for, at batterierne ikke er afladede. Udskift om nødvendigt.
• Forkerte aflæsninger: Verify test lead connections are secure and in the correct jacks for the selected function. Ensure the correct measurement mode is selected (Smart Mode or Manual).
• "OL" or "Open Loop" Display: This typically indicates an open circuit (no continuity) or a measurement exceeding the device's range.
• Damaged Fuse Prompt: If the "FUSE" indicator appears, the internal fuse may be blown. Refer to the detailed manual for replacement instructions.
• Upræcise læsninger: While designed for general use, for applications requiring extreme precision, ensure the device is within its operating temperature range and consider professional calibration if critical accuracy is required.

10. Specifikationer

11. Garanti og support

KAIWEETS provides three years of after-sale support and technical assistance for the ST600X Smart Digital Multimeter. For any inquiries or support needs, please refer to the contact information provided in your product packaging or visit the official KAIWEETS webwebsted.

For more information about KAIWEETS products, visit the KAIWEETS Store on Amazon.
