PPLEE Extra Loud Vibrating Alarm Clock with Bed Shaker

1. Produktet er slutview

The PPLEE Extra Loud Vibrating Alarm Clock is designed to provide effective wake-up solutions for deep sleepers, individuals with hearing impairment, and the deaf. It features multiple wake-up modes, a large digital display, dual alarm settings, and convenient charging capabilities.

Image 1.1: The PPLEE Extra Loud Vibrating Alarm Clock with its bed shaker accessory.

Nøglefunktioner:

• Strong Bed Shaker & Loud Alarm Buzzer: Offers three wake-up modes: loud buzzer, strong bed shaker, or a combination of both.
• 8.7" Large Mirror LED Display: Provides clear time visibility and can also function as a makeup mirror.
• Dual Alarms with Snooze Function: Allows setting two independent alarms with a 9-minute snooze option.
• Adjustable Brightness & Volume: Features 8 levels of display brightness and 7 levels of alarm volume.
• USB opladningsport: Conveniently charge your mobile devices directly from the clock.
• Batteri-sikkerhedskopi: Bevarer tids- og alarmindstillinger under strømafbrydelsetages (CR2032 battery included).
• 12/24H Mode & DST Function: Supports both 12-hour and 24-hour time formats, along with Daylight Saving Time adjustment.

2. Pakkens indhold

Markér venligst feltet for følgende elementer:

• 1 x PPLEE Mirror Alarm Clock
• 1 x Bed Shaker
• 1 x Power Plug with USB Cable
• 1 x brugsanvisning
• 1 x CR2032 Cell Coin Battery (pre-installed or separate)

Image 2.1: All components included in the product package.

3. Opsætningsvejledning

3.1 Strømtilslutning

1. Connect the USB cable to the alarm clock's power input port.
2. Sæt strømadapteren i en almindelig stikkontakt. Urdisplayet lyser.
3. Ensure the CR2032 backup battery is installed in its compartment. This battery preserves time and alarm settings during power interruptions.

Billede 3.1: Bagside view of the alarm clock showing the AC power input and backup battery compartment.

3.2 Bed Shaker Placement

The bed shaker provides a strong vibration to assist in waking. For optimal effectiveness, place the bed shaker in one of the following locations:

• Under your pillow.
• Under your fitted sheet.
• Between your mattress and box spring.

Image 3.2: Recommended placements for the bed shaker to maximize vibration effectiveness.

4. Betjeningsvejledning

4.1 Indstilling af klokkeslæt

1. Tryk og hold på TIDSINDSTILLING knappen, indtil timecifrene begynder at blinke.
2. Brug TIME og MINUT knapper for at justere tiden.
3. Trykke TIDSINDSTILLING igen for at bekræfte og afslutte tidsindstillingstilstanden.

4.2 Indstilling af alarmer (Alarm 1 og Alarm 2)

Uret understøtter to uafhængige alarmer.

1. Tryk og hold på ALARM 1 or ALARM 2 knappen, indtil alarmtidscifrene blinker.
2. Brug TIME og MINUT knapperne for at indstille det ønskede alarmtidspunkt.
3. Trykke ALARM 1 or ALARM 2 igen for at bekræfte alarmtidspunktet.
4. To activate or deactivate an alarm, short press the corresponding ALARM 1 or ALARM 2 knappen. Et alarmikon vil vises/forsvinde på displayet.

Image 4.1: The dual alarm feature allows setting two separate wake-up times.

4.3 Snooze -funktion

Når en alarm lyder, skal du trykke på SLUM button to temporarily silence the alarm for 9 minutes. The alarm will sound again after the snooze period.

4.4 Slukning af alarmer

• Temporary Turn Off: Tryk på ALARM SLUKKET button once when the alarm is sounding to stop it for the current day. It will reactivate the next day.
• Permanent Turn Off: Tryk og hold på ALARM SLUKKET button to deactivate the alarm permanently. The alarm icon will disappear from the display.

4.5 Justering af skærmens lysstyrke

The display has 8 levels of brightness. Short press the DIMMER button repeatedly to cycle through the brightness levels (OFF, Level 1-7). When in 'OFF' mode, the red indicator on top will remain on.

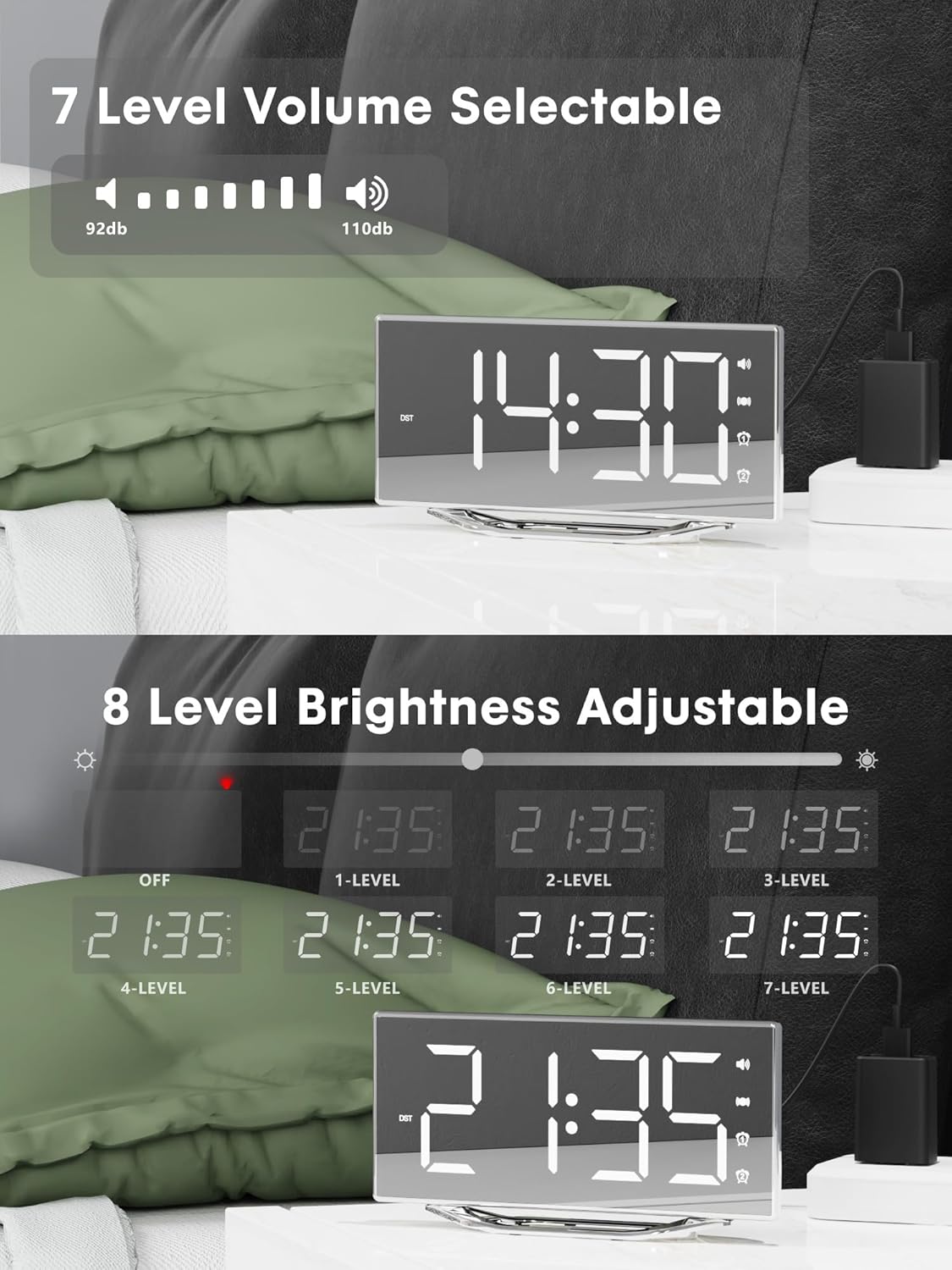

Image 4.2: Visual representation of the 8-level brightness adjustment for the LED display.

4.6 Justering af alarmlydstyrke

The alarm buzzer has 7 adjustable volume levels. Short press the BIND button repeatedly to cycle through the volume levels.

Image 4.3: The alarm volume can be adjusted across 7 levels, from 92dB to 110dB.

4.7 Selecting Wake-Up Mode

Tryk på BUZZ/VIB button to select your preferred wake-up method:

• Loud Buzzer only
• Strong Bed Shaker only
• Both Buzzer and Shaker

Image 4.4: The alarm clock offers three distinct wake-up modes for personalized use.

4.8 12/24 Hour Format & DST

• 12/24 timers format: Tryk kort på 12/24H button to switch between 12-hour and 24-hour time display.
• DST funktion: Tryk kort på DST button to activate or deactivate Daylight Saving Time.

Image 4.5: The clock supports both 12-hour and 24-hour time formats, and features a USB charging port.

4.9 USB-opladningsport

The integrated USB charging port allows you to charge your smartphone or other USB-powered devices directly from the alarm clock. Simply connect your device's USB charging cable to the port on the clock.

5. Vedligeholdelse

• Clean the clock surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Keep the clock away from water and high humidity.
• Do not expose the clock to direct sunlight or extreme temperatures.
• If the clock will not be used for an extended period, consider removing the backup battery to prevent leakage.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

PPLEE is committed to providing high-quality products and customer satisfaction.

• 1-års garanti: The product is covered by a 1-year warranty from the date of purchase against manufacturing defects.
• 90-dages pengene-tilbage-garanti: If you are unsatisfied with the product, you may be eligible for a full refund within 90 days of purchase.
• Lifetime Free Support: PPLEE offers free lifetime user support for any questions or concerns regarding the product.
• 24-Hour Response Service: For any inquiries, please contact us via Amazon. We aim to respond within 24 hours.

Image 8.1: Summary of warranty and support offerings.
