Brugermanual til Wallbox Pulsar Plus EV-oplader

1. Introduktion

Welcome to the user manual for your Wallbox Pulsar Plus Electric Vehicle Charger. This document provides essential information for the safe and efficient use of your charger, including setup, operation, maintenance, and troubleshooting. The Wallbox Pulsar Plus is a powerful and intelligent charging solution designed for home use, featuring 22 kW charging capability, a Type 2 connector, and advanced connectivity options like WiFi and Bluetooth. It integrates seamlessly with the MyWallbox app and offers innovative features such as Power Boost and Eco-Smart for optimized energy management.

2. Sikkerhedsoplysninger

Please read all safety warnings and instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Professionel installation: The Wallbox Pulsar Plus charger must be installed by a qualified and certified electrician in accordance with all local and national electrical codes and regulations.
• Indendørs/udendørs brug: The charger is designed for both indoor and outdoor installation. Ensure the installation location is appropriate and protected from direct impact.
• Vand og fugt: Do not immerse the charger in water or expose it to excessive moisture. Ensure hands are dry when handling the charger or charging cable.
• Skadeinspektion: Before each use, inspect the charger, cable, and plug for any signs of damage. Do not use if any part is damaged.
• Børn og kæledyr: Hold børn og kæledyr væk fra opladningsområdet under drift.
• Nødstop: Familiarize yourself with the location of your electrical panel's circuit breaker for the charger, in case an emergency shutdown is required.

3. Produktet er slutview

The Wallbox Pulsar Plus is an advanced electric vehicle charger designed for efficient and smart home charging. This package includes the Pulsar Plus charger and the Power Meter for enhanced energy management.

3.1 Komponenter

• Wallbox Pulsar Plus Charger: The main charging unit, compact and designed for wall mounting.
• Effektmåler: An external device that measures real-time energy consumption, enabling features like Power Boost and Eco-Smart.
• Charging Cable (Type 2): Integrated or supplied separately, connects the charger to your electric vehicle.
• Plug Holder: For neat storage of the charging plug when not in use.

This image presents the main components of the Wallbox charging system laid out on a grey surface. It includes the white Wallbox Pulsar Plus charging station, a long black charging cable with a Type 2 charging plug, and a white plug holder designed to neatly store the charging plug when not in use.

3.2 Nøglefunktioner

• Høj effekt: Up to 22 kW for fast charging.
• Forbindelse: Built-in WiFi and Bluetooth for seamless connection to the MyWallbox app.
• Eco-Smart: Utilizes excess solar energy for EV charging. Offers two modes:
  Full-Green: Charges exclusively with 100% solar energy.
  Ekko: Combines solar and grid energy for optimized charging.
• Power Boost: Dynamically adjusts charging power based on real-time household energy consumption, preventing overloads and maximizing charging speed.
• MyWallbox App: Control, monitor, and schedule charging sessions from your smartphone.
• OCPP Compatibility: Open Charge Point Protocol for integration with various charging networks.

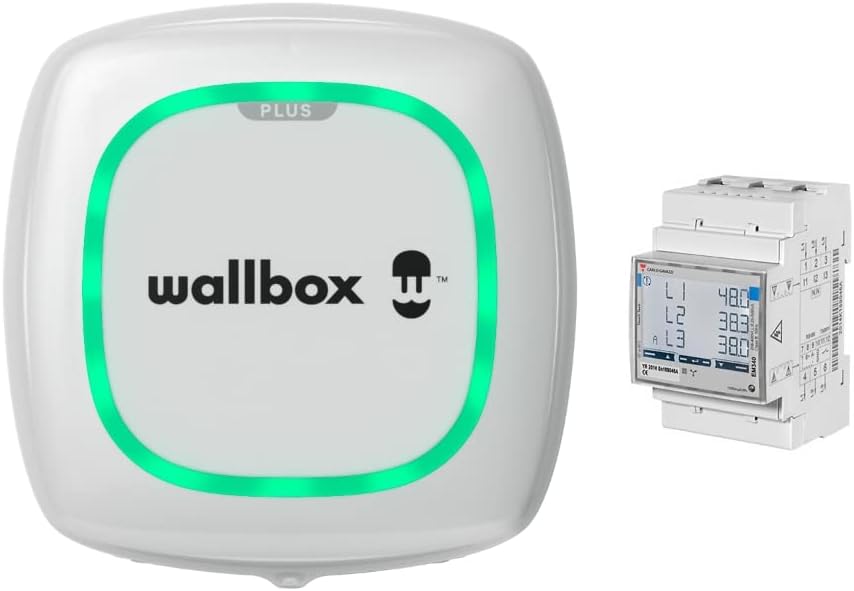

This image displays the Wallbox Pulsar Plus EV charger, a compact white unit with a green LED ring, positioned next to the Wallbox Power Meter. The Power Meter is a small, rectangular device designed for electrical panel installation, showing digital readings.

4. Opsætning og installation

The installation of the Wallbox Pulsar Plus charger requires professional expertise. It involves electrical wiring and adherence to specific safety standards. Please ensure a certified electrician performs the installation.

4.1 Kontrol før installation

• Verify your home's electrical capacity can support the charger's power requirements (22 kW).
• Ensure the chosen installation location is suitable, considering cable length, accessibility, and environmental factors.
• Confirm all necessary permits and inspections are obtained as required by local regulations.

4.2 Installationstrin (Overview for professionelle)

1. Montering: Securely mount the Pulsar Plus charger to a solid wall or suitable structure using the provided mounting kit.
2. Elektrisk tilslutning: Connect the charger to your home's electrical supply. This includes wiring the main power, ground, and communication cables for the Power Meter.
3. Power Meter Installation: Install the Power Meter in your electrical panel to enable Power Boost and Eco-Smart functionalities.
4. Indledende opstart: Once all connections are secure, power on the charger.
5. App konfiguration: Download the MyWallbox app and follow the on-screen instructions to connect your charger via Bluetooth or WiFi. This involves registering the charger and setting up your user profile.

This image shows the Wallbox Pulsar Plus charger mounted on the side of a dark-colored building, likely a garage or shed, with solar panels on its roof. An electric vehicle is parked nearby, connected to the charger, illustrating an outdoor charging setup integrated with solar energy.

5. Betjeningsvejledning

Operating your Wallbox Pulsar Plus is primarily done through the MyWallbox mobile application, offering comprehensive control and monitoring features.

5.1 MyWallbox App Usage

• Download og log ind: Download the MyWallbox app from your device's app store. Log in or create an account.
• Tilslut til oplader: Ensure your smartphone's Bluetooth is enabled or connect to the same WiFi network as your charger. Select your charger from the app's device list.
• Start/Stop opladning: Plug the Type 2 connector into your EV's charging port. Use the app to start or stop charging manually.
• Planlæg opladning: Set specific times for charging sessions to take advantage af elpriser uden for spidsbelastningsperioder.
• Monitorstatus: View real-time charging status, power consumption, and session history.

The Wallbox Pulsar Plus charger and Power Meter are shown with a smartphone displaying the MyWallbox app. The app interface shows charging status, current ampalder (32 AMPS), and energy consumption statistics, highlighting the smart control capabilities.

5.2 Eco-Smart Charging Modes

With the Power Meter installed, you can utilize solar energy for charging:

• Full-Green Mode: The charger will only use 100% green energy from your solar panels. If there isn't enough solar energy, charging will pause until sufficient solar power is available.
• Øko-tilstand: The charger prioritizes solar energy but will draw from the grid if solar production is insufficient to meet the minimum charging requirements. This ensures continuous charging while maximizing solar usage.

5.3 Power Boost Functionality

Power Boost dynamically adjusts the charging current to your EV based on your home's real-time energy consumption. This prevents overloading your electrical system while ensuring your EV charges at the maximum possible speed without exceeding your grid connection limit.

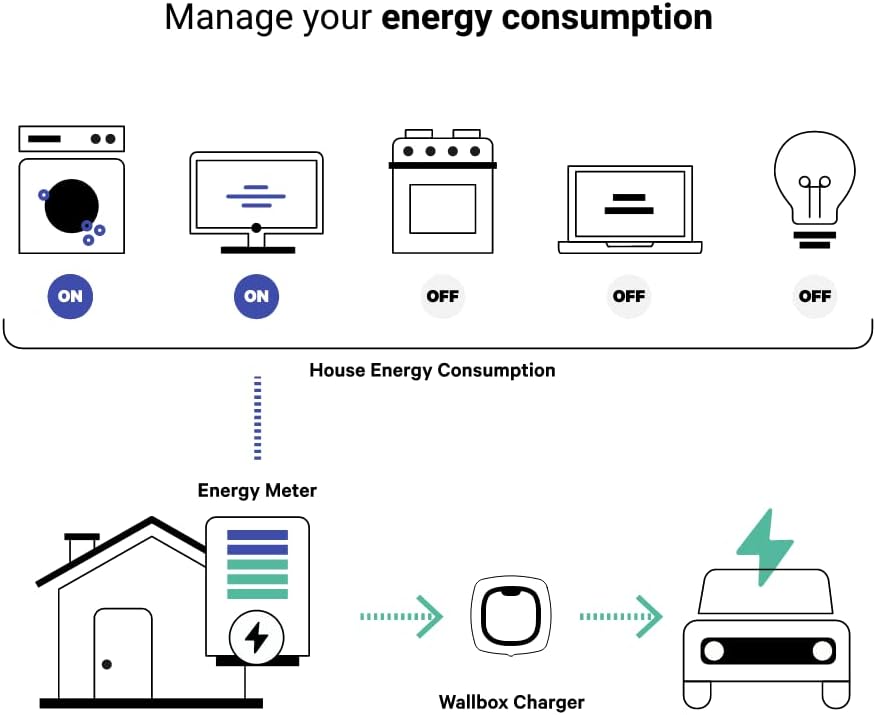

A schematic diagram depicts how the Wallbox charger manages household energy. It shows a house connected to an energy meter, which then communicates with the Wallbox charger. The charger intelligently distributes power to the electric car based on real-time household appliance usage (washing machine, monitor, oven, laptop, light bulb), optimizing energy flow and preventing overloads.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Wallbox Pulsar Plus charger.

• Rensning: Clean the exterior of the charger with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at opladeren er slukket, før du rengør den.
• Inspektion af kabel og stik: Periodically inspect the charging cable and connector for any signs of wear, cuts, or damage. Replace if necessary.
• Softwareopdateringer: Keep your charger's firmware updated through the MyWallbox app. Updates often include performance improvements, new features, and security enhancements.
• Ventilation: Ensure the charger's ventilation areas are clear of obstructions to prevent overheating.

7. Fejlfinding

If you encounter issues with your Wallbox Pulsar Plus, refer to the following common problems and solutions:

If you are unable to resolve an issue using these steps, please contact Wallbox customer support or your certified installer.

8. Specifikationer

9. Garanti og support

For detailed warranty information, please refer to the official Wallbox website or the documentation provided with your product at the time of purchase. Warranty terms typically cover manufacturing defects for a specified period.

9.1 Kundesupport

If you require technical assistance, have questions about your charger, or need to report an issue, please contact Wallbox customer support through the following channels:

• Wallbox Officiel Webwebsted: Visit the support section on the Wallbox webwebsted med ofte stillede spørgsmål, fejlfindingsvejledninger og kontaktformularer.
• MyWallbox App: Appen kan tilbyde direkte supportmuligheder eller links til relevante ressourcer.
• Certified Installer: For installation-related issues, contact the certified electrician who installed your charger.

Please have your charger's model number (PLP1-0-2-4-9-001-METER) and serial number ready when contacting support.
