Indledning
This innovative sprinkler has 6 watering patterns, simply turn the rotary dial to desired pattern. The Orbit H2O-Six Gear-Drive Sprinkler on Metal T Spike is designed for efficient and quiet lawn watering, covering large areas with customizable spray patterns.
Produktegenskaber
- LARGE-AREA COVERAGE: Sprays up to 80 feet in diameter, covering 5,026 square feet when set to a full circle.
- ADJUSTABLE SPRAY COVERAGE: Use the collar tabs to adjust your spray from partial to full circle (360 degree) coverage.
- 6 SPRAY PATTERNS: Choose from small, medium, large, shower, vertical, and flat.
- 4-POSITION DIFFUSER: Customize your spray to distribute water in drops or small jets.
- LET AT BRUGE: Simply twist and click into place for pattern selection.
- INNOVATIVE DESIGN: Gear drive, designed by Orbit, offers whisper-quiet operation.
- LONG-LASTING CONSTRUCTION: Made from strong, durable plastic to ensure this product will last from season to season without rust or corrosion.
- FLOW-THROUGH OUTLET: Use as a single sprinkler, or connect multiple sprinklers in a series to expand your watering coverage.
- SIMPLE POSITIONING: Push the spike into soft turf or soil; easy to remove and reposition as needed.
Opsætningsinstruktioner
1. Position the Sprinkler
Locate the desired watering area. Push the metal T-spike firmly into soft turf or soil until the base is stable. Ensure the sprinkler head is upright and level for optimal performance.
Image: The Orbit H2O-Six Gear-Drive Sprinkler with its metal T-spike for stable positioning.
2. Connect Water Hose
Attach your standard garden hose to the inlet connection at the base of the sprinkler. Ensure a tight connection to prevent leaks. The sprinkler features a flow-through outlet, allowing you to connect multiple sprinklers in a series for larger watering coverage.
Image: Close-up of the sprinkler's flow-through outlet, indicating where to connect additional sprinklers.
Betjeningsvejledning
1. Adjust Spray Pattern
The sprinkler offers 6 distinct spray patterns. To select a pattern, simply twist the rotary dial on the top of the sprinkler head until the desired pattern aligns with the indicator. Available patterns include Small, Medium, Large, Shower, Vertical, and Flat.
Image: Visual representation of the six available spray patterns: Small, Shower, Medium, Vertical, Large, and Flat.
2. Customize Spray Coverage (Partial to Full Circle)
Use the collar tabs located around the base of the sprinkler head to adjust the spray from a partial circle to a full 360-degree coverage. Rotate the tabs to set the right and left rotating stops, defining your desired watering area.
Image: A hand demonstrating how to adjust the collar tabs to define the spray coverage area.
3. Adjust Spray Diffuser
The sprinkler features a 4-position diffuser. Rotate the cap on top of the sprinkler to alter the water distribution, allowing you to customize the spray from fine drops to strong jets.
Image: A hand rotating the top cap of the sprinkler to adjust the spray diffuser.
4. Tænd
Once positioned and adjusted, turn on the water supply to begin watering. The gear-drive mechanism ensures whisper-quiet operation.
Image: The sprinkler in operation, watering a green lawn, demonstrating its wide spray diameter.
Opretholdelse
- Rensning: Periodically check the inlet screen for debris and clean if necessary to maintain optimal water flow.
- Opbevaring: During colder months, drain all water from the sprinkler and store it in a dry, frost-free location to prevent damage.
- Holdbarhed: The sprinkler is constructed from strong, durable plastic designed to last from season to season without rust or corrosion.
Fejlfinding
- Uneven Spray or Low Pressure:
- Check the water source for adequate pressure.
- Ensure the inlet screen is clear of debris.
- Verify that the spray pattern and diffuser settings are appropriate for your water pressure.
- Sprinkleren roterer ikke:
- Confirm sufficient water pressure.
- Check for any obstructions around the rotating head.
- Ensure the collar tabs are not set to restrict movement completely if full circle rotation is desired.
- Lækager ved tilslutning:
- Spænd slangeforbindelserne.
- Check for damaged washers or O-rings and replace if necessary.
Specifikationer
| Attribut | Værdi |
|---|---|
| Mærke | Orbit |
| Modelnummer | 58573 |
| Farve | Grøn |
| Materiale | Metal, Plast |
| Varedimensioner (L x B x H) | 10 x 3 x 2 tommer |
| Varens vægt | 1.68 pund |
| Maksimalt tryk | 65 pund pr. kvadrattomme |
| Maksimal flowhastighed | 0.01 liter pr. sekund |
| Dækningsområde | Up to 5,026 sq. ft. (80 ft. diameter) |
| Antal genstande | 2 |
| UPC | 840041545517 |

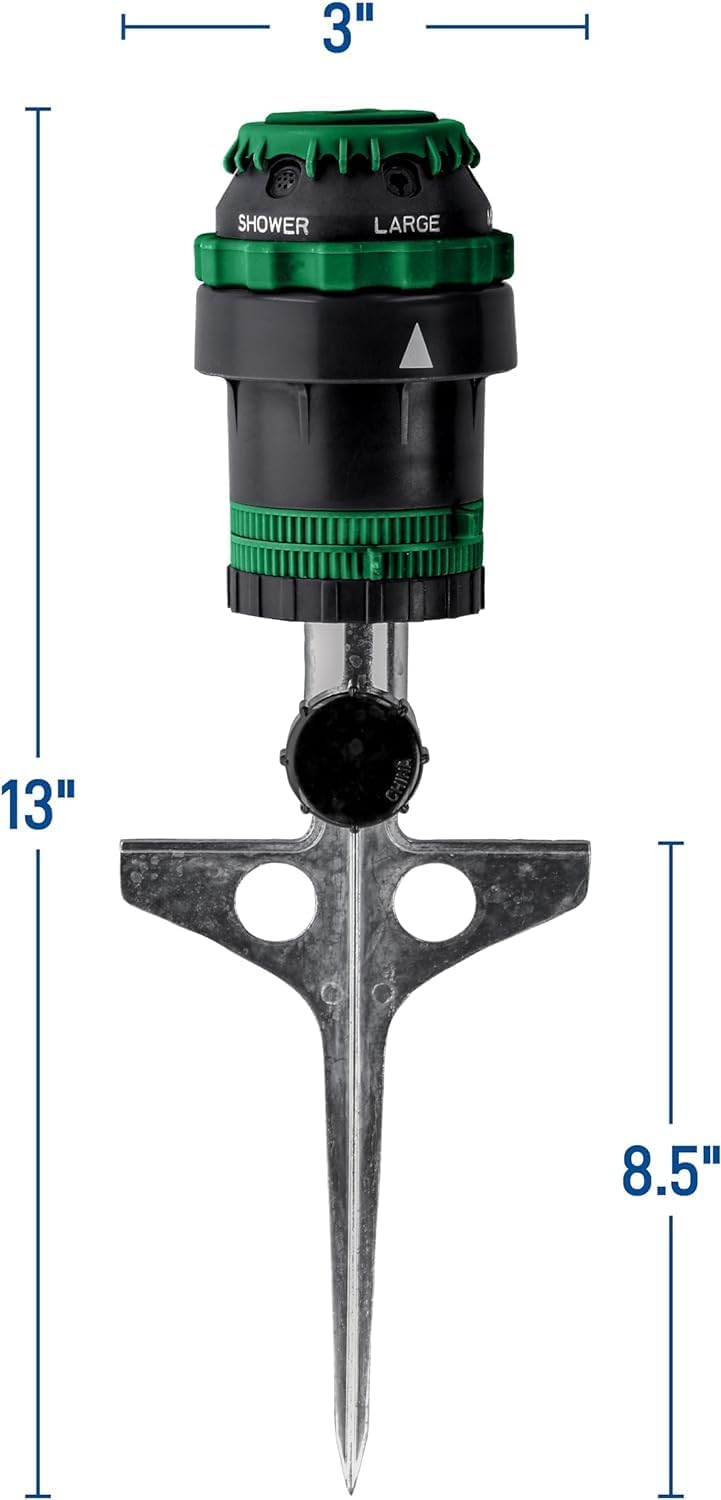

Image: Dimensions of the Orbit H2O-Six Gear-Drive Sprinkler.
Garanti & Support
This Orbit H2O-Six Gear-Drive Sprinkler comes with a 7 års producentgaranti, ensuring long-lasting performance and peace of mind.
For additional support, product information, or to explore other Orbit products, please visit the official Orbit Store på Amazon.
