1. Vigtige sikkerhedsoplysninger
Please read this manual thoroughly before operating the SMACO PCP Air Compressor. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.
- Aldersbegrænsning: This product is intended for use by individuals over 18 years old.
- Elektrisk sikkerhed: Ensure the power source matches the compressor's requirements (12V DC or 110V-220V AC). Always connect to a grounded outlet when using AC power. Do not operate with damaged cords or plugs.
- Ventilation: Operate the compressor in a well-ventilated area to prevent overheating. Avoid enclosed spaces.
- Trykgrænser: Never exceed the maximum operating pressure of 4500 PSI (30 MPa / 300 Bar). Over-pressurizing tanks can cause explosions.
- Afkølingscyklus: The compressor requires a cool-down period. Do not operate continuously for more than 25 minutes. Allow 10-15 minutes for cooling after each 25-minute cycle.
- Fugt og olie: This is an oil-free and water-free compressor. Do not add oil or water. Ensure the built-in oil-moisture filter is properly maintained.
- Forbindelser: Ensure all connections are secure before operation. The inflatable interface diameter is 8mm.
- Overvågning: Although the unit has an auto-shutoff feature, it is recommended to monitor the inflation process.
- Varme overflader: The compressor and hose can become hot during operation. Avoid direct contact.
2. Produktet er slutview
2.1 Nøglefunktioner
- Oil-Free & Water-Free Design: Features built-in high-power fans for efficient cooling, eliminating the need for external water pumps or oil.
- Pressure-Set & Auto-Shutoff: Set your desired pressure, and the compressor will automatically stop when reached.
- Fast Inflating Speed: Engine speed up to 2700r/min, air output 11L/min. Inflates a 0.5L container from 0 to 3000 PSI in approximately 11 minutes.
- Dobbelt strømforsyning: Operates on 12V DC from a car battery or 110V-220V AC household power.
- Let og bærbar: Weighs approximately 21 lbs with compact dimensions (9.6"L x 5.6"W x 10"H).
2.2 Komponenter og kontroller
Familiarize yourself with the main components of your SMACO PCP Air Compressor.
Figure 1: SMACO PCP Air Compressor and Accessories. This image displays the SMACO PCP Air Compressor unit along with its various accessories, including connection hoses, power cables, spare O-rings, and tools for maintenance.
Figure 2: Compressor Features Diagram. An illustrative diagram pointing out the main functional parts of the compressor, such as the adjustable voltage switch, pressure gauge, built-in oil moisture filter, wire spool design for cables, pressure valve, power switch, and safety valve.
- Trykmåler: Displays real-time pressure and allows setting target pressure.
- Udluftningsventil: Used to release residual pressure after inflation.
- Start/Off Buttons: Controls the compressor's operation.
- Power Switch (I/O/II): Selects DC (I) or AC (II) power mode.
- Strømindgangsporte: For 12V DC (car battery clamps) and 110V-220V AC (standard power cord).
- Oppumpningsslange: Connects the compressor to the tank.
- Sikkerhedsventil: An explosion-proof disc designed to release pressure if it exceeds safe limits.
3. Opsætningsvejledning
3.1 Udpakning og inspektion
- Fjern forsigtigt alle komponenter fra emballagen.
- Inspect the compressor and accessories for any signs of damage during shipping. Contact customer support if any damage is found.
- Ensure all listed accessories are present.
3.2 Indledende forbindelser
Before operating, ensure proper connections for power and inflation.
Figure 3: Adjustable Gauge, Pressure Relief, and Safety Valve. Detailed images showing the adjustable pressure gauge for setting desired pressure, the pressure relief valve that automatically exhausts air when peak pressure is reached, and the safety valve with an explosion-proof disc.
- Connect the Inflation Hose: Securely attach the inflation hose to the compressor's output port and to the tank you intend to fill. Ensure a tight seal to prevent leaks.
- Vælg strømkilde:
- For AC Power (110V-220V): Plug the AC power cord into the compressor's AC input and then into a grounded wall outlet. The initial setting is typically for 110V AC.
- For DC Power (12V Car Battery): Tilslut den røde clamp til den positive (+) pol på dit bilbatteri og den sorte terminalamp to the negative (-) terminal. Ensure your car engine is running to provide stable power and prevent battery drain.

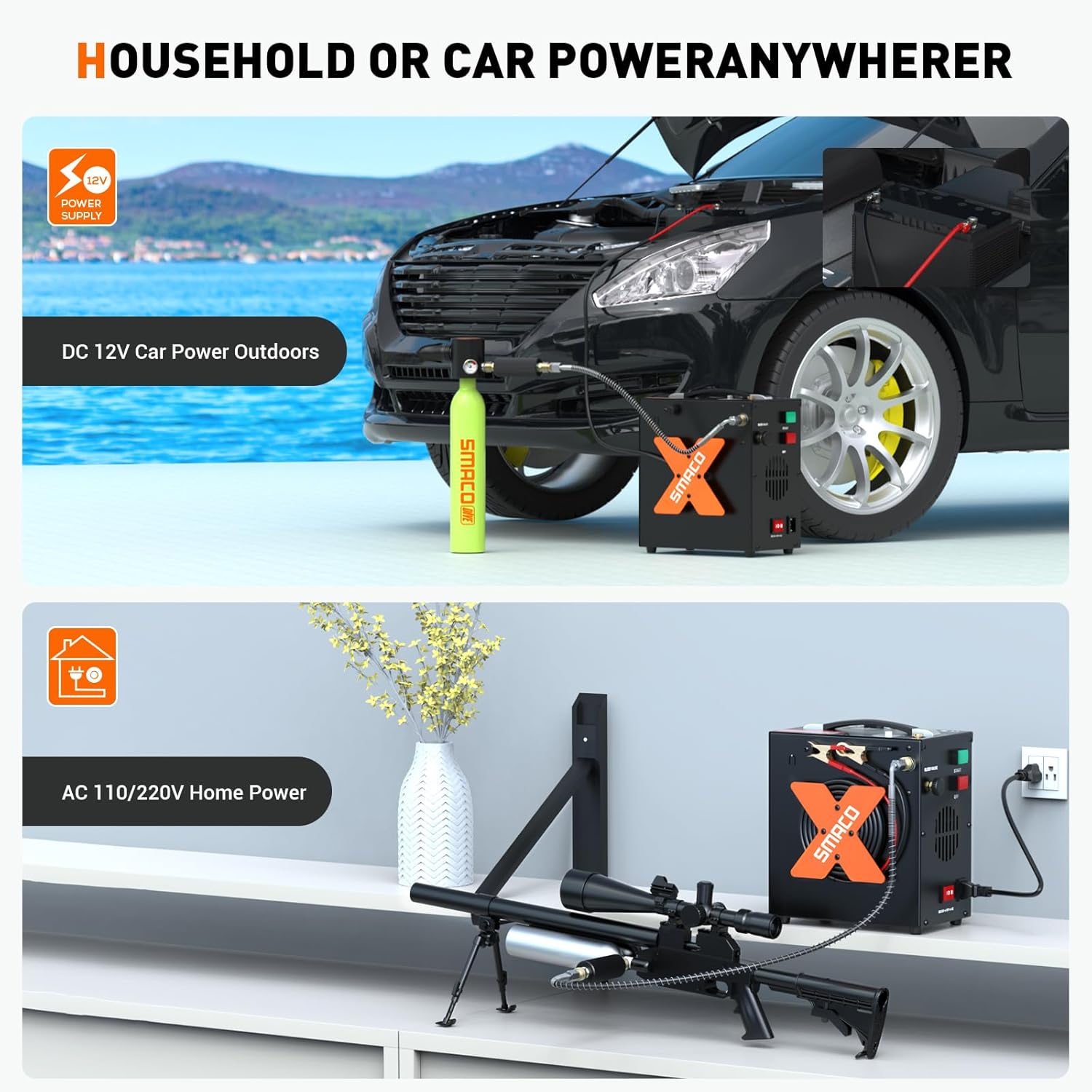

Figure 4: Dual Power Options. This image demonstrates the dual power capability of the compressor, showing it connected to a car battery for outdoor use and plugged into a standard AC outlet for indoor operation.
4. Betjeningsvejledning
4.1 Tjekliste før brug
- Sørg for, at alle forbindelser er sikre.
- Verify the tank's maximum pressure rating.
- Confirm the compressor is in a well-ventilated area.
- Close the bleed valve before starting inflation.
4.2 Oppustningsproces
- Vælg strømtilstand: Set the power switch to 'I' for DC (12V) or 'II' for AC (110V-220V).
- Indstil måltryk: Rotate the pressure setting knob on the gauge to your desired inflation pressure. The machine will automatically stop when this pressure is reached.
- Start kompressor: Press the 'START' button. The compressor will begin to operate, and the cooling fans will activate.
- Overvåg fremskridt: Observe the real-time pressure on the gauge. Although auto-shutoff is present, it is good practice to monitor the process.
- Automatisk afbrydelse: The compressor will automatically stop filling when the preset pressure is achieved. The cooling fan will continue to run to dissipate heat.
- Manuelt stop: To stop the compressor manually at any time, press the 'OFF' button.
- Udløs tryk: After inflation is complete and the compressor has stopped, slowly open the bleed valve to release any residual pressure in the hose before disconnecting.
- Afbryde: Once pressure is fully released, disconnect the inflation hose from the tank and the compressor. Then, disconnect the power source.
4.3 Cooling Cycle
The compressor is designed with a duty cycle to prevent overheating. For optimal performance and longevity:
- Do not run the compressor for more than 25 minutter kontinuerligt.
- Allow the compressor to cool down for 10-15 minutter after each 25-minute operation cycle. The cooling fan will continue to run during this period.
Figure 5: Fan Cooling System. A visual representation of the compressor's internal fan cooling system, highlighting its oil-free operation, active cooling fans, integrated oil-moisture filter, and overall durable construction. A note indicates a 25-minute run / 10-minute cool-down duty cycle.
5. Vedligeholdelse
Regular maintenance ensures the longevity and reliable operation of your compressor.
5.1 Oil-Moisture Filter
- The compressor features a built-in oil-moisture filter. Periodically check and replace the filter elements as needed to ensure clean, dry air output.
- Refer to the included accessories for spare filter elements and instructions on replacement.
5.2 Generel pleje og opbevaring
- Keep the compressor clean and free from dust and debris. Use a dry cloth for cleaning.
- Store the compressor in a cool, dry place, away from direct sunlight and moisture.
- Ensure power cables and hoses are neatly stored, utilizing the wire spool design if available.
6. Fejlfinding
If you encounter issues with your SMACO PCP Air Compressor, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kompressoren starter ikke. | No power, incorrect power mode selected, power switch off. | Check power connections, ensure power source is active (e.g., car engine running for DC), select correct power mode (I for DC, II for AC), press 'START'. |
| Compressor runs but does not inflate or inflates slowly. | Bleed valve open, loose hose connections, clogged filter, tank already full. | Close bleed valve, tighten all hose connections, check and replace filter elements, verify tank pressure. |
| Compressor overheats and shuts down prematurely. | Overskredet driftscyklus, dårlig ventilation. | Allow compressor to cool down for 10-15 minutes. Ensure operation in a well-ventilated area. Do not exceed 25 minutes of continuous operation. |
| Air leaks from connections. | Løse forbindelser, slidte O-ringe. | Tighten connections. Replace O-rings if they appear worn or damaged. |
| Safety valve activates. | Pressure exceeded maximum limit. | Immediately stop the compressor. Check the pressure gauge and ensure the target pressure is set correctly and does not exceed 4500 PSI. If the safety disc is blown, it must be replaced. |
If the problem persists after attempting these solutions, please contact SMACO customer support.
7. Tekniske specifikationer
| Specifikation | Værdi |
|---|---|
| Mærke | SMACO |
| Modelnavn | Heap-01 |
| Maksimalt driftstryk | 4500 PSI / 30 MPa / 300 bar |
| Strømkilde | 12V DC or 110V-220V AC |
| Voltage | 110 volt (AC) |
| Maksimal effekt | 250 watt |
| Luftmængde kapacitet | 11 liter i minuttet |
| Støjniveau | 65 decibel |
| Varens vægt | 21.4 pund |
| Produktdimensioner | 9.5 cm L x 5.6 cm B x 10 cm H |
| Kompatibel slangediameter | 8 millimeter |
| Speciel funktion | Automatisk sluk |
| Materiale | Jern |
| Farve | Sort |
Bemærk: Specifikationerne kan ændres uden varsel.
8. Garanti og kundesupport
SMACO products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official SMACO webwebsted.
If you have any questions, require technical assistance, or need to report an issue, please contact SMACO customer support through the retailer where you purchased the product or via the contact information provided on the official SMACO webwebsted.
