Fuzion HIVE-200-BLK Gram Scale Brugermanual

1. Introduktion

This user manual provides detailed instructions for the operation and maintenance of your Fuzion HIVE-200-BLK Gram Scale. This precision pocket scale is designed for accurate measurements up to 200g with 0.01g readability, making it suitable for various applications including weighing food, spices, powders, and jewelry. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Figure 1: Fuzion HIVE-200-BLK Gram Scale and included accessories.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Fuzion HIVE-200-BLK Gram Scale
• USB-C ladekabel
• 50 g kalibreringsvægt
• Small Container/Tray
• Double-ended Spoon
• Silikone måtte
• Drawstring Velvet Bag
• Brugervejledning (dette dokument)

Figure 2: All items included in the Fuzion Gram Scale package.

3. Specifikationer

4. Opsætning

4.1 Førstegangsbrug

1. Tag forsigtigt vægten og alt tilbehør ud af emballagen.
2. Locate the protective film on the weighing platform and gently peel it off before first use.
3. Ensure the scale is placed on a flat, stable, and level surface to guarantee accurate readings. Avoid surfaces prone to vibration or air currents.

4.2 Opladning af batteriet

The Fuzion HIVE-200-BLK Gram Scale features a rechargeable battery.

• Connect the provided USB-C charging cable to the scale's USB-C port.
• Plug the other end of the cable into any standard USB power source (e.g., computer, wall adapter).
• The display will indicate charging status. A full charge typically takes approximately one hour.

5. Betjeningsvejledning

5.1 Tænd/sluk

• For at dreje skalaen ON, tryk på MAGT knap (). The display will light up and show "0.00g".
• For at dreje skalaen SLUKKET, tryk på og hold nede MAGT button for a few seconds until the display turns off. The scale also features an automatic shut-off after 60 seconds of inactivity to conserve battery.

5.2 Enhedskonvertering

The scale supports 6 different weighing modes.

• Tryk på TILSTAND (M) button to cycle through the available units: grams (g), ounces (oz), grains (gn), pennyweights (dwt), carats (ct), and troy ounces (ozt).
• Select the desired unit before weighing.

Figure 3: The scale's display indicating various measurement units.

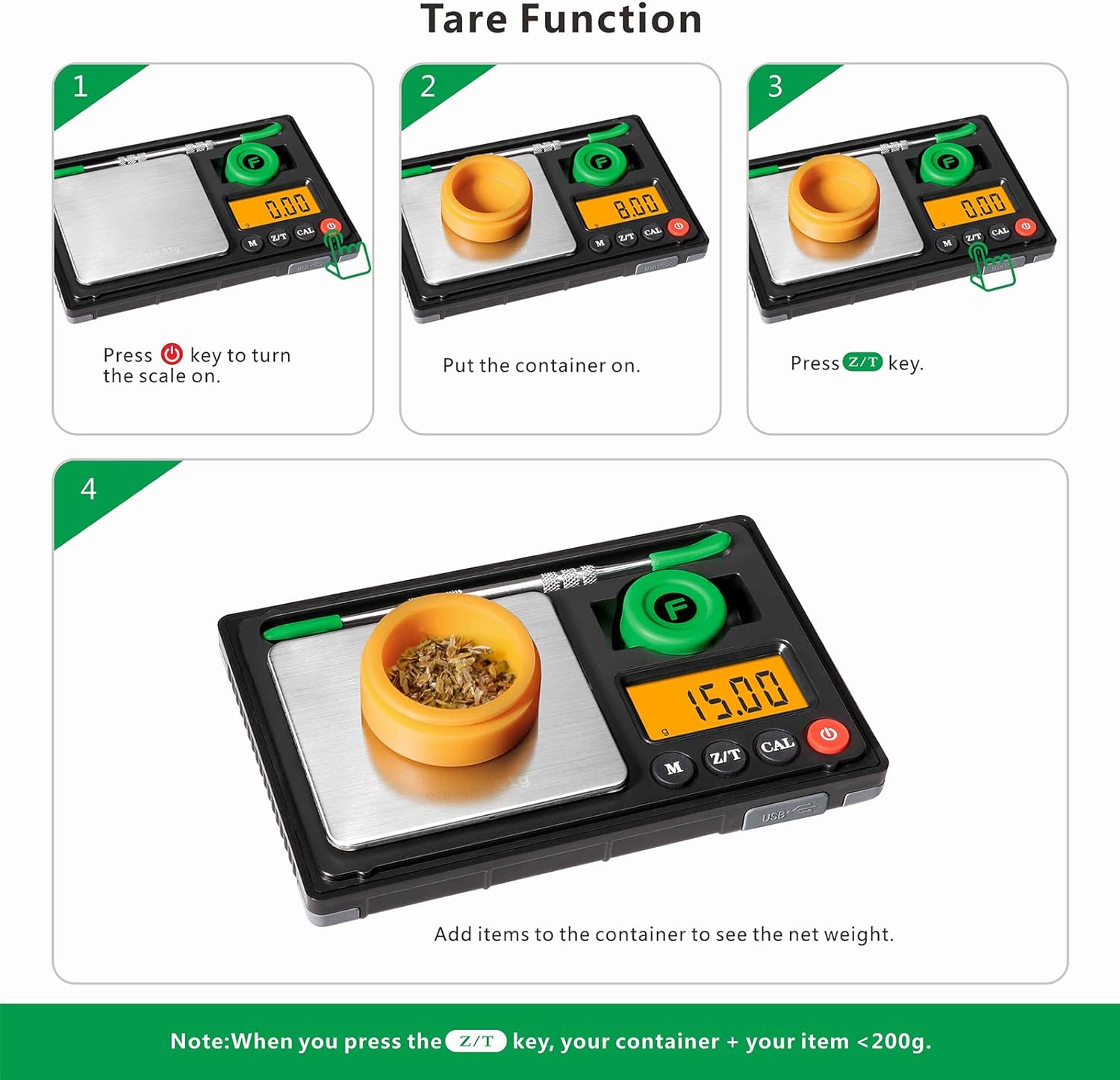

5.3 Tara funktion

The Tare function allows you to subtract the weight of a container, ensuring only the weight of the contents is measured.

1. Placer en tom beholder på vejeplatformen.
2. Tryk på Z/T (TARE) button. The display will reset to "0.00g".
3. Læg de varer, du ønsker at veje, i beholderen. Displayet viser nu kun varernes nettovægt.

Figure 4: Step-by-step guide for using the Tare function.

5.4 Kalibrering

Calibration ensures the accuracy of your scale. It is recommended to calibrate the scale periodically or if you suspect inaccurate readings.

1. Turn the scale ON.
2. Tryk og hold på CAL button until the display shows "CAL", then release.
3. The display will then flash "50.00" (or the required calibration weight).
4. Place the provided 50g calibration weight precisely on the center of the weighing platform.
5. The display will show "PASS" and then return to normal weighing mode, indicating successful calibration.

Figure 5: Visual guide for calibrating the Fuzion Gram Scale.

5.5 Weighing Tips

• Always place items gently on the center of the weighing platform.
• Avoid placing items that exceed the maximum capacity of 200g.
• For best accuracy, allow the scale to warm up for a few seconds after turning it on.
• Keep the scale away from strong electromagnetic fields, extreme temperatures, and drafts.

Figure 6: High precision measurement using the Fuzion Gram Scale.

6. Vedligeholdelse

6.1 Rengøring

• Tør vægten af ​​med en let damp klæde. Nedsænk ikke vægten i vand.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish and internal components.
• Use the provided brush to gently clean any residue from the weighing platform.

6.2 Opbevaring

• Opbevar vægten på et køligt, tørt sted.
• Use the provided drawstring velvet bag to protect the scale from scratches and dust when not in use.
• Keep the scale away from areas with high humidity or extreme temperature fluctuations.

Figure 7: The compact design allows for easy storage and portability.

7. Fejlfinding

8. Garanti og support

8.1 Garantioplysninger

The Fuzion HIVE-200-BLK Gram Scale comes with a 2 års garanti. Denne garanti dækker fejl i materialer og udførelse ved normal brug.

8.2 Kundesupport

For any questions, concerns, or warranty claims, please contact Fuzion customer support. Refer to the product packaging or the official Fuzion webhjemmeside for de seneste kontaktoplysninger.

9. Sikkerhedsoplysninger

• Do not attempt to disassemble or repair the scale yourself. This will void the warranty.
• Opbevar vægten utilgængeligt for børn.
• Avoid dropping the scale or subjecting it to strong impacts, as this can damage the internal sensors.
• Do not use the scale in hazardous environments.
