1. Introduktion
This manual provides comprehensive instructions for the Shadowhawk LED Flashlight, Model ES-S1476. Designed for durability and high performance, this tactical flashlight is suitable for various applications including outdoor activities, emergencies, and general use. Please read this manual thoroughly before operating the device to ensure proper function and safety.
2. Pakkens indhold
Bekræft, at alle nedenstående varer er til stede i din pakke:
- 1 x Shadowhawk LED Flashlight (Model ES-S1476)
- 1 x 26650 genopladeligt batteri
- 1 x USB ladekabel
- 1 x AAA Battery Holder (for 3x AAA batteries, AAA batteries included)
- 1 x Keychain Light
- 1 x lommelygtehylster
- 1 x brugermanual
Image 2.1: Shadowhawk LED Flashlight with included accessories and carrying case.
3. Produktfunktioner
- Høj lysstyrke: Equipped with an upgraded XHP70.2 LED chip, providing up to 10,000 lumens of illumination.
- Lang distance: Capable of illuminating objects up to 500 meters away.
- 5 lystilstande: High, Medium, Low, Strobe, and SOS for various situations.
- Zoombar funktion: Adjustable focus to switch between a wide floodlight and a concentrated spotlight.
- USB genopladelig: Built-in USB input and output for convenient charging and power bank functionality.
- Holdbar konstruktion: Made from aviation-grade aluminum alloy with an IP67 waterproof rating, resistant to impacts and harsh weather conditions.
- Lang batterilevetid: Up to 12 hours of continuous operation on a single charge in medium mode.
- Sikkerhedshammer: Integrated design for emergency situations.
Image 3.1: Illustration of the flashlight's powerful beam and XHP70.2 LED chip.
Image 3.2: Demonstrates the flashlight's IP67 waterproof and durable features.
4. Opsætning
4.1 Batteriinstallation
- Skru hætten på lommelygten af.
- Insert the provided 26650 rechargeable battery with the positive (+) end facing towards the flashlight head.
- Alternatively, if using AAA batteries, place three AAA batteries into the included AAA battery holder, then insert the holder into the flashlight with the positive (+) end facing towards the flashlight head.
- Securely screw the tail cap back on.
Image 4.1: Internal components and battery placement diagram.
4.2 Opladning af lommelygten
The flashlight features a USB Type-C input for charging its internal 26650 battery.
- Locate the USB charging port on the flashlight body (usually under a protective cover).
- Tilslut det medfølgende USB-opladerkabel til lommelygtens Type-C-port.
- Connect the other end of the USB cable to a USB power source (e.g., wall adapter, computer, power bank).
- The indicator lights on the flashlight will show the charging progress. Four blue lights indicate a full charge.
- Once fully charged, disconnect the cable and ensure the protective cover is sealed to maintain water resistance.

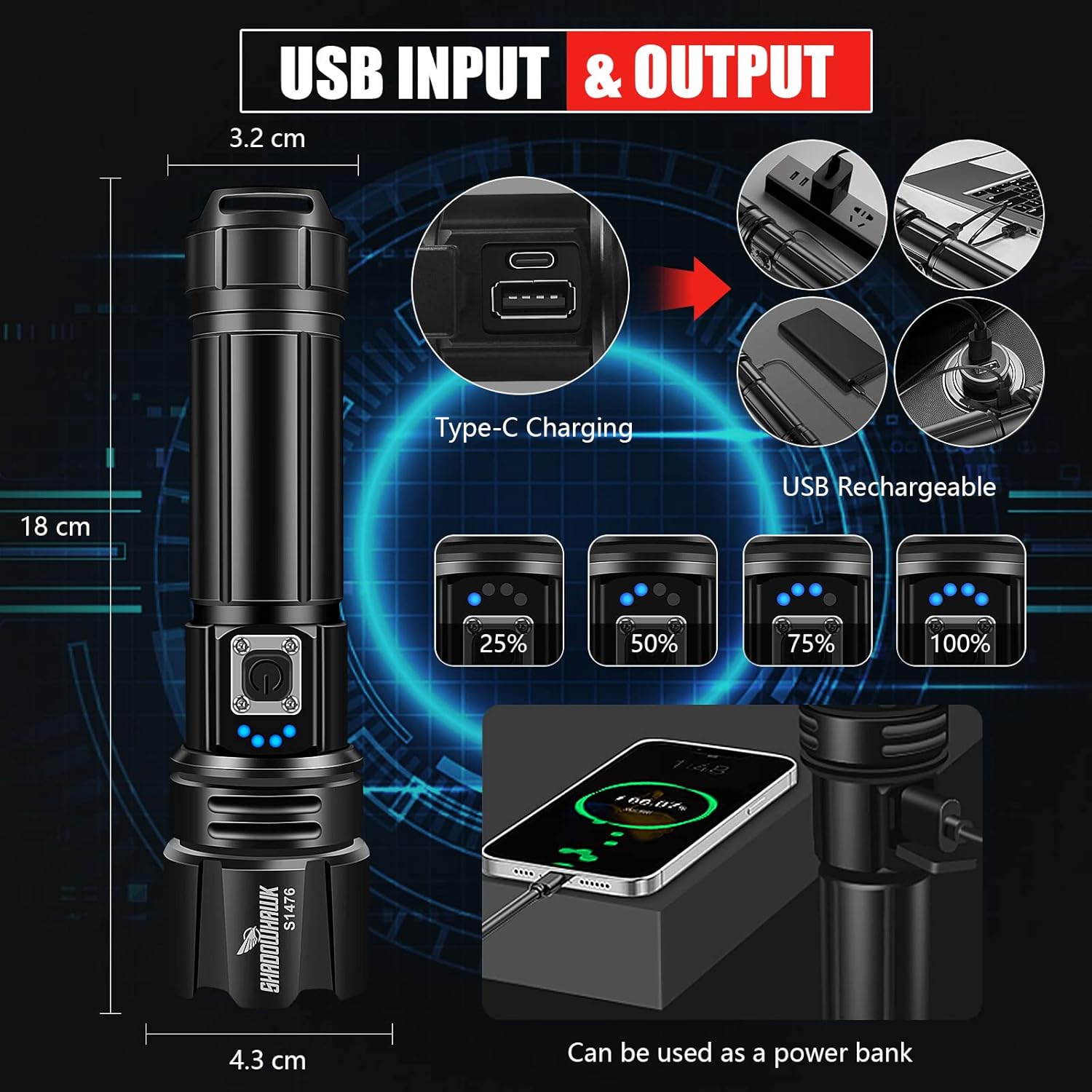

Image 4.2: USB charging interface and battery level indicators.
5. Betjeningsvejledning
5.1 Tænd/sluk og valg af tilstand
- Tænd: Press the power button once to turn on the flashlight in High mode.
- Tilstandscyklus: With the flashlight on, press the power button repeatedly to cycle through the modes: High → Medium → Low → Strobe → SOS.
- Sluk: To turn off the flashlight, press and hold the power button for approximately 3 seconds from any mode. Alternatively, cycle through all modes until the flashlight turns off.
5.2 Zoomfunktion
The flashlight features a telescopic head for adjusting the beam focus.
- Zoom In (Spotlight): Extend the flashlight head forward to narrow the beam, creating a concentrated spotlight for long-distance illumination.
- Zoom Out (Floodlight): Retract the flashlight head backward to widen the beam, creating a broad floodlight for illuminating a larger area.
Image 5.1: Visual guide for zoom function and lighting modes.
5.3 Powerbankens funktion
The flashlight can be used as a power bank to charge other USB-powered devices.
- Locate the USB output port on the flashlight body.
- Connect your device's charging cable to the flashlight's USB output port.
- The flashlight will begin charging your device. Monitor your device's charging indicator.
6. Vedligeholdelse
- Rensning: Tør lommelygtens hus af med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Smøring: Påfør silikonefedt på O-ringene og skruegevindene med jævne mellemrum for at opretholde vandtæthed og jævn drift.
- Batteripleje: Hvis lommelygten ikke skal bruges i længere tid, skal du fjerne batteriet for at forhindre lækage. Opbevar batterierne et køligt og tørt sted.
- Opbevaring: Opbevar lommelygten et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lommelygten tænder ikke. | Battery is low or depleted. Battery inserted incorrectly. Loose connections. | Charge the battery. Ensure battery is inserted with correct polarity. Tighten tail cap and head. |
| Lysudgangen er svag. | Low battery. Lens is dirty. | Genoplad batteriet. Rengør linsen med en blød klud. |
| Flashlight overheats. | Prolonged use on High mode. | Reduce to a lower brightness mode. Allow the flashlight to cool down. |
| Vandindtrængen. | O-rings damaged or improperly seated. Protective cover for USB port open. | Inspect and replace O-rings if damaged. Ensure all caps and covers are securely closed. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | ES-S1476 |
| Fabrikant | Shadowhawk |
| Lyskilde | XHP70.2 LED |
| Lysstyrke | Op til 10,000 lumen |
| Belysningstilstande | Høj, Medium, Lav, Strobe, SOS |
| Strømkilde | 1 x 26650 Lithium-ion battery (included) or 3 x AAA batteries (included with adapter) |
| Voltage | 3.7 volt |
| Materiale | Luftfart aluminium |
| Vandtæt vurdering | IP67 |
| Dimensioner (L x B x H) | Approximately 15 cm x 4 cm x 4 cm (63P x 16l x 12H millimeters for head/body) |
| Vægt | 480 gram |
| Battery Life (26650) | Up to 12 hours (Medium mode) |
| Særlige funktioner | Zoomable, USB Input/Output (Power Bank Function), Safety Hammer |
| Certificering | CE |
9. Sikkerhedsoplysninger
- Do not shine the flashlight directly into eyes. The powerful beam can cause temporary vision impairment or permanent eye damage.
- Opbevares utilgængeligt for børn.
- Do not disassemble the flashlight head or modify the internal components, as this may damage the device and void the warranty.
- Brug kun anbefalede batterier og opladningskabler.
- Undgå at udsætte lommelygten for ekstreme temperaturer eller åben ild.
- Ensure the USB port cover is securely closed when not charging to maintain water resistance.
- The flashlight may become warm during prolonged use on high settings. This is normal.
10. Garanti og support
Shadowhawk products are designed for reliability and performance. If you encounter any issues or have questions regarding your Shadowhawk LED Flashlight, please contact our customer service for assistance. Refer to your purchase documentation for specific warranty terms and contact details.
For the best solution, please reach out to our customer support team.
