Baseus 160W USB C Car Charger Instruction Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Baseus 160W USB C Car Charger. This device is designed to provide high-speed charging for multiple electronic devices simultaneously in your vehicle. Please read this manual thoroughly before use and retain it for future reference.

2. Nøglefunktioner

• QC5.0 Quick Charge: Supports PPS PD3.0 QC5.0 fast charging protocols.
• Triple Port Output: Features 3 independent fast-charging ports (100W+30W+30W) for simultaneous charging without power reduction.
• Avanceret sikkerhed: Built-in intelligent circuit design protects against short-circuiting, overheating, over-currents, and overcharging. Certified RoHS, CE & FCC.
• Holdbart design: Constructed with PC material for scratch resistance and longevity.
• LED-indikator: Soft LED light for easy port location in low-light conditions.
• Bred kompatibilitet: Compatible with a broad range of devices including smartphones, tablets, laptops, and gaming consoles.

Figure 2.1: The Baseus 160W USB C Car Charger, showcasing its three charging ports and sleek design.

3. Installation

1. Ensure your vehicle's engine is off before installation.
2. Locate the cigarette lighter socket (12V or 24V) in your vehicle.
3. Insert the Baseus 160W USB C Car Charger firmly into the cigarette lighter socket. The LED indicator will illuminate when properly connected and receiving power.
4. Start your vehicle's engine. The charger is now ready for use.

Figure 3.1: Proper insertion of the car charger into the vehicle's cigarette lighter socket.

4. Betjeningsvejledning

The Baseus 160W USB C Car Charger features three output ports: two USB-C ports (Type-C1, Type-C2) and one USB-A port. Each port supports various fast charging protocols to optimize charging speed for your devices.

• Tilslutning af enheder: Use appropriate charging cables to connect your devices to the available USB-C or USB-A ports.
• Strømfordeling:
  • Type-C1: Up to 100W (Max)
  • Type-C2: Up to 30W (Max)
  • USB-A: Up to 30W (Max)
  The charger intelligently distributes power. When all three ports are in use, the total output can reach 160W (requires a 24V vehicle power supply for maximum output). Individual port power will not decrease when multiple ports are used simultaneously.
• Opladningsstatus: The soft LED light indicates the charger is active. Charging will automatically stop when the connected device's battery is full to prevent overcharging.

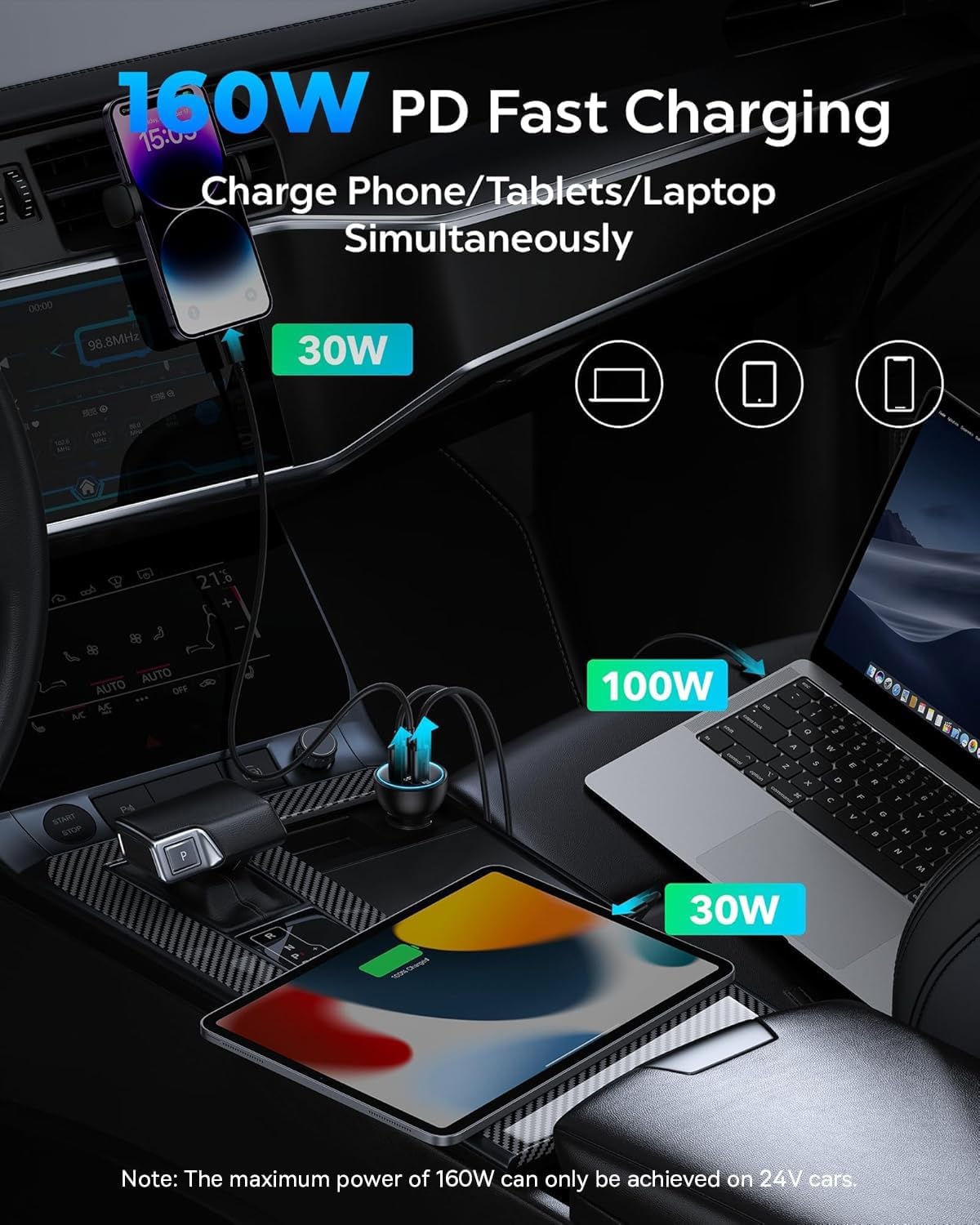

Figure 4.1: The charger providing 160W PD fast charging to a laptop (100W), tablet (30W), and phone (30W) simultaneously.

Figure 4.2: Illustration of power distribution across single, dual, and triple port usage scenarios.

5. Kompatibilitet

This charger is broadly compatible with a variety of devices and vehicle types:

• Smartphones: iPhone 15/15 Pro/15 Plus/15 Pro Max, iPhone 14/14 Pro/14 Plus/14, iPhone 13/13 Pro/13 Mini/13 Pro Max, iPhone 12/12 Pro/12 mini/12 Pro Max, iPhone 11/11 Pro/11 Pro Max, iPhone XS/8/7 Plus, Samsung Galaxy S23/S22/S21/S20 Ultra/Tab S9/S8, Note 20/10, Google Pixel 7 Pro/7/6a/6 Pro/6/5a/5, LG, TCL, HTC, Nokia, Motorola, Sony, and other smartphones.
• Tabletter: iPad Pro/iPad Air/iPad mini, Kindle Fire HD 10.
• Laptops: MacBook Pro 16'/15'/13', MacBook Air 13'/11', Dell XPS13, Chromebook, Lenovo, HP, Google Pixelbook.
• Andre enheder: Drone, Switch, Steam Deck, ASUS ROG Ally, AirPods, etc.
• Køretøjstyper: Compatible with 12V and 24V car cigarette lighter sockets (cars, ORVs, trucks, SUVs).

Figure 5.1: Visual representation of the charger's broad compatibility with different electronic devices and vehicles.

Figure 5.2: Supported charging protocols for each port, including QC5, PD3.0, PPS, and more.

6. Sikkerhedsretningslinjer

The Baseus 160W USB C Car Charger incorporates multiple safety features to protect your devices and vehicle:

• Overstrømsbeskyttelse: Forhindrer skader fra for høj strøm.
• Over-voltage Beskyttelse: Beskyttelsesforanstaltninger mod voltage pigge.
• Overtemperaturbeskyttelse: Monitors and regulates internal temperature to prevent overheating.
• Kortslutningsbeskyttelse: Afbryder automatisk strømmen i tilfælde af kortslutning.
• Overopladningsbeskyttelse: Charging ceases once the device battery is full.

Always ensure the charger is properly seated in the cigarette lighter socket. Do not attempt to disassemble or modify the charger. Keep out of reach of children.

Figure 6.1: Safety certifications and quality assurance for the Baseus car charger.

7. Produktspecifikationer

8. Pleje og vedligeholdelse

• Hold opladeren ren og fri for støv og snavs. Brug en blød, tør klud til rengøring.
• Avoid exposing the charger to extreme temperatures, direct sunlight, or moisture.
• Do not drop or subject the charger to strong impacts.
• Opbevar opladeren på et køligt, tørt sted, når den ikke er i brug.

9. Fejlfinding

• Opladeren tænder ikke:
  • Sørg for, at opladeren er sat helt i cigarettænderen.
  • Verify that your vehicle's engine is running or the ignition is in the accessory position.
  • Kontroller bilens sikring til cigarettænderstikket.
• Device not charging or charging slowly:
  • Ensure your charging cable is functional and properly connected to both the charger and your device.
  • Verify that your device supports the fast charging protocols (QC5.0, PD3.0, PPS) for optimal speed.
  • If charging multiple devices, ensure the total power draw does not exceed the charger's capacity for your vehicle's voltage (12V vs 24V).
  • Try a different port on the charger.
• Opladeren føles varm:
  • It is normal for the charger to become warm during high-power charging. If it becomes excessively hot, disconnect devices and allow it to cool. If the issue persists, contact support.

10. Produktet er slutview Video

11. Garanti og support

Baseus offers a lifetime warranty for this product. For any questions, concerns, or support needs, please contact Baseus customer service. Our team is available 24/7 to provide prompt assistance.

Kontaktoplysninger:

• E-mail: care@baseus.com
• Webwebsted: https://www.baseus.com
