1. Introduktion
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your VENTS-US Axial Exhaust Fan. This fan is designed for effective air extraction in various applications, including through-the-wall or wall-mount installations. It features automatic shutters for enhanced functionality and is constructed from durable, UV-protected thermoplastic resin, ensuring long-lasting performance and quiet operation.
2. Sikkerhedsoplysninger
Please read all safety instructions carefully before installation and operation to prevent injury or damage.
- Elektrisk sikkerhed: Ensure the power supply is disconnected before any installation, maintenance, or repair work. All electrical connections must comply with local and national electrical codes.
- Kvalificeret personale: Installation and electrical wiring should only be performed by qualified and certified personnel.
- Driftsmiljø: Do not operate the fan in environments with explosive or flammable gases. The fan is suitable for air stream temperatures from 34 0F to 113 0F.
- Ventilation: Ensure adequate ventilation is provided to prevent the back-flow of gases from open flues of fuel-burning appliances.
- Skadetjek: Inspect the fan for any damage before installation. Do not install a damaged unit.
- Rensning: Use only mild detergents and avoid abrasive cleaners that may damage the fan's surface.
3. Produktet er slutview
The VENTS-US Axial Exhaust Fan (Model 100 MA) is a compact and efficient ventilation solution. It features an axial impeller for effective airflow and integrated automatic shutters that open when the fan is operating and close when it's off, preventing backdrafts and heat loss.
Front view of the VENTS-US Axial Exhaust Fan, showcasing its automatic shutters and compact design.

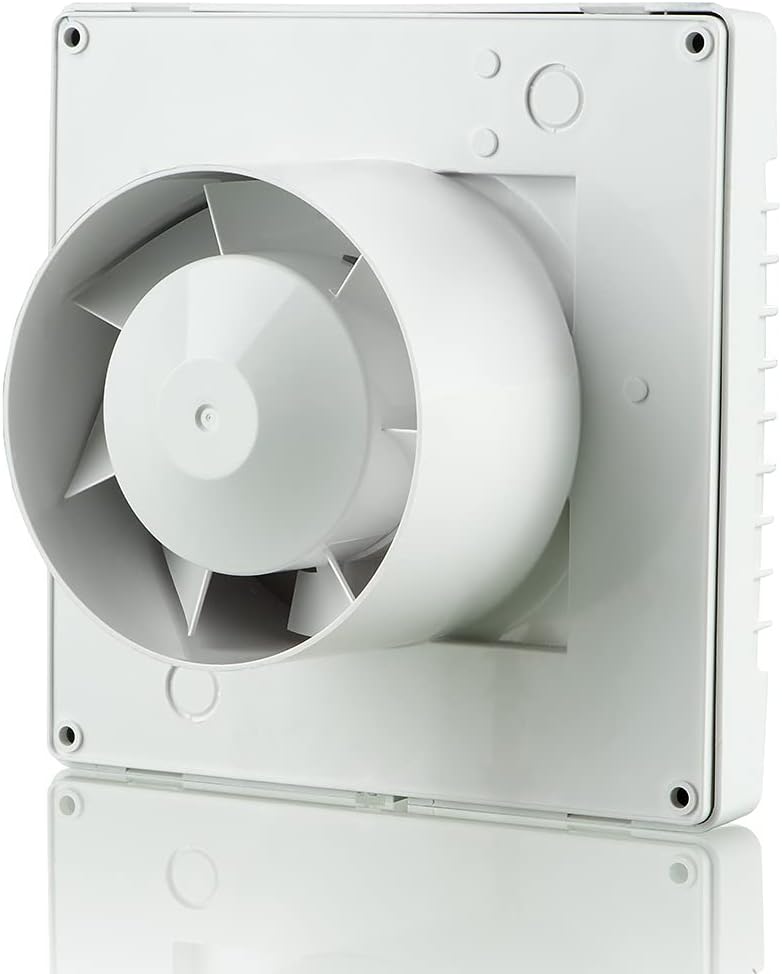

Bag view of the VENTS-US Axial Exhaust Fan, illustrating the fan blades and the duct connection point.
4. Opsætning og installation
Før installation
- Unpack the fan and inspect it for any shipping damage.
- Ensure all necessary tools and materials are available for installation (e.g., drill, screws, sealant, wiring tools).
- Verify that the power supply matches the fan's voltage-krav (120 volt).
Monteringsmuligheder
The VENTS-US Axial Exhaust Fan is versatile and can be installed either through-the-wall or as a wall-mounted unit.
Side profile of the VENTS-US Axial Exhaust Fan, demonstrating its compact design suitable for various mounting depths.
Elektrisk tilslutning
The fan operates on AC power. Ensure proper grounding and secure all electrical connections.

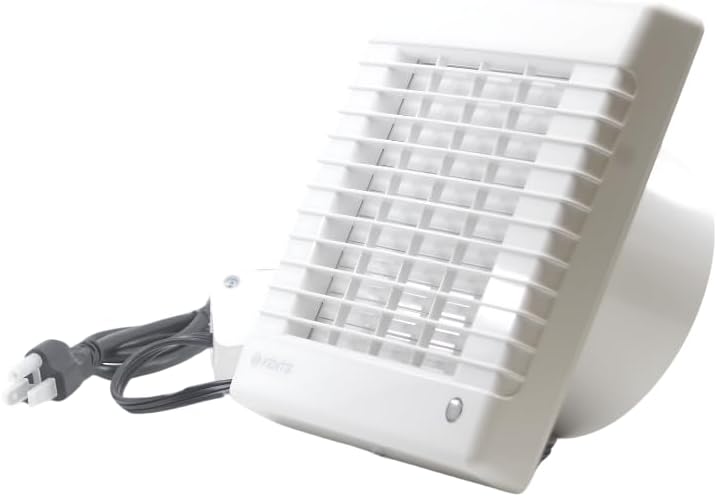

VENTS-US Axial Exhaust Fan with its power cord and plug, ready for electrical connection.
Installationstrin (generelt)
- Vælg placering: Select a suitable location for installation, considering airflow requirements and proximity to a power source.
- Forbered åbning: Create an opening in the wall or mounting surface that matches the fan's duct diameter.
- Monter ventilator: Secure the fan housing to the wall or within the prepared opening using appropriate fasteners. Ensure it is level and stable.
- Tilslut ledninger: Connect the fan's electrical wiring to the power supply according to the wiring diagram provided with the product and local electrical codes. Ensure all connections are secure and insulated.
- Tætningshuller: Seal any gaps around the fan housing to prevent air leakage and improve efficiency.
- Test drift: Restore power and test the fan's operation, ensuring the automatic shutters open and close correctly.
5. Betjeningsvejledning
The VENTS-US Axial Exhaust Fan is designed for straightforward operation. Once properly installed and connected to a power source, the fan will activate when power is supplied to it, and its automatic shutters will open. When the power is turned off, the fan will cease operation, and the shutters will close, preventing air backflow.
- Tænd/sluk: Control the fan's operation via a wall switch or other connected power control device.
- Automatiske skodder: The shutters will automatically open when the fan is running and close when it is off, providing an effective seal against drafts and external elements.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your exhaust fan.
Rensning
- Afbryd strømmen: Always disconnect the power supply to the fan before cleaning.
- Udvendig rengøring: Wipe the exterior surfaces of the fan and shutters with a soft, damp cloth and a mild detergent. Avoid using abrasive cleaners or solvents.
- Indvendig rengøring: Carefully remove any dust or debris from the fan blades and interior housing using a soft brush or vacuum cleaner. Do not use water directly on electrical components.
- Frekvens: Clean the fan periodically, depending on the operating environment and accumulation of dust/debris.
Opbevaring
If the fan is to be stored for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
7. Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres mulige løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilatoren tænder ikke | Ingen strømforsyning; Løse ledninger; Defekt afbryder | Check power connection; Verify wiring connections; Test or replace switch |
| Fan is noisy or vibrates excessively | Loose mounting; Debris in fan blades; Damaged motor/bearings | Tighten mounting screws; Clean fan blades; Contact support if motor is damaged |
| Automatic shutters do not open/close | Obstruction; Damaged mechanism | Remove obstruction; Contact support for repair |
| Dårlig luftgennemstrømning | Blocked intake/exhaust; Dirty fan blades | Clear obstructions; Clean fan blades |
8. Specifikationer
Key technical specifications for the VENTS-US Axial Exhaust Fan (Model 100 MA):
| Specifikation | Værdi |
|---|---|
| Mærke | VENTS |
| Modelnavn | 100 MA |
| Elektrisk ventilator design | Udstødningsventilator |
| Strømkilde | AC |
| Voltage | 120 volt |
| Wattage | 5 watt |
| Produktdimensioner | 4.87" D x 6.5" B x 5.87" H |
| Varens vægt | 1.61 pund |
| Værelsestype | Badeværelse |
| Særlige funktioner | Quiet Operation, Corrosion and UV resistant, Lightweight, ETL listed, Vibration free operation, UL94 Certified plastic |
| Materiale | Plast |
| Indendørs/Udendørs brug | Indendørs |
| Fabrikant | VENTS-US |
| Første ledige dato | 28. september 2021 |
9. Garanti og support
The VENTS-US Axial Exhaust Fan is designed for reliable operation up to 20,000 hours, reflecting its durable construction and quality engineering. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact VENTS-US customer support directly.
For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please visit the official VENTS-US website or contact their customer service department. Ensure you have your product model number (100 MA) and purchase details available when seeking support.
