Ymiko Digital Car TV Tuner User Manual

Indledning

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Ymiko Digital Car TV Tuner. This device is designed to provide high-definition digital television reception in your vehicle, supporting MPEG-4 H.264 standards for a clear viewoplevelse på farten.

Sikkerhedsoplysninger

• Ensure the device is installed by a qualified professional to prevent damage to the vehicle's electrical system.
• Forsøg ikke at skille enheden ad eller ændre den. Dette kan ugyldiggøre garantien og udgøre en sikkerhedsrisiko.
Hold enheden væk fra vand, overdreven varme og direkte sollys.
• Always ensure secure connections for all cables to prevent signal loss or short circuits.
• Operating the device while driving should only be done by passengers. The driver must remain focused on the road.

Pakkens indhold

Tjek venligst pakken for følgende varer:

• 1 x Car Digital TV Tuner
• 1 x brugermanual
• 1 x Remote Control (Battery not included - requires CR2025)
• 1 x USB-kabel
• 1 x 12V strømkabel
• 2 x Antenna Signal Receiving Lines
• 1 x AV Wiring (RCA cables)
• 1 x Infrared Extension Cable

Image: The Ymiko Digital Car TV Tuner box shown with its complete set of accessories, including the remote control, various cables, and antennas.

Produkt overview

The Ymiko Digital Car TV Tuner is a compact and robust device designed for in-car entertainment. It features a dual-tuner diversity structure for stable reception, even at high speeds.

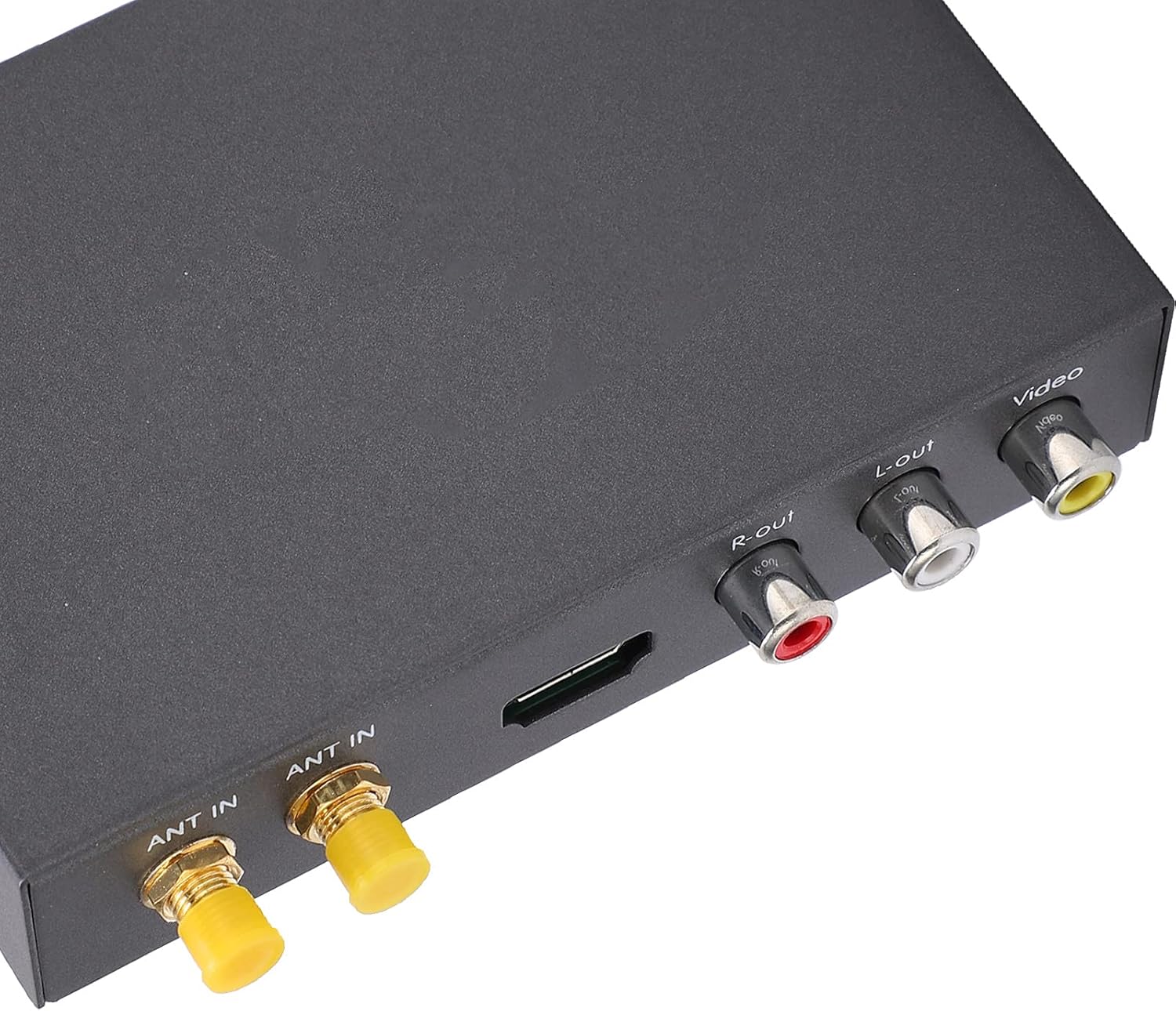

Billede: Et nærbillede view of the Ymiko Digital Car TV Tuner's rear panel, showing the dual antenna inputs (ANT IN), HDMI port, R-out, L-out, and Video RCA output ports.

Nøglefunktioner:

• Full compliance with EN300 744 and EN302 755 standards.
• Supports ultra-fast hardware decoding of JPEG images and multiple OSD language menus.
• Compact design with easy installation.
• True dual-tuner diversity structure for enhanced signal stability.
• Supports MPEG-1, MPEG-2, MPEG-4, and H.264 decoders, with a maximum resolution of 1920 x 1080P.
• Capable of maintaining stable reception at vehicle speeds exceeding 160 km/h.
• Constructed from durable metal and PVC materials for stable performance and high resolution.

Image: The Ymiko Digital Car TV Tuner is shown in a car interior setting, illustrating its capability to provide stable television reception even when the vehicle is traveling at high speeds (over 160 km/h).

Specifikationer

Opsætning og installation

Follow these steps for proper installation of your Ymiko Digital Car TV Tuner. It is recommended to have this installed by a professional.

1. Strømtilslutning: Connect the 12V power cable to the tuner's DC+12~24V input. Ensure proper polarity (DC+, ACC, Ground).
   • DC+12~24V Input
   • ACC (Administrative Coordination Committee)
   • Jord
   • NC (Ikke forbundet)
2. Antenneforbindelse: Connect the two antenna signal receiving lines to the "ANT IN" SMA-type terminals on the tuner. Position the antennas for optimal reception, typically on the windshield or rear window.


   Image: The Ymiko Digital Car TV Tuner unit, clearly showing the two "ANT IN" ports for connecting the signal receiving antennas, ensuring full conformity with DVB-T/T2 standards.
3. Video/lydudgang: Connect the AV wiring (RCA cables) from the tuner's A/V output interface to your car's display unit.
   • Video RCA interface x 1
   • Audio RCA interface (R/L) x 2
   Alternatively, use the HDMI output for high-definition video and audio if your display supports it.


   Image: The included RCA AV cables, used for connecting the Ymiko Digital Car TV Tuner to a car's display and audio system.

4. Infrarød forlængelse: Connect the infrared extension cable to the IR extension jack on the tuner. Position the IR receiver in a location where it can receive signals from the remote control.
5. USB-forbindelse: The USB interface can be used for software upgrades and multimedia playback.
6. Fjernbetjenings batteri: Indsæt et CR2025-batteri i fjernbetjeningen.


   Image: The remote control for the Ymiko Digital Car TV Tuner, alongside the infrared extension cable, power cable, and USB cable.

Betjeningsvejledning

1. Tænd/sluk: Once installed and connected to the car's power, the unit will power on with the car's ignition (if wired to ACC). Use the remote control's power button to turn the unit on or off.
2. Kanalscanning:
   • Access the main menu using the "MENU" button on the remote.
   • Navigate to "Channel Search" or "Auto Scan".
   • Select "Start Scan" to search for available digital TV channels in your area. This process may take several minutes.
   • Ensure your vehicle is stationary during the initial scan for best results.
3. Kanalvalg: Use the "CH+" and "CH-" buttons on the remote to change channels. You can also enter channel numbers directly using the numeric keypad.
4. Lydstyrkekontrol: Adjust the volume using the "VOL+" and "VOL-" buttons.
5. OSD-menu: The On-Screen Display (OSD) menu allows you to configure various settings such as language, video output, time, and parental controls. Navigate using the arrow keys and confirm with "ENTER".
6. Multimedieafspilning: If you connect a USB drive to the USB port, you can access multimedia files (e.g., JPEG pictures, supported video/audio formats) through the "Multimedia" or "USB" option in the main menu.

Fejlfinding

Opretholdelse

• Hold enheden ren ved at tørre den af ​​med en blød, tør klud. Brug ikke flydende rengøringsmidler eller aerosoler.
• Sørg for, at alle kabler er korrekt tilsluttet og ikke er beskadigede.
• Undgå at udsætte enheden for ekstreme temperaturer eller fugt.
• Periodically check for firmware updates via the USB port on the manufacturer's webwebsted (hvis tilgængeligt).

Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Ymiko webwebstedet. Behold din købskvittering som købsbevis.

Manufacturer: Ymiko

ASIN: B09H2ZXK9R

Model Reference: Ymikoovkyd1aq4g4300

For further assistance, you may contact Ymiko customer service through their official channels.
