RCF Art 945-A Powered Speaker User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your RCF Art 945-A Powered Speaker. Please read this manual thoroughly before using the product and retain it for future reference. The RCF Art 945-A is a high-performance, bi-amplified active speaker designed for professional audio applications, featuring a 15-inch neodymium woofer and a 4-inch titanium/neodymium compression driver, delivering 2,100W of power.

2. Sikkerhedsoplysninger

Vigtige sikkerhedsinstruktioner:

• Læs disse instruktioner.
• Gem disse instruktioner.
• Overhold alle advarsler.
• Følg alle instruktioner.
• Brug ikke dette apparat i nærheden af ​​vand.
• Rengør kun med en tør klud.
• Bloker ikke nogen ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
• Må ikke installeres i nærheden af ​​varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
• Undgå at omgå sikkerhedsformålet med det polariserede stik eller stik med jordforbindelse. Et polariseret stik har to knive, hvor den ene er bredere end den anden. Et stik med jordforbindelse har to knive og et tredje jordstik. Det brede blad eller det tredje ben er tilvejebragt for din sikkerhed. Hvis det medfølgende stik ikke passer i din stikkontakt, skal du kontakte en elektriker for at få udskiftet den forældede stikkontakt.
• Beskyt netledningen mod at blive trådt på eller klemt, især ved stik, stikkontakter og det sted, hvor de kommer ud af apparatet.
• Brug kun tilbehør/tilbehør specificeret af producenten.
• Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
• Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.

Forsigtighed: To prevent electrical shock, do not remove the cover. No user-serviceable parts inside. Refer servicing to qualified personnel.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• RCF Art 945-A Powered Speaker
• Strømkabel
• Vertical mount bracket
• Stangmontering
• Regnbeskyttelse
• Brugervejledning (dette dokument)

4. Produktet er slutview

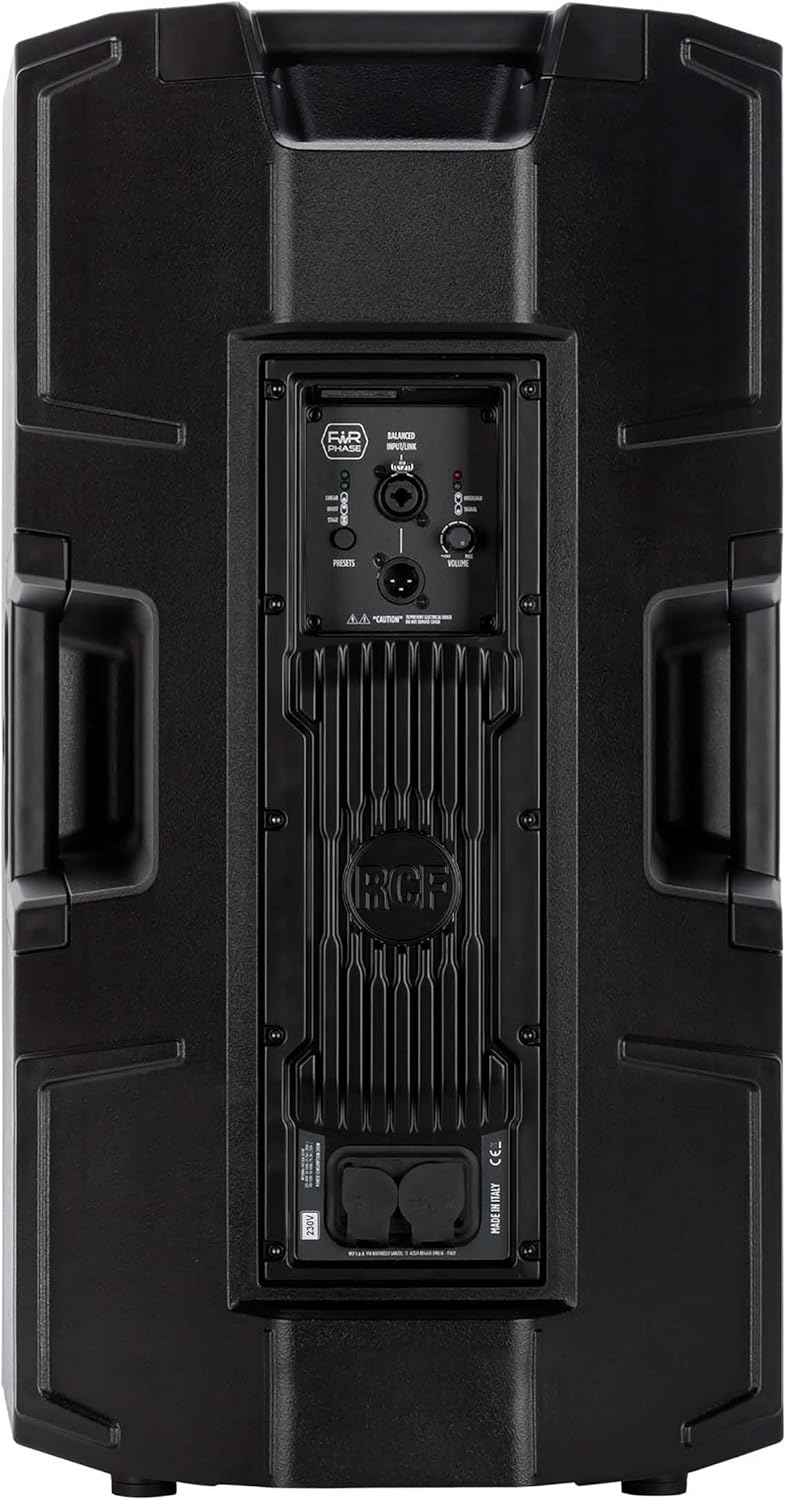

4.1. Rear Panel Controls and Connections

1. BALANCED INPUT/LINK (XLR): XLR input for audio signal and XLR link output to connect to another speaker.
2. PRESETS Button: Cycles through different DSP presets (LINEAR, BOOST, STAGE) to optimize sound for various applications.
3. LINEAR LED: Indicates the 'Linear' preset is active, providing a flat frequency response.
4. BOOST LED: Indicates the 'Boost' preset is active, enhancing bass and treble frequencies.
5. STAGE LED: Indicates the 'Stage' preset is active, optimized for stage overvågningsapplikationer.
6. VOLUME knap: Adjusts the overall output level of the speaker.
7. OVERLOAD LED: Illuminates when the input signal is too high, indicating potential clipping. Reduce input level if this LED lights up consistently.
8. SIGNAL LED: Illuminates when an audio signal is present at the input.
9. POWERCON TRUE1 Input: Secure power connector for AC mains input.
10. POWERCON TRUE1 Link: Power output to link power to another speaker.

5. Opsætning

5.1. Placering

The RCF Art 945-A speaker can be used in various configurations:

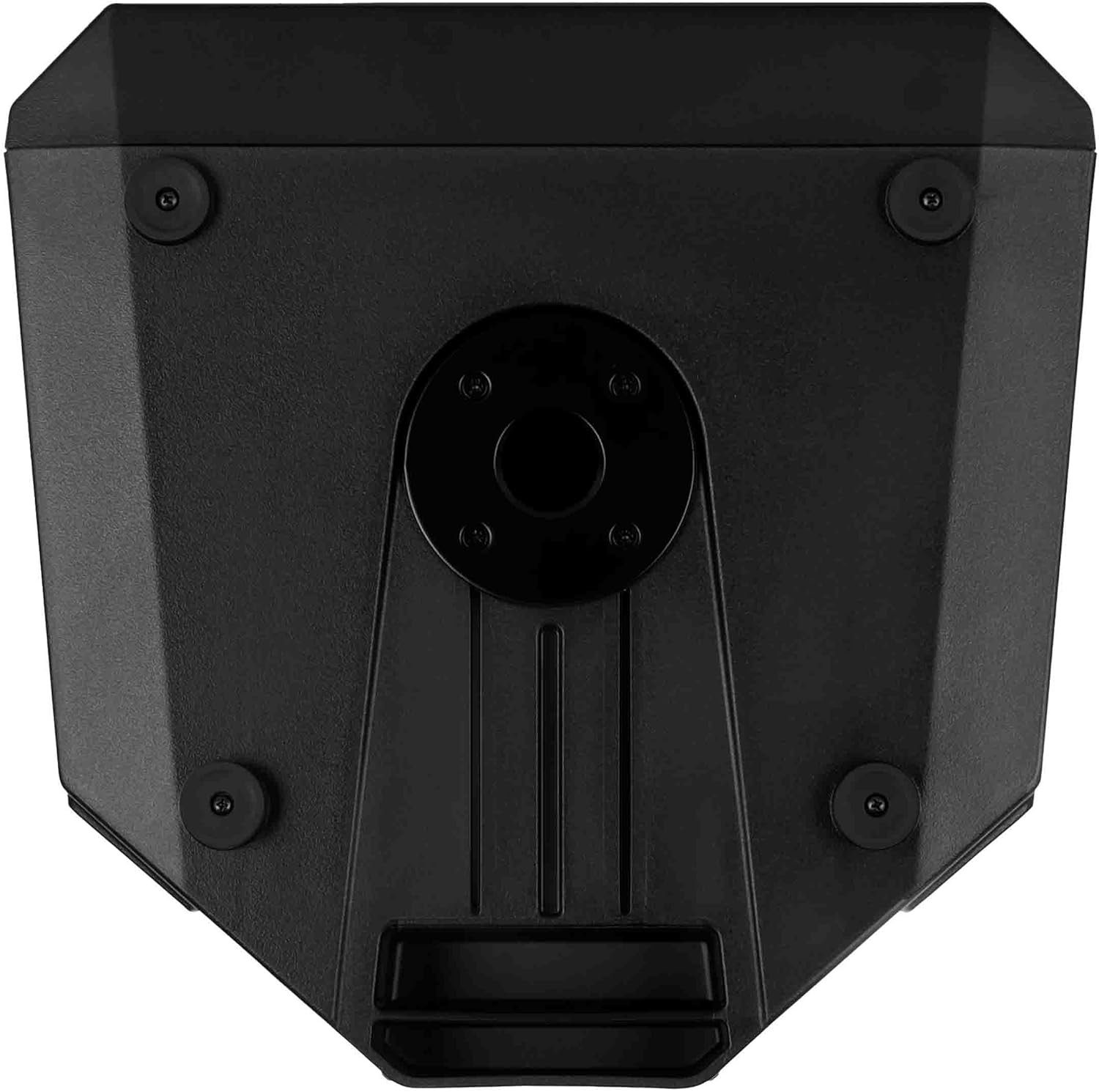

• Polmontering: Insert the speaker onto a standard 35mm speaker pole or tripod stand using the integrated pole mount socket on the bottom of the speaker. Ensure the stand is stable and rated for the speaker's weight (approximately 49.3 lbs / 22.4 kg).
• Gulvplacering: The speaker can be placed directly on a flat, stable surface. The rubber feet on the bottom provide stability and isolation.
• Stage Monitor: Kabinetdesignet muliggør brug somtage monitor. Position the speaker on its side with the appropriate angle for monitoring.
• Vægmontering: Utilize the provided vertical mount bracket for secure wall installation. Ensure the wall structure can support the speaker's weight.

5.2. Strømtilslutning

1. Ensure the speaker's VOLUME knob is set to minimum (fully counter-clockwise).
2. Connect the supplied Powercon TRUE1 power cable to the POWERCON TRUE1 Input on the rear panel of the speaker.
3. Connect the other end of the power cable to a suitable AC mains outlet. Verify that the voltage matches the speaker's requirements (e.g., 100-120V or 220-240V).
4. If linking power to another speaker, use a Powercon TRUE1 link cable from the POWERCON TRUE1 Link output to the input of the next speaker.

5.3. Lydforbindelser

1. Connect your audio source (e.g., mixer, audio interface) to the BALANCED INPUT (XLR) on the rear panel using a balanced XLR cable.
2. If connecting multiple speakers in a daisy chain, use an XLR cable from the BALANCED LINK output of the first speaker to the input of the next speaker.

6. Betjening

6.1. Tænd/sluk

1. Before powering on, ensure all connections are secure and the VOLUME knob is at its minimum setting.
2. Locate the power switch (typically near the power input) and switch it to the 'ON' position. The power LED on the front of the speaker will illuminate.
3. To power off, set the VOLUME knob to minimum, then switch the power switch to 'OFF'.

6.2. Lydstyrkekontrol

The VOLUME knob on the rear panel controls the output level of the speaker. Slowly turn the knob clockwise to increase the volume to the desired level. Monitor the OVERLOAD LED to prevent clipping.

6.3. Preset Selection

The PRESETS button allows you to select between three different DSP modes:

• LINEÆR: Provides a flat frequency response, suitable for general sound reinforcement where a neutral sound is desired.
• BOOST: Enhances low and high frequencies, often used for music playback or when a more pronounced bass and treble response is needed.
• STAGE: Optimeret til brug som somtage monitor, providing clarity and feedback suppression for performers.

Press the PRESETS button repeatedly to cycle through these modes. The corresponding LED (LINEAR, BOOST, or STAGE) will illuminate to indicate the active preset.

6.4. Signal and Overload Indicators

• SIGNAL LED: This green LED illuminates when an audio signal is detected at the input. It indicates that the speaker is receiving an audio signal.
• OVERLOAD LED: This red LED illuminates when the input signal level is too high, causing the amplifier to clip. If this LED lights up frequently or stays on, reduce the input level from your source or the speaker's VOLUME knob to prevent distortion and potential damage.

7. Vedligeholdelse

7.1. Rensning

Sådan bevarer du din højttalers udseende og ydeevne:

• Disconnect the speaker from the power supply before cleaning.
• Use a soft, dry cloth to wipe down the cabinet.
• Til genstridigt snavs, en let damp en klud med mild sæbe kan bruges, efterfulgt af en tør klud.
• Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
• Keep the grille free of dust and debris to ensure proper sound dispersion.

7.2. Opbevaring

Når den ikke er i brug i længere perioder:

• Opbevar højttaleren et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• If possible, use the original packaging or a protective cover to shield the speaker from dust and physical damage.

8. Fejlfinding

This section addresses common issues you might encounter with your RCF Art 945-A speaker.

If the problem persists after attempting these solutions, please contact RCF customer support or a qualified service technician.

9. Specifikationer

The following table outlines the technical specifications for the RCF Art 945-A Powered Speaker:

10. Garanti

The RCF Art 945-A Powered Speaker comes with a Begrænset garanti. Specific terms and conditions of the warranty may vary by region and retailer. Please refer to the warranty card included with your product or visit the official RCF website for detailed warranty information. Retain your proof of purchase for any warranty claims.

11. Support

For technical assistance, service, or further information regarding your RCF Art 945-A Powered Speaker, please contact RCF customer support:

• Online support: Visit the official RCF webwebsted (www.rcf.it) for FAQs, product registration, and support resources.
• Kontaktoplysninger: Refer to the contact section on the RCF website for regional phone numbers or email support.

When contacting support, please have your product model (ART945-A) and serial number (if applicable) ready.
