1. Introduktion
This user manual provides essential information for the safe and effective operation of the Sonel MPI-540-PV Multifunction Photovoltaic Installation Tester. The MPI-540-PV is an advanced instrument designed for comprehensive testing of photovoltaic (PV) installations and general electrical installations, adhering to standards such as EN 62446.
It enables a wide range of measurements on both DC and AC sides of PV systems, including automatic recalculation of parameters to Standard Test Conditions (STC). Additionally, it performs critical safety measurements for domestic and industrial electrical systems. This manual is intended for qualified professionals involved in the installation and maintenance of electrical and PV systems.
2. Sikkerhedsoplysninger
Vigtig: Read this entire manual before operating the Sonel MPI-540-PV. Failure to follow safety instructions may result in injury, damage to the device, or inaccurate measurements.
2.1 Generelle sikkerhedsforanstaltninger
- Only qualified and authorized personnel should operate this device.
- Always wear appropriate Personal Protective Equipment (PPE) when performing measurements.
- Brug ikke enheden, hvis den ser beskadiget ud eller fungerer unormalt.
- Ensure all connections are secure before applying power or initiating tests.
- Avoid operating the device in wet conditions or explosive atmospheres.
2.2 Elektrisk sikkerhed
- Be aware of live circuits and high voltages. Always assume circuits are live until proven otherwise.
- Never exceed the maximum input ratings specified for the device.
- Use only test leads and accessories supplied or approved by Sonel.
- Verify the functionality of test leads and probes before each use.
- Disconnect the device from the circuit before changing measurement functions or ranges, unless specified otherwise.
3. Pakkens indhold
Verify that all items listed below are present in your Sonel MPI-540-PV package:
- Sonel MPI-540-PV Multifunction Tester
- IRM-1 irradiation and temperature meter
- IRM-1 mounting & measuring set
- Z24 power supply
- LORA-S1 adapter for data transmission
- PVM-1 adapter
- MC4-banana sockets adapter (set)
- C-PV clamp
- Adapter for C-PV clamp
- 3x F-3A flexible clamp (Ø 120 mm)
- Test leads (various types and lengths)
- Krokodille clips
- Pin probe 1 kV (banana socket) red / blue / yellow
- Test lead 15 m, blue (on a reel)
- Test lead 30 m, red (on a reel)
- 2x Earth contact test probe (rod), 30 cm
- Voltage adapter with M4/M6 thread (set of 4 pcs.)
- USB-kabel
- 4 GB microSD-kort
- Z-7 power supply
- L-2 hanging straps (set)
- Carrying case M-13
- L-2 carrying case
- Kalibreringscertifikat

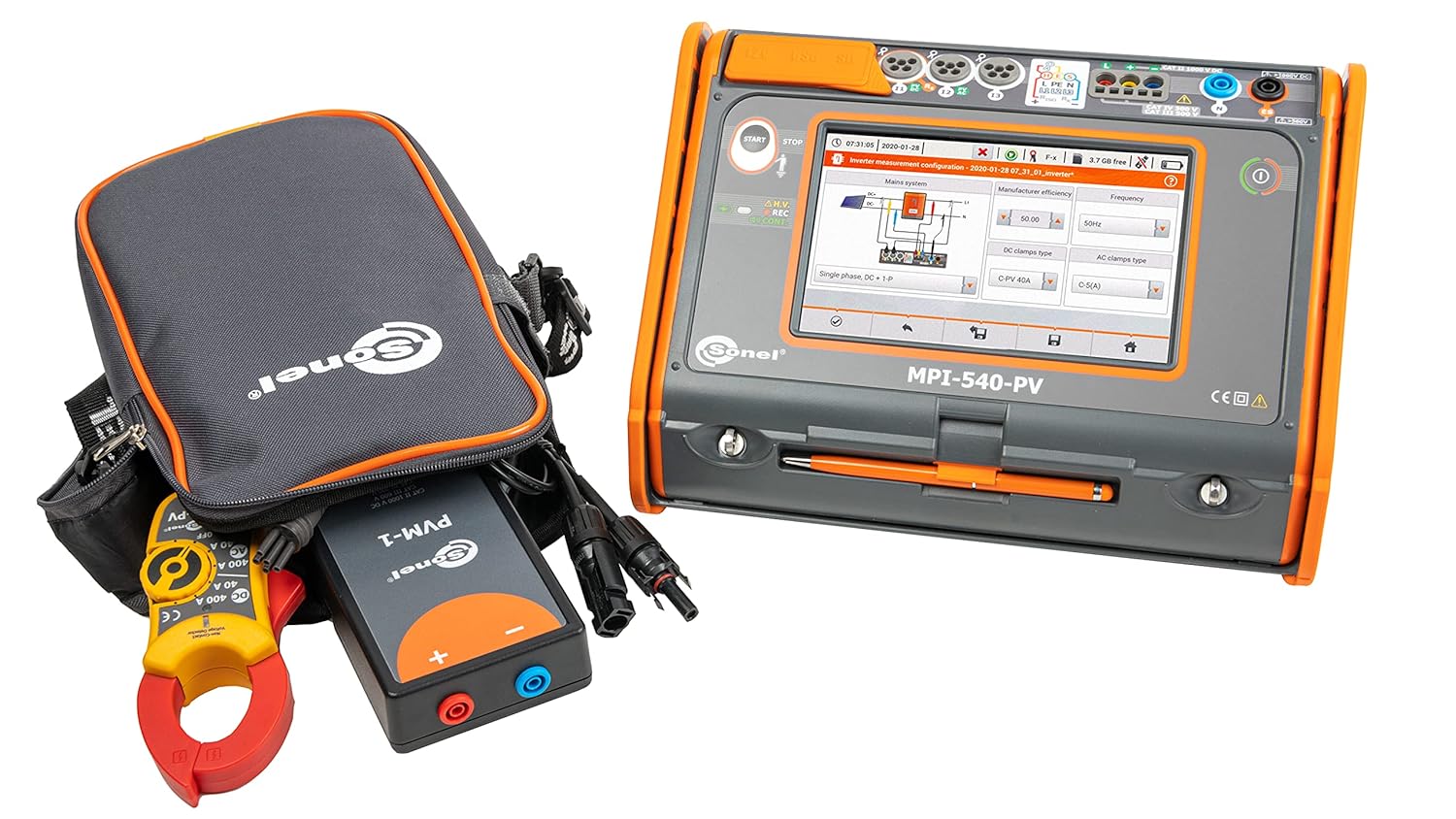

Figure 1: Sonel MPI-540-PV tester shown with its protective carrying case and a selection of included accessories, such as clamps og adaptere.
4. Enhed overview
The Sonel MPI-540-PV features a robust design with a large, intuitive touchscreen display for easy navigation and data visualization. Key components include various input terminals for test leads, clamps, and external sensors, as well as USB and SD card slots for data management.

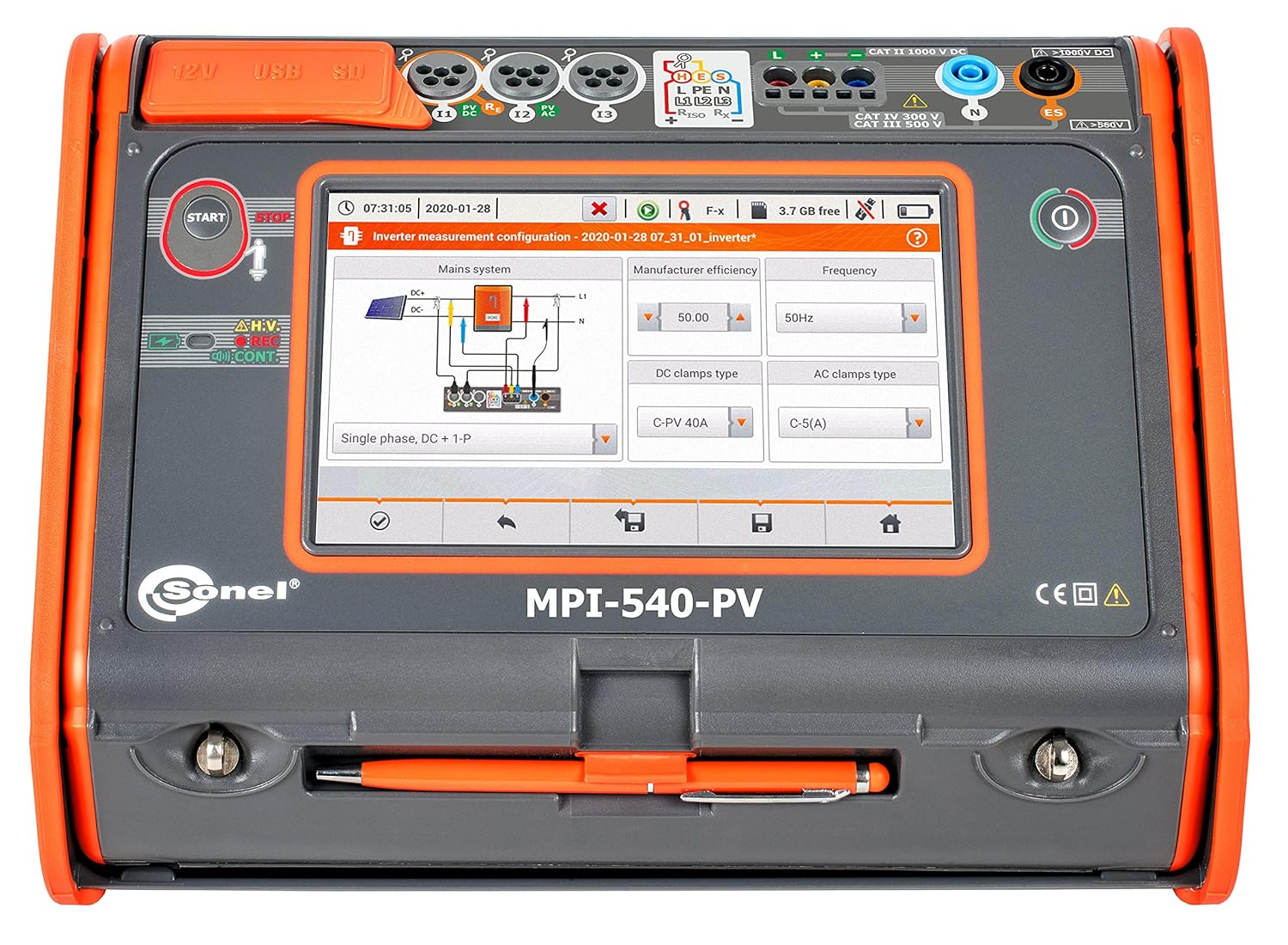

Figur 2: Forside view of the Sonel MPI-540-PV, highlighting its touchscreen interface displaying inverter measurement configuration settings. Input terminals and control buttons are visible around the screen.
4.1 Frontpanel og display
- Touchscreen display: Provides access to all functions, settings, and measurement results.
- Navigationsknapper: Complement touchscreen control for specific functions (e.g., START/STOP, REC).
- Indgangsterminaler: Clearly labeled ports for connecting test leads, current clamps og andet tilbehør.
- USB-port: For PC connection and data transfer.
- SD-kortplads: For expanded data storage.
5. Opsætning
5.1 Indledende opladning
Before first use, fully charge the device's internal battery using the provided Z24 power supply. Connect the power supply to the device and a suitable AC outlet. The charging indicator will show the charging status.
5.2 Isætning af MicroSD-kortet
Locate the SD card slot, typically protected by a rubber cover. Insert the provided 4 GB microSD card until it clicks into place. This card is essential for data logging and storage of measurement results.
5.3 Tilslutning af tilbehør
Connect the appropriate test leads, clamps (e.g., C-PV, F-3A), and adapters (e.g., PVM-1, MC4-banana) according to the specific measurement task. Ensure all connections are firm and correctly polarized where applicable.
6. Betjening
6.1 Generel navigation
Power on the device by pressing the power button. The main menu will appear on the touchscreen. Navigate through menus and select functions by tapping on the icons or using the physical navigation buttons.
6.2 Photovoltaic Installation Measurements (EN 62446)
The MPI-540-PV is specifically designed for comprehensive PV system testing. Select the PV measurement mode from the main menu. The device supports:
- Continuity of Protective and Equipotential Bondings: Verify low resistance paths.
- Earth Resistance: Measure the resistance of the earthing system.
- Insulation Resistance (DC Side): Test the insulation integrity of DC circuits.
- Open Circuit Voltage (UOC) and Short Circuit Current (ISC): Characterize PV module/string performance.
- Work Currents and Powers (DC and AC Side): Measure operational parameters of the PV system and inverter.
- Inverter Efficiency: Calculate the efficiency of the PV inverter.
The device can cooperate with the IRM-1 irradiation and temperature meter to automatically recalculate measured PV parameters to Standard Test Conditions (STC), providing a standardized performance evaluation.
Figure 3: A technician operating the Sonel MPI-540-PV tester while connected to a solar panel array, demonstrating its use in a field environment for PV installation measurements.
6.3 Electrical Installation Measurements
Beyond PV testing, the MPI-540-PV performs standard electrical installation safety tests:
- Sløjfeimpedans: Measure fault loop impedance.
- RCD test: Test Residual Current Devices.
- Insulation Resistance (AC Side): Test insulation of AC circuits.
- Fasesekvens: Verify correct phase rotation.
6.4 Data Logging and Transfer
Measurement results can be saved to the internal memory or the inserted microSD card. To transfer data to a PC, connect the device via USB or remove the microSD card and use a card reader. The Sonel Reports PLUS software can be used to analyze data and generate comprehensive reports of photovoltaic installation parameters.
7. Vedligeholdelse
7.1 Rengøring
Clean the device's casing med en blød, damp cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the device through ports or openings.
7.2 Pleje af batterier
For optimal battery life, avoid fully discharging the battery frequently. If storing the device for an extended period, ensure the battery is charged to approximately 50-70% and recharge periodically.
7.3 Kalibrering
Regular calibration is essential to maintain the accuracy of the MPI-540-PV. Refer to the calibration certificate for recommended intervals. Contact an authorized Sonel service center for calibration services.
8. Fejlfinding
This section addresses common issues you might encounter with the Sonel MPI-540-PV.
- Enheden tændes ikke: Check battery charge level. Ensure the power button is pressed firmly.
- Unøjagtige aflæsninger: Verify test lead connections. Ensure correct measurement function is selected. Check for external interference. Consider recalibration if issues persist.
- Problemer med dataoverførsel: Ensure USB cable is properly connected. Verify microSD card is correctly inserted and not full. Check PC software compatibility.
- Skærmen reagerer ikke: Attempt a soft reset (refer to the full manual for specific instructions). Ensure the screen is clean and dry.
For issues not covered here, or if troubleshooting steps do not resolve the problem, contact Sonel technical support.
9. Specifikationer
The Sonel MPI-540-PV is designed to meet various international standards for electrical and PV installation testing. Key capabilities include:
- Målestandarder: Complies with EN 62446 for PV installations.
- PV Measurement Functions: UOC, ISC, insulation resistance (DC), continuity, earth resistance, AC/DC power and current, inverter efficiency.
- Electrical Installation Functions: Loop impedance, RCD testing, insulation resistance (AC), phase sequence, voltage, frekvens.
- Datalagring: Internal memory and microSD card support.
- Meddelelse: USB, LORA-S1 (for IRM-1).
- Vise: Color touchscreen.
For detailed technical specifications, including measurement ranges, accuracy, and environmental conditions, please refer to the complete technical data sheet available on the Sonel website or in the comprehensive product documentation.
10. Garanti og support
Sonel products are manufactured to high-quality standards and are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Sonel webwebsted.
For technical assistance, service, or support, please contact your authorized Sonel distributor or Sonel customer service. When contacting support, please have your device model (MPI-540-PV) and serial number available.
