ENGINDOT Regningstæller Brugermanual

1. Introduktion

This manual provides detailed instructions for the safe and efficient operation of your ENGINDOT Bill Counter. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage. This bill counter is designed for accurate counting and counterfeit detection of banknotes.

Figur 1.1: Forside view of the ENGINDOT Bill Counter, showcasing dens kompakte design og brugergrænseflade.

2. Hvad er der i æsken

Ved udpakning skal du kontrollere, at alle følgende varer er inkluderet:

• ENGINDOT Bill Counter Unit
• Brugervejledning (dette dokument)
• Strømledning
• Eksternt display
• Rengøringsbørste
• Udskiftningsbælte
• Money Bands
• Counterfeit Detection Pen

3. Produktet er slutview

Familiarize yourself with the main components of the bill counter:

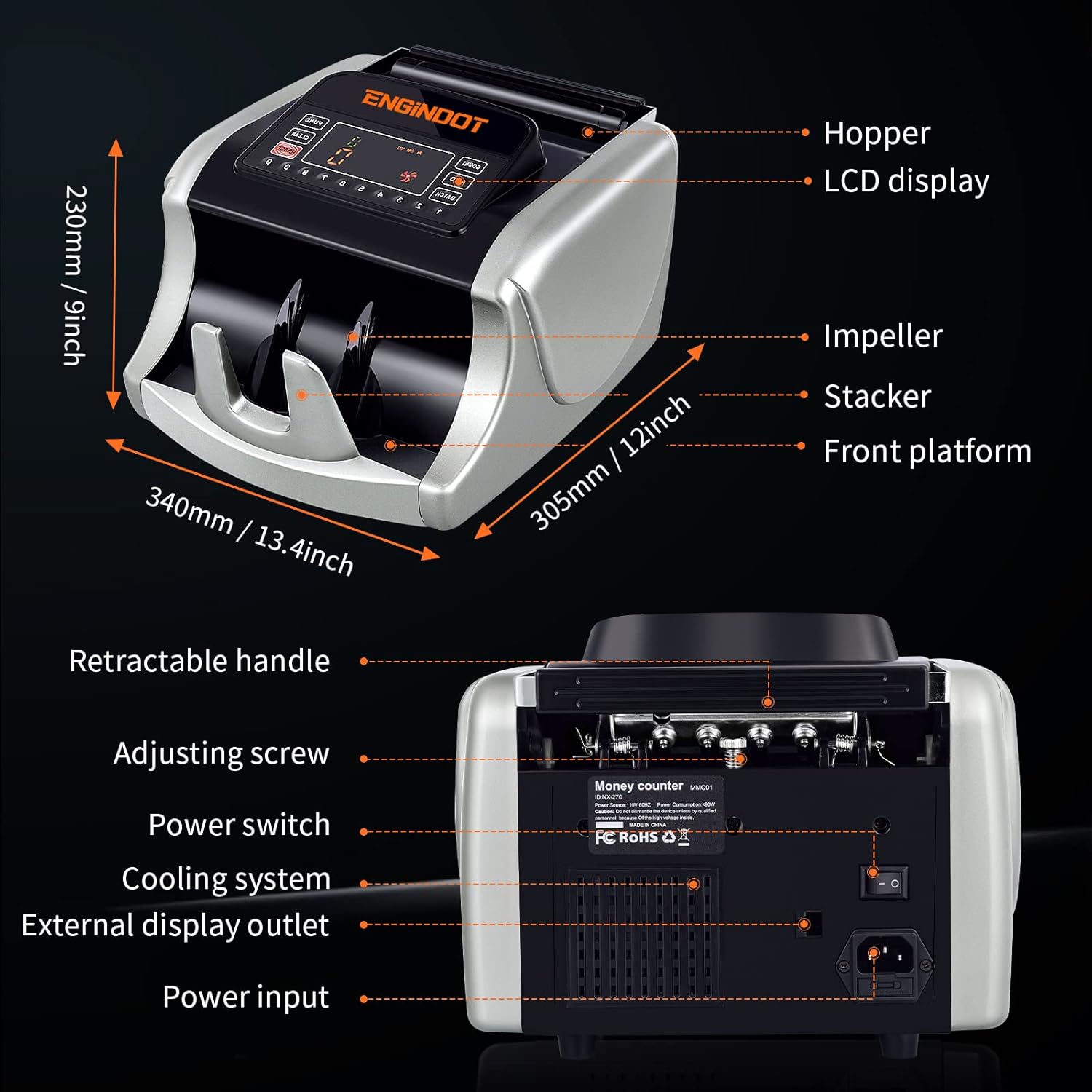

Figure 3.1: Diagram illustrating the key components of the bill counter, including the hopper, LCD display, impeller, stacker, and front platform, along with overall dimensions.

3.1 Nøglefunktioner

• Højhastighedsoptælling: Processes up to 1000 notes per minute.
• Stor kapacitet: 200-bill stacker and hopper capacity.
• Registrering af forfalskninger: Equipped with UV, MG, IR, DBL, HLF, CHN, and DD image detection.
• Brugervenlig skærm: Large LED display for clear readings.
• Bærbart design: Features a retractable handle for easy transport.
• Holdbar konstruktion: Built with robust metal components.

Figure 3.2: Visual representation of the bill counter's core benefits, including fast counting speed, time-saving capabilities, counterfeit detection, quiet operation, and portability.

4. Opsætning

Follow these steps to set up your ENGINDOT Bill Counter:

1. Pak enheden ud: Carefully remove the bill counter and all accessories from the packaging.
2. Placer på en stabil overflade: Position the bill counter on a flat, stable, and dry surface.
3. Tilslut strøm: Insert the power cord into the power input port on the back of the machine and plug the other end into a suitable power outlet.
4. Tilslut ekstern skærm (valgfrit): If desired, connect the external display to the external display outlet on the back of the unit.
5. Tænd: Flip the power switch located on the back of the machine to the 'ON' position. The machine will perform a self-test.

Figure 4.1: The bill counter positioned on a surface, ready for initial setup and connection.

5. Driftstilstande

The ENGINDOT Bill Counter offers multiple operating modes to suit various counting needs:

• Tælletilstand: Simply counts the number of bills inserted.
• Tilføj tilstand: Accumulates the count of multiple batches of bills.
• Nulstil tilstand: Clears the current count.
• Automatisk tilstand: Automatically starts counting when bills are placed in the hopper.
• Batch-tilstand: Counts bills into preset batches (e.g., 100 bills per batch).
• Ryd tilstand: Nulstiller displayet.

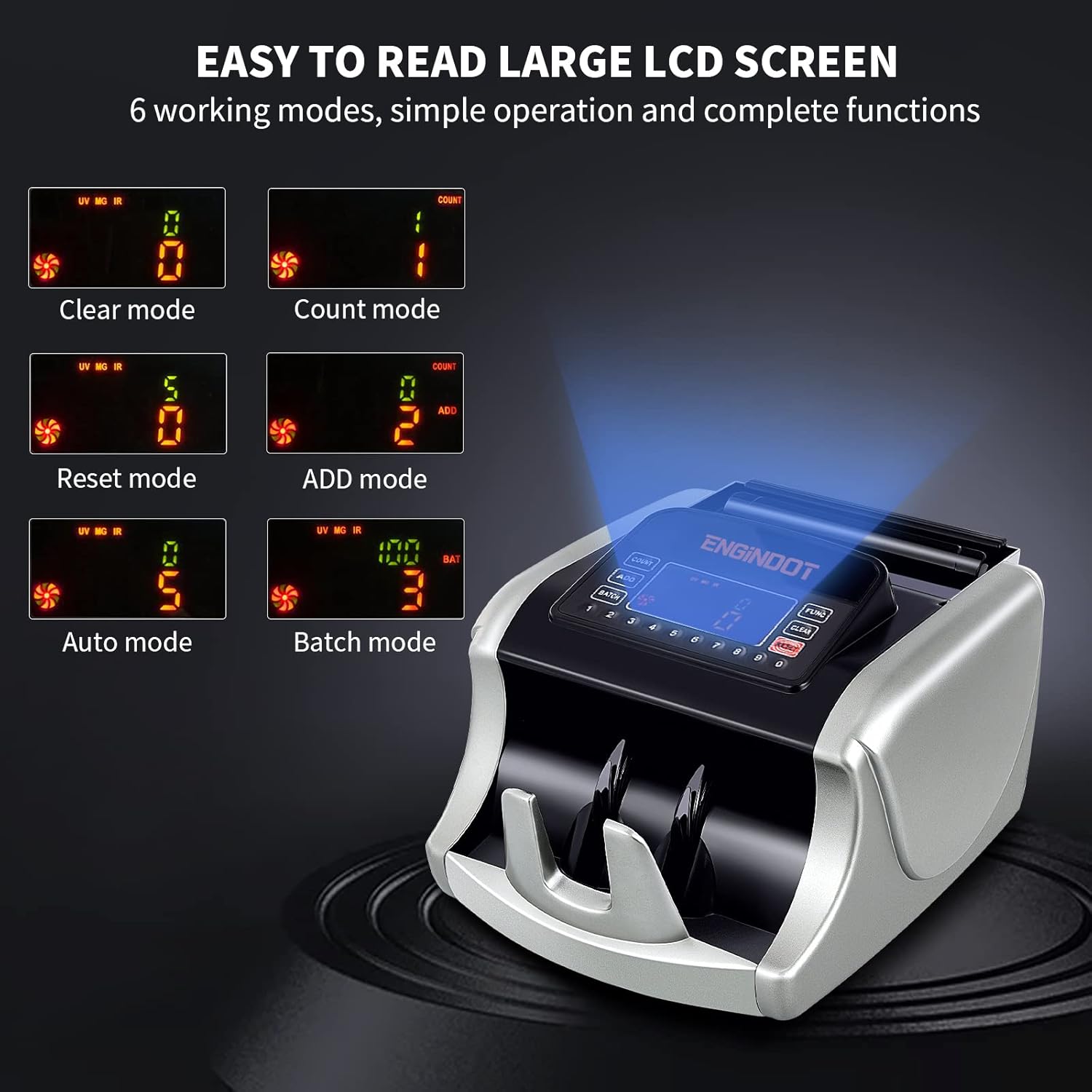

Figure 5.1: The large LCD screen of the bill counter displaying the six available working modes, indicating simple operation and comprehensive functions.

Figure 5.2: A visual guide to the six optional operating modes, emphasizing stable and smooth banknote counting performance.

5.1 Loading Bills

Ensure bills are neatly stacked and free from tears or folds. Place the stack of bills into the hopper. The machine will automatically begin counting in Auto Mode, or you can press the 'COUNT' button to start in other modes.

Figure 5.3: The bill counter in action, illustrating its high-speed capability of 1000 notes per minute and its 200-bill stacker and hopper capacity for efficient and accurate counting.

Figure 5.4: An illustration showing the correct orientation for inserting bills into the hopper to prevent jams and ensure accurate counting.

6. Registrering af forfalskning

The ENGINDOT Bill Counter employs multiple professional detection methods to identify counterfeit, ripped, or damaged bills:

• UV (Ultraviolet) Security Thread Detection: Checks for UV features embedded in banknotes.
• MG (Magnetic) Ink Verification: Detects magnetic properties in the ink.
• IR (Infrared) Sensor: Verifies infrared patterns on bills.
• DBL (Double-Note Detection): Identifies instances where two bills are counted as one.
• HLF (Half-Note Detection): Detects torn or half bills.
• CHN (Chain-Note Detection): Identifies bills that are stuck together end-to-end.
• DD (Dimensional Detection): Checks for discrepancies in bill dimensions.

Figur 6.1: En visuel oversigtview of the various counterfeit detection technologies integrated into the bill counter, ensuring precise and complete verification of banknotes.

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your bill counter:

• Rensning: Use the provided cleaning brush to regularly remove dust and debris from the bill path, sensors, and internal components. Ensure the machine is powered off and unplugged before cleaning.
• Sensorrensning: Gently wipe the sensors with a soft, lint-free cloth.
• Udskiftning af bælte: If the bill feeding mechanism shows signs of wear or slippage, replace the belt using the provided replacement and following instructions in the detailed PDF manual.

Figure 7.1: The cleaning brush and replacement belt included with the bill counter, facilitating easy maintenance and ensuring prolonged operational efficiency.

8. Fejlfinding

The bill counter features an error self-check system. If an error occurs, an error code will be displayed on the screen. Refer to the table below for common error codes and their solutions:

Figure 8.1: The bill counter's display showing an error code, accompanied by a list of common error messages and their corresponding causes for easy troubleshooting.

9. Specifikationer

10. Garanti og support

For detailed warranty information and customer support, please refer to the full User Manual PDF available for download or contact ENGINDOT customer service. Keep your purchase receipt as proof of purchase for warranty claims.

You can access the comprehensive User Manual (PDF) her.
