GYMAX Elliptical Machine User Manual

Vigtige sikkerhedsinstruktioner

Before operating the GYMAX Elliptical Machine, please read and understand all safety instructions. Retain this manual for future reference.

• Kontakt din læge, før du starter et træningsprogram.
• Hold børn og kæledyr væk fra maskinen under drift.
• Place the elliptical on a flat, stable surface with adequate clearance around it.
• Undersøg maskinen for løse eller slidte dele før hver brug. Må ikke anvendes, hvis den er beskadiget.
• Brug passende træningstøj og sportssko.
• The maximum user weight capacity for this machine is 220 lbs (99.79 kg). Do not exceed this limit.
• Stop med at træne med det samme, hvis du føler dig svimmel, føler dig svag eller oplever smerter.
• Sørg for, at alle bolte og møtrikker er forsvarligt spændt før brug.

Opsætning og montering

The GYMAX Elliptical Machine requires assembly. Please refer to the separate assembly guide included in your product packaging for detailed, step-by-step instructions. Ensure all components are present before beginning assembly.

Post-Assembly Setup:

1. Placering: Position the elliptical on a level, solid surface. Ensure there is enough space around the machine for safe operation and movement.
2. Stabilisering: Verify that the machine is stable and does not wobble. Adjust any leveling feet if present, or ensure the anti-slip pads are making full contact with the floor.
3. Transport: The elliptical is equipped with built-in transportation wheels for easy relocation. To move the machine, carefully tilt it forward onto the wheels and push it to the desired location.

Image: A user tilting the elliptical machine to engage the transportation wheels for easy movement.

Betjeningsvejledning

Kom godt i gang:

• Step onto the large anti-slip pedals, ensuring your feet are centered and secure.
• Grip the comfortable handlebars. For heart rate monitoring, place your hands on the pulse sensors located on the fixed handlebars.
• Begin pedaling in a smooth, elliptical motion.

Justering af modstand:

The GYMAX Elliptical Machine features 8 levels of magnetic resistance. To adjust the intensity of your workout, turn the tension control knob located on the main body of the machine. Turn clockwise for higher resistance (more challenging) and counter-clockwise for lower resistance (easier).

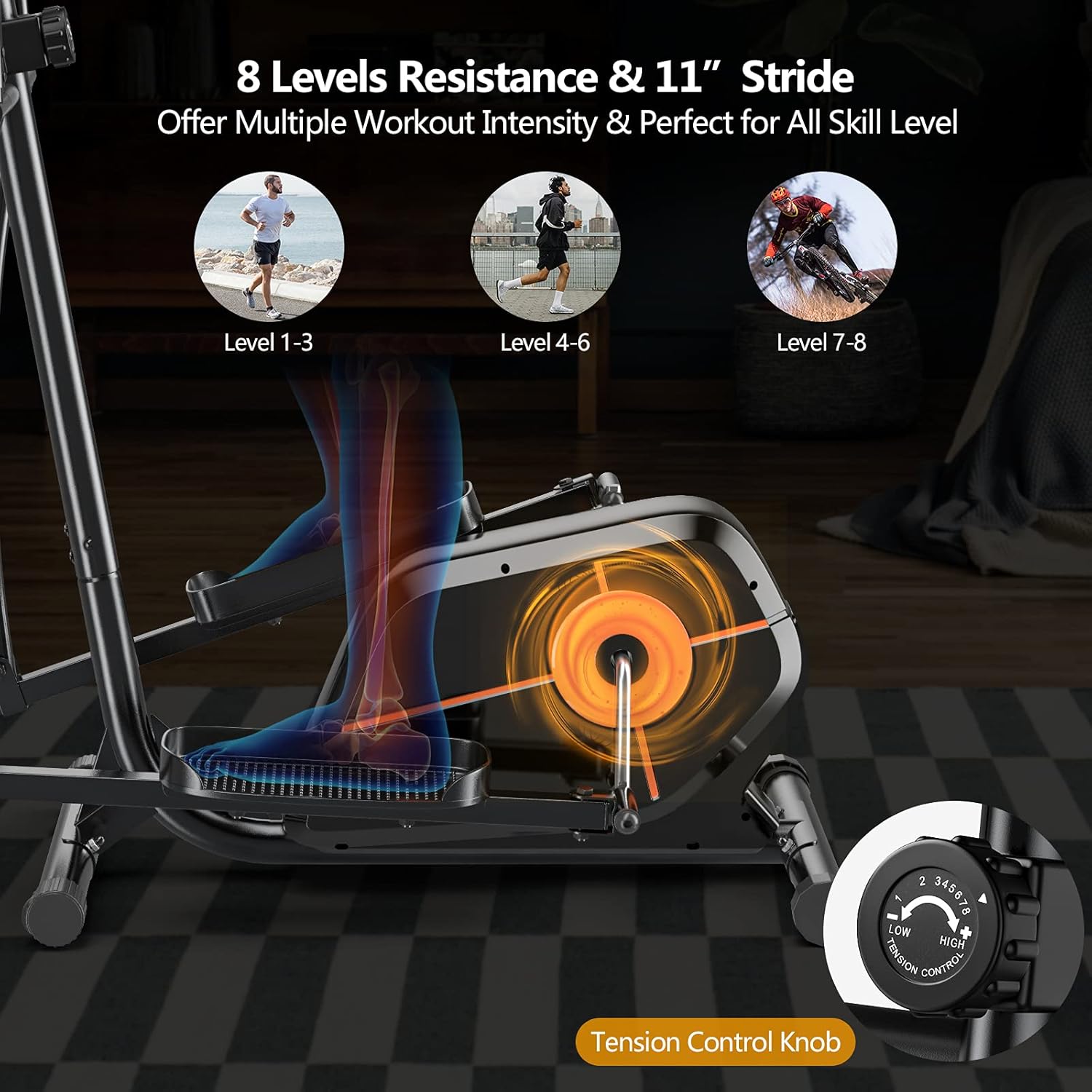

Image: Illustration of the 8-level resistance system and the tension control knob for adjusting workout intensity.

Using the LCD Monitor:

The integrated LCD monitor displays key workout data to help you track your progress. The monitor typically shows:

• Tid: Varigheden af ​​din nuværende træning.
• Hastighed: Your current pedaling speed.
• Afstand: Samlet tilbagelagt distance under træningen.
• Forbrændte kalorier: Et estimat af forbrændte kalorier.
• Puls: Your pulse, measured when gripping the pulse sensors.
• Kilometertæller: Total accumulated distance (may vary by model).

The monitor is powered by 2 AAA batteries (included). Refer to the monitor's specific instructions for detailed operation, including how to reset values or switch display modes.

Image: The intelligent LCD monitor and pulse sensors, illustrating how workout progress is tracked.

Enhedsholder:

A convenient device holder is integrated into the console, allowing you to place your smartphone or tablet for entertainment during your workout.

Billede: Detaljeret view of the elliptical's user-friendly features, including the phone holder and anti-slip pedals.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your GYMAX Elliptical Machine.

• Rensning: Tør maskinen af ​​med adamp en klud efter hver brug for at fjerne sved og støv. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Inspektion: Kontrollér regelmæssigt alle bolte, møtrikker og bevægelige dele for fastspænding og slid. Spænd eventuelle løse fastgørelseselementer.
• Smøring: The internal magnetic resistance system is generally maintenance-free. If any squeaking or unusual noises occur from moving joints, a light application of silicone-based lubricant may be applied to pivot points, avoiding the flywheel mechanism.
• Opbevaring: Store the elliptical in a dry, cool place away from direct sunlight and extreme temperatures.

Fejlfinding

If you encounter issues with your elliptical machine, refer to the following common troubleshooting steps:

• LCD-skærmen viser ikke:
  • Kontroller, om de 2 AAA-batterier er korrekt installeret og ikke er opbrugt. Udskift dem om nødvendigt.
  • Ensure all cable connections to the monitor are secure.
• Unusual Noises (Squeaking/Grinding):
  • Inspect all bolts and nuts for tightness, especially around the pedal arms and frame joints. Tighten any loose fasteners.
  • Sørg for, at maskinen står på en plan overflade.
  • If the noise persists, a small amount of silicone lubricant can be applied to pivot points, avoiding the flywheel.
• Modstand ændrer sig ikke:
  • Verify that the tension control knob is turning freely and engaging.
  • Ensure the internal resistance mechanism cable (if applicable) is not disconnected or damaged.

For issues not covered here, please contact GYMAX customer support.

Specifikationer

Image: Visual representation of the elliptical machine's key dimensions and specifications.

Garanti og support

Specific warranty details for the GYMAX Elliptical Machine (Model Maggie) are typically provided with your purchase documentation or on the product packaging. Please refer to these resources for information regarding warranty coverage, terms, and conditions.

For technical support, parts inquiries, or warranty claims, please contact GYMAX customer service through the retailer where the product was purchased or visit the official GYMAX webwebsted for kontaktoplysninger.

Produkt overview

The GYMAX Elliptical Machine is designed for effective cardio training in a home or office environment. It features a quiet magnetic flywheel system, adjustable resistance, and an LCD monitor to track workout progress.

Image: The GYMAX Elliptical Machine, showcasing its overall design and compact footprint.
