Rebel KOM1030 Wi-Fi-signal Amplivligere brugervejledning

Indledning

This manual provides instructions for the proper installation, operation, and maintenance of your Rebel KOM1030 Wi-Fi Signal Amplifier. This device is designed to extend the coverage of your existing Wi-Fi network, providing a stronger and more reliable wireless signal in areas with weak or no coverage.

Image: The Rebel KOM1030 Wi-Fi Signal Amplifier shown with an Ethernet cable and a separate power adapter, illustrating the product and its basic components.

Pakkens indhold

Sørg for at alle varer er til stede i pakken:

• Rebel KOM1030 Wi-Fi-signal Amplivligere
• Brugervejledning (dette dokument)

Nøglefunktioner

• Supports up to 10 simultaneous users.
• Operates on 2.4 GHz frequency band.
• Data transfer rate up to 300 Mbit/s.
• Wireless range up to 100 meters (328 feet).
• Equipped with 2 integrated antennas.

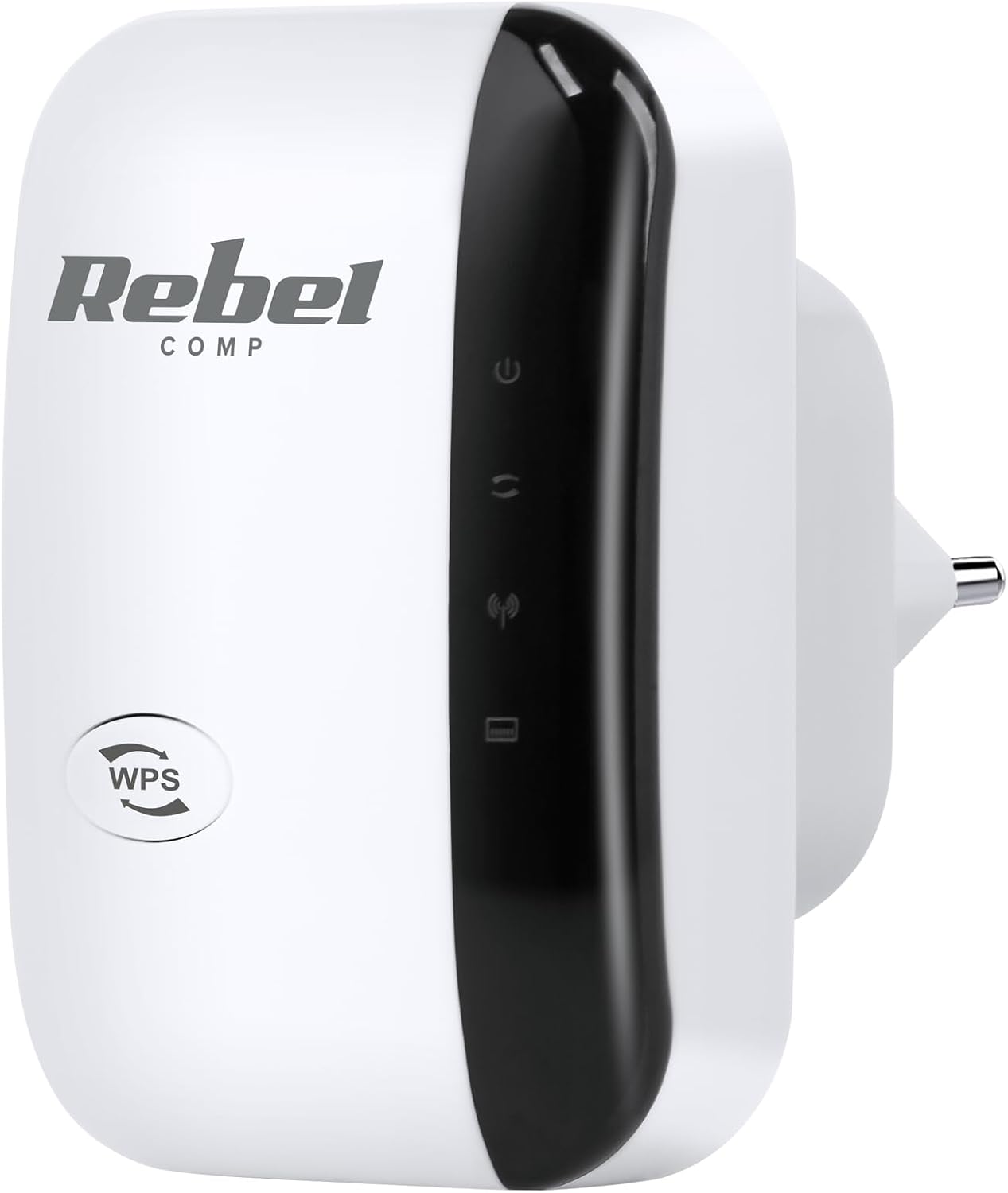

Billede: Forside view of the Rebel KOM1030 Wi-Fi Signal Amplifier, showing the WPS button and indicator lights.

Opsætningsinstruktioner

1. Fysisk forbindelse

1. Pak enheden ud: Carefully remove the Rebel KOM1030 from its packaging.
2. Tilslut: Insert the device directly into a standard electrical outlet. Ensure it is securely plugged in.

Image: The Rebel KOM1030 Wi-Fi Signal Amplifier plugged into a wall power outlet, demonstrating proper physical connection.

2. Konfigurationsmetoder

The Rebel KOM1030 can be configured using two primary methods: WPS (Wi-Fi Protected Setup) or via a web browser.

Method A: WPS Setup (Recommended for compatible routers)

1. Tænd: Plug the Rebel KOM1030 into a power outlet near your main router.
2. Activate WPS on Router: Press the WPS button on your main Wi-Fi router. Refer to your router's manual for the exact location and procedure.
3. Activate WPS on Repeater: Within two minutes, press the WPS button on the Rebel KOM1030. The WPS indicator light on the repeater should start blinking.
4. Vent på forbindelse: The devices will attempt to establish a connection. Once connected, the Wi-Fi indicator light on the repeater will become solid.
5. Relocate (Optional): After successful setup, you can unplug the repeater and move it to a more central location between your router and the area needing extended coverage.

Billede: Side view of the Rebel KOM1030, highlighting the WPS button and the LAN port, which are crucial for setup and wired connections.

Metode B: Web Browser opsætning

1. Tænd: Plug the Rebel KOM1030 into a power outlet.
2. Opret forbindelse til repeaterens Wi-Fi: On your computer or mobile device, connect to the Wi-Fi network broadcast by the repeater (e.g., "Rebel_Repeater" or similar, check the device label if available). This network will not have internet access initially.
3. Adgang Web Interface: Åbn a web browser og indtast standard IP-adressen (f.eks. http://192.168.10.1) eller domænenavn (f.eks. http://rebelrepeater.net). Refer to the device label or packaging for the exact address.
4. Log ind: Enter the default username and password (commonly "admin" for both, or as specified on the device label).
5. Vælg tilstand: Choose "Repeater Mode" or "Extender Mode" from the setup wizard.
6. Scan efter netværk: The repeater will scan for available Wi-Fi networks. Select your main Wi-Fi network from the list.
7. Indtast adgangskode: Input the password for your main Wi-Fi network.
8. Configure Repeater SSID (Optional): You can choose to keep the same network name (SSID) as your main router or create a new one (e.g., "YourNetwork_EXT").
9. Anvend indstillinger: Save the settings and wait for the repeater to restart.
10. Bekræft forbindelsen: Once restarted, the Wi-Fi indicator light should be solid, indicating a successful connection.

3. Optimal placering

For best performance, place the Rebel KOM1030 in a location that is:

• Approximately halfway between your main router and the area where you need improved Wi-Fi coverage.
• Within the range of your existing Wi-Fi network, where the signal is still strong and stable.
• Away from large metal objects, concrete walls, microwaves, and other devices that may cause interference.

Image: The Rebel KOM1030 Wi-Fi Signal Amplifier mounted on a wall, demonstrating a typical placement for extending Wi-Fi coverage.

Image: An overhead floor plan illustrating how a Wi-Fi repeater extends network coverage from a central router to previously uncovered areas.

Betjening af enheden

Once configured, the Rebel KOM1030 operates automatically to extend your Wi-Fi signal. Observe the indicator lights for status information.

Indikatorlys

• Strømindikator: Konstant lys angiver, at enheden er tændt.
• Wi-Fi-indikator:
  • Solid: Successfully connected to the main Wi-Fi network and extending signal.
  • Blinking: Attempting to connect or WPS pairing in progress.
  • Off: No Wi-Fi connection or device is not configured.
• LAN-indikator: Solid or blinking light indicates an active connection through the Ethernet port.

Brug af Ethernet-port

The integrated LAN port allows you to connect a wired device (e.g., a desktop computer, gaming console, or smart TV) to the repeater, providing network access to devices that do not have Wi-Fi capabilities or for a more stable connection.

Opretholdelse

• Rensning: Brug en blød, tør klud til at rengøre enheden. Brug ikke flydende rengøringsmidler eller aerosoler.
• Firmwareopdateringer: Kontroller jævnligt producentens website for firmware updates. Updates can improve performance, add features, or fix bugs. Refer to the manufacturer's instructions for updating firmware.
• Nulstilling af enheden: If the device is not functioning correctly, you may perform a factory reset. Locate the "Reset" button (often a small pinhole) on the device. With the device powered on, use a paperclip or similar pointed object to press and hold the Reset button for approximately 5-10 seconds until the lights flash. The device will revert to factory default settings, requiring re-configuration.

Fejlfinding

Ingen internetadgang efter opsætning

• Ensure the repeater is within range of your main router and receiving a strong signal.
• Bekræft, at din primære router har en aktiv internetforbindelse.
• Re-run the setup process, ensuring the correct Wi-Fi network and password are selected.
• Try relocating the repeater to a different power outlet or a more optimal position.

Langsom forbindelseshastighed

• The repeater might be too far from the main router. Move it closer to improve signal strength.
• Kontroller for interferens fra andre elektroniske enheder (f.eks. mikrobølgeovne, trådløse telefoner).
• Ensure your main router is providing adequate speed.
• Consider connecting wired devices directly to the repeater's LAN port for potentially better performance.

WPS-opsætning mislykkes

• Ensure you press the WPS button on both the router and the repeater within the specified time frame (usually 2 minutes).
• Some routers may require WPS to be enabled in their settings.
• Hvis WPS fortsætter med at fejle, skal du bruge web browseropsætningsmetode.

Kan ikke få adgang Web Ledelsesside

• Ensure your device is connected to the repeater's Wi-Fi network (not your main router's).
• Verify the IP address or domain name entered in the browser is correct.
• Prøv at rydde din browsers cache eller brug en anden browser.
• Perform a factory reset on the repeater and try again.

Specifikationer

Image: The Rebel KOM1030 Wi-Fi Signal Amplifier displayed alongside its key technical specifications, including IEEE 802.11 b/g/n, 2.4 GHz frequency, and 300 Mb/s data rate.

Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Rebel brand webwebsted. Specifikke garantivilkår kan variere afhængigt af region og forhandler.

Kontakt support: If you encounter issues not covered in this manual, please contact Rebel customer support through their official channels.
