1. Introduktion
Tak for købetasing the CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen. This professional-grade LED light is designed for various photography and videography applications, offering versatile color control and powerful illumination. Please read this manual thoroughly before operating the device to ensure proper use and maintenance.
This manual provides essential information on setting up, operating, maintaining, and troubleshooting your lighting screen. Keep this manual for future reference.
2. Sikkerhedsforanstaltninger
- Udsæt ikke enheden for regn eller fugt for at undgå elektrisk stød eller brand.
- Do not disassemble or modify the device. Repairs should only be performed by qualified personnel.
- Ensure the power source matches the device's requirements (Electric, 55W).
- Undgå direkte øjenkontakt med lyskilden, da det kan forårsage øjenskader.
- Keep the device away from flammable materials and ensure proper ventilation during operation.
- Håndter enheden med forsigtighed for at forhindre fysisk skade.
3. Pakkens indhold
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og i god stand:
- CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen (Model: P-1200R)
- Strømadapter/kabel
- Bæretaske
- Brugervejledning (dette dokument)
Image: The CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen (displaying blue light) shown alongside its dedicated carrying bag, illustrating the main product and its portable storage solution.
4. Opsætningsvejledning
4.1 Montering af lyset
The Boltzen Perseus P-1200R is designed to be mounted on a standard light stand. Locate the mounting bracket on the light and attach it securely to your light stand's spigot.

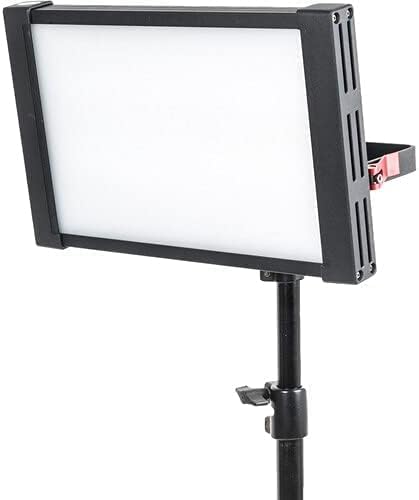

Image: The CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen, emitting a white light, securely mounted on a professional light stand, demonstrating its typical setup for studio or location use.
4.2 Strømtilslutning
- Connect the power adapter to the DC input port on the back of the light panel.
- Sæt strømadapteren i en passende stikkontakt.
- Alternatively, if using a compatible battery (not included), attach it to the battery plate on the rear of the unit.
Billede: En detaljeret view of the rear panel of the CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen, highlighting the control knobs, buttons, and the battery mounting plate, essential for operation and power management.
5. Betjeningsvejledning
5.1 Tænd/sluk
Locate the power switch on the rear panel of the light. Flip the switch to the 'ON' position to power on the device. Flip it to the 'OFF' position to power off.
5.2 Justering af lysstyrke (dæmper)
Brug DIMMER knob on the control panel to adjust the light's intensity. Rotate clockwise to increase brightness and counter-clockwise to decrease it.
5.3 Color Temperature and Hue Control
The Boltzen Perseus P-1200R features RGBDT color space control, allowing for a wide range of color temperatures and hues.
- CCT-tilstand: Brug CCT knob to adjust the color temperature from 2000K to 10000K.
- RGB-tilstand: Tryk på FARVE button to switch to RGB mode. Use the corresponding knobs or buttons to adjust Red, Green, and Blue values to achieve desired colors.
- Specialeffekter: The light may include pre-programmed special effects. Refer to the on-screen display and control buttons for navigation and selection of these effects.
Image: The CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen illuminated with a vibrant red light, showcasing its ability to produce various colors for creative lighting setups.
Image: The CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen illuminated with a bright blue light, demonstrating another color option available through its RGBDT color control system.
Image: The CAME-TV Boltzen Perseus RGBDT 55W Lighting Screen illuminated with a rich purple light, further illustrating the extensive color palette achievable with this versatile lighting unit.
6. Vedligeholdelse
- Rensning: Brug en blød, tør klud til at rengøre lyspanelet og huset. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Når den ikke er i brug, skal den opbevares i bæretasken på et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Inspektion: Regularly inspect the power cable and connections for any signs of damage. If damage is found, discontinue use and contact customer support.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strømforsyning; løs forbindelse; defekt strømadapter. | Check power cable connection; ensure outlet is working; try a different power adapter if available. |
| Lyset flimrer eller dæmpes uventet. | Unstable power supply; overheating; faulty internal component. | Ensure stable power source; allow light to cool down; contact customer support if problem persists. |
| Color or brightness controls are unresponsive. | Software glitch; control panel issue. | Power cycle the device (turn off, wait 10 seconds, turn on); contact customer support. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | P-1200R |
| Mærke | CAME-TV |
| Strømudgang | 55W (Note: Some specifications may list 9W, but the primary output is 55W) |
| Farvetemperaturområde | 2000K - 10000K (RGBDT) |
| Strømkilde | Elektrisk |
| Dimensioner (forsendelse) | 37.2 x 31.2 x 9.6 cm |
| Vægt (forsendelse) | 1 kg |
| Inkluderede komponenter | Lighting Screen, Power Adapter, Carrying Bag |
| Første ledige dato | 14. september 2021 |
9. Garanti og support
For warranty information and technical support, please refer to the official CAME-TV webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
Manufacturer: CAME-TV Boltzen Perseus RGBDT 55W - P-1200R-1
ASIN: B09G3JLCSQ
