EBYTE E32-900T30D LoRa trådløs seriel portmodul brugermanual

1. Introduktion

The E32-900T30D is a wireless serial port module (UART) designed for long-distance communication using LoRa spread spectrum technology. It operates within the 862MHz to 931MHz frequency band and provides TTL output. This module is engineered for robust performance in various IoT applications, offering features such as advanced anti-interference capabilities and ultra-low power consumption modes.

Key characteristics include a maximum transmit power of 30dBm, enabling communication distances up to 8km under ideal conditions, and a data transmission rate ranging from 0.3kbps to 19.2kbps. It supports a wide operating voltage of 3.3V to 5.5V and is built to industrial-grade standards, ensuring reliable operation in temperatures from -40℃ to +85℃.

2. Funktioner

• Advanced LoRa modulation for extended communication range and enhanced anti-interference.
• Communication distance up to 8km under ideal conditions, surpassing traditional GFSK.
• Supports fixed-point transmission, broadcast transmission, and channel monitoring.
• Incorporates FEC (Forward Error Correction) for improved communication stability.
• Air wake-up functionality for ultra-low power consumption, ideal for battery-powered applications.
• Utilizes an industrial-grade active temperature-compensated crystal oscillator for stability and consistency.
• Maximum transmit power of 30dBm, with multi-level software adjustable power.
• Compatible with 868/915MHz EU general frequency bands.
• Dataoverførselshastigheder fra 0.3 kbps til 19.2 kbps.
• Operation voltage range of 3.3V to 5.5V (optimal performance at >3.3V).
• Industrial-grade design for long-term use in harsh environments (-40℃ to +85℃).
• IPEX/stamp hole interface for flexible antenna connection options.
• Features data encryption and compression for secure and efficient data handling.
• Complies with FCC, CE, and CCC design standards, meeting various RF certification requirements.

3. Produktet er slutview

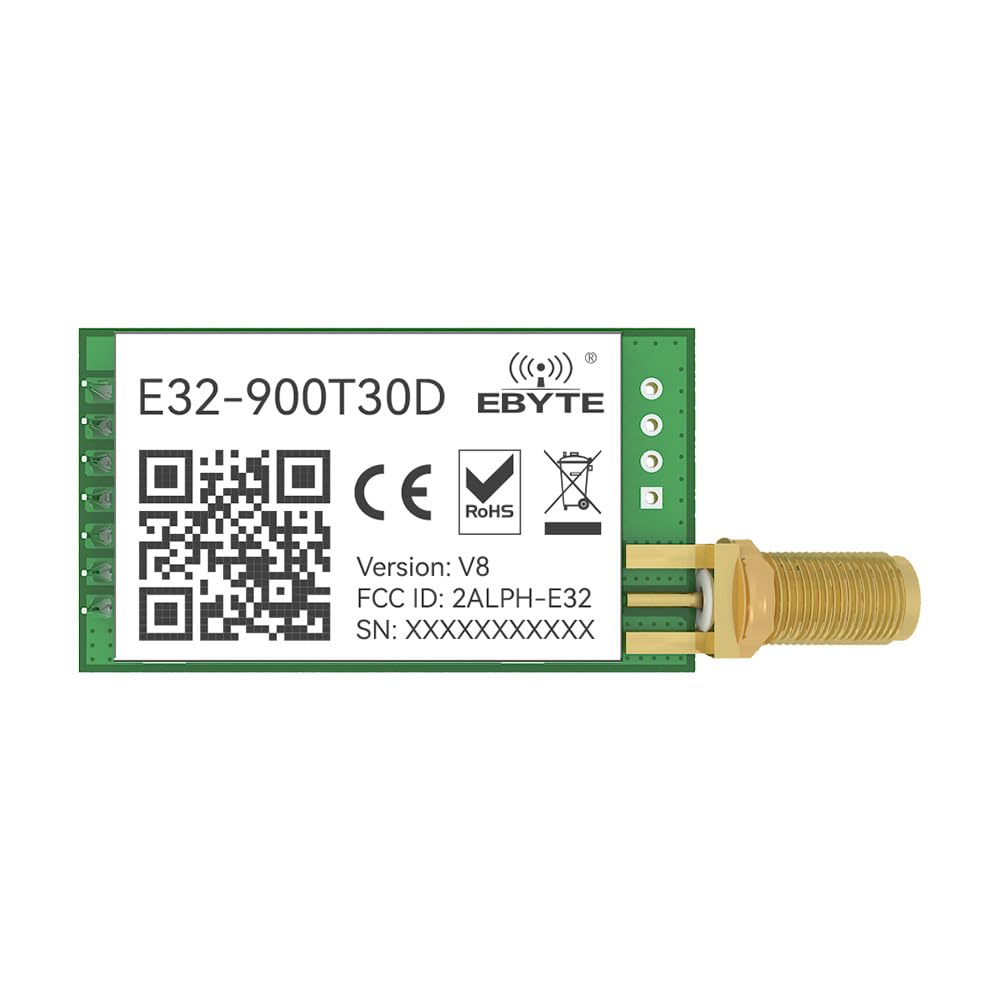

Figur 3.1: Front view of the E32-900T30D LoRa module, showing the model number, EBYTE branding, CE and RoHS certifications, version V8, FCC ID, and serial number placeholder. The SMA-K antenna connector is visible on the right.

For mere information, besøg den officielle webwebsted: www.cdebyte.com

Figur 3.2: E32-900T30D LoRa module with indicated dimensions: 24mm width and 43mm length. This view highlights the compact size of the module.

For mere information, besøg den officielle webwebsted: www.cdebyte.com

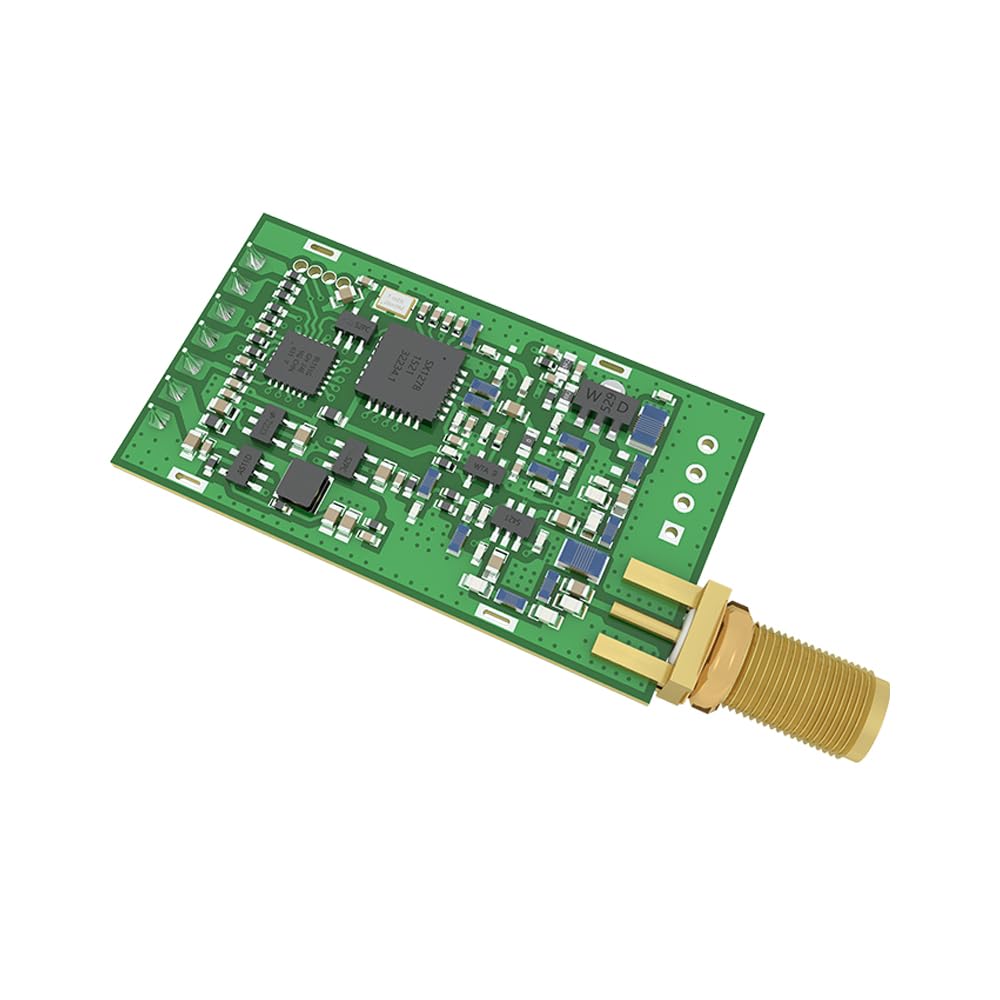

Figur 3.3: Bag view of the E32-900T30D LoRa module, showcasing the printed circuit board (PCB) with various electronic components, including the SX1276 chip, which is central to its LoRa functionality. The SMA-K connector is also visible from this angle.

4. Opsætning og tilslutning

To set up the E32-900T30D module, follow these general guidelines:

1. Strømforsyning: Connect the module to a stable power supply within the 3.3V to 5.5V range. Ensure the power supply can provide sufficient current for transmission (especially at 30dBm output).
2. Antenneforbindelse: Attach a compatible 868MHz or 915MHz LoRa antenna to the SMA-K connector. Ensure the antenna is securely fastened. For optimal performance, use an antenna designed for the specific frequency band and application.
3. UART grænseflade: Connect the module's UART (Universal Asynchronous Receiver-Transmitter) pins (TXD, RXD, GND) to your microcontroller or host device. Ensure the voltage levels are compatible (TTL).
4. Konfiguration: Configure the module's parameters (e.g., operating frequency, air data rate, transmit power, operating mode) using the appropriate software tool or AT commands, as specified in the detailed datasheet.
5. Jording: Ensure proper grounding of the module and connected devices to prevent noise and ensure stable operation.

Refer to the official EBYTE datasheet for detailed pinout diagrams and electrical characteristics.

5. Driftstilstande

The E32-900T30D module supports multiple operating modes to optimize performance and power consumption for different application scenarios:

Figur 5.1: Diagram illustrating the four primary operating modes of the E32-900T30D module: Transmission mode, Wake-up mode, Power saving mode, and Deep sleep mode.

• Transmissionstilstand: This is the transparent transmission mode, which is the most commonly used working mode. In this mode, data received via UART is directly transmitted wirelessly.
• Opvågningstilstand: Also known as "wake on air" for the transmitter. In this mode, the transmitter automatically adds a wake-up code before sending data, allowing the receiver to wake up from a low-power state.
• Strømbesparelsestilstand: This is a "wake on air" receiver mode. The module operates in a low-power state, periodically listening for wake-up codes. In this mode, the module cannot transmit data.
• Dyb søvntilstand: In this mode, the module enters an ultra-low power state, with an overall power consumption of only 2uA. This mode is suitable for applications requiring minimal power draw when inactive.

6. Specifikationer

7. Ansøgninger

The E32-900T30D module is suitable for a wide range of IoT and wireless communication applications due to its robust features and long-range capabilities. Potential application scenarios include:

Figur 7.1: Visual representation of various application scenarios for the E32-900T30D module, including smart agriculture, wireless remote control, industrial scenes, and smart wearables.

• Hjemmealarmsystemer og fjernbetjent nøglefri adgang.
• Smarte sensornetværk til hjemmet og industrien.
• Trådløse alarmsystemer.
• Bygningsautomationsløsninger.
• Trådløse fjernbetjeningssystemer i industriel kvalitet.
• Health care products requiring wireless data transmission.
• Avanceret måleraflæsningsarkitektur (AMI).
• Anvendelser i bilindustrien.
• Forbrugsmålere og IoT-renoveringsprojekter.

8. Fejlfinding

Hvis du støder på problemer med dit E32-900T30D-modul, kan du overveje følgende fejlfindingstrin:

• Ingen kommunikation:
  • Bekræft strømforsyningen voltage og stabilitet.
  • Check UART connections (TXD to RXD, RXD to TXD, GND to GND) and baud rate settings.
  • Ensure the module is in the correct operating mode for communication (e.g., Transmission Mode).
  • Confirm antenna is properly connected and suitable for the frequency band.
• Poor Range/Signal:
  • Check antenna type and placement. Obstructions (walls, metal) significantly reduce range.
  • Ensure transmit power is set to the desired level (30dBm for maximum range).
  • Verify frequency channel settings match between modules.
  • Minimér interferens fra andre trådløse enheder.
• Modulet svarer ikke:
  • Cycle power to the module.
  • Check for short circuits or incorrect wiring.
  • Ensure the module is not in Deep Sleep mode if you expect it to respond.
• Datakorruption:
  • Verify matching air data rates and UART baud rates on both ends.
  • Check for excessive noise on the power supply or data lines.
  • Ensure FEC (Forward Error Correction) is enabled if communication stability is critical.

For persistent issues, consult the detailed product datasheet or contact EBYTE technical support.

9. Garanti og support

EBYTE products are designed for reliability and performance. For specific warranty information, please refer to the terms and conditions provided at the time of purchase or visit the official EBYTE website. General support and technical documentation can be found on the manufacturer's webwebsted.

Officiel Webwebsted: www.cdebyte.com

For technical assistance, product inquiries, or to report issues, please contact EBYTE customer support through the channels provided on their official webwebsted.
