Rosewill BLITZ K50 RGB BR Wired Gaming Mechanical Keyboard User Manual

1. Introduktion

Tak for købetasing the Rosewill BLITZ K50 RGB BR Wired Gaming Mechanical Keyboard. This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your new keyboard. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

2. Pakkens indhold

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede:

• Rosewill BLITZ K50 RGB BR Mechanical Gaming Keyboard
• Aftagelig håndledsstøtte
• Kit til fjernelse af nøglehætte
• Brugervejledning (dette dokument)

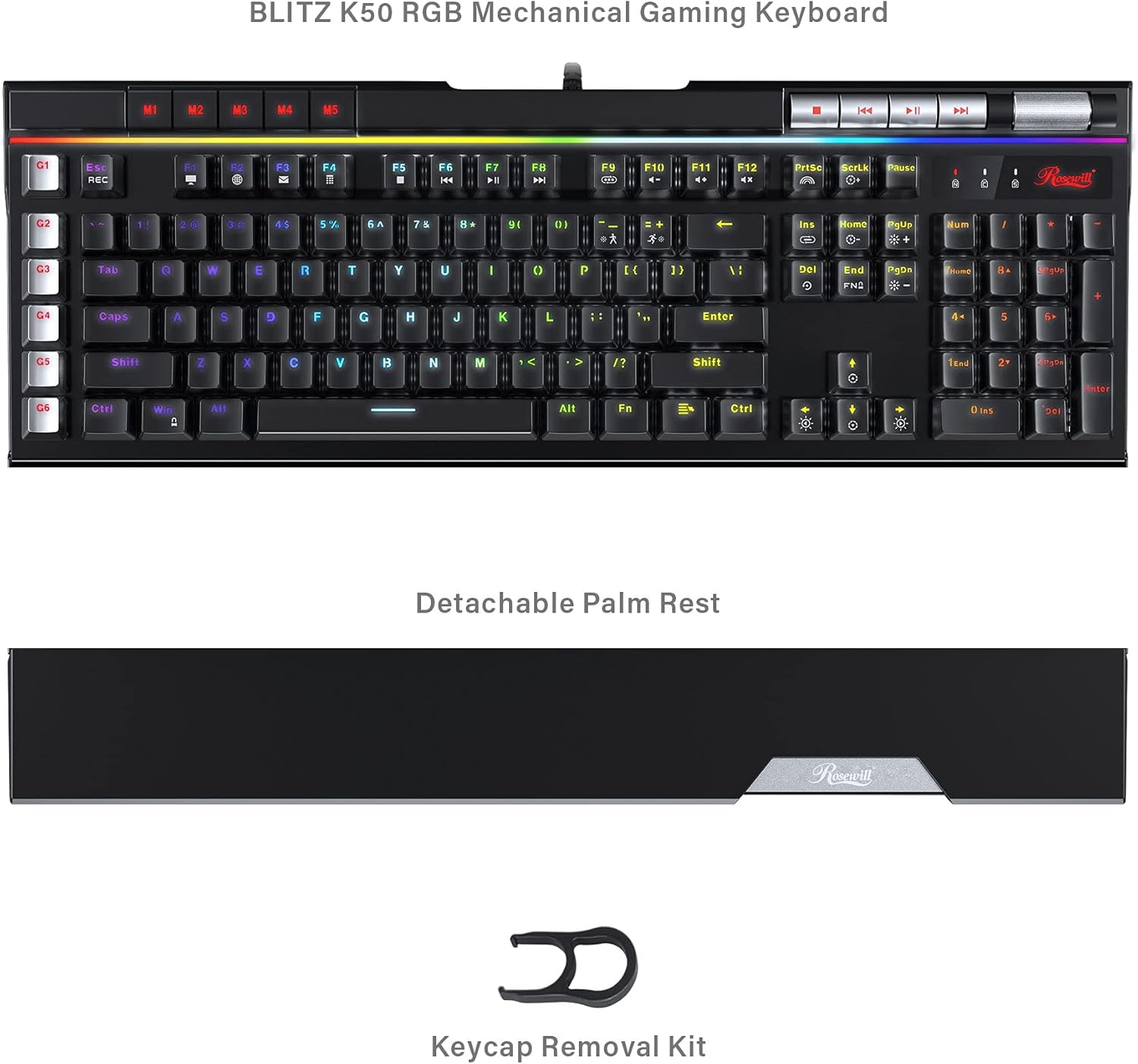

Image: The Rosewill BLITZ K50 RGB BR keyboard shown with its detachable palm rest and the included keycap removal kit, illustrating the complete package contents.

3. Produktet er slutview

The Rosewill BLITZ K50 RGB BR is a full-sized wired gaming mechanical keyboard designed for performance and customization. It features durable Outemu brown tactile mechanical switches, N-Key rollover, and anti-ghosting for precise input during intense gaming sessions. The keyboard also includes dedicated macro keys, customizable RGB backlighting, and convenient media controls.

Billede: En omfattende view of the Rosewill BLITZ K50 RGB BR keyboard, showcasing its full layout, RGB backlighting, and dedicated function keys.

Nøglekomponenter:

• Mekaniske kontakter: Equipped with genuine Outemu brown tactile mechanical switches for a responsive typing and gaming experience.
• Macro Keys (G1-G6): Six dedicated, programmable macro keys on the left side for custom command chains.
• RGB-baggrundsbelysning: Individual key backlighting with multiple customizable modes and effects.
• Dedikerede mediekontroller: Buttons for play/pause, skip, and a volume roller for quick audio adjustments.
• USB Passthrough Ports: Two built-in USB 2.0 ports for connecting additional peripherals.
• Aftagelig håndledsstøtte: Giver ergonomisk støtte ved længere tids brug.

4. Opsætning

Follow these steps to set up your Rosewill BLITZ K50 RGB BR keyboard:

1. Tilslut tastaturet: Plug the USB connector of the keyboard cable into an available USB port on your computer. The keyboard is plug-and-play and does not require additional drivers for basic functionality.
2. Fastgør håndledsstøtte (valgfrit): Align the detachable palm rest with the bottom edge of the keyboard and gently push to secure it in place.
3. Installer software (valgfrit): For advanced customization, including macro programming and RGB lighting effects, download the BLITZ K50 RGB BR software suite from the official Rosewill webFølg instruktionerne på skærmen for installation.

Image: A user operating the Rosewill BLITZ K50 RGB BR keyboard, demonstrating its typical setup on a desk with a computer monitor.

5. Betjeningsvejledning

5.1. Grundlæggende tastaturfunktioner

The keyboard functions as a standard QWERTY keyboard. All standard keys (letters, numbers, symbols, function keys) operate as expected upon connection.

5.2. RGB-baggrundsbelysningskontrol

The BLITZ K50 RGB BR features 5 customizable RGB modes and 14 pre-programmed backlighting effects. Use the dedicated lighting control keys to cycle through modes and adjust brightness.

• Fn + Ins: Cycle through pre-programmed lighting effects.
• Fn + Hjem: Adjust lighting brightness (5 levels).
• Fn + PgUp: Change lighting speed/direction for certain effects.
• Fn + Del: Cycle through custom RGB modes.
• Fn + End: Adjust individual key color in custom modes.
• Fn + PgDn: Reset lighting to default.

5.3. Macro Key Programming (G1-G6)

The six dedicated macro keys (G1-G6) can be programmed to execute complex command chains with a single press. Programming can be done via the keyboard's on-board recording function or through the software suite.

Indbygget optagelse:

1. Tryk på REC key (above G1). The REC indicator will flash.
2. Press the desired macro key (G1-G6) you wish to program. The REC indicator will continue to flash.
3. Indtast den tastesekvens, du vil optage.
4. Tryk på REC key again to save the macro. The REC indicator will turn off.

For more advanced macro programming, including delays and specific key combinations, use the BLITZ K50 RGB BR software.

5.4. Dedicated Media Controls & USB Passthrough

The keyboard features dedicated media control buttons and a volume roller for convenient audio management. Two USB 2.0 passthrough ports are also available for connecting other devices.

Billede: En detaljeret view of the multimedia control buttons and the metallic volume roller located on the top right of the keyboard, highlighting their accessibility.

• Medieknapper: Use the dedicated buttons for Play/Pause, Previous Track, and Next Track.
• Volumenrulle: Roll up to increase volume, roll down to decrease volume. Press to mute/unmute.
• USB-gennemgang: Connect your mouse, headset, or other USB devices to the two USB 2.0 ports located on the keyboard for easy access.

5.5. Softwaretilpasning

The BLITZ K50 RGB BR software suite allows for comprehensive customization of your keyboard. You can customize lighting effects, program macros, reassign keys, and save up to 3 profiles.

Image: A screenshot of the Rosewill BLITZ K50 RGB BR software interface, showing options for lighting control, macro editing, and profile ledelse.

Refer to the software's built-in help or the Rosewill website for detailed instructions on using the software suite.

6. Vedligeholdelse og pleje

For at sikre dit tastaturs levetid og optimale ydeevne skal du følge disse retningslinjer for vedligeholdelse:

• Rensning: Use a soft, dry cloth to wipe down the keyboard surface. For dust and debris between keycaps, use compressed air. The included keycap removal tool can be used to carefully remove keycaps for deeper cleaning.
• Undgå væsker: Udsæt ikke tastaturet for væsker. I tilfælde af spild skal du straks frakoble tastaturet og lade det tørre helt, før du tilslutter det igen.
• Opbevaring: Opbevar tastaturet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

Billede: Et nærbillede view of the Outemu brown mechanical switches beneath removed keycaps, illustrating the internal components for maintenance and customization.

7. Fejlfinding

If you encounter issues with your keyboard, refer to the following troubleshooting steps:

• Tastaturet reagerer ikke:
  • Sørg for, at USB-kablet er tilsluttet korrekt til din computer.
  • Prøv at tilslutte tastaturet til en anden USB-port.
  • Genstart din computer.
• Backlighting not working or incorrect:
  • Check if the brightness is set to maximum using Fn + Home.
  • Cycle through lighting modes using Fn + Ins or Fn + Del.
  • If using the software, ensure settings are applied and the software is running correctly.
  • Try resetting the lighting to default (Fn + PgDn).
• Macro keys not working:
  • Ensure macros are correctly recorded or programmed via the software.
  • Check if the macro profile is active if using software.
• USB Passthrough ports not working:
  • Ensure the keyboard's main USB cable is connected to a powered USB port on your computer.
  • Try connecting a different device to the passthrough port to confirm the issue is with the port or the device.

8. Specifikationer

Detailed technical specifications for the Rosewill BLITZ K50 RGB BR keyboard:

Image: A technical diagram illustrating the length, width, and height measurements of the Rosewill BLITZ K50 RGB BR keyboard.

9. Garanti og support

Rosewill products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please visit the official Rosewill webwebstedet eller kontakt deres kundesupport direkte. Gem venligst din købsbevis til garantikrav.
