Akitas 2 in 1 Corded Upright Vacuum Cleaner

1. Introduktion

Thank you for choosing the Akitas 2 in 1 Corded Upright Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read this manual thoroughly before first use and retain it for future reference.

This versatile vacuum cleaner is designed for effective cleaning of various floor types, offering both upright and handheld functionality for comprehensive home cleaning.

2. Produktet er slutview

2.1 Nøglefunktioner

• Powerful Energy Efficient Motor: Provides strong suction power for effective cleaning.
• Letvægtsdesign: Weighs only 3kg for easy maneuverability and transport.
• Electric Powered Turbo Spinning Brush Head: Ensures balanced performance on both carpet and timber/tiled floors.
• LED Light on Head: Illuminates the cleaning path to easily spot dirt and debris.
• 2 i 1 design: Easily converts from an upright vacuum to a handheld unit for versatile cleaning.
• Stainless Steel Covered HEPA Filter: Washable and designed for extended life, capturing fine dust and allergens.

2.2 Produktkomponenter

Familiarize yourself with the main parts of your Akitas vacuum cleaner:

Figur 2.1: Full Upright Vacuum Assembly. This image shows the complete vacuum cleaner in its upright configuration, ready for floor cleaning.

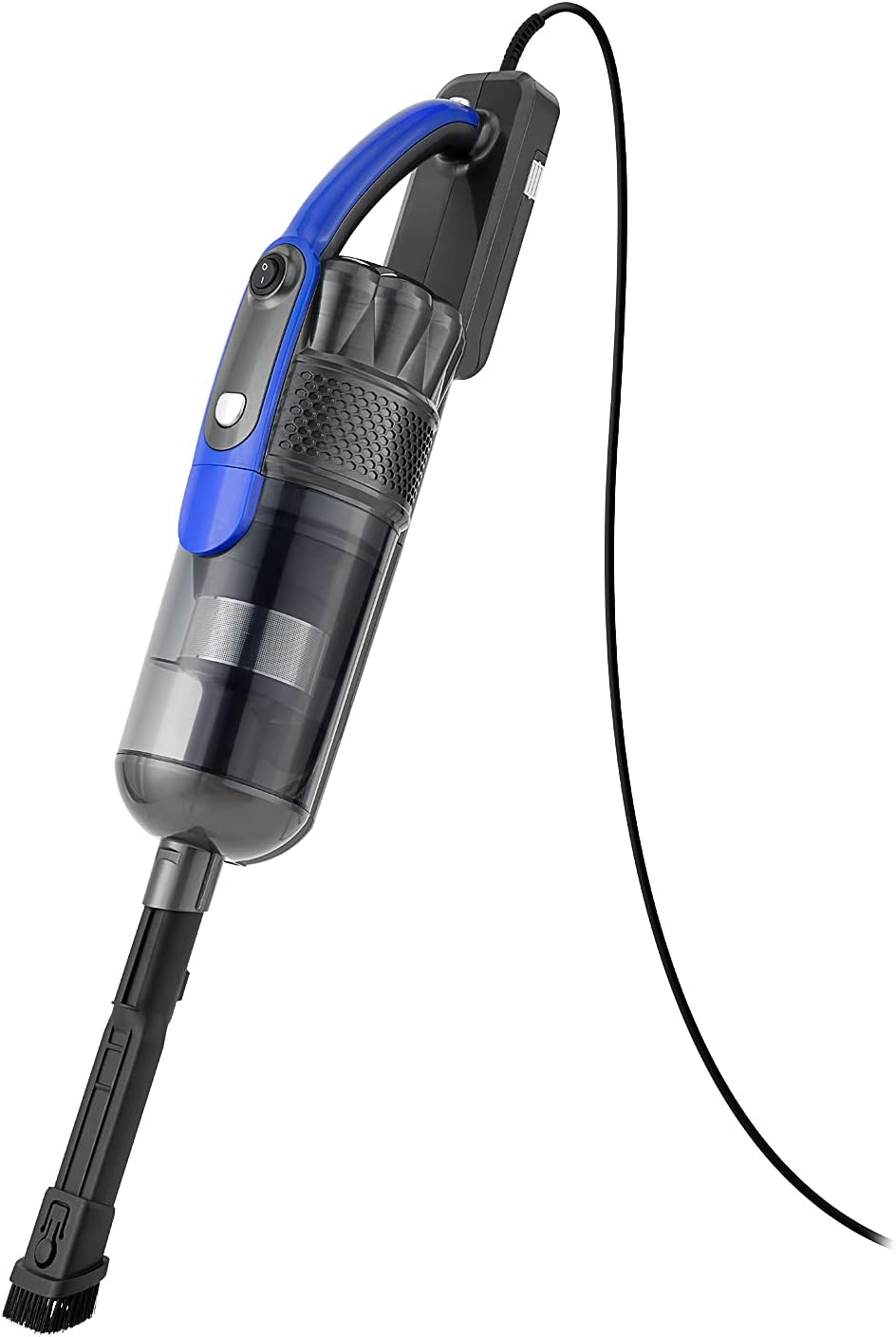

Figur 2.2: Handheld Vacuum Unit. This image displays the main body of the vacuum detached, functioning as a portable handheld cleaner.

Figur 2.3: Motorized Floor Head with LED Lights. A detailed view of the brush head, highlighting the integrated LED illumination for improved visibility.

Figur 2.4: Crevice Tool and Dusting Brush. This image shows the versatile attachment used for cleaning tight spaces and delicate surfaces.

3. Opsætning og montering

Your Akitas vacuum cleaner requires minimal assembly before first use. Follow these steps:

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen. Sørg for, at alle komponenter, der er anført i afsnit 2.2, er til stede.
2. Fastgør håndtag: Sæt håndtaget ind i toppen af ​​hovedstøvsugeren, indtil det klikker sikkert på plads.
3. Connect Floor Head: Align the main vacuum body with the motorized floor head and push down firmly until it locks.
4. Ledningsstyring: Unwind the power cord and secure it using the cord clips on the handle, if available.
5. Initial Filter Check: Ensure the HEPA filter and dust cup are correctly installed before operation. Refer to Section 5.2 for filter installation details.

Your vacuum cleaner is now ready for use in upright mode.

4. Betjeningsvejledning

4.1 Generel drift

1. Strømtilslutning: Sæt netledningen i en passende stikkontakt.
2. Tænd/sluk: Press the power button located on the handle to turn the vacuum cleaner ON. Press again to turn OFF.
3. Rensning: Guide the vacuum cleaner across the surface to be cleaned. The LED lights on the floor head will illuminate the path.
4. Manøvrering: The lightweight design allows for easy steering around furniture and obstacles.

Figur 4.1: Vacuum in Use. Demonstrates the vacuum cleaner effectively cleaning a hard floor surface, with the LED lights active.

4.2 2-in-1 Functionality (Handheld Mode)

To convert your upright vacuum into a handheld unit:

1. Disconnect Main Body: Press the release button (usually near the base of the main body) and pull the main vacuum unit upwards to detach it from the floor head and handle.
2. Vedhæft tilbehør: Connect the crevice tool or dusting brush (Figure 2.4) directly to the nozzle of the handheld unit for cleaning upholstery, car interiors, or tight corners.
3. Genmontering: To return to upright mode, simply re-attach the handheld unit to the floor head and handle until it clicks securely.

5. Vedligeholdelse og pleje

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

5.1 Tømning af støvbeholder

1. Afbryd strømmen: Tag altid støvsugeren ud af stikkontakten, inden du udfører nogen form for vedligeholdelse.
2. Fjern støvbeholder: Locate the dust cup release button (typically on the main body) and detach the dust cup.
3. Tomt indhold: Hold the dust cup over a waste bin and open the bottom flap to empty accumulated dirt and debris.
4. Rengør støvbeholder: Wipe the inside of the dust cup with a damp cloth if necessary. Ensure it is completely dry before reattaching.
5. Sæt støvbeholderen på igen: Securely re-attach the dust cup to the main vacuum body until it clicks into place.

5.2 Filterrensning

The stainless steel covered HEPA filter is washable and designed for longevity. Clean it regularly to maintain suction power.

1. Adgangsfilter: With the dust cup removed, locate and carefully pull out the HEPA filter assembly.
2. Vask filter: Rinse the HEPA filter under cool, running water until the water runs clear. Do not use detergents or hot water.
3. Tørt filter: Allow the filter to air dry completely for at least 24 hours before reinstallation. Do not use a dryer or direct heat.
4. Geninstaller filter: Once completely dry, place the HEPA filter back into its housing within the dust cup.

5.3 Vedligeholdelse af børstehoved

Periodically check the motorized brush head for tangled hair or debris.

1. Afbryd strømmen: Træk støvsugeren ud.
2. Adgangsbørsterulle: Turn the floor head upside down. You may need to use a coin or screwdriver to unlock the brush roll cover.
3. Rengør børsterulle: Carefully remove any hair, string, or debris wrapped around the brush roll using scissors.
4. Saml igen: Replace the brush roll and secure its cover.

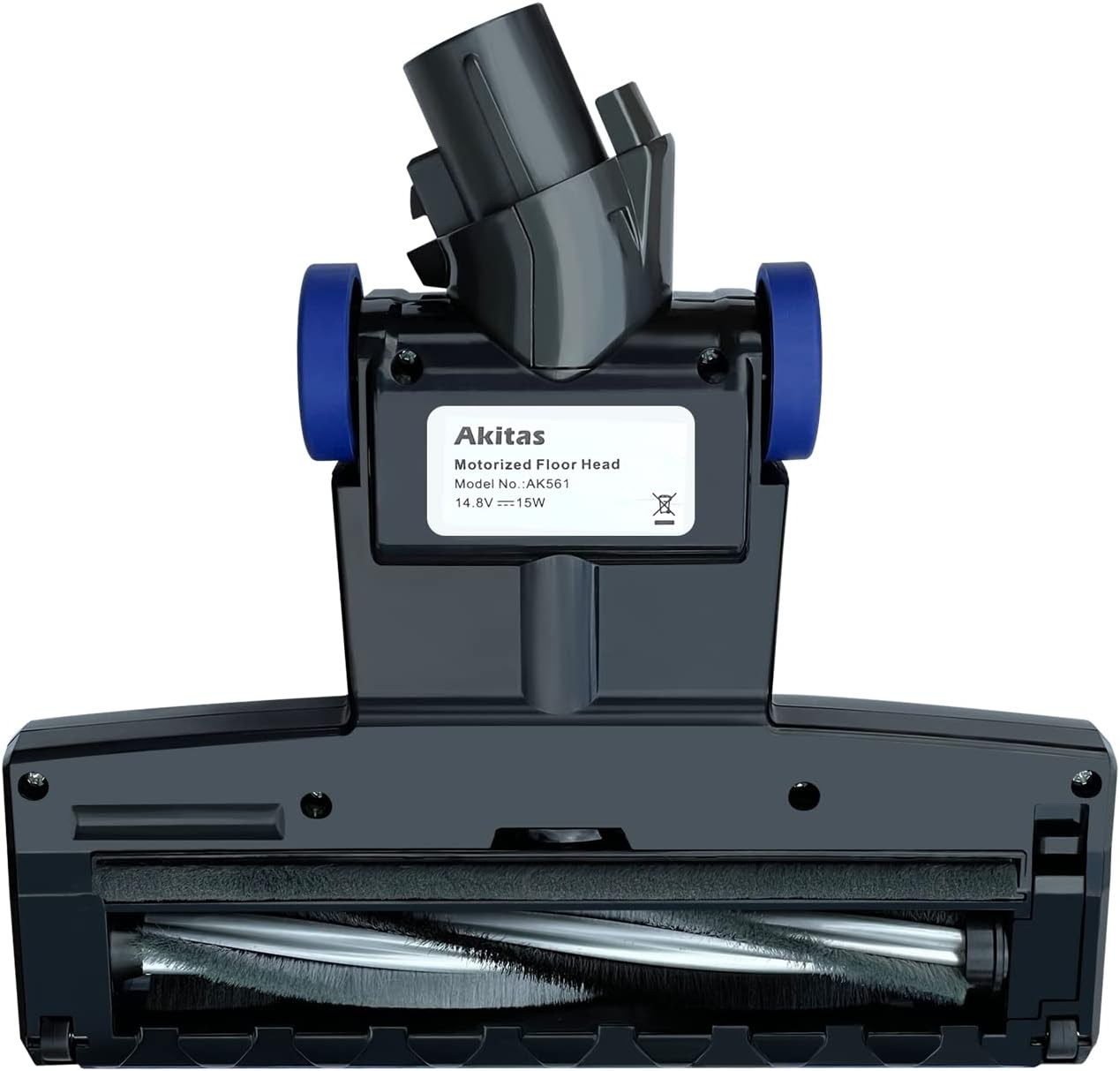

Figur 5.1: Underside of Motorized Floor Head. This view shows the brush roll that requires periodic cleaning.

6. Fejlfinding

Før du kontakter kundesupport, bedes du se følgende tabel for almindelige problemer og løsninger på disse:

7. Specifikationer

Technical details for your Akitas 2 in 1 Corded Upright Vacuum Cleaner:

8. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Akitas store online.

Du kan finde mere information og kontaktoplysninger ved at besøge Akitas Store on Amazon.

When contacting support, please have your model number (AK561) and purchase details ready.
