HAIBOXING 2995 1:12 Skala RC Buggy Brugsanvisning

Indledning

This manual provides essential information for the safe and optimal operation of your HAIBOXING 2995 1:12 Scale RC Buggy. Please read it thoroughly before use to ensure proper setup, operation, and maintenance. This 4WD remote control buggy is designed for off-road use, featuring a 550 motor, independent suspension, and a 2.4Ghz radio system.

HAIBOXING 2995 RC Buggy with remote control and batteries

Image: The HAIBOXING 2995 RC Buggy, its remote control, and two Li-Po batteries.

Hvad er der i æsken

Pak forsigtigt alle komponenter ud, og bekræft, at du har modtaget følgende:

1 x 1:12 Scale 4WD RC Truck
1 x 2.4Ghz Transmitter (AA Batteries not included)
2 x 7.4V, 1600mAh Li-Po Batteries
2 x USB Chargers
4 x Extra RC Car Body Clips
1 x Body Decals
1 x brugsanvisning

Contents of the HAIBOXING 2995 RC Buggy box

Image: Visual representation of all items included in the product packaging.

Opsætning

1. Batteriopladning

Connect the Li-Po battery to the provided USB charger.
Plug the USB charger into a compatible USB power source (e.g., computer USB port, USB wall adapter). Ensure the output is not over 5V, 2A.
The indicator light on the charger will show charging status (refer to charger instructions for specific light patterns).
Charge batteries fully before first use and after each use. Do not leave batteries idle for long periods; charge them every 7 days if storing.

2. Batteriinstallation (køretøj)

Fjern karrosseriklemmerne, og løft køretøjets karrosseri.
Find batterirummet.
Insert one charged 7.4V Li-Po battery into the compartment.
Connect the battery connector to the vehicle's ESC (Electronic Speed Control) connector.
Fastgør batteriet i rummet.
Replace the vehicle body and secure it with the body clips.

3. Battery Installation (Transmitter)

Open the battery cover on the back of the 2.4Ghz transmitter.
Insert the required AA batteries (not included), observing correct polarity.
Luk batteridækslet.

4. Connecting Headlights/Cooling Fan (if applicable)

The vehicle chassis includes auxiliary slots for optional accessories like a cooling fan or headlights. Ensure correct connection to avoid damage.

Aux. Slot 1: For cooling fan (if equipped).
Aux. Slot 2: For headlight.

Caution: Do not mix the slots in use. Plug the top light connector into the Light slot as shown.

Diagram showing auxiliary slots for cooling fan and headlights

Image: Diagram illustrating the auxiliary connection points on the vehicle's chassis for optional accessories.

Betjeningsvejledning

1. Power On Sequence

Tænd først senderen.
Then, turn on the vehicle's power switch.
The transmitter and vehicle should automatically bind. If not, refer to the troubleshooting section for re-binding instructions.

2. Grundlæggende kontroller

Gashåndtag: Træk for at køre fremad, skub for at bremse/bakke.
Rat: Drej til venstre for at styre til venstre, drej til højre for at styre til højre.
Hastighedsknap: Adjusts the maximum throttle output from 40% to 100%, suitable for beginners or experienced users.
Styretøj: Adjusts the neutral position of the steering servo to ensure the vehicle drives straight when the steering wheel is centered.

3. Køremiljø

The HAIBOXING 2995 is equipped with an IPX4 splash waterproof electronic speed control, allowing it to be driven in various weather conditions. However, it is not fully submersible. Avoid driving in deep water or saltwater, as this can corrode components. Clean the vehicle after use in wet or dirty conditions.

HAIBOXING 2995 RC Buggy driving on a dirt track

Image: The HAIBOXING 2995 RC Buggy in action, demonstrating its off-road capability.

Opretholdelse

Regular maintenance ensures the longevity and performance of your RC buggy.

Rensning: After each use, especially in dirty or wet conditions, clean the vehicle to remove dirt, dust, and moisture. Use a soft brush or compressed air for dry debris, and a damp klud til genstridigt snavs.
Inspektion: Periodically inspect all components for wear or damage, including tires, suspension, drivetrain, and electronics. Replace damaged parts promptly.
Smøring: Apply appropriate RC-specific lubricants to moving parts such as gears and bearings as needed to reduce friction and wear.
Batteripleje: Always fully charge batteries before storage. If storing for extended periods, charge them every 7 days to prevent over-discharging. Refer to the Battery Safety section for more details.
Opbevaring: Store the vehicle and batteries in a dry, cool, and clean place away from direct sunlight and extreme temperatures.

Underside view of the HAIBOXING 2995 chassis showing metal drive shafts, ESC, and oil shocks

Billede: Detaljeret view of the vehicle's chassis, highlighting key components like metal drive shafts, splash waterproof ESC, and aluminum-capped oil shocks.

Fejlfinding

This section addresses common issues you might encounter with your HAIBOXING 2995 RC Buggy.

Problem	Løsning
Stopped working after a few uses	Fully charge battery packs before each use and ensure transmitter batteries are sufficient. Check if the vehicle can be bound with the transmitter. Verify if it moves forward/backward or steers. Ensure no damaged parts in the drivetrain. Verify motor and ESC function properly. If problems persist, contact seller for assistance.
Steering works but the car won't run	Ensure battery power is sufficient. ESC may not drive with low battery. Verify motor and ESC function. Check if drivetrains are clogged. No stripped gears, no unusual noise, no floppy wheels, and no missing drive shafts.
Not going straight	Tune the Steering Trim on the transmitter. Ensure steering links and servo are undamaged. No deformed parts in the steering system. Make sure tires are properly locked and not wobbling.
Batteries can't take charge	Check if the USB charging cable works. Do not leave batteries idle for a long time. Charge them regularly to avoid damage from over-discharging.
Not going in reverse	Do not push and pull the throttle trigger back and forth too rapidly. To go in reverse, always center the trigger and then push it a second time. Try re-binding the transmitter and vehicle.
One of the wheels does not turn	The drive shaft to that wheel may be dislodged or damaged. Ensure the wheel is securely attached.
Shuts off itself	This problem may arise from low battery voltage cutoff or overheat cutoff. Charge batteries or wait until the ESC is cooled down. If the problem still occurs, replace the ESC.
No signal connection, binding failure	Try with fresh batteries and in a different location. Ensure you have not driven it out of range. If the problem still occurs, contact us for parts/replacement service.
Not steering	Ensure steering posts, steering links, or servo saver and servo are in good working order. Make sure no objects are impeding the steering system.
Does not seem to be waterproof	It is splash waterproof, not fully submersible. Do not drive it into salty water as it will corrode the car. To maintain performance, clean the car carefully after use in wet conditions.
Manglende dele	Although every car is strictly tested before leaving the factory, inadvertent mistakes or damage during transportation may occur. If this is the case, please contact us for assistance.
The car runs itself when switched on	Please re-bind the transmitter and vehicle. Do not move the trigger and steering wheel until the vehicle has been bound with the transmitter. If the problem still occurs, please contact us for assistance.

Specifikationer

Feature	Detalje
Modelnummer	2995
Skala	1:12
Motor	550 Motor
Tophastighed	Op til 42 km/t
Drive System	4WD (firehjulstræk)
Drivlinjekomponenter	Full sintered metal gear differentials (front, center, rear), full metal drive shafts, ball bearings throughout.
Affjedring	Independent suspensions with spring-tension adjustable shocks (full aluminum oil shocks).
Elektronisk hastighedskontrol (ESC)	IPX4 splash waterproof with intelligent alerts (overheat, over-current, electronic blockade) and low battery voltage cutoff protection.
Radio System	Full-function proportional 2.4Ghz, 280-feet control range, Speed Knob for throttle adjustment (40-100%).
Batteri	2 x 7.4V, 1600mAh Li-Po battery packs (one in vehicle, one spare).
Spilletid	40+ minutes (with two batteries).
Produktdimensioner	14.5 x 6.3 x 10.3 tommer
Varens vægt	3.35 pund
Anbefalet alder	8 år og opefter

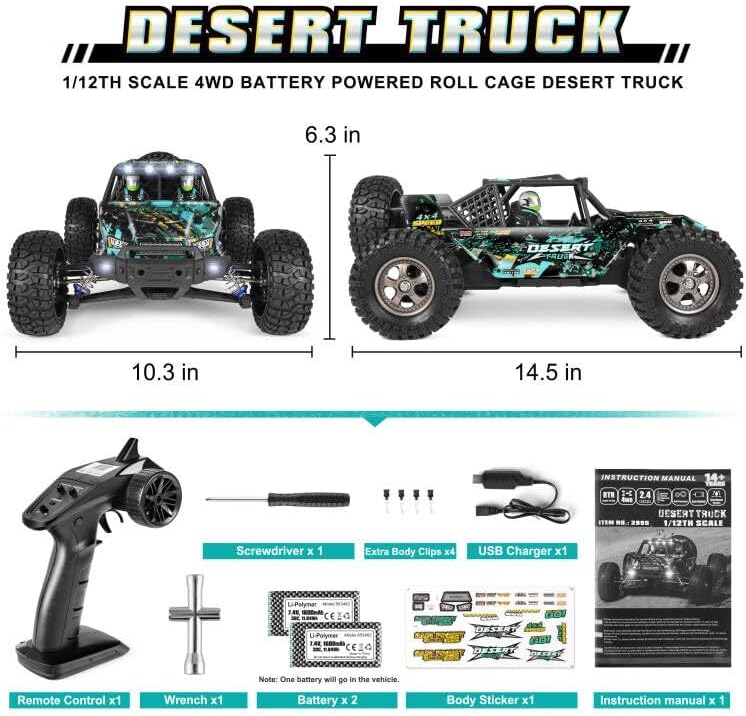

Diagram showing the dimensions of the HAIBOXING 2995 RC Buggy

Image: Diagram illustrating the physical dimensions of the HAIBOXING 2995 RC Buggy.

Batterisikkerhed

PLEASE COMPLY WITH THE INSTRUCTIONS BELOW. FAILURE TO DO SO WILL RESULT IN FIRE AND EXPLOSION HAZARD.

Brug ikke hævede batterier.
Do not use deformed or contorted batteries.
Do not use batteries with damaged edges.
Do not use punctured or leaky batteries.
Always use the factory-supplied USB charger.
Do not attempt to connect the USB charger to a smartphone adaptor with an output over 5V, 2A. A high output charger will damage your batteries and USB charger.
Do not leave batteries idle for a long period. It is strongly recommended that you charge them every 7 days before storing them.
Do not play with your vehicles in a high-intensity magnetic field. Failure to do so may damage the electronics of your vehicles.
Do not use wet batteries.
Do not attempt to charge wet batteries.
Do not store batteries under high temperatures. Store them in a dry, cool, and clean place.
Do not charge batteries unattended. Adult supervision is strongly recommended when batteries are being charged.

Diagram illustrating battery safety warnings

Image: Visual guide outlining critical battery safety precautions.

Garanti og support

For any issues, missing parts, or technical assistance, please contact the seller directly. The manufacturer, Shantou Haiboxing Technology&Education Model Co., Ltd., stands behind its products. Refer to your purchase documentation for specific warranty details and contact information.

For troubleshooting assistance, you may also refer to the solutions provided in the Troubleshooting section of this manual.
