Udreamer vinylpladespiller brugsanvisning

1. Vigtige sikkerhedsinstruktioner

Please read these instructions carefully before using the product and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Udsæt ikke dette apparat for regn eller fugt.
• Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
• Må ikke installeres i nærheden af ​​varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
• Beskyt netledningen mod at blive gået på eller klemt, især ved stik, stikkontakter og det punkt, hvor de kommer ud af apparatet.
• Brug kun tilbehør/tilbehør specificeret af producenten.
• Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
• Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.
• The stylus is delicate; handle with care to avoid damage.

2. Produktet er slutview

The Udreamer UD001 is a belt-driven vinyl record player featuring built-in speakers, Bluetooth connectivity, USB playback, AUX-IN, and RCA line-out. It supports 3 speeds for various record types.

Billede: Forside view of the Udreamer UD001 Vinyl Record Player with a record on the platter and the dust cover open.

2.1 Komponenter og kontroller

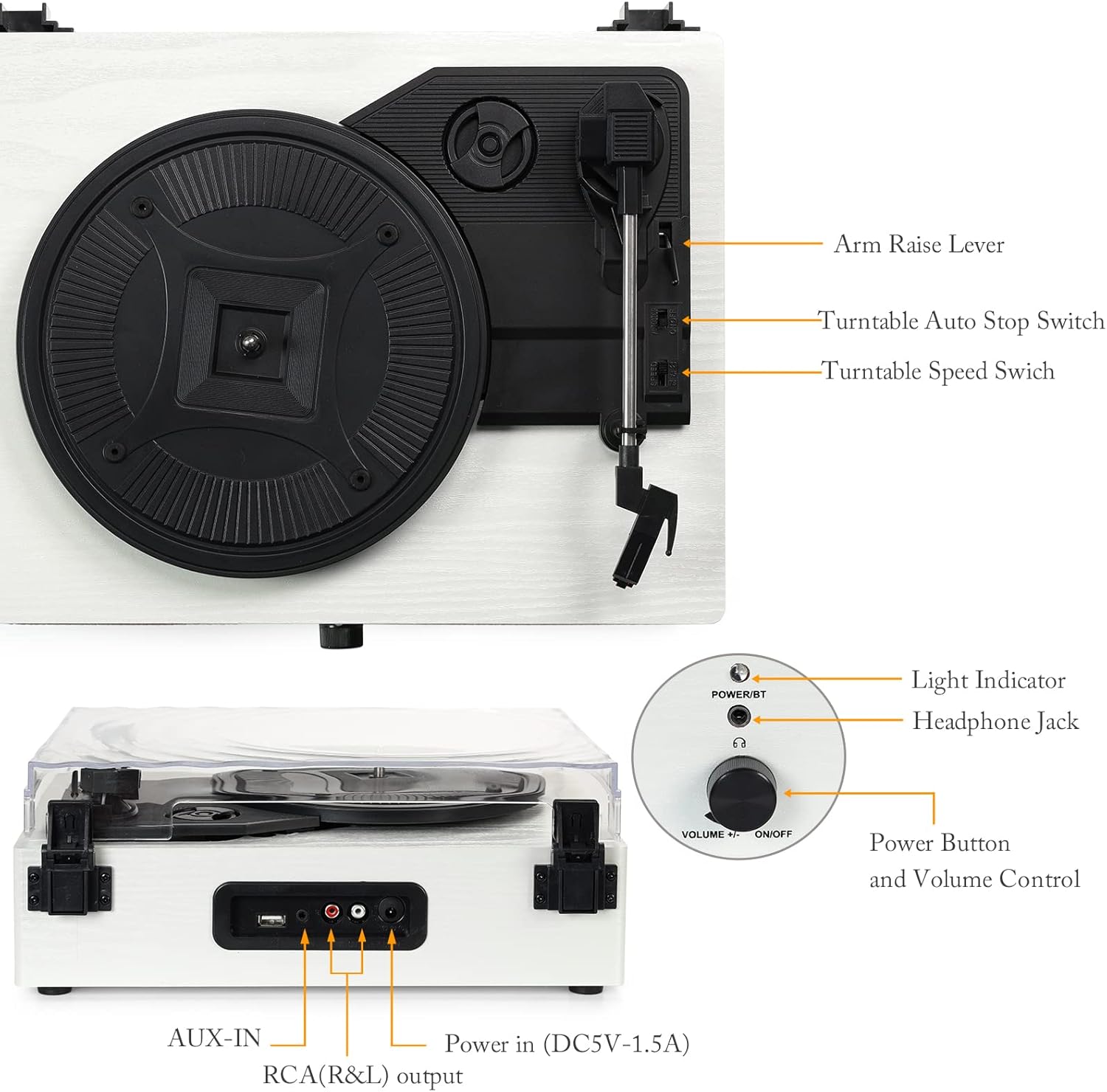

Billede: Detaljeret view of the turntable with labels pointing to key components including the arm raise lever, auto stop switch, speed switch, light indicator, headphone jack, power button, volume control, AUX-IN, RCA(R&L) output, and power input.

• Fad: Supports the record during playback.
• Støvdæksel: Beskytter pladespilleren mod støv.
• Tonearm: Holder pennen og patronen.
• Stylus: Nålen, der aflæser pladens riller.
• Arm Raise Lever: Løfter og sænker tonearmen.
• Turntable Auto Stop Switch: Enables or disables automatic stopping of the platter at the end of a record.
• Turntable Speed Switch: Selects playback speed (33, 45, or 78 RPM).
• Power Button/Volume Control: Tænder/slukker enheden og justerer lydstyrken.
• Lysindikator: Shows power and Bluetooth status.
• Hovedtelefonstik: Til privat lytning.
• USB-port: Til afspilning af lyd fra et USB-flashdrev.
• AUX-IN: Til tilslutning af eksterne lydenheder.
• RCA (R&L) Output: Til tilslutning til ekstern ampløftere eller elektriske højttalere.
• Power In (DC5V-1.5A): Tilsluttes strømadapteren.

Billede: Nærbillede views illustrating the stylus, the belt-driven platter mechanism, and the three supported record speeds (33, 45, 78 RPM) for 7-inch, 10-inch, and 12-inch records.

3. Opsætning

3.1 Udpakning

Carefully remove the turntable from its packaging. Ensure all components are present and undamaged. The package should include the UD001 turntable unit and an operation manual.

Image: The Udreamer UD001 turntable, its packaging box, power adapter, and instruction manual.

3.2 Strømtilslutning

1. Connect the power adapter to the 'Power In (DC5V-1.5A)' port on the rear of the turntable.
2. Sæt strømadapteren i en passende stikkontakt.

3.3 Initial Platter and Belt Setup

The turntable platter and drive belt may require minor setup. Ensure the drive belt is correctly positioned around the motor pulley and the inner rim of the platter. Refer to the diagram in the 'Product Overview' section for visual guidance.

4. Betjeningsvejledning

4.1 Afspilning af en vinylplade

1. Læg en plade på pladetallerkenen.
2. Select the appropriate speed (33, 45, or 78 RPM) using the Turntable Speed Switch, matching the record's speed.
3. If playing a 45 RPM single, place the included 45 RPM adapter on the center spindle.
4. Turn the Power Button/Volume Control knob clockwise to power on the unit. The light indicator will illuminate.
5. Lift the tonearm using the Arm Raise Lever.
6. Carefully move the tonearm over the desired starting groove of the record.
7. Gently lower the tonearm onto the record using the Arm Raise Lever. The record will begin to play.
8. Adjust the volume using the Power Button/Volume Control knob.
9. To stop playback, lift the tonearm using the Arm Raise Lever and return it to its rest. Turn the Power Button/Volume Control knob counter-clockwise to power off.

Image: Close-up of the Turntable Auto Stop Switch and Turntable Speed Switch, located near the tonearm base.

Automatisk stopfunktion: The Turntable Auto Stop Switch controls whether the platter stops automatically at the end of a record. Set to 'ON' for automatic stop, 'OFF' for continuous rotation.

4.2 Bluetooth -parring

The UD001 can connect wirelessly to Bluetooth-enabled devices for audio playback through its built-in speakers.

1. Turn on the turntable by rotating the Power Button/Volume Control knob clockwise. The light indicator will flash blue, indicating Bluetooth pairing mode.
2. Aktiver Bluetooth på din eksterne enhed (f.eks. smartphone, tablet).
3. Søg efter 'Turntable' in your device's Bluetooth settings and select it to pair.
4. Once paired, the light indicator will turn solid blue. You can now play audio from your device through the turntable's speakers.
5. Adjust volume using the turntable's volume knob or your external device.

Image: A smartphone displaying a Bluetooth pairing menu with 'Turntable' selected, next to the Udreamer UD001 turntable, indicating a successful wireless connection.

4.3 USB-afspilning

The USB port allows playback of digital audio files fra et USB -flashdrev.

1. Insert a USB flash drive into the USB port on the rear of the turntable.
2. The unit will automatically switch to USB mode and begin playing compatible audio files.
3. Use the turntable's volume control to adjust the audio output.

Image: Close-up of the rear panel connections, clearly labeling the USB port, AUX-IN port, RCA (R&L) output ports, and DC power input.

4.4 AUX-IN-tilslutning

Connect external audio sources (e.g., MP3 players, CD players) using the AUX-IN port.

1. Connect a 3.5mm audio cable (not included) from your external audio device's headphone or line-out jack to the AUX-IN port on the rear of the turntable.
2. The turntable will automatically switch to AUX-IN mode.
3. Play audio from your external device. Adjust volume using both the external device and the turntable's volume control.

4.5 RCA linjeudgang

For enhanced audio, connect the turntable to external powered speakers or an amplifier using the RCA output ports.

1. Connect an RCA cable (not included) from the RCA (R&L) output ports on the rear of the turntable to the corresponding input jacks on your external amplifier eller drevne højttalere.
2. Ensure the external audio system is powered on and set to the correct input.
3. Audio will now play through your external system. Adjust volume using the external system's controls.

4.6 Brug af hovedtelefoner

For private listening, connect headphones to the headphone jack on the front panel.

1. Plug your headphones into the 3.5mm Headphone Jack on the front of the turntable.
2. Audio will automatically be routed to the headphones, muting the built-in speakers.
3. Adjust volume using the turntable's volume control.

Image: A woman wearing red headphones, holding a vinyl record, and listening to music, illustrating the use of the headphone jack for private listening.

5. Vedligeholdelse

5.1 Rengøring af enheden

• Wipe the exterior of the turntable with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Hold støvdækslet lukket, når det ikke er i brug, for at forhindre støvophobning.

5.2 Pleje af pennen

• Gently clean the stylus periodically using a soft brush, brushing from back to front.
• Undgå at berøre pennen med fingrene.
• Replace the stylus when sound quality deteriorates or if the stylus is visibly damaged. Consult the manufacturer for compatible replacement styli.

6. Fejlfinding

• Ingen strøm:
  • Sørg for, at strømadapteren er korrekt tilsluttet pladespilleren og en fungerende stikkontakt.
  • Confirm the Power Button/Volume Control knob is turned clockwise to the 'ON' position.
• Ingen lyd:
  • Adjust the volume control on the turntable and any connected external devices.
  • If using headphones, ensure they are fully plugged in.
  • If using RCA output, verify the external amplifier/speakers are on and set to the correct input.
  • Check that the stylus is properly seated and not damaged.
• Spring over optagelser:
  • Ensure the record is clean and free of dust or debris.
  • Place the turntable on a stable, level surface to minimize vibrations.
  • Check the stylus for damage or excessive wear.
• Problemer med Bluetooth-forbindelse:
  • Ensure the turntable is in Bluetooth pairing mode (flashing blue light).
  • Make sure your external device's Bluetooth is enabled and within range.
  • Prøv at ophæve parringen og parre enheden igen.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Udreamer webwebsted. Gem din købsbevis til garantikrav.
