Austrian Audio OD505 Aktiv Dynamisk Vokalmikrofon Brugermanual

1. Introduktion

Thank you for choosing the Austrian Audio OD505 Active Dynamic Vocal Microphone. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your microphone. The OD505 is engineered to deliver exceptional vocal performance in live and studio environments, combining the robustness of a dynamic microphone with the clarity of an active design.

Key features of the OD505 include:

• State-of-the-art dual-capsule design for noise immunity against handling and stage impacts.
• Supercardioid polar pattern for high isolation and feedback reduction.
• Active circuitry ensuring consistent sound performance regardless of preamplifier impedance or cable length.
• Proprietary 3D Pop Noise Diffuser to minimize plosives.
• Rugged die-cast body for durability in demanding live settings.

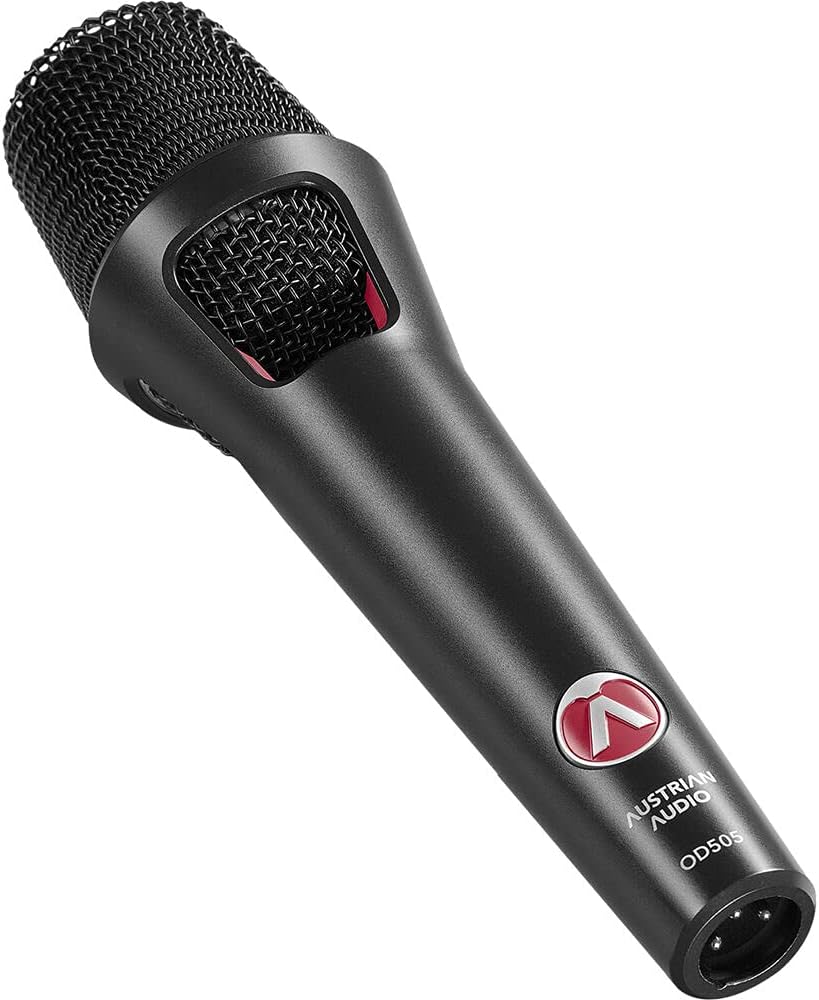

Image: The Austrian Audio OD505 Active Dynamic Vocal Microphone, showcasing its sleek black design and robust build.

Billede: En intern view of the OD505 microphone capsule, illustrating its advanced dual-capsule design.

2. Hvad er der i æsken

Upon unboxing your Austrian Audio OD505, please ensure all the following components are present:

• Austrian Audio OD505 Active Dynamic Vocal Microphone
• Mikrofon klip
• Beskyttende bæretaske
• Garantikort

Image: The OD505 microphone, its protective carrying case, and the microphone clip, as included in the product package.

3. Opsætning

1. Montering af mikrofonen: Securely attach the OD505 microphone to a standard microphone stand using the provided microphone clip. Ensure the clip is tightened sufficiently to hold the microphone in place.
2. Tilslutning til lydudstyr: Use a balanced XLR cable to connect the OD505's XLR output to an input on your mixing console, audio interface, or preamplivligere.
3. Fantomkraft: The OD505 is an active dynamic microphone and requires 48V phantom power for operation. Activate the 48V phantom power on the connected input channel of your audio equipment. The microphone will not function without phantom power.
4. Placering: Position the microphone appropriately for your vocal source. Due to its supercardioid polar pattern, the microphone is most sensitive directly in front of the grille and rejects sound from the sides and rear.

Image: The OD505 microphone securely mounted on a stand with an XLR cable connected, ready for use.

4. Betjeningsvejledning

4.1. Polar Pattern and Off-Axis Rejection

The OD505 features a supercardioid polar pattern, which provides excellent isolation of the sound source and high feedback rejection. This makes it ideal for live stage performances where minimizing bleed from other instruments or stage monitors is crucial. Ensure the microphone is pointed directly at the sound source for optimal pickup.

4.2. High-Pass Filter

The microphone is equipped with a selectable 2nd order high-pass filter at 120 Hz. This filter helps to reduce unwanted low-frequency rumble, handling noise, and proximity effect, resulting in a cleaner and more focused vocal sound. To engage the filter, locate the small switch on the microphone body and slide it to the "120 Hz" position. For a full-range response, set the switch to the "flat" position.

Image: A close-up of the OD505's rear, highlighting the switch for the 120 Hz high-pass filter.

4.3. Active Circuitry

The active circuitry of the OD505 ensures a consistent output level and frequency response, regardless of the input impedance of the connected preamplifier or the length of the XLR cable. This provides reliable performance across various audio setups.

4.4. 3D Pop Noise Diffuser

The integrated 3D Pop Noise Diffuser is designed to effectively reduce plosive sounds (e.g., "p" and "b" sounds) that can occur during close-mic vocal performances. While this feature significantly mitigates plosives, using an external pop filter may still be beneficial for extreme cases or specific vocal techniques.

5. Vedligeholdelse

• Rensning: To clean the microphone body, use a soft, dry cloth. For the grille, a soft brush can be used to gently remove dust or debris. Avoid using liquid cleaners directly on the microphone, especially near the grille or connectors.
• Opbevaring: When not in use, store the OD505 in its protective carrying case to shield it from dust, moisture, and physical damage. Avoid storing the microphone in extreme temperatures or high humidity.
• Håndtering: While the OD505 features a rugged design, avoid dropping the microphone or subjecting it to excessive force, as this can damage internal components.

6. Fejlfinding

• Ingen lydoutput:
  • Ensure 48V phantom power is activated on the connected input channel.
  • Check all XLR cable connections for proper seating and integrity.
  • Verify that the input gain on your mixing console or interface is set appropriately.
• Overdreven håndteringsstøj:
  • While the OD505 is designed to minimize handling noise, some noise can still occur. Ensure you are holding the microphone firmly but not gripping it excessively.
  • Consider using a high-quality microphone stand and shock mount if handling noise persists, especially for stationary use.
• Plosive lyde (pop):
  • Although the 3D Pop Noise Diffuser is integrated, some plosives may still be audible, particularly with close vocal techniques.
  • Prøv at øgeasing the distance between your mouth and the microphone.
  • Utilize an external pop filter for additional plosive reduction.
• Feedbackproblemer:
  • Ensure the microphone is positioned correctly, pointing directly at the sound source and away from loudspeakers or monitors.
  • Utilize the 120 Hz high-pass filter to reduce low-frequency feedback.
  • Adjust gain staging on your mixing console to prevent excessive input levels.

7. Specifikationer

Image: Technical charts illustrating the supercardioid polar pattern and frequency response characteristics of the OD505 microphone.

8. Garanti og support

Your Austrian Audio OD505 microphone comes with a warranty. Please refer to the included warranty card for specific terms and conditions regarding coverage and duration. Retain your proof of purchase for any warranty claims.

For technical support, service, or additional information about your OD505 microphone, please visit the official Austrian Audio website or contact their customer support directly. You can also find more information and products at the Austrian Audio Store on Amazon.
