1. Introduktion og overview
Thank you for choosing the Masterpro Vacuum Blender by Carlo Cracco. This appliance is designed to provide efficient blending and food preservation through its innovative vacuum technology. With a powerful 1200W motor and 24000 RPM, it can handle various tasks from smoothies to ice crushing. This manual provides essential information for safe operation, maintenance, and troubleshooting.
The Masterpro Vacuum Blender includes a 1.5L blending and heating jar, a 700ML vacuum extraction jar, a detachable vacuum pump, a 1m vacuum cable, and vacuum food containers. Its intuitive interface features seven automatic programs for diverse culinary needs. Non-electrical parts are dishwasher safe for easy cleaning.
Image: The Masterpro Vacuum Blender system, showcasing the main blender unit, the detachable vacuum pump, vacuum hose, and a set of vacuum food storage containers.
2. Vigtige sikkerhedsinstruktioner
Læs venligst alle instruktioner omhyggeligt, inden apparatet tages i brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.
- Tag altid blenderens stik ud af stikkontakten, inden du rengør, samler eller adskiller dele.
- Motorbasen må ikke nedsænkes i vand eller andre væsker. Rengør medamp kun klud.
- Keep hands and utensils out of the blending jar while operating to prevent injury and damage to the blender.
- Sørg for, at låget er sikkert på plads, inden blenderen tages i brug.
- Do not blend hot liquids that exceed the maximum fill line, as this may cause overflow and scalding.
- Undgå kontakt med bevægelige dele.
- Brug ikke blenderen med en beskadiget ledning eller et beskadiget stik, eller efter at apparatet ikke fungerer korrekt, er blevet tabt eller beskadiget på nogen måde.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
- Brug ikke tilbehør, der ikke er anbefalet eller solgt af producenten.
- Sørg for, at apparatet er placeret på en stabil, plan overflade under drift.
3. Produktkomponenter
The Masterpro Vacuum Blender system includes the following main components:
- Blender base: Indeholder 1200W motor og kontrolpanel.
- 1.5L Blending/Heating Jar: Main jar for blending, with a capacity of 1.5 liters.
- 700ML Vacuum Extraction Jar: Smaller jar specifically designed for vacuum blending.
- Detachable Vacuum Pump: Portable pump for creating a vacuum in the jars and containers.
- 1m Vacuum Cable: Connects the vacuum pump to the jars/containers.
- Vacuum Food Containers: Two different sizes for food storage under vacuum.
- Låg: Secure lids for both blending jars and vacuum containers.
- Blade: Integrated stainless steel blades within the blending jars.
Billede: Et nærbillede view of the Masterpro Vacuum Blender's main unit, showing the black motor base and the clear 1.5L blending jar with its lid.
Billede: En detaljeret view of the stainless steel blades located at the bottom of the blending jar, designed for efficient chopping and blending.
4. Opsætning
Follow these steps to set up your Masterpro Vacuum Blender:
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller transport.
- Ren: Before first use, wash all non-electrical parts (jars, lids, vacuum containers, vacuum cable) with warm soapy water. Rinse thoroughly and dry. Wipe the blender base with a damp klæde.
- Placer basen: Position the blender base on a clean, dry, stable, and level surface. Ensure it is near a power outlet.
- Saml krukken: Place the desired blending jar (1.5L or 700ML) onto the motor base. Align the jar with the base and twist clockwise until it locks securely into place.
- Connect Vacuum Pump (if using vacuum function): If using the vacuum function, ensure the detachable vacuum pump is charged. It recharges automatically when attached to the base. Connect the 1m vacuum cable to the pump and the designated port on the jar or vacuum container.
- Tilslut: Sæt netledningen i en standard 220V stikkontakt.

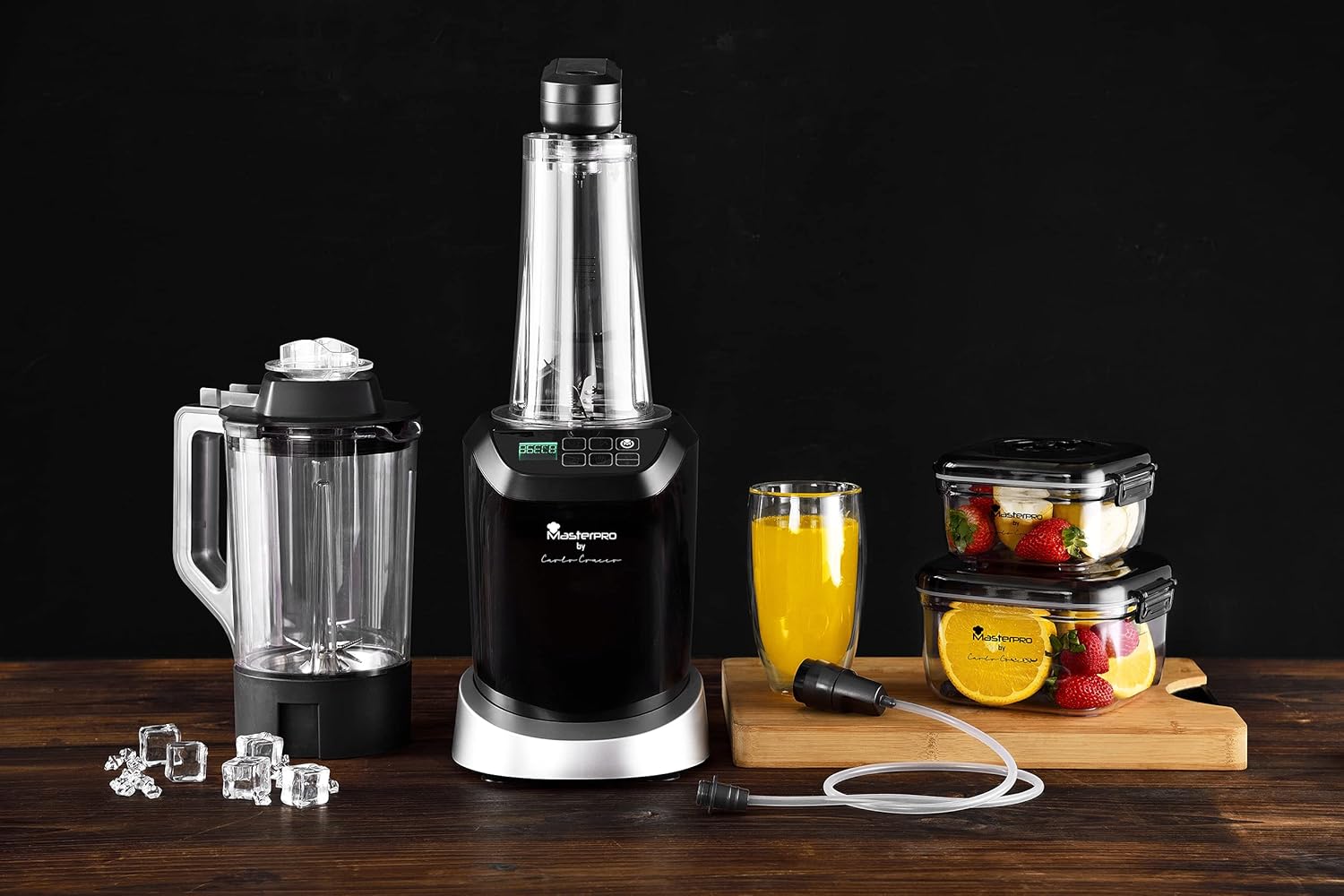

Image: The Masterpro Vacuum Blender and its accessories, including vacuum containers, arranged on a kitchen counter with fresh fruits, demonstrating a typical setup.
5. Betjeningsvejledning
The Masterpro Vacuum Blender features an intuitive interface with seven automatic programs.
5.1 General Blending
- Add ingredients to the blending jar. Do not exceed the maximum fill line.
- Securely place the lid on the blending jar.
- Place the jar onto the motor base and ensure it is locked.
- Select one of the seven automatic programs or use the manual speed setting.
- Press the Start/Stop button to begin blending.
- Once blending is complete, press the Start/Stop button again or wait for the program to finish.
- Unplug the appliance before removing the jar and pouring out contents.
5.2 Vacuum Blending
The vacuum function helps preserve nutrients and freshness by removing air before blending.
- Add ingredients to the 700ML vacuum extraction jar.
- Securely place the special vacuum lid on the jar.
- Connect the vacuum cable from the detachable vacuum pump to the vacuum port on the lid.
- Activate the vacuum pump to remove air from the jar. The pump will stop automatically once a sufficient vacuum is achieved.
- Once vacuum is created, you can proceed with blending using the automatic programs or manual settings.
- After blending, release the vacuum by pressing the release button on the lid before opening.
5.3 Using Vacuum Food Containers
The included vacuum food containers are ideal for storing prepared foods or ingredients.
- Place food into the vacuum container.
- Luk beholderens låg forsvarligt.
- Connect the vacuum cable from the detachable vacuum pump to the vacuum port on the container lid.
- Activate the vacuum pump to remove air. The pump will stop automatically.
- To open, press the vacuum release button on the lid.
Image: The Masterpro Vacuum Blender setup, featuring the main unit with a vacuum jar, the detachable vacuum pump, and vacuum food storage containers, ready for use.

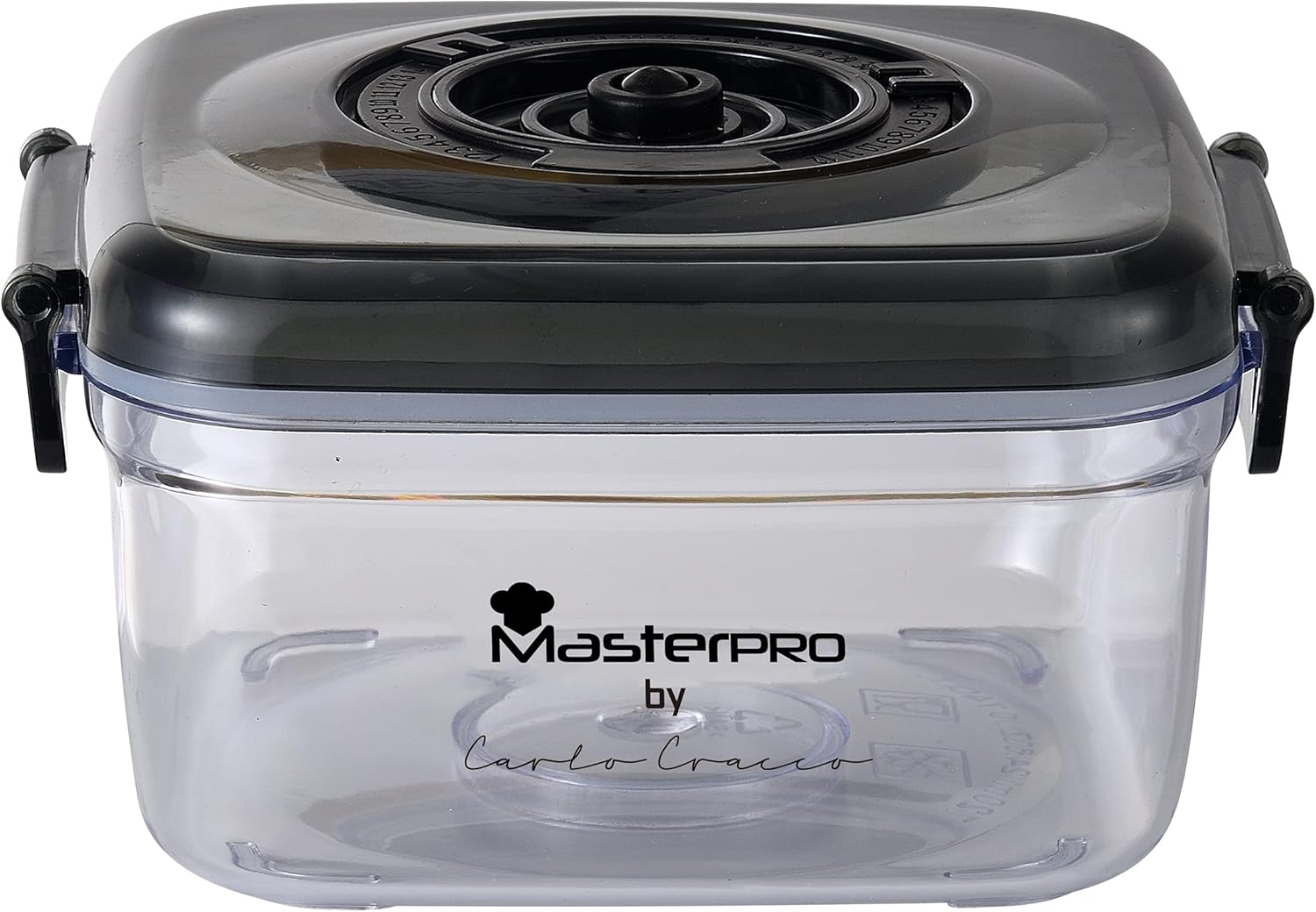

Image: A clear Masterpro vacuum food storage container, designed to keep food fresh by removing air, suitable for daily use and various storage needs.
6. Rengøring og vedligeholdelse
Korrekt rengøring og vedligeholdelse vil sikre din blenders levetid og optimale ydeevne.
- Tag altid stikket ud af stikkontakten fra stikkontakten før rengøring.
- Blender Jars and Lids: All non-electrical parts, including the 1.5L blending jar, 700ML vacuum jar, their lids, and the vacuum food containers, are dishwasher safe. For manual cleaning, wash with warm soapy water, rinse thoroughly, and dry.
- Blender base: Tør motorbasen af med adamp cloth. Do not immerse the base in water or any other liquid. Do not use abrasive cleaners or scouring pads.
- Detachable Vacuum Pump: The vacuum pump has an ion battery that recharges automatically when attached to the base. Wipe the pump with a damp klæde. Må ikke nedsænkes i vand.
- Opbevaring: Opbevar blenderen og dens tilbehør på et rent og tørt sted, når de ikke er i brug.
7. Fejlfinding
If you encounter issues with your Masterpro Vacuum Blender, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Blenderen tænder ikke. | Ikke tilsluttet; Krukken er ikke korrekt sat i; Strømmen er slukkettage. | Ensure the power cord is securely plugged into a working outlet. Check if the blending jar is correctly locked onto the base. Check your household's power supply. |
| Ingredienserne blendes ikke jævnt. | Too little liquid; Overfilling the jar; Ingredients are too large. | Add more liquid. Do not exceed the MAX fill line. Cut ingredients into smaller pieces before blending. |
| Vacuum function is not working. | Vacuum pump not charged; Lid not sealed properly; Vacuum cable not connected. | Ensure the vacuum pump is charged (attach to base). Check that the lid is securely closed and the vacuum port is clean. Verify the vacuum cable is firmly connected to both the pump and the jar/container. |
| Blenderen stopper under drift. | Overload protection activated; Jar not seated correctly. | Unplug the blender, remove some ingredients, and let the motor cool down for 15-20 minutes before restarting. Ensure the jar is properly locked. |
8. Specifikationer
| Mærke | MasterPro |
| Modelnummer | BGMP-9141 |
| Farve | Sort |
| Produktdimensioner | 18 x 26 x 15 cm |
| Produktets vægt | 7 kg |
| Blandingskrukkekapacitet | 1.5 liter |
| Vacuum Jar Capacity | 700 milliliter |
| Magt | 1200W |
| RPM | 24000 rpm |
| Voltage | 220 volt |
| Antal hastigheder | 1 (with 7 automatic programs) |
| Materialer | Rustfrit stål, aluminium, plastik |
| Strømkilde | Elektrisk med ledning |
| Anbefalede anvendelser | Smoothies, Blending |
9. Garanti og support
This Masterpro Vacuum Blender comes with a 2 års fuld garanti fra købsdatoen. Gem venligst din købsbevis i tilfælde af garantikrav.
For technical support, service, or warranty inquiries, please contact MasterPro customer service through their official website or the retailer where the product was purchased. Provide your model number (BGMP-9141) and a detailed description of the issue to assist the support team.
