ZOKOP BCD52 Bærbar Kompressor Bilkøleskab Brugermanual

Indledning

Tak for købetasing the ZOKOP BCD52 Portable Compressor Car Refrigerator. This appliance is designed to provide efficient cooling and freezing for your food and beverages, suitable for both vehicle and home use. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Sikkerhedsinstruktioner

• Sørg for, at strømforsyningen voltage stemmer overens med køleskabets specifikationer.
• Do not operate the appliance if the power cord is damaged. Contact qualified service personnel.
• Hold ventilationsåbningerne fri for forhindringer.
• Do not use electrical appliances inside the refrigerator unless they are of the type recommended by the manufacturer.
• Undgå at placere køleskabet i direkte sollys eller i nærheden af ​​varmekilder.
• When cleaning, disconnect the power supply.
• Dette apparat kan bruges af børn i alderen 8 år og derover og personer med nedsatte fysiske, sensoriske eller mentale evner eller mangel på erfaring og viden, hvis de har fået opsyn eller instruktion i brugen af ​​apparatet på en sikker måde og forstår de involverede farer. .
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• The refrigerator is designed to operate safely at angles up to 45° from horizontal.

Pakkens indhold

Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede og ubeskadigede:

• 1 x ZOKOP BCD52 Refrigerator
• 1 x Internal Basket
• 1 x DC-strømledning (12/24V)
• 1 x AC Adapter for Home Use
• 1 x Brugermanual (dette dokument)

Figur 1: Package contents. This image displays the ZOKOP BCD52 portable refrigerator, along with its DC power cord, AC adapter, and the user manual.

Produkt overview

The ZOKOP BCD52 is a versatile portable refrigerator/freezer featuring a robust compressor cooling system. It is designed for ease of use and portability.

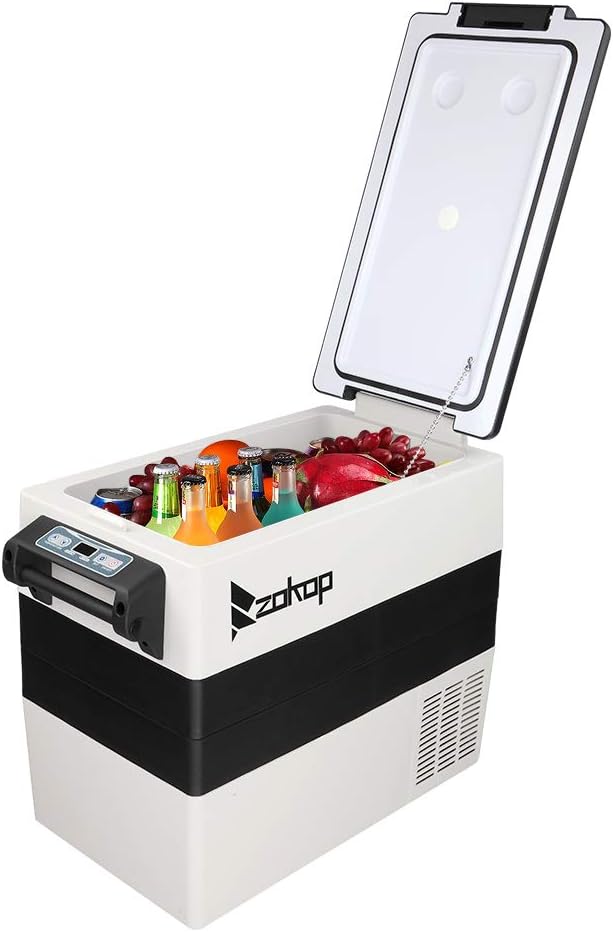

Figur 2: ZOKOP BCD52 Refrigerator with lid open. The image shows the interior of the refrigerator filled with various beverages and fruits, demonstrating its capacity.

Figur 3: Key features and components. This diagram highlights the control panel, handles, power input, and internal basket of the ZOKOP BCD52 refrigerator.

Opsætning

1. Udpakning: Carefully remove the refrigerator from its packaging. Retain packaging for future transport or storage.
2. Placering: Place the refrigerator on a flat, stable surface. Ensure adequate ventilation around the unit, especially at the air intake and exhaust vents. Avoid direct sunlight or heat sources.
3. Strømtilslutning:
   • DC 12/24V (Car Use): Connect the DC power cord to the refrigerator's DC input port and then to your vehicle's 12V or 24V power outlet (cigarette lighter socket).
   • AC 110-240V (Home Use): Connect the AC adapter to the refrigerator's AC input port, then plug the AC power cord into the adapter and a standard wall outlet.
4. Indledende brug: After connecting power, press the ON/OFF button to start the refrigerator. Allow it to run for at least 30 minutes to reach the desired temperature before loading items.

Figur 4: Refrigerator in a vehicle. This image demonstrates the ZOKOP BCD52 refrigerator positioned securely in the trunk of an SUV, ready for travel.

Betjeningsvejledning

Kontrolpanel

The control panel allows you to manage the refrigerator's settings. Refer to Figure 5 for button identification.

Figur 5: Control Panel. This image provides a detailed view of the control panel, showing the temperature adjustment buttons, SET button, ON/OFF button, and the LED display.

• ON/OFF knap: Press to turn the refrigerator on or off.
• Temperature Up (▲): Press to increase the target temperature.
• Temperature Down (▼): Press to decrease the target temperature.
• SET -knap: Press to enter temperature setting mode or to switch between ECO and MAX modes.
• LED display: Shows the current internal temperature and other status indicators.

Indstilling af temperatur

1. Turn on the refrigerator using the ON/OFF button.
2. Tryk på SÆT én gang. Temperaturdisplayet blinker.
3. Brug ▲ or ▼ knapper for at justere den ønskede temperatur.
4. Tryk på SÆT button again or wait a few seconds for the setting to be saved automatically. The display will stop flashing.

Common Temperature Settings:

• Red wine storage: 10℃ (50℉)
• Fruit: 4℃ - 6℃ (39℉ - 43℉)
• Beverages: 2℃ - 5℃ (36℉ - 41℉)
• Meat: -10℃ (14℉)
• Ice cream: -15℃ (5℉)

ECO / MAX Mode Selection

The refrigerator offers two operating modes for power consumption:

• ØKO -tilstand: Energy-saving mode, suitable for maintaining temperature once reached.
• MAX-tilstand: Maximum cooling performance, ideal for rapid cooling or when ambient temperatures are high.

To switch between modes, press and hold the SÆT button for approximately 3 seconds. The display will show "ECO" or "MAX".

Batteribeskyttelsestilstand

This feature protects your vehicle's battery from excessive discharge. There are three settings:

• H3 (High): Highest protection, refrigerator will cut off power at a higher battery voltage.
• H2 (Medium): Recommended for most car uses.
• H1 (Low): Lowest protection, allows the refrigerator to run longer before cutting off power. Use with caution to avoid draining the vehicle battery.

To adjust the battery protection mode, turn off the refrigerator. Then, press and hold the SÆT button for 3 seconds until the display shows "H1", "H2", or "H3". Use the ▲ or ▼ buttons to select the desired mode. The setting will be saved automatically after a few seconds.

Opretholdelse

Rensning

1. Afbryd altid strømforsyningen før rengøring.
2. Rengør indvendige og udvendige overflader med adamp klud og et mildt rengøringsmiddel. Undgå slibende rengøringsmidler eller opløsningsmidler.
3. Ensure the ventilation openings are free from dust and debris. Use a soft brush or vacuum cleaner if necessary.
4. Do not rinse the refrigerator directly with water.
5. Dry all surfaces thoroughly before reconnecting power.

Opbevaring

Hvis køleskabet ikke skal bruges i en længere periode:

• Empty all contents and clean the interior.
• Lad låget stå på klem for at forhindre lugtgener og skimmelvækst.
• Opbevares tørt og godt ventileret, væk fra direkte sollys og ekstreme temperaturer.

Fejlfinding

Specifikationer

Figur 6: Product Dimensions. This diagram illustrates the external and internal measurements of the ZOKOP BCD52 refrigerator in both centimeters and inches.

Garanti og support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact ZOKOP customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official ZOKOP webwebstedet eller kontakt deres kundesupportkanaler.
