Vissani 30 in. W emhætte til underskab, brugsanvisning

Image: The Vissani 30-inch Under Cabinet Range Hood, showcasing dens elegante design i rustfrit stål.

Indledning

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Vissani 30-inch Under Cabinet Range Hood. Designed for efficient and stylish cooking, this stainless steel appliance effectively ducts smoke, steam, and odors away from your kitchen, ensuring a fresh and clean environment. Its sleek design and powerful ventilation make it an essential addition to any modern kitchen.

Sikkerhedsoplysninger

Please read all instructions carefully before installation and operation. Keep this manual for future reference. Always disconnect power before servicing. Ensure proper grounding to reduce the risk of electric shock. Do not operate the range hood if it is damaged. Use only as intended for general ventilating purposes. Do not use to exhaust hazardous or explosive materials. Maintain proper ventilation in the room when the range hood is used simultaneously with appliances burning gas or other fuels.

Hvad er der i æsken

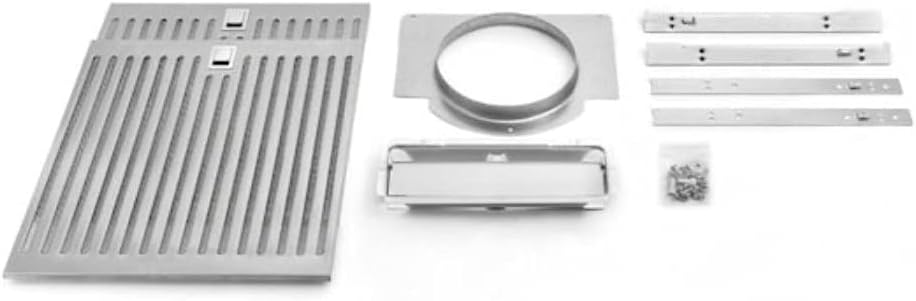

Image: All components included with the range hood, such as the mesh grease filters, installation hardware, and ducting adapter.

• Vissani 30-inch Under Cabinet Range Hood Unit
• Mesh Grease Filter (Pre-installed or separate)
• Installation Kit (Mounting hardware, screws, ducting adapter)
• Brugervejledning (dette dokument)

Opsætning og installation

The Vissani 30-inch Under Cabinet Range Hood is designed for seamless integration under your kitchen cabinets. Professional installation is recommended. Ensure adequate clearance above your cooking surface as per local building codes and manufacturer guidelines.

Dimensioner og frigang

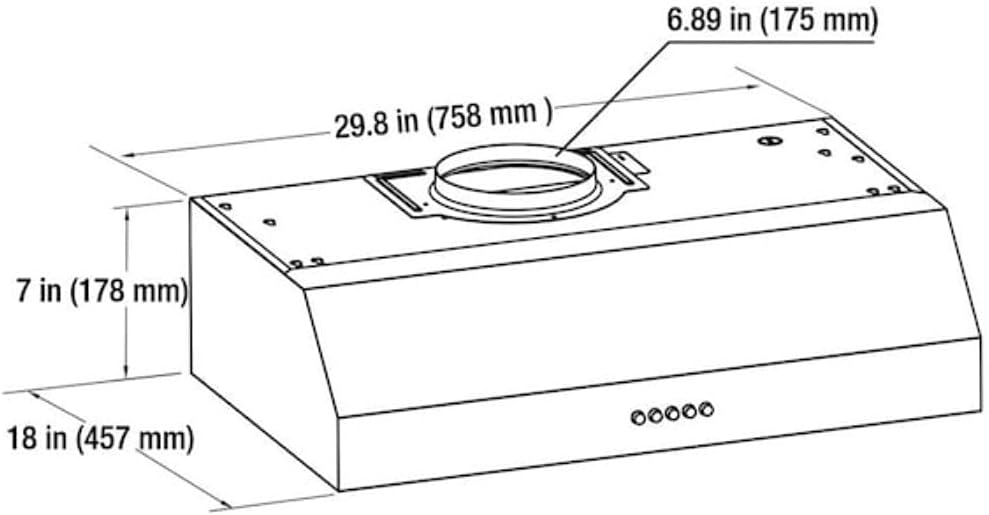

Image: Technical diagram illustrating the precise dimensions of the range hood for accurate installation planning.

• Produktdimensioner: 29.84 cm (B) x 17.99 cm (D) x 7.01 cm (H)
• Monteringstype: Under kabinetmontering
• Refer to the installation kit for specific mounting hardware and instructions.

Betjeningsvejledning

The Vissani Range Hood features intuitive push-button controls for easy operation of its fan speeds and LED lighting.

Kontrolpanel overview

Billede: Detaljeret view of the push-button control panel, showing icons for power, fan speed settings, and light control.

• Power knap: Tryk for at tænde/slukke enheden.
• Ventilatorhastighedsknapper: Select from multiple fan speeds (e.g., Low, Medium, High) to adjust ventilation power.
• Lys knap: Press to turn the LED lights On/Off.

LED belysning

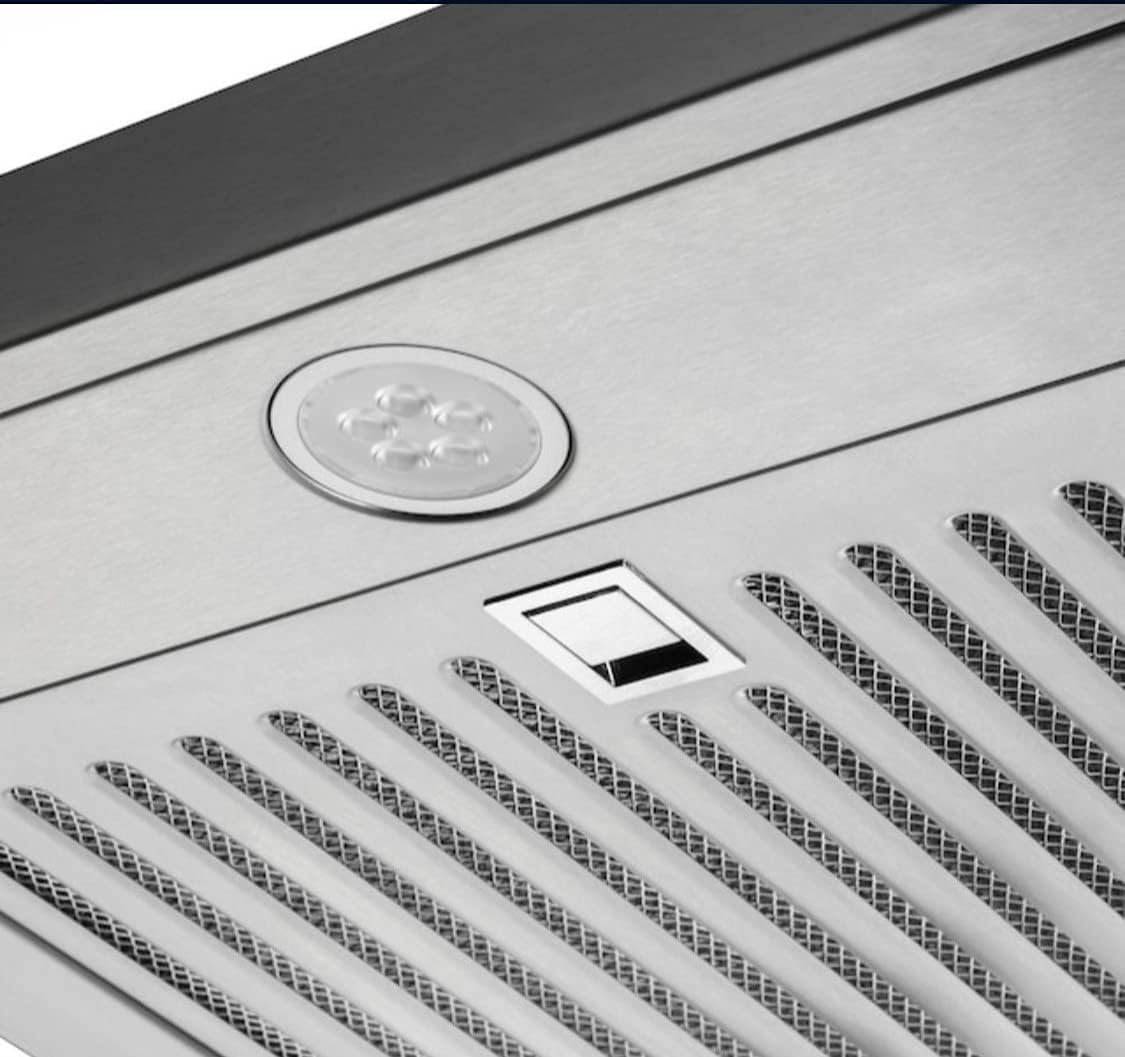

Image: A close-up shot highlighting the bright LED lights integrated into the range hood, providing clear illumination for cooking.

The integrated LED lights provide bright and energy-efficient illumination for your cooking area. Simply press the light button on the control panel to activate or deactivate them.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your Vissani Range Hood.

Cleaning the Stainless Steel Surface

The stainless steel finish is durable and easy to clean. Use a soft cloth with a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain to prevent streaks and scratches.

Grease Filter Maintenance

The mesh grease filter should be cleaned regularly, depending on cooking frequency. To remove, locate the release tabs and gently pull down. Wash the filters with warm, soapy water or place them in a dishwasher. Ensure filters are completely dry before re-installing.

Fejlfinding

Hvis du støder på problemer med din emhætte, kan du se følgende almindelige fejlfindingstrin:

• Ingen strøm: Check the circuit breaker and ensure the unit is properly plugged in.
• Ventilator virker ikke: Verify that the fan speed button is pressed. Ensure no obstructions are blocking the fan blades.
• Dårlig ventilation: Clean the grease filters. Check for any blockages in the ductwork.
• Lys virker ikke: Ensure the light button is pressed. If lights are still off, they may need replacement (consult a qualified technician).

For issues not covered here, please contact Vissani customer support.

Specifikationer

Garanti og support

For warranty information, product registration, or technical support, please visit the official Vissani webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
