1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Podofo Double Din Car Stereo. This unit features a 7-inch touchscreen, Android 10.1 operating system, Wireless Apple CarPlay, Wired Android Auto, GPS navigation, Bluetooth, WiFi, USB connectivity, FM/RDS radio, and support for a backup camera. Please read this manual thoroughly before use to ensure proper functionality and safety.
Billede: Overview of the Podofo Double Din Car Stereo in a vehicle dashboard, highlighting its main functionalities.
2. Opsætning og installation
2.1 Pakkens indhold
Før installation skal du kontrollere, at alle komponenter er til stede:
- Podofo Double Din Car Stereo Unit
- Backup kamera
- Strømkabel
- GPS antenne
- Kamera input kabel
- RCA Input and Output Cables
- 2 USB kabler
- Screw/Metal Frame for installation
- Instruktionsmanual (dette dokument)
Billede: Indhold af produktpakken.
2.2 Dimensioner

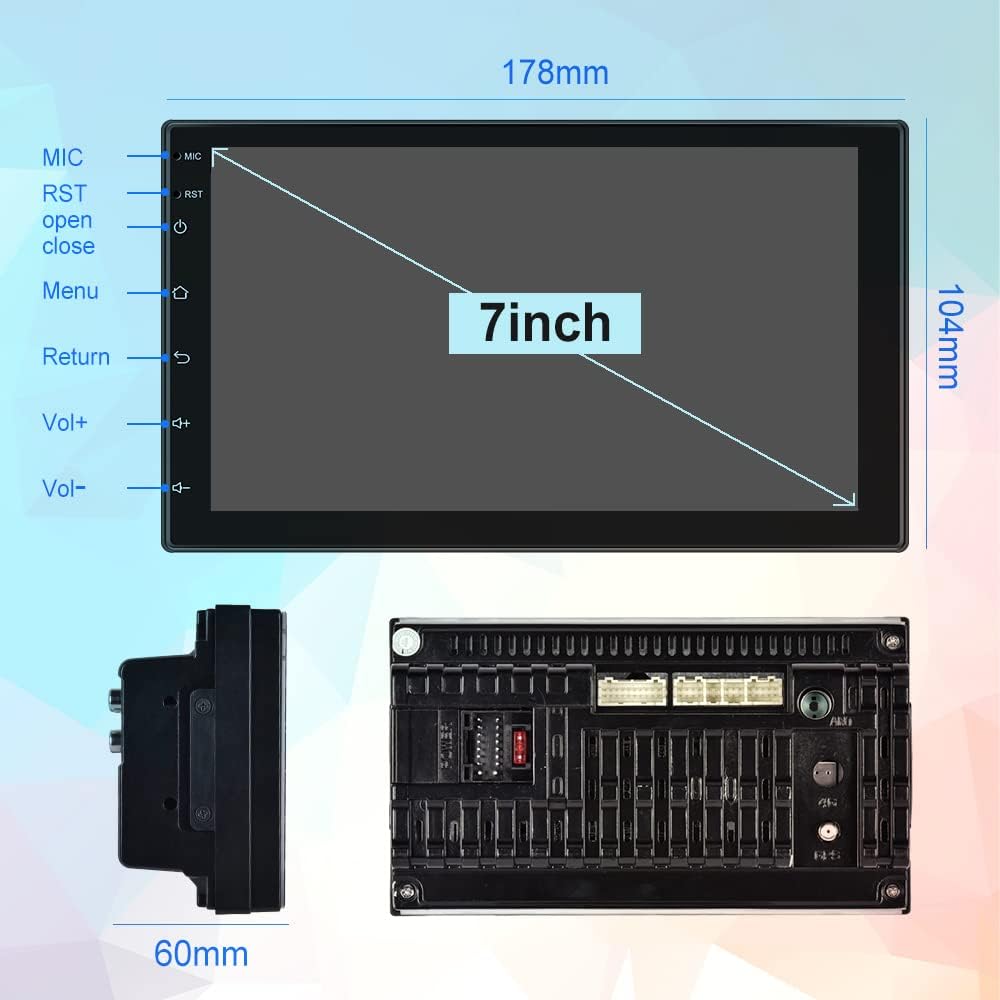

The installation size of the unit is 178mm x 103mm. The depth is 60mm. Ensure your vehicle's dashboard opening is compatible with these dimensions for a proper fit.
Image: Physical dimensions of the head unit.
2.3 Ledningsdiagram
Se følgende diagram for korrekt ledningsføring. Forkert ledningsføring kan beskadige enheden eller dit køretøjs elektriske system. Hvis du er i tvivl, skal du kontakte en professionel installatør.
- Gul (B+): Constant Power Supply (+12V)
- Rød (ACC): Ignition Switch (+12V)
- Sort (GND): Jordtråd
- Orange (ILL): Illumination Backlight
- Blue (ANT CONT): Automatisk antennestrøm
- Brown (SW1) & Pink (SW2): Steering Wheel Control (connect to vehicle's steering wheel control wires)
- Hvid/Hvid-Sort: Venstre fronthøjttaler (+/-)
- Grå/Grå-Sort: Forreste højre højttaler (+/-)
- Grøn/Grøn-Sort: Bageste venstre højttaler (+/-)
- Lilla/Lilla-Sort: Bageste højre højttaler (+/-)
- Omvendt indgang: Connect to vehicle's reverse light signal for backup camera activation.
Image: Comprehensive wiring diagram for the car stereo.
2.4 Indledende tænding
After completing all wiring, turn on your vehicle's ignition. The unit should power on automatically. Follow any on-screen prompts for initial setup.
3. Betjeningsvejledning
3.1 Wireless Apple CarPlay / Wired Android Auto
This unit supports both wireless Apple CarPlay and wired Android Auto. Connect your smartphone to access navigation, music, calls, and more directly on the stereo's screen.
- Trådløs CarPlay-forbindelse:
- Sørg for, at Bluetooth er aktiveret på din iPhone og bilstereoen.
- Pair your iPhone with the car stereo via Bluetooth (device name: CarBT, PIN: 0000).
- Open the 'ZLINK' application on the car stereo.
- If the connection is not successful, manually connect your iPhone to the car stereo's WiFi hotspot. Go to Car Settings > Android Settings > Network & Internet > Hotspot & tethering > Wi-Fi hotspot. Turn on the hotspot and note the network name (e.g., AndroidAP_B442). Connect your iPhone to this WiFi network.
- Once connected via WiFi, the ZLINK app should prompt you to use CarPlay. Confirm the connection.
- After manually connecting to the WiFi of the vehicle, delete the history record in the ZLINK app and then click ZLINK again to connect.
- Kablet Android Auto-forbindelse: Connect your Android phone to the stereo via a USB cable. Follow the on-screen prompts to enable Android Auto.
Video: Demonstrates the steps to connect an Android Double Din Car Stereo, including Bluetooth and ZLINK connections for smartphone integration.
Billede: Trådløse Apple CarPlay- og Android Auto-grænseflader.

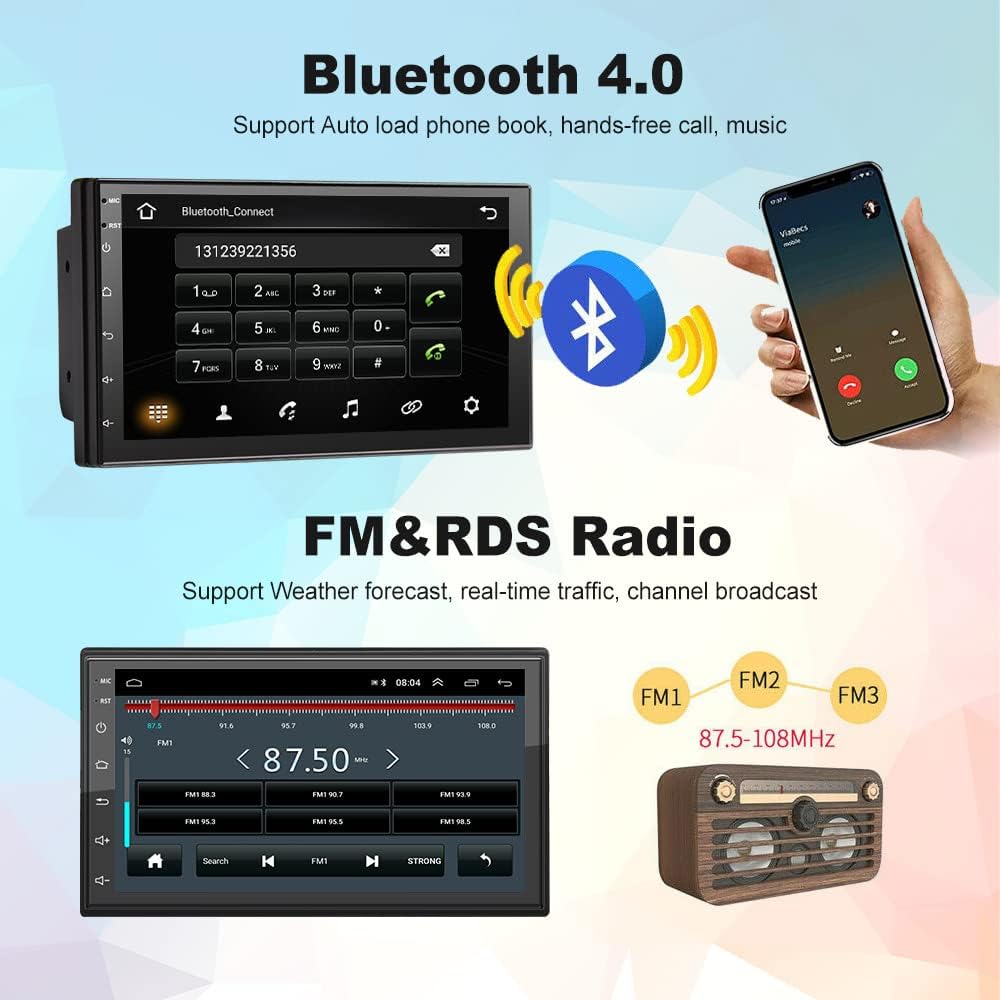

3.2 Bluetooth-forbindelse
The unit features Bluetooth 4.2 for hands-free calling, music streaming, and automatic phonebook loading. To connect:
- Gå til Bluetooth-applikationen på stereoanlægget.
- Enable Bluetooth on your smartphone and search for 'CarBT'.
- Pair the devices using the default PIN '0000' if prompted.
- Once connected, you can make/receive calls and play audio through the stereo.
Image: Bluetooth connection interface on the car stereo.
3.3 GPS-navigation og WiFi
The stereo includes built-in GPS navigation and WiFi connectivity.
- GPS-navigation: Supports online and offline maps. You can download offline maps directly from the Play Store.
- WiFi: Connect to your phone's hotspot or a local WiFi network to browse websites and download apps like Chrome, Waze, IGO, Sygic, etc.
3.4 FM/RDS-radio
Access FM radio stations and receive RDS (Radio Data System) information, which displays station names, program content, and other relevant data.
Image: FM radio interface with RDS display.

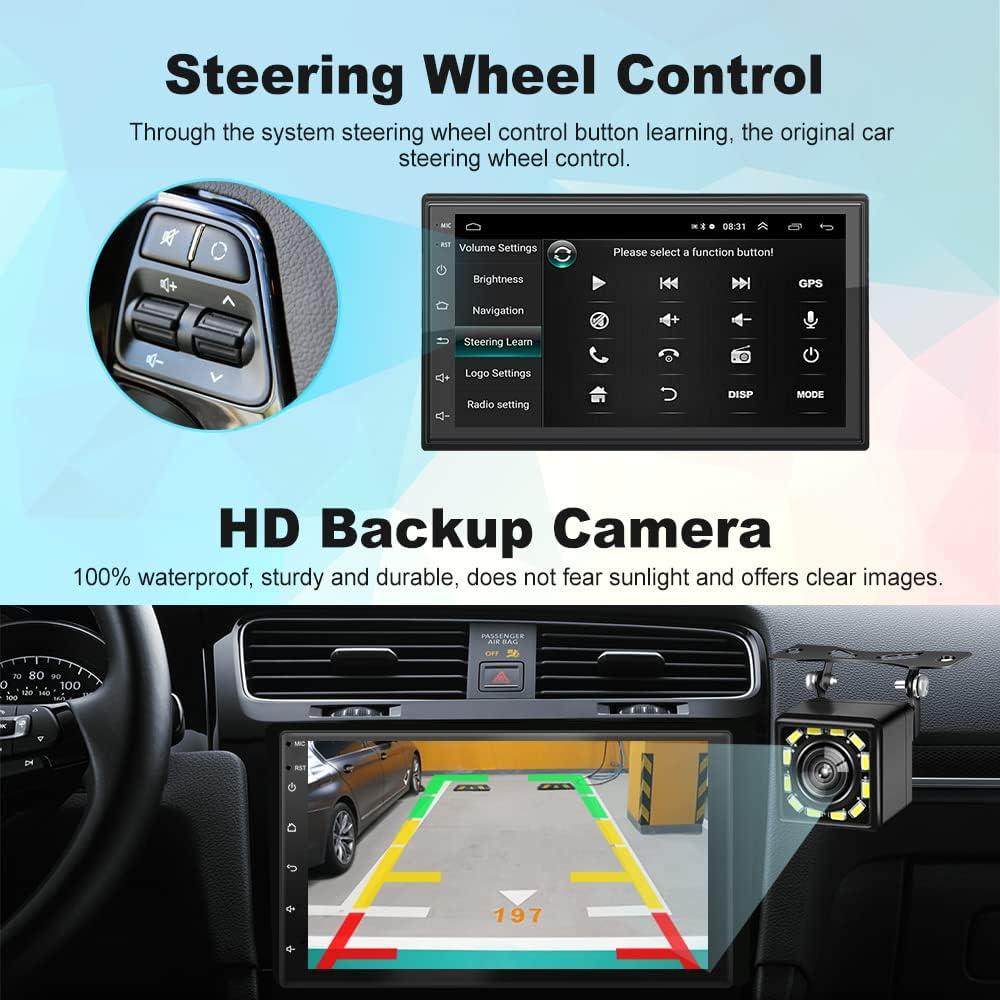

3.5 Ratbetjening (SWC)
The unit supports learning functions for your original car's steering wheel controls. This allows you to control the stereo's functions (e.g., volume, track skip) directly from your steering wheel for convenience and safety.
Image: Steering Wheel Control setup interface.
3.6 HD Backup Camera
The included 12-light HD backup camera is waterproof and provides high-definition night vision. When reversing, the stereo automatically switches to display the camera's feed, showing the area behind your vehicle.
Image: Backup camera view on the car stereo display.
3.7 Opdelt skærmfunktion
The split-screen feature allows you to run two applications simultaneously, such as navigation and music playback, without performance issues.
Image: Split Screen functionality displaying two applications simultaneously.
3.8 10-Band EQ Settings
Adjust the audio output to your preference with the integrated 10-band equalizer. This allows for fine-tuning of sound effects for each seat in the car.
Image: 10-band EQ settings interface.
4. Vedligeholdelse
For at sikre din bilstereos levetid og optimale ydeevne skal du følge disse vedligeholdelsesretningslinjer:
- Rensning: Brug en blød, tør klud til at rengøre berøringsskærmen og enhedens yderside. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Softwareopdateringer: Kontroller jævnligt producentens website or the unit's settings for available software updates to improve performance and add new features.
- Temperatur: Undgå at udsætte enheden for ekstreme temperaturer, direkte sollys i længere perioder eller for høj luftfugtighed.
5. Fejlfinding
If you encounter issues with your Podofo Car Stereo, refer to the following common problems and solutions:
- Ingen strøm:
- Check the yellow (B+) and red (ACC) power wires for proper connection to a constant 12V and ignition 12V source, respectively.
- Ensure the black (GND) wire is securely connected to a vehicle ground.
- Verify that the fuse on the power cable is intact. Replace if blown.
- Ingen lyd:
- Check all speaker wire connections (White, Gray, Green, Purple and their black-striped counterparts) to ensure they are correctly connected to your vehicle's speakers.
- Sørg for, at lydstyrken ikke er slået fra eller indstillet til minimum.
- Bekræft, at den korrekte lydkilde er valgt.
- Problemer med trådløs CarPlay/Android Auto-forbindelse:
- Sørg for, at Bluetooth er aktiveret og parret korrekt.
- If using wireless CarPlay, ensure your iPhone is connected to the stereo's WiFi hotspot as described in section 3.1.
- Genstart både din telefon og bilstereoen.
- Delete any existing Bluetooth/WiFi connections on both devices and attempt to reconnect.
- Ratbetjening virker ikke:
- Ensure the SW1 and SW2 wires are correctly connected to your vehicle's steering wheel control wires.
- Access the 'Steering Learn' function in the stereo's settings and follow the on-screen instructions to program the controls.
- Bakkamera viser ikke:
- Check the camera input cable connection to the stereo.
- Ensure the reverse input wire is correctly connected to your vehicle's reverse light signal.
- Kontroller, at selve kameraet er tændt og fungerer.
If problems persist after attempting these solutions, please contact Podofo customer support.
6. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Podofo |
| Model | B09C2ZQLDW |
| Skærmstørrelse | 7 tommer |
| Operativsystem | Android 10.1 |
| CPU | 8227L, 4-core 1.3GHz processor |
| Hukommelse | 1 GB RAM + 16 GB ROM |
| Opløsning | 1024 x 600 |
| Forbindelsesteknologi | USB, Bluetooth, Wi-Fi |
| Bluetooth version | 4.2 |
| Særlige funktioner | Wireless Apple CarPlay, Wired Android Auto, GPS Navigation, FM RDS, Backup Camera, Split Screen, Steering Wheel Control |
| Lydudgangstilstand | APE/FLAC/WAV/MP3/WMA osv. |
| Monteringstype | Montering af instrumentbræt (dobbelt-DIN) |
| Varens vægt | 941 gram |
7. Garanti og support
Your Podofo Double Din Car Stereo comes with a 2 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og funktionsfejl under normal brug.
For technical support, warranty claims, or any questions not covered in this manual, please contact Podofo customer service through the retailer where you purchased the product or visit the official Podofo webwebsted for kontaktoplysninger.
Gem venligst din købsbevis af garantihensyn.
