ION Audio Boombox Deluxe Stereo Instruction Manual

1. Introduktion

The ION Audio Boombox Deluxe Stereo is a versatile audio system designed to provide a range of listening experiences. It combines classic audio playback options with modern connectivity, featuring an AM/FM radio, a cassette player, Bluetooth streaming, and USB/Micro SD card playback. This manual provides detailed instructions for setting up, operating, and maintaining your device.

Figur 1: Forside view of the ION Audio Boombox Deluxe Stereo, showcasing its dual speakers, cassette deck, and radio tuner display.

2. Hvad er der i æsken

• Boombox Deluxe Unit
• Strømkabel
• Hurtig start guide

3. Opsætning

3.1 Strømforsyning til enheden

The Boombox Deluxe can be powered using the included AC power cable or by batteries for portable use. Insert the AC power cable into the AC IN port on the back of the unit and plug it into a standard wall outlet. For battery operation, open the battery compartment (typically on the bottom or back) and insert the required D-cell batteries (not included), ensuring correct polarity.

Figure 2: Rear panel of the Boombox Deluxe, highlighting the AC power input and battery compartment location.

3.2 Justering af antenne

For optimal AM/FM radio reception, extend the telescopic antenna located on the top of the unit. Adjust its position for the clearest signal.

4. Betjeningsvejledning

4.1 Generelle kontroller

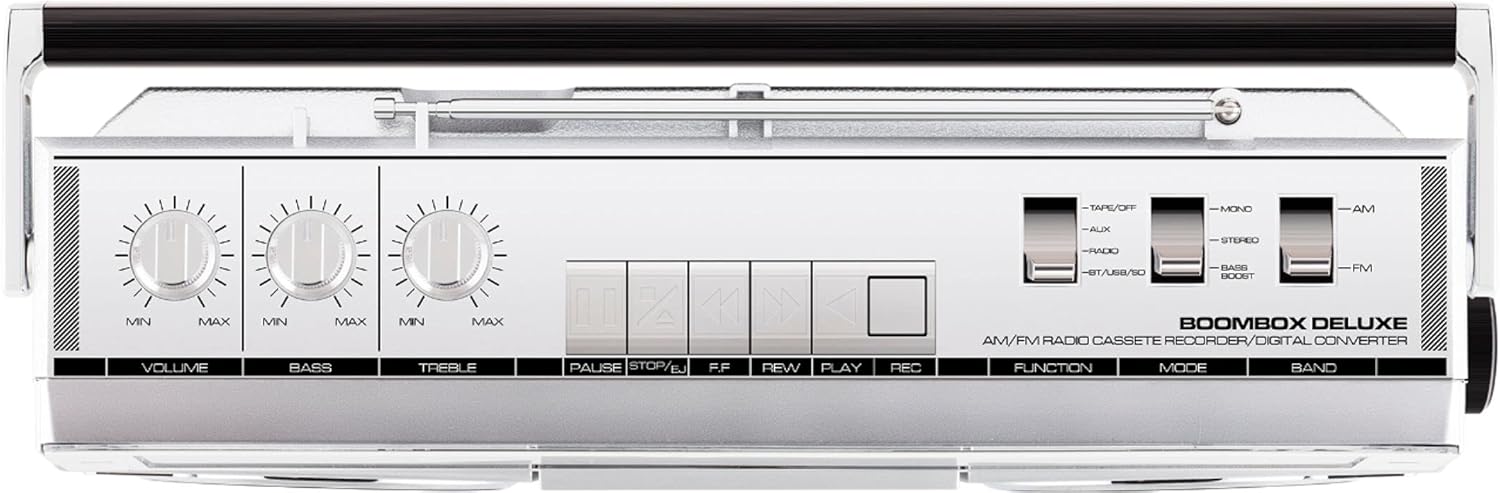

Figure 3: Top panel controls, including Volume, Bass, Treble knobs, and cassette playback buttons.

• Lydstyrkeknap: Justerer det samlede lydniveau.
• Basknap: Justerer lavfrekvent lydudgang.
• Diskant-knap: Justerer højfrekvent lydudgang.
• Funktionskontakt: Selects between Tape/Off, Aux, Radio, and BT/USB/SD modes.
• Mode Switch: Selects between Mono, Stereo, and Bass Boost audio modes.
• Båndskift: Vælger mellem AM- og FM-radiobåndene.

4.2 Radiodrift

1. Indstil Funktion Switch to 'Radio'.
2. Indstil Båndafbryder to 'AM' or 'FM'.
3. Brug Tuningknap to select your desired radio station. The frequency will be displayed on the tuner scale.

4.3 Betjening af kassettebåndoptageren

1. Indstil Funktion Switch to 'Tape/Off'.
2. Tryk på Stop / skub ud knappen for at åbne kassetterummet.
3. Insert a cassette tape with the open edge facing upwards. Close the compartment.
4. Tryk på Spil knappen for at starte afspilningen.
5. Bruge Rewind (REW) og Spol frem (FF) knapper til at navigere på båndet.
6. Trykke Pause to temporarily stop playback. Press again to resume.
7. Trykke Stop / skub ud for at stoppe afspilningen og skubbe båndet ud.
8. To record, ensure the Funktion Switch is set to 'Tape/Off' and press the Record (REC) knappen samtidig med Spil knap.

4.4 Bluetooth-forbindelse

Figure 4: Side panel with USB and Micro SD card slots, and playback controls for digital media.

1. Indstil Funktion Switch to 'BT/USB/SD'. The unit will enter Bluetooth pairing mode, indicated by a flashing LED.
2. On your Bluetooth-enabled device (e.g., smartphone, tablet), search for 'ION Boombox Deluxe' in the Bluetooth settings.
3. Select 'ION Boombox Deluxe' to pair. Once connected, a confirmation tone will sound, and the LED will stop flashing.
4. You can now stream audio from your device to the Boombox Deluxe. Use your device's controls or the boombox's playback buttons (Play/Pause, Next/Previous Track) for media control.

4.5 USB/Micro SD-afspilning

1. Indstil Funktion Switch to 'BT/USB/SD'.
2. Insert a USB flash drive or Micro SD card (with compatible audio files) into the respective slot on the side of the unit.
3. Enheden vil automatisk registrere og begynde at afspille lyd files.
4. Use the playback control buttons (Play/Pause, Next/Previous Track, Delete) on the side panel to manage your music.

4.6 Hjælpeindgang

Figure 5: Side panel with headphone output and auxiliary input jacks.

1. Indstil Funktion Switch to 'Aux'.
2. Connect an external audio device (e.g., MP3 player, CD player) to the AUX IN jack using a 3.5mm audio cable (not included).
3. Audio from the connected device will play through the boombox speakers. Control playback from your external device.

5. Funktioner

• Integrated Stereo System with Dual Speakers
• Bluetooth trådløs streaming
• AM/FM Radio Tuner
• Kassetteafspiller/optager
• USB- og Micro SD-kortafspilning
• Auxiliary Input for External Devices
• Adjustable Bass and Treble Controls
• Portable Design with Carry Handle

6. Specifikationer

7. Fejlfinding

• Ingen strøm:
  Ensure the AC power cable is securely connected to both the unit and a working power outlet. If using batteries, check that they are inserted correctly and are not depleted.
• Dårlig radiomodtagelse:
  Fully extend the telescopic antenna and adjust its position. Try relocating the unit to an area with better signal reception, away from potential interference sources like other electronic devices.
• Cassette Tape Not Playing/Recording:
  Ensure the tape is inserted correctly and the cassette compartment is fully closed. Check that the tape is not tangled or damaged. For recording, ensure both Play and Record buttons are pressed simultaneously.
• Bluetooth forbinder ikke:
  Make sure the Boombox Deluxe is in 'BT/USB/SD' mode and in pairing mode (flashing LED). Ensure Bluetooth is enabled on your external device and it is within range (typically 30 feet). Try unpairing and re-pairing the device.
• No Sound from USB/Micro SD:
  Verify that the USB drive or Micro SD card is inserted correctly and contains compatible audio files (e.g., MP3). Ensure the volume is turned up on the boombox.

8. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
• Pleje af kassettebåndoptager: Rengør båndhovederne og trykkrullerne let med en vatpind med jævne mellemrum.ampened with isopropyl alcohol to ensure optimal playback and recording quality.
• Batteriopbevaring: If the unit will not be used for an extended period, remove the batteries to prevent leakage and damage.

9. Garanti og support

This product is offered as an Amazon Renewed item. Amazon Renewed products are professionally inspected and tested to work and look like new. If you are not satisfied with your purchase, renewed products are eligible for replacement or refund under the Amazon Renewed Guarantee. For specific details regarding the Amazon Renewed Guarantee, please refer to the Amazon Renewed program terms and conditions on the Amazon webwebsted.

For further assistance or technical support, please contact ION Audio customer service or refer to their official webwebsted for supportressourcer.
