Yaheetech Over-the-Toilet Bathroom Cabinet

1. Introduktion

This manual provides detailed instructions for the assembly, installation, and maintenance of your Yaheetech Over-the-Toilet Bathroom Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

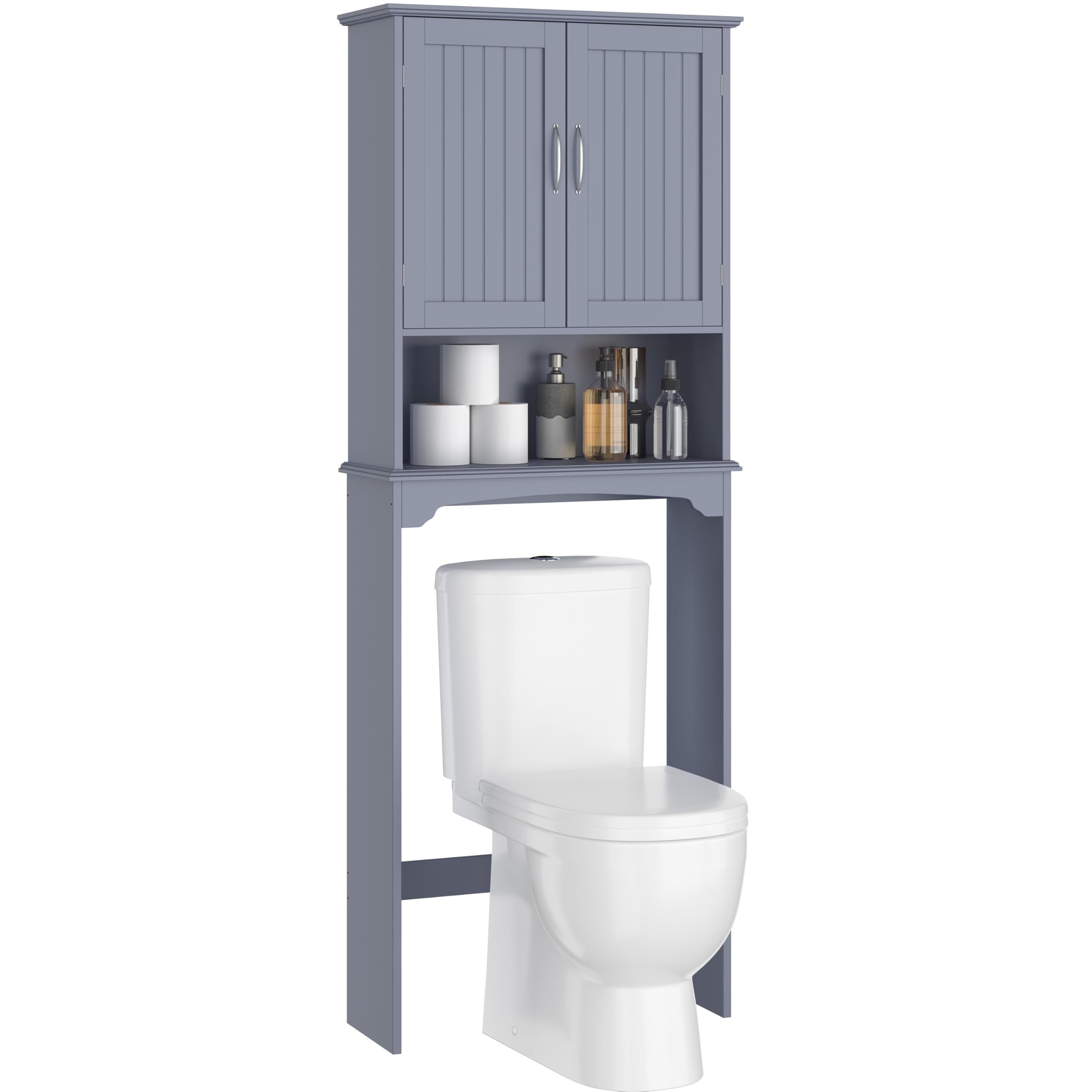

Figure 1: Fully assembled Yaheetech Over-the-Toilet Bathroom Cabinet.

2. Sikkerhedsoplysninger

• Følg altid monteringsvejledningen nøje.
• Sørg for, at alt hardware er forsvarligt fastspændt før brug.
• Do not overload shelves. The fixed shelf and movable shelf have a weight limit of 9 lbs each. The bottom open shelf has a weight limit of 11 lbs.
• It is highly recommended to attach the cabinet to the wall using the included anti-tip kit to prevent tipping and ensure stability.
• Hold små dele væk fra børn under montering.

3. Produktmål

The Yaheetech Over-the-Toilet Bathroom Cabinet is designed to fit over most standard toilets, maximizing vertical storage space. Refer to the diagram below for detailed measurements.

Figur 2: Produktmål for optimal placering.

• Overordnede dimensioner: 25 cm B x 9 cm D x 66 cm H
• Ground to Item Distance (Toilet Clearance): 33"H
• Open Compartment Dimensions: 22.6 cm B x 8 cm D x 8.4 cm H
• Justerbare hyldehøjder: 8.2", 9.4", 10.7"

4. Monteringsvejledning

Assembly is required for this product. All necessary hardware and detailed instructions are included in the package. It is recommended to have two people for assembly.

1. Udpak og identificer dele: Carefully unpack all components and hardware. Verify that all parts are present according to the included parts list.
2. Saml bundrammen: Connect the side panels and the lower crossbar to form the base frame that will sit around the toilet. Ensure all connections are secure.
3. Assemble the Upper Cabinet: Construct the main cabinet body, attaching the back panel, top, and bottom panels.
4. Installer hylder: Insert the fixed shelf and the adjustable shelf into the upper cabinet. The adjustable shelf can be placed at one of three heights (8.2", 9.4", 10.7") to accommodate items of various sizes.
5. Fastgør døre: Mount the two cabinet doors using the durable soft-closing metal hinges. Ensure the magnetic catches are properly aligned for smooth closing.
6. Forbind øvre og nedre sektion: Carefully lift the assembled upper cabinet and secure it to the base frame.
7. Installer håndtag: Attach the sleek silver handles to the cabinet doors.

For a visual guide on the product's features and assembly, please watch the official video:

5. Opsætning og installation

1. Placering: Carefully slide the assembled cabinet over your toilet. Ensure it is centered and stable on the floor.
2. Wall Anchoring (Crucial for Stability): Use the provided anti-tip kit to secure the cabinet to the wall. This is essential to prevent accidental tipping, especially in households with children or pets.

Figure 3: Installation of the anti-tip kit for enhanced safety and stability.

6. Betjeningsvejledning

• Skabslåger: The two doors feature magnetic catches for easy and quiet opening and closing.
• Justerbar hylde: To change the height of the movable shelf, remove any items, lift the shelf, and reposition the shelf pins into the desired holes (8.2", 9.4", or 10.7" from the bottom of the cabinet section).
• Åben hylde: Utilize the open bottom shelf for frequently accessed items or decorative elements.

7. Vedligeholdelse og pleje

• Rensning: Tør overflader af med en blød, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the painted finish.
• Spild: Promptly wipe up any spills to prevent water damage to the engineered wood material.
• Hardware: Kontrollér regelmæssigt alle skruer og fastgørelseselementer for at sikre, at de forbliver stramme. Efterspænd om nødvendigt.

8. Fejlfinding

• Wobling: Ensure the cabinet is placed on a level surface. Verify that all assembly screws are tightened. Confirm the anti-tip kit is securely installed to the wall.
• Døre lukker ikke ordentligt: Check that the magnetic catches are aligned. Adjust hinges if doors appear misaligned.
• Difficulty Fitting Over Toilet: Ensure the cabinet's base is correctly positioned around the toilet. The clearance height is 33 inches.

9. Specifikationer

10. Garanti og support

For warranty information, replacement parts, or further assistance, please contact Yaheetech customer support. Refer to the product packaging or the official Yaheetech webwebsted for kontaktoplysninger.

Tak fordi du valgte Yaheetech.
