GODOX PB960 Ekstern Flash Power Batteripakke Brugermanual

Vigtige sikkerhedsinstruktioner

• Do not disassemble or modify the battery pack. Improper handling may lead to electric shock, fire, or damage.
• Keep the battery pack away from water and moisture. Exposure to liquids can cause electric shock or malfunction.
• Do not expose the battery pack to high temperatures or direct sunlight. This can cause overheating and potential hazards.
• Use only the specified charger for the PB960 battery pack. Using an incompatible charger may damage the battery or cause fire.
• Ensure proper ventilation during charging and operation to prevent overheating.
• Opbevares utilgængeligt for børn.

Pakkens indhold

• 1 x GODOX PB960 Battery Pack
• 1 x AC-oplader
• 1 x skulderrem
• 1 x brugsanvisning

Image: The GODOX PB960 battery pack, its AC charger, and a shoulder strap, as included in the package.

Produkt overview

The GODOX PB960 is an external flash power battery pack designed to provide extended power and faster recycling times for various speedlites and flash units. It features a high-capacity lithium battery and dual output ports for versatile use.

Nøglekomponenter

Billede: Forside view of the GODOX PB960 External Flash Power Battery Pack, showing the main unit with its dual output ports at the top.

Billede: Bagside view of the GODOX PB960 Battery Pack, displaying battery specifications (Lithium battery 11.1V/5800mAH) and safety markings.

Billede: Side view of the GODOX PB960 Battery Pack, highlighting the integrated belt clip and protective covers for the output ports.

Billede: Nærbillede view of one of the dual output ports on the GODOX PB960, showing the multi-pin connector.

Billede: Side view of the GODOX PB960, featuring a USB charging port and LED battery level indicators.

Opsætning og installation

Opladning af batteripakken

Connect the provided AC charger to the PB960 battery pack's charging port. The LED indicators will show the charging status. A full charge typically takes about 3 hours.

Connecting to a Flash Unit

Use the appropriate power cable (e.g., AD-S1, PB CX, PB NX, PB SX, sold separately) to connect your flash unit(s) to the output port(s) of the PB960 battery pack. Ensure the connection is secure.

Image: The GODOX PB960 battery pack connected via a coiled cable to a single flash unit, ready for use.

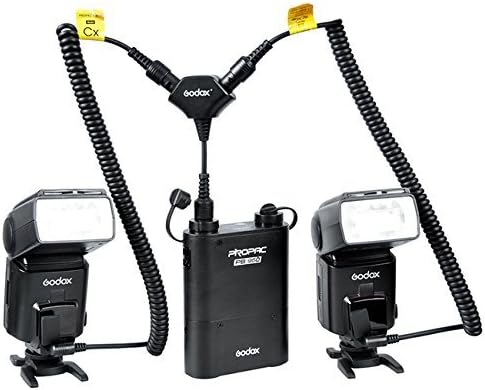

Image: The GODOX PB960 battery pack connected to two separate flash units using a Y-splitter cable, demonstrating its dual output capability.

Betjeningsvejledning

Tænd/sluk

Press and hold the power button on the PB960 to turn the unit on or off. The LCD display will show the battery status and operational mode.

Dobbelt udgangsfunktion

The PB960 features dual output ports, allowing you to power two flash units simultaneously. This is ideal for complex lighting setups requiring multiple light sources.

Kompatibilitet

The GODOX PB960 is compatible with a wide range of shoe mount flashes from various brands, including Canon, Nikon, Sony, Metz, Godox, and Yongnuo. It is designed to work with models such as V1Pro, V100, AD200IIPRO, AD360II, AD360, and AD180, provided the correct connection cable is used.

Specifikationer

• Batteri: Lithium battery 11.1V/5800mAH
• Opladningstid: Cirka 3 timer
• Callback Time: Approximately 1 second (at full power)
• Antal blink: Approximately 1800 times (Canon original lamp prøve)
• Udseende størrelse: 159 x 113 x 49 mm
• Produktvægt: 540 g (1.19 lbs)
• Battericellesammensætning: Lithium polymer
• Anbefalede anvendelser: Kamera Flash

Vedligeholdelse og pleje

• Clean the unit with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Opbevar batteripakken et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• If not in use for an extended period, charge the battery pack periodically to maintain battery health.
• Undgå at tabe enheden eller udsætte den for kraftige stød.

Fejlfinding

• Flash not recycling quickly: Ensure the battery pack is fully charged and the connection cable is securely attached to both the PB960 and the flash unit.
• Batteri oplades ikke: Verify that the AC charger is properly connected to a power outlet and the PB960. Check for any damage to the charger or cable.
• Enheden tænder ikke: Ensure the battery is inserted correctly and has sufficient charge. If the issue persists, contact customer support.

Officielle produktvideoer

Garanti og support

GODOX products typically come with a limited manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support or service inquiries, please visit the official GODOX webwebstedet eller kontakt din lokale forhandler.

For mere information, besøg GODOX-butik på Amazon.
