Temtop M100 Luftstation: Brugermanual til multifunktionel indendørs luftkvalitetsmåler

1. Introduktion

The Temtop M100 Air Station is a sophisticated indoor air quality monitor designed to provide comprehensive data on your environment. This device integrates multiple sensors to detect various air pollutants and environmental factors, offering real-time insights into the air you breathe. This manual will guide you through the setup, operation, and maintenance of your M100 Air Station to ensure optimal performance and accurate readings.

Temtop M100 Air Station displaying PM2.5, PM10, AQI, CO2, temperature, humidity, and weather forecast on its large screen.

Image 1.1: The Temtop M100 Air Station displaying various environmental parameters.

2. Produktfunktioner

The Temtop M100 Air Station combines an air quality monitor, weather station, and indoor thermometer into a single device, offering an 8-in-1 monitoring solution. Key features include:

Avanceret sensorteknologi: Equipped with an industrial-grade PM2.5 laser sensor, SenseAir NDIR carbon dioxide sensor, and Sensirion temperature & humidity sensor for high accuracy.
8-i-1-overvågning: Provides accurate readings for CO2, PM2.5, PM10, AQI (Air Quality Index), temperature, humidity, weather forecast, and displays date & time.
Brugervenlig grænseflade: Features a large 7.8-inch touch screen with three adjustable brightness levels.
Farvekodede indikatorer: Utilizes 6 colorful AQI index levels and 3 colorful CO2 concentration levels to visually represent air quality status from Good to Hazardous/Poor.
Wi-Fi-forbindelse: Supports 2.4GHz and 5GHz Wi-Fi for connection to the Temtop APP, enabling real-time monitoring, data download, and history tracking.
Temperaturenhedsskift: Easily switch between Celsius and Fahrenheit directly from the device settings.

Diagram illustrating the 8-in-1 professional sensors of the Temtop M100 Air Station, including Forecast, CO2, PM2.5, PM10, AQI, Temperature, Humidity, and Time.

Billede 2.1: Overview of the 8-in-1 professional sensors integrated into the M100 Air Station.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

Temtop M100 Air Station (8-in-1 Multifunction Device)
USB-ladekabel (USB-A til USB-C)
Brugervejledning (dette dokument)

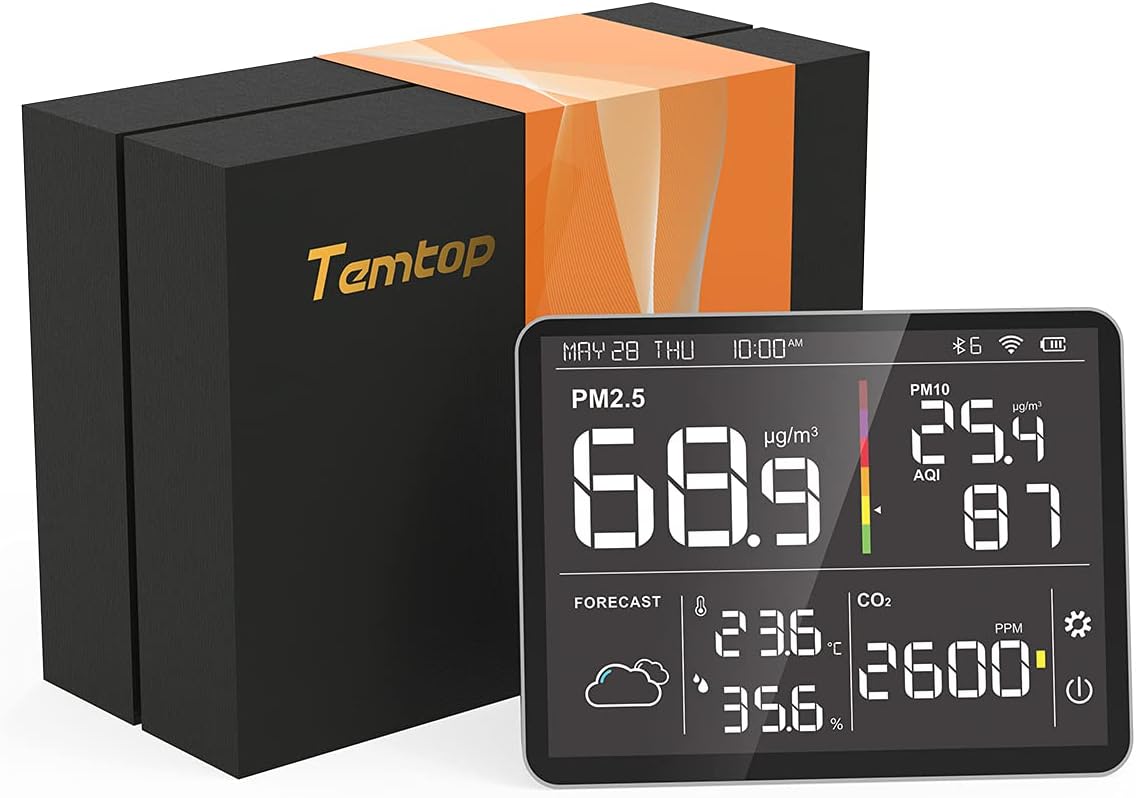

The Temtop M100 Air Station next to its black packaging box, showing the device and its presentation.

Image 3.1: Temtop M100 Air Station and its packaging.

4. Kom godt i gang: Opsætning

4.1 Indledende opladning

Before first use, connect the M100 Air Station to a power source using the provided USB charging cable. A standard 5V/1A DC power adapter (not included) is recommended. Ensure the device is fully charged for optimal performance, especially if planning to use it without continuous power.

4.2 Initial CO2 Calibration

For accurate CO2 readings, it is recommended to perform an initial calibration. Place the M100 Air Station outdoors in a well-ventilated area for approximately 7 hours. This allows the CO2 sensor to establish a baseline with ambient outdoor CO2 levels, which are typically around 400 ppm.

4.3 Connecting to Wi-Fi and Mobile Application

Download the Temtop App: Søg efter 'Temtop' in your device's app store (available on Apple App Store and Google Play Store).
Registrer/Log ind: Open the app and follow the prompts to create an account or log in.
Tilføj enhed: Within the app, select the option to add a new device. The app will guide you through connecting the M100 Air Station via Bluetooth initially, then configuring its Wi-Fi connection (supports 2.4GHz and 5GHz networks).
Netværkskompatibilitet: While the device supports both 2.4GHz and 5GHz Wi-Fi, some 5GHz bands may have compatibility issues. If you encounter connection problems, try connecting to a 2.4GHz network.

Screenshot of the Temtop mobile application interface showing multiple devices and their air quality status, alongside a detailed view of a single device's readings.

Image 4.1: The Temtop mobile application interface for monitoring devices.

4.4 Skærmindstillinger

Juster lysstyrke: Single-click the ON/OFF button on the device to cycle through the three available brightness models for the screen.
Skift temperaturenheder: Long-press the setting button on the device to toggle the temperature display between Celsius (°C) and Fahrenheit (°F).

5. Operating Your Air Station

5.1 Forstå skærmen

The M100 Air Station's large LCD screen provides real-time readings for all monitored parameters:

PM2.5 og PM10: Displays particulate matter concentrations in µg/m³.
AQI: Air Quality Index, a numerical value indicating overall air quality.
CO2: Kuldioxidkoncentration i PPM (parts per million).
Temperatur og luftfugtighed: Current ambient temperature and relative humidity.
Vejrudsigt: Provides a basic weather forecast.
Dato og tid: Nuværende dato og klokkeslæt.

The display uses color-coded indicators for AQI and CO2 to quickly convey air quality status:

AQI: 6 color levels ranging from Good to Hazardous.
CO2: 3 color levels indicating Good, Moderate, or Poor concentration.

5.2 Brug af mobilapplikationen

The Temtop mobile application enhances the functionality of your M100 Air Station:

Overvågning i realtid: View all sensor readings remotely.
Historiske data: Adgang og vedrview historical air quality data.
Dataeksport: Download monitoring history via the app or USB cable for further analysis.
Indstillinger: Adjust device settings, such as logging frequency.

The Temtop M100 Air Station displaying readings on a wooden table next to a smartphone, illustrating app connectivity.

Image 5.1: M100 Air Station in use, demonstrating connectivity with a mobile device.

6. Understanding Air Quality Readings

The M100 Air Station measures several key air quality parameters:

PM2.5 (partikler 2.5): Refers to fine inhalable particles with diameters generally 2.5 micrometers and smaller. These particles can penetrate deep into the respiratory tract.
PM10 (partikler 10): Refers to inhalable particles with diameters generally 10 micrometers and smaller.
CO2 (kuldioxid): A gas naturally present in the atmosphere. Elevated indoor CO2 levels can indicate poor ventilation and may lead to drowsiness or reduced cognitive function.
AQI (luftkvalitetsindeks): A standardized index used to report daily air quality. It indicates how clean or polluted the air is, and what associated health effects might be a concern.

Infographic explaining why particle matter is important, showing PM2.5 particles entering the respiratory tract and their potential health impacts.

Image 6.1: Explanation of the impact of fine particulate matter (PM2.5) on human health.

7. Vedligeholdelse

To ensure the longevity and accuracy of your Temtop M100 Air Station, follow these maintenance guidelines:

Rensning: Gently wipe the device's screen and body with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or spraying liquids directly onto the device.
Sensorpleje: Do not attempt to clean the internal sensors. Exposure to dust and debris should be minimized.
Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.

8. Fejlfinding

If you encounter issues with your M100 Air Station, refer to the following common problems and solutions:

Kort batterilevetid: The M100 Air Station is designed for continuous monitoring and is best used when connected to a power source. If operating on battery, expect a limited duration (e.g., 1-3 hours). For prolonged use, keep the device plugged in.
Problemer med Wi-Fi-forbindelse: If the Wi-Fi icon blinks or the device frequently disconnects, ensure your Wi-Fi network is stable. Try restarting your router and the M100. If using a dual-band router, attempt to connect to the 2.4GHz band as it often provides a more stable connection for smart home devices.
App Displaying Incorrect Temperature Units: If the app's main screen shows Celsius while the device or detailed app view is set to Fahrenheit, this may be a known app display bug. Refer to the detailed device view within the app for accurate unit display. Ensure your app is updated to the latest version.
Device Not Powering On with USB-C to USB-C Cable: The M100 Air Station may require a USB-A to USB-C cable for charging, such as the one provided. If using a USB-C to USB-C cable, ensure it is compatible and provides sufficient power. It is recommended to use the included charging cable.
Inaccurate CO2 Readings: Ensure the initial CO2 calibration was performed outdoors in fresh air. If readings seem consistently off, repeat the outdoor calibration process.

9. Specifikationer

Detailed technical specifications for the Temtop M100 Air Station:

Parameter	Værdi
Model	M100
Overordnet dimension	6.9 x 2.6 x 1.2 tommer
Dataeksport	WiFi
Strømadapter	5V/1A DC
Driftstemperaturområde	0 ~ 50 ° C (32 ~ 122 ° F)
Driftsfugtighedsområde	0~90% RH
Atmosfærisk tryk	1 atm
PM2.5 måleområde	0~999 µg/m³
PM2.5 Resolution	0.1 µg/m³
PM2.5-nøjagtighed	±5µg/m³ (0~50µg/m³), ±10µg/m³ (50~100µg/m³), ±10% (>100µg/m³)
PM10 måleområde	0~999 µg/m³
PM10 Resolution	0.1 µg/m³
CO2-måleområde	0~5000 PPM
CO2-opløsning	1 PPM
CO2-nøjagtighed	±50ppm + 5%
Temperatur nøjagtighed	±1 °C
Forbindelsesteknologi	Wi-Fi
Batteritype	1 lithium-ion batteri (medfølger)
Display Type	LCD
Varens vægt	1.81 pund
UPC	781454250493

10. Garanti og support

Temtop provides a 12 måneders garanti for the M100 Air Station, covering manufacturing defects and malfunctions under normal use. For any inquiries, technical assistance, or warranty claims, please contact Temtop customer support.

Kundesupport: Temtop offers 24/7 customer support access via email and phone. Refer to the contact information provided on the Temtop official website or your product packaging for specific details.
