1. Produktet er slutview
The GSEICE ST16E is a high-efficiency soft serve ice cream machine designed for both home and light commercial use. Featuring a 5-inch LED screen, pre-cooling function, and patented double puffing technology, it delivers smooth, creamy ice cream with enhanced flavor and material utilization. Its compact design and user-friendly controls make it an ideal choice for various settings.
Figure 1: The GSEICE ST16E Soft Serve Ice Cream Machine.
Nøglefunktioner:
- High Efficiency & Output: Equipped with a 1.58-gallon tank and 0.42-gallon freezer tank, capable of producing up to 4.2 gallons per hour. First molding takes approximately 10 minutes.
- Double Puffing Technology: Improves puffing rate by 35%-45%, enhancing taste and optimizing raw material usage.
- 5-inch LED Screen: Intuitive interface for easy control of freezing, hardness adjustment, defrosting, and cleaning functions.
- Pre-Cooling & Fresh-Keeping: Saves energy and maintains product freshness.
- User-Friendly & Easy to Clean: Features a one-touch automatic wash cycle for simplified maintenance.
- Holdbar konstruktion: Built with high-quality materials for continuous use.
2. Sikkerhedsinstruktioner
Læs venligst alle sikkerhedsinstruktioner omhyggeligt, inden du bruger maskinen, for at forhindre personskade eller beskadigelse.
- Always connect the machine to a grounded power outlet with the correct voltage (120V/60Hz).
- Brug ikke maskinen med en beskadiget netledning eller stik.
- Hold hænder og fremmedlegemer væk fra bevægelige dele under drift.
- Sørg for tilstrækkelig ventilation omkring maskinen for at forhindre overophedning.
- Nedsænk ikke maskinen i vand eller andre væsker.
- Tag stikket ud af maskinen, før du rengør eller udfører nogen form for vedligeholdelse.
- Opbevares utilgængeligt for børn.
- Operate the machine within the recommended working temperature range of 41℉ to 91.4℉.
3. Opsætning
Follow these steps for initial setup of your ice cream machine:
- Unboxing: Tag forsigtigt maskinen og alt tilbehør ud af emballagen. Gem emballagen til senere transport eller opbevaring.
- Placering: Place the machine on a stable, level surface. Ensure adequate clearance around the machine for ventilation. The compact design allows it to fit easily in various kitchen or party settings.
- Indledende rengøring: Before first use, clean all parts that will come into contact with food. Refer to the 'Maintenance' section for detailed cleaning instructions.
- Saml komponenter: Attach the dispensing handle and drip tray. Ensure all seals and O-rings are correctly seated.
- Strømtilslutning: Plug the machine into a suitable grounded electrical outlet.

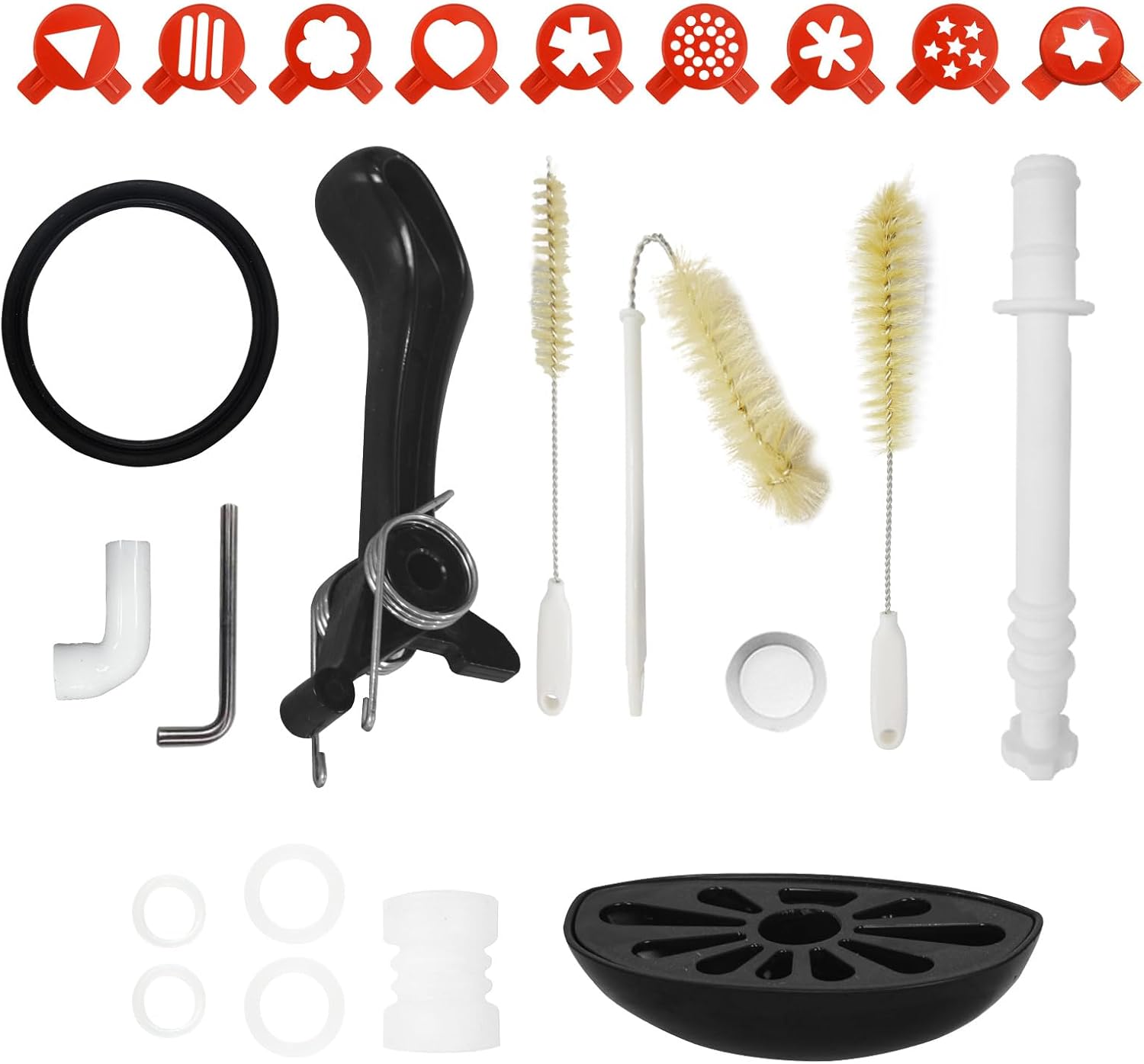

Figure 2: Included accessories and parts for the ice cream machine.
4. Betjeningsvejledning
Operating your GSEICE ice cream machine is straightforward with its intuitive 5-inch LED screen and one-touch functions.

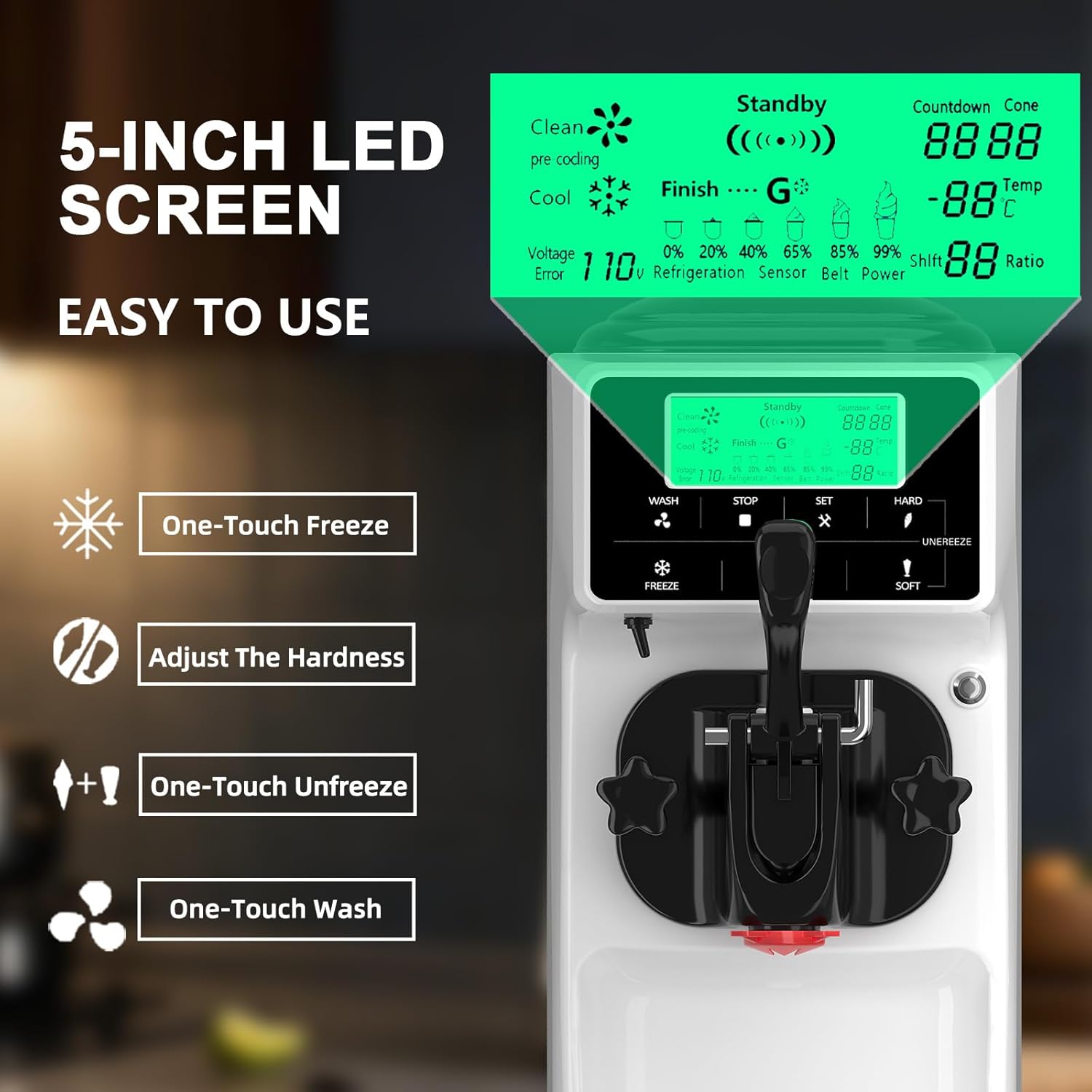

Figure 3: The 5-inch LED screen provides easy access to all machine functions.
Kontrolpanelets funktioner:
- VASK: Starter den automatiske rengøringscyklus.
- FRYSE: Starts the freezing process for ice cream production.
- STOP: Halts the current operation.
- SÆT: Used to adjust settings such as hardness.
- HÅRD/BLØD: Adjusts the desired hardness of the soft serve.
- UNFREEZE: Activates the defrosting function to thaw frozen ice cream for easier serving or cleaning.
Figure 4: Visual representation of screen functions including One-Touch Freeze and Hardness Adjustment.
Figure 5: The One-touch Thaw Function simplifies cleaning and serving.
Ice Cream Production Steps:
- Forbered blanding: Prepare your ice cream or soft serve mix according to your recipe. The machine has a 1.58-gallon tank capacity.
- Add Raw Material: Pour the prepared mix into the top hopper of the machine.
- Insert Puff Rod: Ensure the air-pressurized puffing stick (puff rod) is correctly inserted into the mix. This activates the double puffing technology for improved texture and yield.
- Start med at fryse: Press the 'FREEZE' button on the control panel. The machine will begin the freezing process. The first batch typically takes about 10 minutes, with subsequent batches ready in 4-6 minutes.
- Overvåg fremskridt: The 5-inch LED screen displays real-time information, including temperature, hardness, and production status. You can adjust the hardness using the 'HARD' or 'SOFT' buttons.
- Dispensér is: Once the ice cream reaches the desired consistency, pull down the dispensing handle to serve.
Figure 6: Steps for adding raw material and inserting the puff rod.
Figure 7: Diagram illustrating the double puffing technology within the machine.
Figure 8: Steps for dispensing the finished ice cream product.
Video Demonstration (Customer-Provided):
While no official seller videos are available, the following customer-provided video demonstrates the dispensing process of the ice cream machine. Please note that this video is not produced by GSEICE and may not represent all features or recommended procedures.
Video 1: A customer demonstrating the dispensing of soft serve ice cream from the machine.
5. Vedligeholdelse og rengøring
Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your ice cream machine. The machine features an automatic cleaning function.
Automatic Wash Cycle:
- Tom tank: Ensure the mix tank is empty. If there's remaining ice cream, use the 'UNFREEZE' function to soften it for easier removal.
- Tilsæt vand: Pour clean water into the mix tank.
- Press WASH: Press the 'WASH' button on the control panel. The machine will agitate the water to clean the internal components.
- Afløbsvand: Once the cycle is complete, drain the dirty water through the dispensing nozzle. Repeat if necessary.
Figure 9: Steps for initiating the automatic cleaning cycle by adding water and pressing the wash button.
Figure 10: The one-touch cleaning button simplifies the cleaning process.
Dyb rengøring:
For thorough cleaning, especially after prolonged use or before storage:
- Tag stikket ud af maskinen.
- Disassemble the dispensing handle, cylinder, and any removable parts according to the user guide (PDF document available).
- Wash all disassembled parts with warm, soapy water and a soft brush. Rinse thoroughly.
- Pay special attention to O-rings and seals, ensuring they are clean and free of residue. Replace if worn or damaged.
- Lad alle dele lufttørre helt, før de monteres igen.
- Tør maskinens ydre af med adamp klæde.
6. Fejlfinding
This section addresses common issues you might encounter with your GSEICE ice cream machine.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Maskinen tænder ikke. | Ingen strømforsyning; netledningen er ikke korrekt tilsluttet. | Check power outlet and ensure the power cord is securely plugged in. |
| Ice cream is too soft or too hard. | Hardness setting incorrect; mix temperature too high/low. | Adjust the hardness setting on the control panel. Ensure mix is properly chilled before adding. |
| Maskinen er støjende under drift. | Normal operation sound; loose components. | Some operational noise is normal. Check for any loose parts or ensure the machine is on a stable surface. The machine features worm gear reduction for lower noise levels. |
| Ice cream not dispensing smoothly. | Mix too thick; dispensing mechanism clogged; O-rings worn. | Ensure mix consistency is appropriate. Perform a cleaning cycle. Inspect and replace O-rings if necessary (as mentioned in customer reviews). Use the 'UNFREEZE' function if ice cream is too frozen. |
| Error message on screen. | Specific system error. | Refer to the detailed user guide (PDF) for specific error code meanings and solutions. If the issue persists, contact customer support. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | GSEICE |
| Modelnummer | ST16E |
| Farve | Hvid |
| Capacity (Mix Tank) | 1.58 gallons (6 liter) |
| Capacity (Freezer Tank) | 0.42 gallons |
| Produktion | Up to 4.2 Gallons/Hour |
| Strømforsyning | 120V/60Hz |
| Speciel funktion | Automatic Clean, Double Puffing Technology, Pre-Cooling |
| Materiale | Metal (304 Stainless Steel for tank) |
| Produktmål (L x B x H) | 21.8 cm x 8.26 cm x 29 cm |
| Varens vægt | 86 pund |
| Driftstilstand | Automatisk |
| Anbefalet brug | Residential, Party, School, Business |
| Arbejdstemperaturområde | 5℃ ~ 33℉ (41℉ ~ 91.4℉) |
| UPC | 643556150524 |
8. Garanti og support
GSEICE is committed to providing quality products and customer satisfaction. For any questions, technical assistance, or warranty inquiries, please contact GSEICE customer support. While specific warranty details are not provided in this document, please refer to your purchase documentation or contact the seller for information regarding your product's warranty period.
You can also find additional information and a PDF version of the Instructions for Use via the following link: GSEICE Ice Cream Maker IFU (PDF)
