Astralpool Aster Filter Rapid Cap Replacement Manual

1. Introduktion

This document provides instructions for the AstralPool Aster Filter Rapid Cap, model 4404020040. This product is an original replacement part for the complete rapid cap of the AstralPool Aster filter. It includes the vent valve, which is essential for proper filter operation. This cap is designed exclusively for AstralPool Aster filter models and is not compatible with other filter types.

It is crucial to verify that this replacement part exactly matches your specific filter model before installation to ensure proper fit and function.

2. Sikkerhedsoplysninger

• Always turn off and disconnect power to the pool pump and filter system before performing any maintenance or replacement procedures.
• Release any pressure from the filter tank before attempting to open the filter cap. Consult your filter's main manual for pressure release procedures.
• Wear appropriate personal protective equipment, such as gloves and eye protection, if necessary.
• Ensure the work area is clean and dry to prevent slips and falls.
• If you are unsure about any step, consult a qualified pool technician.

3. Pakkens indhold

Bekræft, at din pakke indeholder følgende varer:

• 1 x Astralpool Aster Filter Rapid Cap (Model 4404020040)
• 1 x Vent Valve (pre-installed or separate, depending on packaging)

This image displays the Astralpool Aster Filter Rapid Cap, highlighting the inclusion of the vent valve. The cap is black with a central threaded port, and a light-colored O-ring is visible at the bottom edge, ensuring a secure seal.

4. Kompatibilitet

This replacement cap is ONLY compatible with AstralPool Aster filter models. It is not designed for use with other filter brands or models. Please confirm your filter model number matches 4404020040 or a compatible Aster filter variant before proceeding with installation.

5. Installationsvejledning

Follow these steps to replace your AstralPool Aster filter cap:

1. Prepare the Filter System: Ensure the pool pump is turned off and disconnected from power. Close all necessary valves to isolate the filter. Release all pressure from the filter tank using the air relief valve or following your filter's specific instructions.
2. Remove the Old Cap: Carefully unscrew or unlatch the existing filter cap. Note its orientation and how it was sealed.
3. Inspicer og rengør: Inspect the filter tank's opening for any debris or damage. Clean the sealing surface thoroughly.
4. Install the New Cap: Place the new Astralpool Aster Filter Rapid Cap onto the filter tank opening. Ensure the O-ring (visible at the base of the cap) is properly seated and clean.
5. Fastgør hætten: Screw or latch the new cap securely into place. Do not overtighten, but ensure a firm, watertight seal.
6. Install Vent Valve (if separate): If the vent valve is not pre-installed, screw it into the central threaded port on the new cap. Hand-tighten only.
7. Restore System Operation: Open the isolation valves. Turn on the pool pump. Slowly open the air relief valve on the filter (or the vent valve on the new cap) to release trapped air until a steady stream of water emerges. Close the air relief/vent valve. Check for leaks around the new cap.

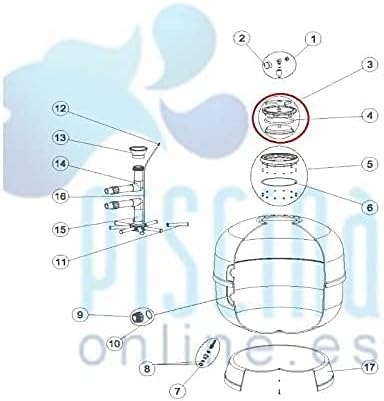

This diagram illustrates the various components of an AstralPool Aster filter system. The filter cap, circled in red, is shown with its associated parts (items 3 and 4), indicating its position at the top of the filter tank. Other components like the internal manifold, laterals, and base are also depicted.

6. Betjening

The rapid cap provides a secure seal for your AstralPool Aster filter. The integrated vent valve allows for manual release of air trapped inside the filter tank during startup or after backwashing. To release air, slowly open the vent valve until water begins to emerge, then close it securely.

This image displays the Astralpool Aster Filter Rapid Cap, a complete replacement unit. It features a black, circular design with a central threaded connection for the vent valve and a clear O-ring seal visible at the base.

7. Vedligeholdelse

• Regelmæssig inspektion: Periodically inspect the cap and its O-ring for signs of wear, cracks, or damage. Replace the O-ring if it appears brittle or compromised to maintain a watertight seal.
• Rensning: Clean the cap and O-ring with mild soap and water as needed. Avoid harsh chemicals that could damage the plastic or rubber components.
• Smøring: Apply a thin layer of silicone-based lubricant (specifically designed for pool O-rings) to the O-ring periodically to keep it pliable and ensure a good seal.

8. Fejlfinding

• Leakage around the Cap:
  • Ensure the cap is securely tightened.
  • Check the O-ring for proper seating, damage, or debris. Clean or replace the O-ring if necessary.
  • Verify that the filter tank's sealing surface is clean and free of imperfections.
• Hætten passer ikke:
  • Re-confirm that this cap (Model 4404020040) is the correct replacement for your specific AstralPool Aster filter model. Compatibility is critical.
• Vent Valve Not Releasing Air:
  • Check for any blockages in the vent valve opening.
  • Ensure the valve is not overtightened, which could prevent it from opening.

9. Specifikationer

10. Producentinformation

AstralPool is a brand of Fluidra, a global leader in pool and wellness equipment. For further assistance or inquiries, please contact your authorized AstralPool distributor or visit the official Fluidra webwebsted.
