1. Produktet er slutview
The LAUNCH X-431 i-TPMS TSGUN is an advanced, app-based tire pressure monitoring system (TPMS) tool designed to assist automotive professionals and enthusiasts in managing vehicle tire pressure sensors. This device integrates essential TPMS functions including sensor activation, data reading, system relearning, and sensor programming, ensuring optimal tire performance and safety.
It is engineered to work seamlessly with LAUNCH X-431 series diagnostic tablets (8 inches or above) and the dedicated i-TPMS mobile application for Android devices, providing a comprehensive solution for TPMS diagnostics and service.
2. Nøglefunktioner
- Comprehensive TPMS Functions: Activates, reads, learns, and programs TPMS sensors.
- Wide Sensor Compatibility: Supports both 315MHz and 433MHz tire sensors.
- Detailed Sensor Data: Reads sensor ID, voltage, tire pressure, temperature, battery status, location, and frequency.
- Effektiv programmering: Programs LAUNCH LTR-01 radio frequency tire pressure sensors.
- Brugervenlig grænseflade: Features one-touch reception of sensor data and real-time tire status display.
- Omfattende køretøjsdækning: Compatible with 98% of global vehicles equipped with TPMS.
- Built-in Guidance: Provides integrated learning guidance for quick operation.
- Holdbart design: Robust construction for professional use.

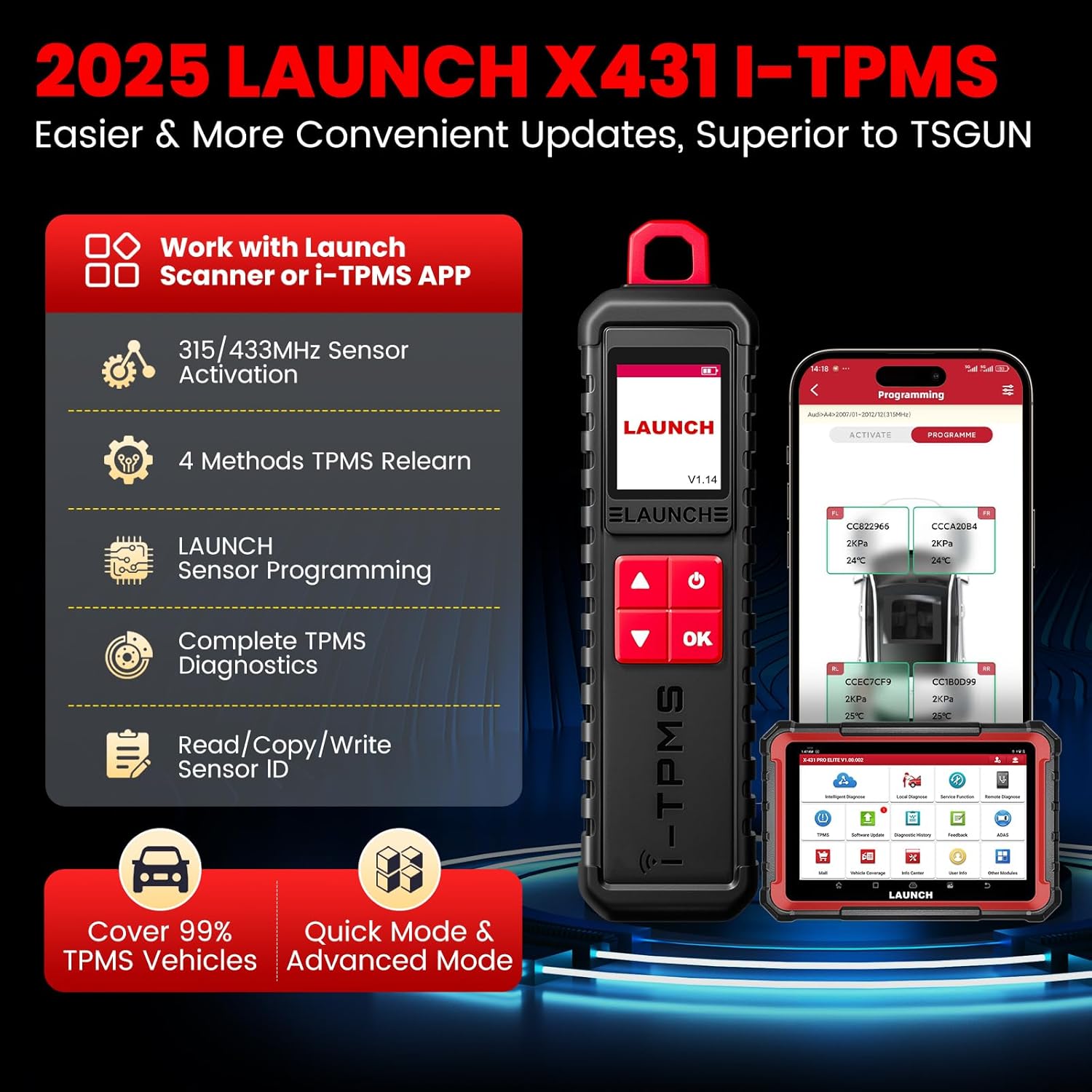

Figur 2.1: Overview of LAUNCH X-431 i-TPMS TSGUN capabilities and features.
3. Compatibility and Requirements
The LAUNCH X-431 i-TPMS TSGUN is designed to operate as an accessory to specific LAUNCH diagnostic tools. Please ensure your setup meets the following requirements:
- Required Diagnostic Tablet: Must be used with a LAUNCH diagnostic tablet of 8 inches or larger (e.g., X431 V/V+, PRO3S+, Pro3 ACE/APEX, Pro5, PAD V/VII). The TSGUN cannot be used as a standalone device.
- Mobilapplikation: Can also be used with the i-TPMS APP on Android devices.
- Sensorkompatibilitet: Supports 315MHz and 433MHz TPMS sensors.
- Programming Limitation: The TSGUN can only program LAUNCH LTR-01 sensors. It does not support programming of other brand sensors.
Figure 3.1: Two primary methods of using the LAUNCH i-TPMS TSGUN: with a LAUNCH scanner or the i-TPMS app.
4. Opsætning og første brug
Before using the LAUNCH X-431 i-TPMS TSGUN, ensure it is fully charged and properly paired with your compatible LAUNCH diagnostic tablet or Android device.
4.1. Opladning af enheden
Connect the TSGUN to a power source using the provided USB cable. The charging indicator will show the charging status. Ensure the device is fully charged before first use for optimal performance.
4.2. Pairing with a LAUNCH Diagnostic Tablet
- Power on your LAUNCH diagnostic tablet and the TSGUN.
- On the tablet, navigate to the TPMS application or module.
- Follow the on-screen prompts to establish a Bluetooth connection between the tablet and the TSGUN. The pairing process is typically straightforward and guided by the tablet's software.
- Once paired, the TSGUN is ready for use with the tablet's TPMS functions.
4.3. Using with the i-TPMS APP (Android)
- Download and install the i-TPMS APP from the appropriate app store on your Android device.
- Sørg for, at Bluetooth er aktiveret på din Android-enhed.
- Open the i-TPMS APP and follow the instructions to pair with the TSGUN via Bluetooth.
- Once connected, you can perform TPMS functions directly from your Android device.
5. Betjeningsvejledning
The LAUNCH X-431 i-TPMS TSGUN offers several core functions for TPMS management. Always refer to the specific vehicle's service manual for detailed TPMS procedures.
Figur 5.1: Overview of the primary TPMS functions supported by the TSGUN.
5.1. Aktivering af TPMS-sensor
This function is used to activate dormant TPMS sensors and retrieve their data. Point the TSGUN towards the tire valve stem and activate the sensor. The device will read and display the following information:
- Sensor ID
- Dæktryk
- Dæktemperatur
- Sensor Battery Status
- Sensorposition
- Frekvens
Figure 5.2: Visual representation of activating a TPMS sensor.
5.2. TPMS Genlær
After replacing a TPMS sensor or rotating tires, the vehicle's ECU needs to learn the new sensor IDs. The TSGUN supports various relearn procedures:
- Stationær genindlæring: Requires the vehicle to be in a specific relearn mode, often initiated via the vehicle's dashboard controls.
- Automatisk genindlæring: The vehicle automatically learns new sensor IDs after driving for a certain period under specific conditions.
- OBD Relearning: Writes new sensor IDs directly to the vehicle's TPMS module via the OBD-II port, typically performed through the connected LAUNCH diagnostic tablet.
Figure 5.3: Different methods for TPMS sensor relearning.
5.3. TPMS Sensor Programming
The TSGUN can program blank LAUNCH LTR-01 sensors to replace faulty or missing sensors. It offers four programming methods:
- Automatisk oprettelse: Generates a new, unique sensor ID.
- Manuel oprettelse: Allows manual input of a specific sensor ID.
- Kopiér ved aktivering: Kopierer ID'et fra en eksisterende aktiveret sensor.
- Kopi via OBD: Copies sensor IDs directly from the vehicle's ECU via the OBD-II port.
Important: This tool can only program LAUNCH LTR-01 sensors. It is not compatible with other brands of TPMS sensors for programming.
Figure 5.4: The four programming methods available for LAUNCH LTR-01 sensors.
5.4. TPMS Diagnosis
The TSGUN, in conjunction with a LAUNCH diagnostic tablet, can perform quick and complete TPMS health status checks, including:
- Reading and clearing TPMS Diagnostic Trouble Codes (DTCs).
- Turning off the TPMS warning light on the dashboard.
- Checking sensor ID matching with the vehicle's ECU.
Figure 5.5: Diagnostic capabilities of the TSGUN for TPMS systems.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your LAUNCH X-431 i-TPMS TSGUN, follow these maintenance guidelines:
- Rensning: Tør enheden af med en blød, tør klud. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler, der kan beskadige casing eller skærm.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: Recharge the device regularly, even if not in frequent use, to maintain battery health. Avoid fully discharging the battery for extended periods.
- Firmwareopdateringer: Periodically check for and install firmware updates for the TSGUN via your connected LAUNCH diagnostic tablet. This ensures compatibility with new vehicle models and improved functionality.
7. Fejlfinding
If you encounter issues while using the LAUNCH X-431 i-TPMS TSGUN, refer to the following common troubleshooting tips:
- Enheden tænder ikke: Sørg for, at batteriet er opladet. Tilslut det til en strømkilde, og lad det oplade i mindst 30 minutter, før du forsøger at tænde det igen.
- Failure to Connect/Pair:
- Verify Bluetooth is enabled on both the TSGUN and the diagnostic tablet/Android device.
- Ensure the TSGUN is within Bluetooth range of the tablet/device.
- Restart both the TSGUN and the tablet/device.
- Confirm that your LAUNCH diagnostic tablet is 8 inches or larger, as required for compatibility.
- Cannot Activate/Read Sensor:
- Ensure the TSGUN is positioned correctly near the tire valve stem.
- Check if the sensor is active or if it's a compatible 315MHz/433MHz sensor.
- Verify the sensor itself is not faulty.
- Cannot Program Sensor:
- Confirm that the sensor you are attempting to program is a LAUNCH LTR-01 sensor. The TSGUN cannot program other brands.
- Ensure the TSGUN has sufficient battery charge.
- TPMS Light Remains On After Relearn:
- Verify that the relearn procedure was completed successfully according to the vehicle's specific requirements.
- Check for any remaining TPMS DTCs using the diagnostic function.
- Ensure all sensors are functioning correctly.
8. Specifikationer
| Specifikation | Detalje |
|---|---|
| Modelnummer | Launch X-431 TSGUN |
| Varens vægt | 12.3 ounce |
| Produktdimensioner | 9.92 x 2.13 x 1.18 tommer |
| Skærmopløsning | 168*128 LED Display |
| Batteritype | 1 lithium-ion batteri (medfølger) |
| Batterikapacitet | 2000 mAh |
| Sensorkompatibilitet | 315MHz / 433MHz |
9. Garanti og support
LAUNCH is committed to providing reliable products and customer satisfaction.
- Returnerings-/erstatningspolitik: The product is eligible for a 30-day refund or replacement from the date of purchase, provided there is no reason for return.
- Teknisk support: For any questions or assistance with the LAUNCH X-431 i-TPMS TSGUN, please utilize the Q&A section on the product's purchase page for timely support.
- Livstidsopgraderinger: Benefit from lifetime software upgrades to ensure your tool remains current with new vehicle models and TPMS technologies.
