Indledning
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Lexon Gener8 Battery Operated Sewing Machine. Please read this manual thoroughly before using the machine to ensure proper functionality and to prevent damage or injury.
The Gener8 Battery Operated Sewing Machine is designed for light-weight fabrics and paper crafts, making it suitable for hobbyists and beginners. It features a compact design, an LED worklight, and a foot pedal for convenient operation.
Sikkerhedsinstruktioner
ADVARSEL:
- This toy contains functional sharp points and functional sharp edges.
- Voksenopsyn anbefales under drift.
- Keep fingers away from the needle area during operation.
- Nedsænk ikke maskinen i vand eller andre væsker.
- Brug kun den angivne batteritype, og sørg for korrekt polaritet.
- Remove batteries if the machine will not be used for an extended period.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Gener8 Battery Operated Sewing Machine
- Fodpedal
- Thread Spools (pre-installed or included separately)
- Bobbins (pre-installed or included separately)
- Instruktionsmanual (dette dokument)
Image: The Gener8 Battery Operated Sewing Machine shown in its retail box, highlighting key features and warnings.
Opsætning
1. Batteriinstallation
The sewing machine requires four (4) 1.5V AA alkaline batteries. Batteries are NOT included.
- Locate the battery compartment on the underside or back of the machine.
- Åbn batterirummets dæksel.
- Insert four (4) 1.5V AA alkaline batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
- Luk batterirummets dæksel forsvarligt.
2. Trådning af maskinen
Proper threading is crucial for the machine to sew correctly. Refer to the diagrams on the machine itself or the included quick-start guide for detailed threading paths.
- Placer en trådspole på spoleholderen.
- Guide the thread through the tension disc and take-up lever according to the numbered path.
- Tråd nålen forfra og bagpå.
- Ensure the bobbin is correctly inserted into its casing with the thread coming out in the correct direction.
- Turn the handwheel to bring the bobbin thread up through the needle plate.
3. Connecting the Foot Pedal
Insert the foot pedal plug into the designated port on the side or back of the sewing machine.

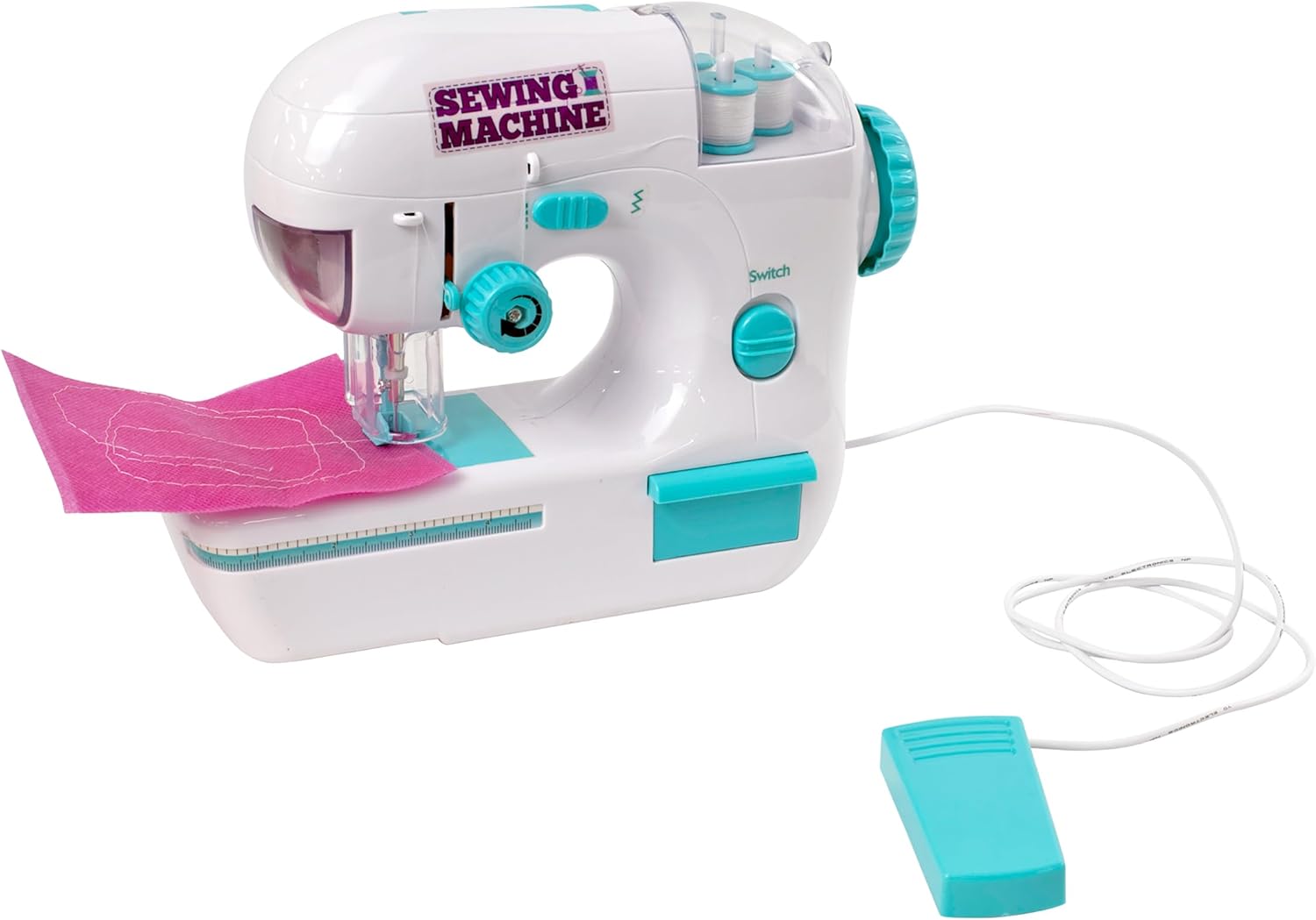

Image: The Gener8 Battery Operated Sewing Machine, showing its compact design and the connected foot pedal.
Betjeningsvejledning
1. Forberedelse til syning
- Lift the presser foot lever.
- Place the fabric under the presser foot, aligning the edge with the desired seam allowance markings on the needle plate.
- Sænk trykfodsarmen for at holde stoffet på plads.
- Ensure the needle is in the up position before starting.
2. Start og stop
The machine can be operated using the foot pedal or the ON/OFF switch on the machine body.
- Betjening af fodpedal: Press the foot pedal to start sewing. Release the foot pedal to stop.
- Manual Switch Operation: Slide the switch to the "ON" position to start sewing. Slide it to "OFF" to stop.
Always ensure the machine is stopped before adjusting fabric or changing settings.
3. Adjusting Stitch Type and Tension
This model typically offers basic stitch types and tension adjustments.
- Sømtype: Rotate the stitch selection dial (if present) to choose between straight stitch or zigzag stitch.
- Spænding: Adjust the tension dial to achieve balanced stitches. Test on a scrap piece of fabric. If the top thread is loose, increase tension. If the bottom thread is loose, decrease tension.
4. Using the LED Worklight
The integrated LED worklight illuminates the sewing area for better visibility. It typically activates when the machine is turned on or when a dedicated light switch is engaged (refer to machine for specific control).
Opretholdelse
Regelmæssig vedligeholdelse sikrer din symaskines levetid og problemfri drift.
- Rensning: Use a soft brush to remove lint and dust from the bobbin area and feed dogs after each use. Do not use liquid cleaners.
- Udskiftning af nåle: Replace the needle regularly, especially if it becomes bent, dull, or if stitches are skipping. Use only needles compatible with this machine type.
- Opbevaring: Opbevar maskinen et rent, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Maskinen tænder ikke | No batteries, dead batteries, incorrect battery polarity. | Check battery installation, replace with fresh batteries, ensure correct polarity. |
| Springet søm over | Incorrect threading, bent or dull needle, wrong needle size for fabric. | Re-thread the machine, replace the needle, use appropriate needle. |
| Trådbrud | Incorrect tension, poor quality thread, burr on needle plate, incorrect threading. | Adjust tension, use good quality thread, check for burrs, re-thread. |
| Stoffet fremføres ikke | Trykfoden er ikke sænket, fnug i transportøren. | Sænk trykfoden, rengør transportøren. |
Specifikationer
- Model: LD-LH95S-BZ
- Mærke: Lexon
- Strømkilde: 4 x 1.5V AA alkaliske batterier (medfølger ikke)
- Produktdimensioner: 11.9 cm D x 32.8 cm B x 24.4 cm H (ca. 4.7 cm D x 12.9 cm B x 9.6 cm H)
- Varens vægt: 4.9 ounce (ca. 139 gram)
- UPC: 810011121256
- Funktioner: LED Worklight, Foot Pedal Operation, Thread Storage, Storage Compartment
Garanti og support
For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Lexon webwebstedet. Behold din købskvittering som købsbevis.
Lexon Official Webwebsted: www.lexon-design.com
Bemærk: Specifikke garantivilkår kan variere afhængigt af region og forhandler.
