1. Introduktion
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Danby 14,000 BTU Portable Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper use and care will ensure optimal performance and extend the lifespan of your unit.
2. Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at reducere risikoen for brand, elektrisk stød og personskade.
- Læs alle instruktioner før brug af apparatet.
- Tilslut kun til en korrekt jordet stikkontakt.
- Betjen ikke enheden med en beskadiget ledning eller stik.
- Do not block air intake or exhaust openings.
- Hold enheden væk fra varmekilder og direkte sollys.
- Sørg for, at enheden er placeret på en flad, stabil overflade.
- Tag stikket ud af stikkontakten før rengøring eller servicering.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
3. Produktet er slutview
Your Danby Portable Air Conditioner is a versatile 3-in-1 unit designed for cooling, fan operation, and dehumidification. It features an inverter compressor for quiet and efficient performance, electronic controls with an LED display, and smart voice control capabilities.
Nøglefunktioner:
- Praktisk 3-i-1-design: klimaanlæg, ventilator og affugter.
- Cools spaces up to 55.7 sq. meters (600 sq. ft.).
- Inverter compressor: super quiet and efficient.
- Rapid room cooling and Smart Voice control.
- Electronic controls with LED display and remote control.
Enhedskomponenter:

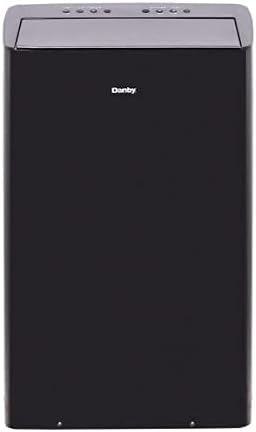

Front view of the Danby Portable Air Conditioner, showcasing its sleek black design and control panel on top.

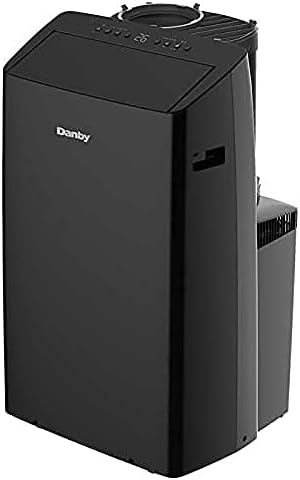

Side view of the portable air conditioner, illustrating the exhaust hose connection point at the rear top of the unit.
The white remote control for the Danby Portable Air Conditioner, featuring an LCD display and various buttons for mode, fan speed, temperature adjustment, and power.

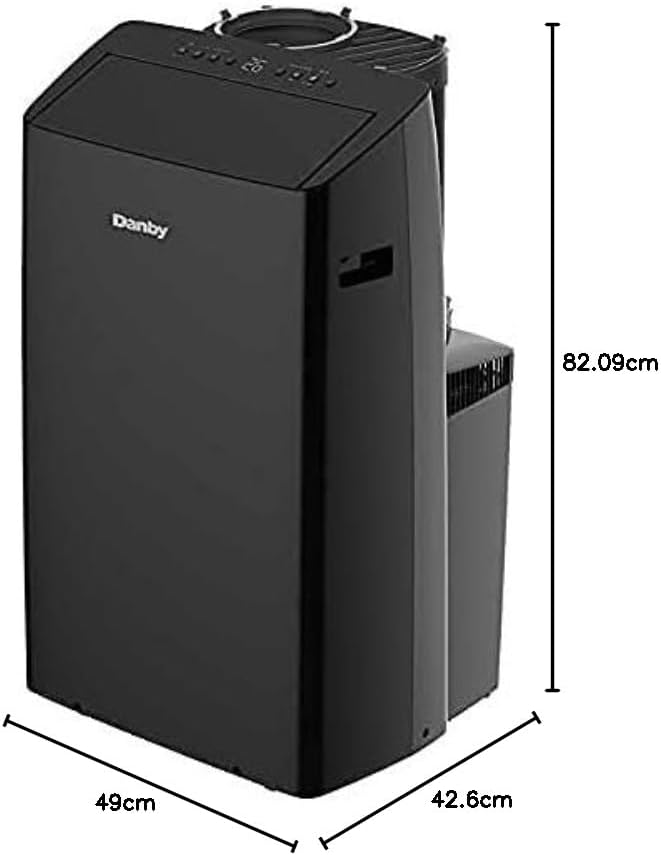

Diagram showing the dimensions of the Danby Portable Air Conditioner: approximately 49cm width, 42.6cm depth, and 82.09cm height.
4. Opsætning og installation
Proper setup is crucial for the efficient operation of your portable air conditioner. This unit is designed for easy installation in most standard windows.
Installationstrin:
- Pak enheden ud: Tag forsigtigt klimaanlægget og alt tilbehør ud af emballagen. Gem emballagen til senere opbevaring eller transport.
- Placering: Place the unit on a firm, level surface near a window and a grounded electrical outlet. Ensure there is at least 20 cm (8 inches) of space around the unit for proper airflow.
- Montering af vinduessæt: Assemble the window slider kit according to the instructions provided with the kit. Adjust it to fit your window opening.
- Tilslut udstødningsslange: Attach the exhaust hose to the unit and then to the window slider kit. Ensure a tight seal to prevent air leakage.
- Strømtilslutning: Plug the power cord into a dedicated, grounded 120V AC outlet.

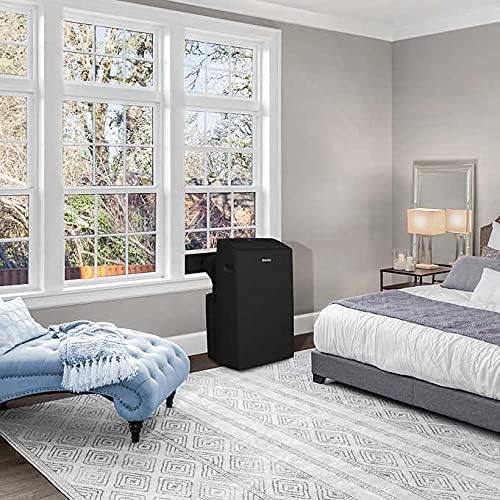

The Danby Portable Air Conditioner positioned in a bedroom, with its exhaust hose connected to a window kit, demonstrating a typical installation setup.
5. Betjeningsvejledning
Your Danby Portable Air Conditioner offers multiple operating modes for your comfort. You can control the unit using the electronic control panel on top of the unit, the included remote control, or via smart voice control.
Kontrolpanel og fjernbetjening:
- Power knap: Tænder eller slukker for enheden.
- Mode knap: Cycles through operating modes: Cool, Fan, Dehumidify.
- Temperatur op/ned-knapper: Justerer den ønskede temperaturindstilling.
- Ventilatorhastighedsknap: Vælger ventilatorhastighed (Lav, Mellem, Høj).
- Timer knap: Indstiller timeren for automatisk tænding eller automatisk slukning.
- Sove mode: Adjusts temperature and fan speed for quiet night operation.
Driftstilstande:
- Cool tilstand: Provides powerful cooling. Set your desired temperature.
- Ventilatortilstand: Circulates air without cooling. Choose your preferred fan speed.
- Affugtningstilstand: Fjerner overskydende fugt fra luften.
Smart stemmestyring:
Refer to the separate smart control setup guide for instructions on connecting your unit to voice assistant devices for hands-free operation.
6. Vedligeholdelse
Regular maintenance ensures your portable air conditioner operates efficiently and extends its lifespan. Always unplug the unit before performing any maintenance.
Rengøring af luftfilter:
The washable air filter should be cleaned every two weeks or more frequently depending on usage and air quality.
- Sluk og tag stikket ud af enheden.
- Find og fjern luftfilteret fra bagsiden eller siden af enheden.
- Wash the filter under warm, running water. A mild detergent can be used if necessary.
- Allow the filter to air dry completely before reinstalling. Do not expose to direct sunlight or excessive heat.
Rengøring af enhed:
- Tør ydersiden af enheden af med en blød, damp klæde.
- Brug ikke skrappe kemikalier, slibemidler eller opløsningsmidler.
Sæsonbestemt opbevaring:
- Before storing, run the unit in fan-only mode for a few hours to dry out any internal moisture.
- Rengør luftfilteret.
- Tag stikket ud af enheden, og rul netledningen sammen.
- Opbevar enheden på et køligt, tørt sted, helst i den originale emballage.
7. Fejlfinding
Før du kontakter kundeservice, bedes du læse følgende fejlfindingsvejledning for almindelige problemer.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Ingen strøm; Netledningen er ikke sat i; Afbryderen er udløst. | Kontroller stikkontakten; Sørg for, at stikket er sat helt i; Nulstil afbryderen. |
| Enheden køler ikke | Air filter dirty; Room temperature too low; Exhaust hose not properly installed; Room too large. | Clean air filter; Adjust desired temperature; Check hose connection; Ensure unit is sized for the room. |
| Enheden er støjende | Enheden står ikke på en plan overflade; Luftfilteret er snavset. | Placer enheden på en plan, stabil overflade; Rengør luftfilteret. |
| Vandlækage | Aftapningsprop ikke korrekt tætnet; Enhed vippet. | Sørg for, at aftapningsproppen er fastgjort; Placer enheden på en plan overflade. |
8. Specifikationer
Detailed technical specifications for your Danby Portable Air Conditioner.
| Specifikation | Værdi |
|---|---|
| Kølekapacitet | 14,000 BTU / 12,000 SACC |
| Dækningsområde | Up to 55.7 sq. meters (600 sq. ft.) |
| Kølevæsketype | Environmentally friendly R32 Refrigerant |
| Voltage | 120 volt |
| Filtertype | Vaskbart filter |
| Formfaktor | Transportabel |
| Strømkilde | Elektrisk med ledning |
| Kapacitet (vægt) | 36.92 kg |
| Sæsonbestemt energieffektivitetsforhold (SEER) | 14 |
| BEE-stjerneklassificering | 3 Stjerne |
9. Garanti og support
Danby products are manufactured to high standards and are backed by a comprehensive warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Danby webwebsted.
Kundesupport:
If you require assistance, have questions about your product, or need to schedule service, please contact Danby Customer Service:
- Fabrikant: Danby
- Webwebsted: www.danby.com (Tjek venligst website for contact numbers and support hours specific to your region.)
- Adresse: 5070 Whitelaw Rd, Guelph, ON N1H 6Z9, Canada
When contacting support, please have your model number and purchase date available.
