Brugermanual til Forty4 trådløs spilcontroller

1. Introduktion

Tak for købetasing the Forty4 Wireless Game Controller. This versatile gamepad is designed to enhance your gaming experience across multiple platforms, offering both wired and 2.4G wireless connectivity. It features advanced functions such as programmable macro buttons, HD double vibration, continuous fire, and a JD-SWITCH function for optimized control. Please read this manual carefully to ensure proper use and maintenance of your controller.

2. Pakkens indhold

• Forty4 Wireless Game Controller
• 2.4G USB-modtager
• USB-C ladekabel
• Brugermanual

Image: The Forty4 Wireless Game Controller shown with its accompanying USB receiver.

3. Nøglefunktioner

• Macro Button-Key Combination: Four programmable back buttons (M1-M4) allow for single-input assignments or complex key combinations.
• Dobbelt tilslutning: Supports both 2.4GHz wireless connection via USB receiver and wired connection via USB-C cable.
• Forbedret feedback: Features HD double vibration motors in the grips and triggers for immersive gameplay.
• Continuous Fire (Turbo) Function: Enables rapid, automatic input for specific buttons, reducing fatigue in action-intensive games.
• JD-SWITCH Function: Allows swapping functions between the cross key (D-pad) and the left analog stick for flexible control.
• Lang batterilevetid: Built-in 600 mAh battery provides approximately 8 hours of continuous wireless play on a full charge.
• LED baggrundsbelysning: Integrated LED lighting for enhanced aesthetics and visibility.
• Bred kompatibilitet: Supports Direct Input/X Input modes for broad compatibility with various gaming platforms.

4. Kompatibilitet

Understøttede platforme:

• PC (Windows 7/8/8.1/10/XP)
• Nintendo Switch
• Android devices (phones, tablets, TV boxes)
• PS3

Ikke kompatibel med:

• Xbox 360
• Xbox One
• Mac OS
• PlayStation 4 (PS4)

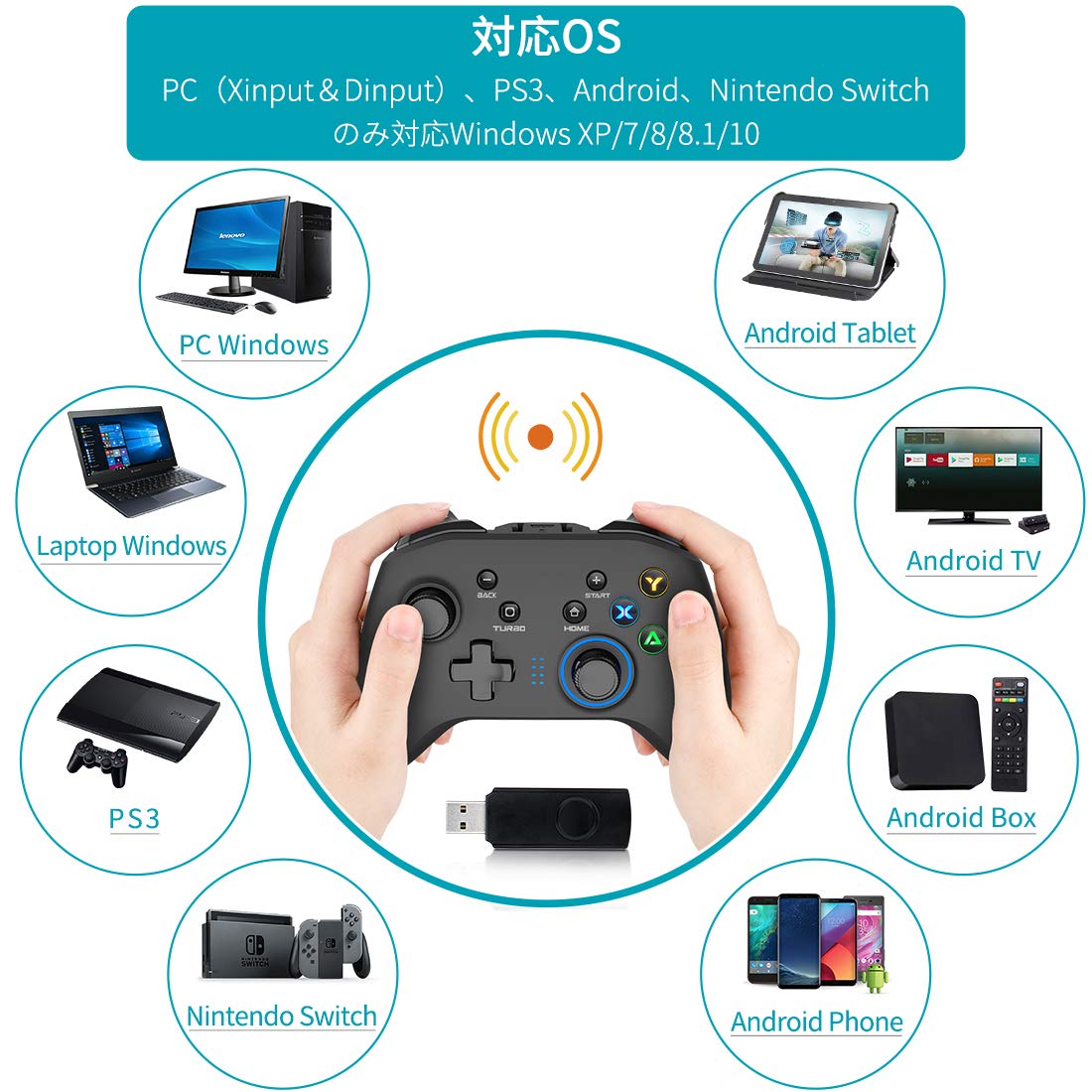

Image: Visual representation of compatible devices including PC, laptop, Android tablet, Android TV, Android Box, Android phone, PS3, and Nintendo Switch.

5. Opsætning og tilslutning

5.1 Wireless Connection (PC)

1. Sæt 2.4G USB-modtageren i en ledig USB-port på din pc.
2. Power on the Forty4 Wireless Game Controller. The controller will automatically pair with the receiver.
3. Once connected, the LED indicator on the controller will stabilize, indicating a successful connection.

5.2 Wired Connection (PC/PS3)

1. Connect one end of the USB-C charging cable to the controller's USB-C port.
2. Connect the other end of the USB-C cable to an available USB port on your PC or PS3.
3. Controlleren skifter automatisk til kabelbaseret tilstand og er klar til brug.

5.3 Wireless Connection (Nintendo Switch / Android)

For wireless connection to Nintendo Switch or Android devices, an OTG (On-The-Go) adapter (USB-A to USB-C or Micro-USB, depending on your device's connector) is required and not included with the controller.

1. Connect the 2.4G USB receiver to the OTG adapter.
2. Plug the OTG adapter into your Nintendo Switch or Android device's USB-C/Micro-USB port.
3. Power on the Forty4 Wireless Game Controller. The controller will automatically pair.

Image: Depicts the flexibility of wired and wireless connection options for the controller, suitable for various devices like TVs, Windows PCs, and tablets.

Image: Illustrates the process of connecting the controller wirelessly to a Nintendo Switch and an Android phone using an OTG adapter.

6. Betjeningsvejledning

6.1 Macro Button-Key Combination (M1-M4)

The controller features four large programmable buttons on the back (M1, M2, M3, M4). These buttons can be assigned to a single input or a combination of multiple keys. Note: The Nintendo Switch platform does not support the macro function.

To Enable/Assign Back Buttons (M1-M4):

• M1: Hold M button + Press BACK button + Press M1
• M2: Hold M button + Press BACK button + Press M2
• M3: Hold M button + Press BACK button + Press M3
• M4: Hold M button + Press BACK button + Press M4

To Disable Back Buttons (M1-M4):

Hold the M button and press the "BACK" button again, then press the M button. (M-BACK-M)

Billede: Nærbillede view of the back of the controller, highlighting the M1, M2, M3, and M4 programmable buttons.

6.2 JD-SWITCH Function

In Xinput mode, the JD-SWITCH function allows you to swap the functionality of the cross key (D-pad) and the left analog stick. This can be useful for games that benefit from different control schemes.

To activate JD-SWITCH: Press and hold the TURBO and START buttons simultaneously.

6.3 Continuous Fire (TURBO) Function

The TURBO function enables continuous rapid input for a selected button, ideal for shooting games or actions requiring repeated presses. The Nintendo Switch also supports this function.

To activate TURBO: Press the button you wish to set for continuous fire, then press the TURBO button. The button will now continuously register input when held down.

To deactivate TURBO: Repeat the process (press the button, then press TURBO again).

Image: Illustrates the JD-SWITCH function (swapping D-pad and left stick) and the TURBO function (continuous fire) on the controller.

6.4 HD Double Vibration Function

The controller is equipped with vibration motors in both the left and right grips and trigger parts. These motors provide tactile feedback during gameplay, enhancing immersion. Vibration effects are automatically triggered by compatible games.

7. Opladning og batteri

The Forty4 Wireless Game Controller features a built-in 600 mAh lithium-ion battery, providing approximately 8 hours of continuous wireless gameplay on a full charge.

Opladningsinstruktioner:

1. Connect the supplied USB-C charging cable to the controller's USB-C port.
2. Connect the other end of the cable to a USB power source, such as a PC USB port, a mobile battery, or an AC adapter (5V/1A recommended).
3. The LED indicator on the controller will show charging status. Charging typically takes 2-3 hours for a full charge.
4. Once fully charged, the LED indicator will change or turn off, depending on the controller's design.

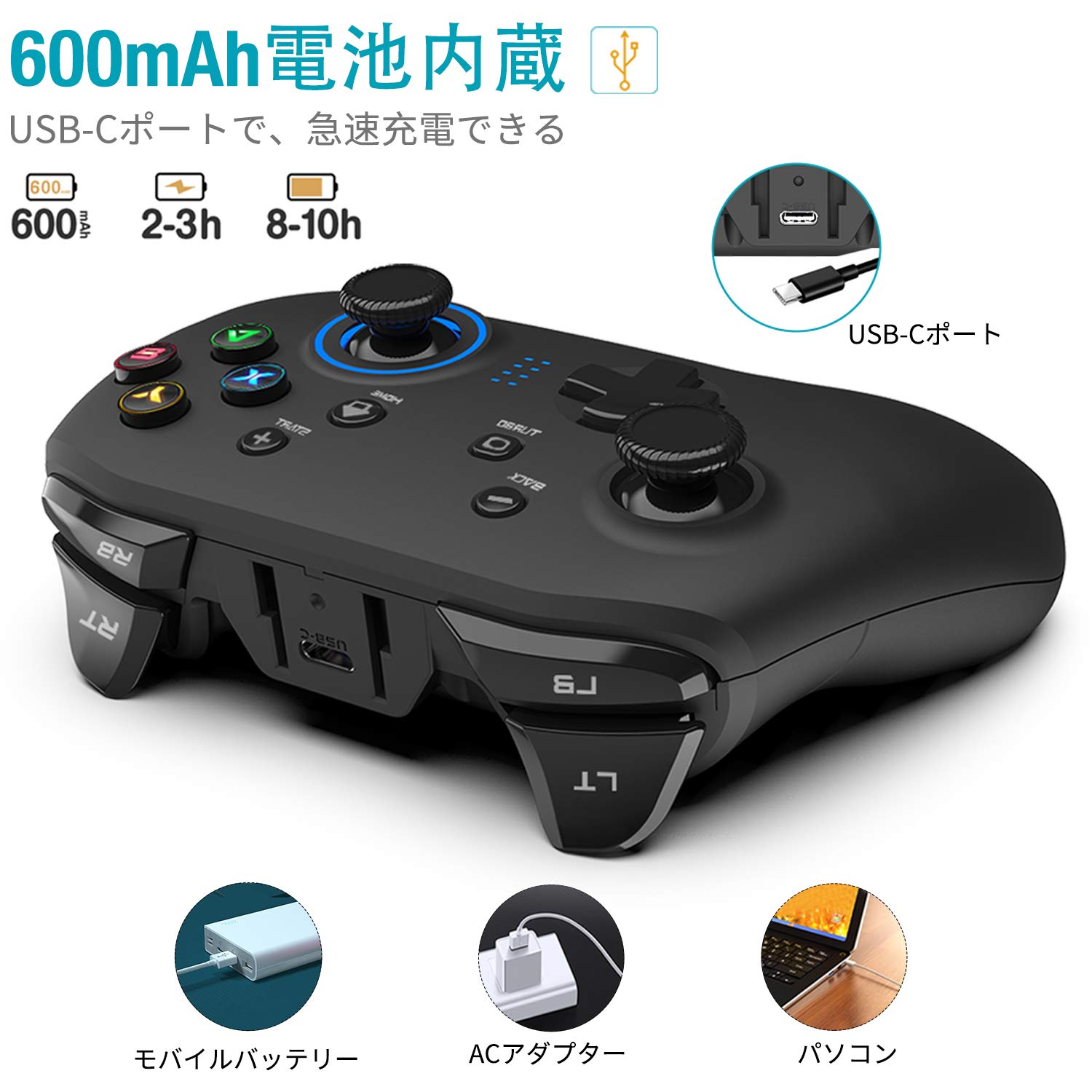

Image: Highlights the 600mAh built-in battery, USB-C charging port, and charging methods using a mobile battery, AC adapter, or PC.

8. Vedligeholdelse

• Hold controlleren tør og væk fra fugt.
• Rengør controlleren med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
• Undgå at udsætte controlleren for ekstreme temperaturer (varme eller kolde).
• Opbevar controlleren et sikkert sted, når den ikke er i brug, for at forhindre skader.

9. Fejlfinding

9.1 Controller Not Connecting / Unresponsive

• Ensure the USB receiver is securely plugged into the device's USB port.
• Check if the controller's battery is charged. Connect it to a power source using the USB-C cable.
• Try restarting your PC or gaming device.
• If using wireless, try connecting the controller via the USB-C cable to confirm functionality.
• For Switch/Android, ensure the OTG adapter is functioning correctly and is compatible with your device.

9.2 Vibration virker ikke

• Bekræft, at det spil, du spiller, understøtter vibrationsfeedback.
• Check the in-game settings to ensure vibration is enabled.
• Ensure the controller's drivers are correctly installed on your PC (usually automatic).

9.3 Opladningsproblemer

• Ensure the USB-C cable is fully inserted into both the controller and the power source.
• Try using a different USB-C cable or a different USB power source.
• Check the controller's USB-C port for any debris or damage.

10. Specifikationer

11. Garanti og support

For warranty information, technical support, or any inquiries regarding your Forty4 Wireless Game Controller, please refer to the contact information provided with your purchase or visit the official Forty4 webwebsted. Gem din købsbevis til garantikrav.
