DEKCO Video Doorbell Camera User Manual

Indledning

This user manual provides detailed instructions for the installation, operation, and maintenance of your DEKCO Video Doorbell Camera. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

The DEKCO Video Doorbell Camera is a wireless, battery-powered smart doorbell designed to enhance your home security. It features 2K video resolution, motion detection, two-way audio communication, and flexible storage options.

Produkt overview

Familiarize yourself with the components of your DEKCO Video Doorbell system.

Billede: The DEKCO Video Doorbell (left) and its accompanying wireless chime unit (right). The doorbell is a sleek, dark grey rectangular device with a camera lens at the top, a speaker grille, and a circular doorbell button with a bell icon. The chime unit is a compact black box with a perforated front.

Pakkeindhold:

• DEKCO Video Doorbell Camera
• Wireless Chime Unit
• Monteringsbeslag
• Monteringsskruer og ankre
• USB opladningskabel
• Brugervejledning (dette dokument)
• Hurtig startvejledning

Nøglefunktioner

• 180-dages batterilevetid: Built-in 10000mAh rechargeable battery provides extended operation on a single charge.
• 5MP HD Video: Captures clear and detailed 2K resolution video with a 4:3 aspect ratio.
• Nem opsætning: Simple DIY installation with step-by-step guidance via the Cloudage app.
• Øjeblikkelige meddelelser: Receive push notifications when the doorbell is pressed or motion is detected.
• Tovejs lyd: Communicate with visitors in real-time.
• Lokal og cloud-lagring: Securely store captured moments with advanced encryption on a micro SD card (not included) or in the cloud (free 7-day trial).
• IP65 Vejrbestandig: Designet til at modstå forskellige vejrforhold.
• Bevægelsesdetektion: Adjustable sensitivity to detect movement up to 15 feet.

Opsætning og installation

1. Opladning af dørklokken

Before first use, fully charge the doorbell using the provided USB cable. The built-in 10000mAh battery can last up to 180 days on a single charge, depending on usage.

Billede: An internal diagram of the DEKCO Video Doorbell highlighting its large 10000mAh battery, indicating a long battery life of 3-6 months or 180 days from one charge.

2. Download af appen

Download the "Cloudage" app from your smartphone's app store (iOS or Android). Create an account and log in.

3. Parring af dørklokken

1. Open the Cloudage app and tap "Add Device" or the "+" icon.
2. Follow the on-screen instructions to connect the doorbell to your 2.4GHz Wi-Fi network. (Note: 5GHz Wi-Fi is not supported).
3. Ensure your doorbell is in pairing mode (refer to the quick start guide for specific indicator lights).

4. Montering af dørklokken

Choose a suitable location near your front door. Mount the doorbell camera on the door or adjacent wall using the provided mounting bracket, screws, and anchors. Ensure the camera has a clear view of your entrance.

Billede: The DEKCO Video Doorbell mounted on a light brown wooden door, positioned next to the door handle. This illustrates a typical installation scenario.

Operation

Levende View og to-vejs lyd

From the Cloudage app, you can access a live feed from your doorbell camera at any time. Tap the microphone icon to initiate two-way audio communication with visitors.

Billede: A smartphone displaying an incoming call from the doorbell, showing a delivery person at the door. This demonstrates the real-time communication feature.

Billede: A woman interacting with the doorbell via her smartphone, showing a live feed of a child at the door and text bubbles indicating a two-way audio conversation.

Bevægelsesdetektion og meddelelser

The doorbell features a motion detector that can alert you when someone approaches your property. You will receive instant push notifications on your smartphone. Sensitivity can be adjusted within the app settings.

Billede: An illustration depicting a person walking towards a house, with colored zones (2, 6, 10, 15 feet) indicating the motion detection range of the doorbell. A smartphone notification for "Cloudage Alert Message" is also shown.

Videooptagelse og -lagring

The doorbell records video when motion is detected or the button is pressed. Recordings can be stored locally on a micro SD card (up to 128GB, not included) or via cloud storage (free 7-day trial, then subscription may apply).

Billede: A smartphone screen displaying options for Micro SD Card storage (8G-128G) and Cloud Storage (Free 7-day trial), with various video thumbnails below, indicating recorded events.

Nattesyn

The doorbell is equipped with night vision capabilities to provide clear video monitoring even in low-light conditions.

Billede: A split image illustrating the doorbell's functionality during day and night. The left side shows a bright daytime scene, while the right side shows a darker, night-time scene, emphasizing 24/7 protection.

Opretholdelse

Batteriopladning

Recharge the doorbell battery when the app indicates low power. A full charge can provide up to 180 days of operation. Use the provided USB cable for charging.

Rensning

Wipe the camera lens and doorbell surface with a soft, damp cloth as needed to ensure clear video quality and proper function. Avoid using harsh chemicals or abrasive materials.

Vejrbeskyttelse

The doorbell has an IP65 weatherproof rating, making it resistant to dust and water splashes. However, avoid submerging the device in water.

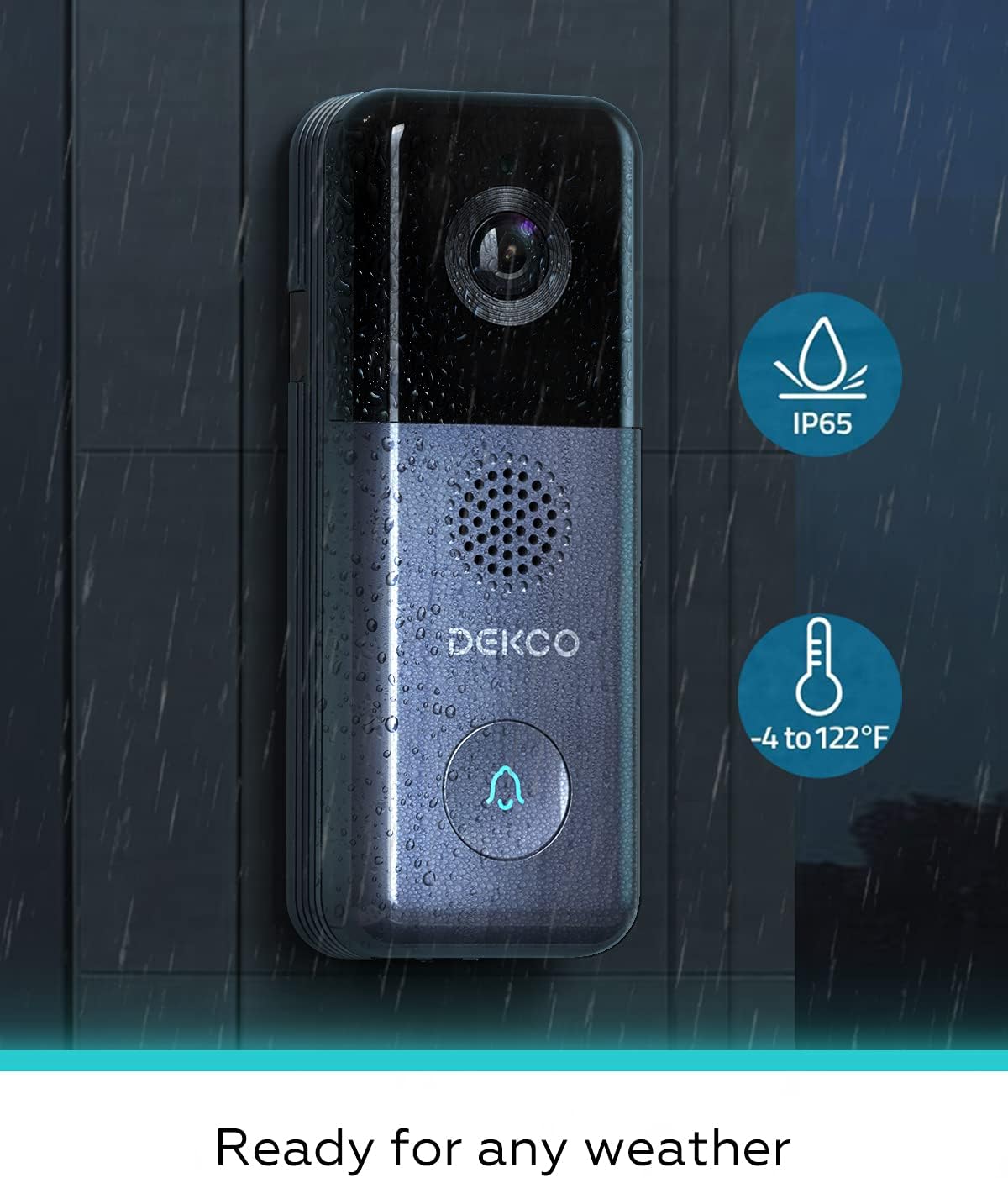

Billede: The DEKCO Video Doorbell shown in a rainy environment, with icons indicating its IP65 weatherproof rating and operating temperature range of -4 to 122°F, signifying its readiness for various weather conditions.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the official DEKCO website or contact their customer service directly. Contact details are typically found on the product packaging or the manufacturer's official webwebsted.

For yderligere hjælp kan du også besøge DEKCO Store on Amazon.
