trimmOne LITE Bicycle Computer User Manual

1. Introduktion

The trimmOne LITE is a state-of-the-art GPS bicycle computer designed to enhance your cycling experience. Weighing only 59 grams and with a slim profile of 13.5 mm, it offers advanced navigation, precise data tracking, and seamless connectivity. Its 3.2-inch LCD screen with 200 DPI resolution ensures clear visibility of all your ride data, day or night.

Image 1.1: The trimmOne LITE displaying both navigation and detailed ride metrics.

Billede 1.2: Forskellige views of the trimmOne LITE, showcasing its sleek design and integrated mounting system.

2. Hvad er der i æsken

Upon unboxing your trimmOne LITE, please ensure all the following components are present:

• trimmOne LITE Bicycle Computer
• Monteringsbeslag
• Ladekabel
• Rubber Rings for mounting

3. Opsætning

3.1 Opladning af enheden

Before first use, fully charge your trimmOne LITE using the provided charging cable. The device also features solar charging capabilities for extended battery life during rides.

3.2 Mounting the trimmOne LITE

Attach the mounting bracket to your bicycle's handlebars or stem using the rubber rings. Ensure the bracket is securely fastened. Align the trimmOne LITE with the bracket and twist to lock it into place.

Image 3.1: The trimmOne LITE securely mounted on a bicycle, showcasing its slim profile.

3.3 Initial Power On and App Pairing

Press and hold the power button to turn on the device. Download the dedicated trimmOne mobile application from your smartphone's app store. Follow the in-app instructions to pair your trimmOne LITE, plan routes, and customize settings.

4. Betjeningsvejledning

4.1 Visnings- og datafelter

The 3.2-inch high-contrast LCD screen provides clear visibility of various data fields. You can customize the displayed information through the mobile application to show metrics most relevant to your ride, such as speed, distance, altitude, cadence, heart rate, and power.

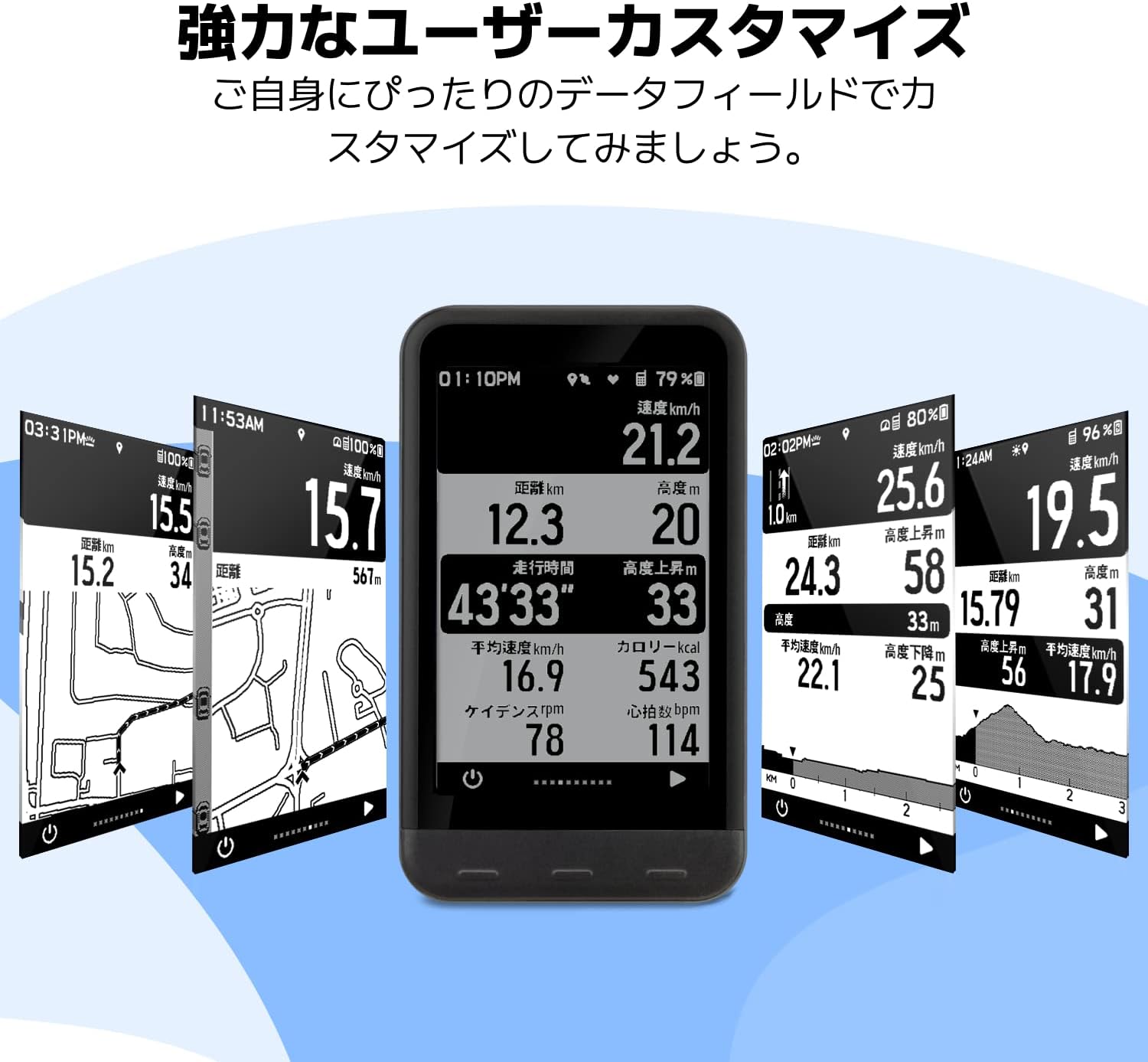

Image 4.1: The trimmOne LITE's customizable display, allowing users to arrange data fields to their preference.

Image 4.2: The trimmOne LITE's display clarity, ensuring data is easily readable in various environments.

4.2 Navigationsfunktioner

The trimmOne LITE offers robust navigation capabilities. It can calculate new routes from your current location and provides real-time re-routing if you deviate from your planned path. The detailed map display helps you stay on track.

Image 4.3: The trimmOne LITE's navigation screen, showing map details and re-routing suggestions.

4.3 Connectivity (Bluetooth 5.0 & ANT+)

The trimmOne LITE supports both Bluetooth 5.0 and ANT+ protocols, allowing it to connect with a wide range of external sensors and devices, including power meters, rear radars, smartwatches, heart rate monitors, cadence sensors, and speed sensors.

Image 4.4: Connectivity diagram illustrating the trimmOne LITE's compatibility with various cycling sensors and devices.

4.4 Integration af mobilapps

The trimmOne mobile application serves as a central hub for your cycling data. It allows you to plan routes, record and analyze ride data, and automatically update your device. The app also supports integration with popular cycling platforms like Strava, Komoot, and TrainingPeaks.

Image 4.5: The trimmOne mobile application interface, demonstrating ride history and integration with third-party cycling services.

5. Vedligeholdelse

5.1 Rengøring

To clean your trimmOne LITE, gently wipe the device with a soft, damp klud. Undgå at bruge skrappe kemikalier eller slibende materialer, da disse kan beskadige skærmen ellerasing. Sørg for, at dækslet til opladningsporten er forsvarligt lukket for at forhindre vandindtrængning.

5.2 Pleje af batterier

The trimmOne LITE uses a Lithium-Polymer battery. For optimal battery life, avoid fully discharging the device frequently. Store the device in a cool, dry place when not in use for extended periods. Regular charging, even if not fully depleted, can help maintain battery health.

5.3 Softwareopdateringer

Periodically check the trimmOne mobile application for available software updates. Updates often include performance improvements, new features, and bug fixes. Ensure your device is sufficiently charged before initiating any software update.

6. Fejlfinding

6.1 Enheden tændes ikke

• Sørg for, at enheden er fuldt opladet. Tilslut den til en strømkilde, og vent et par minutter, før du forsøger at tænde den igen.
• If the issue persists, perform a soft reset by holding the power button for 10-15 seconds.

6.2 Problemer med GPS-signalet

• Sørg for at du er i et åbent område med klar view af himlen.
• Wait for the device to acquire a GPS signal, which may take a few minutes on first use or after a long period of inactivity.

6.3 Connectivity Problems with Sensors/App

• Ensure Bluetooth on your smartphone and ANT+ on your sensors are enabled.
• Restart both the trimmOne LITE and your smartphone.
• Check if the sensors' batteries are charged.
• Unpair and re-pair the device/sensors through the trimmOne app.

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the official Trimm webwebstedet eller kontakt deres kundeservice. Gem din købsbevis til eventuelle garantikrav.
