GEYA GRT8-B1 Forsinket Frakobling Enkeltfunktions Tidsrelæ Brugsanvisning

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the GEYA GRT8-B1 Delay Off Single Function Time Relay. Please read this manual thoroughly before using the device to ensure safe and correct operation.

2. Sikkerhedsoplysninger

• Ensure all electrical connections are made by a qualified electrician and comply with local wiring regulations.
• Disconnect power before installation, maintenance, or troubleshooting to prevent electric shock.
• Brug ikke enheden, hvis den ser ud til at være beskadiget.
• Bekræft forsyningen voltage matches the device's specifications (AC230V for this model).

3. Produktet er slutview

The GEYA GRT8-B1 is a single-function delay off time relay designed for DIN rail mounting. It features a single pole double throw (1SPDT) output contact with a 16A current rating. The delay time can be set directly via panel knobs, offering a range from 0.1 seconds to 10 days.

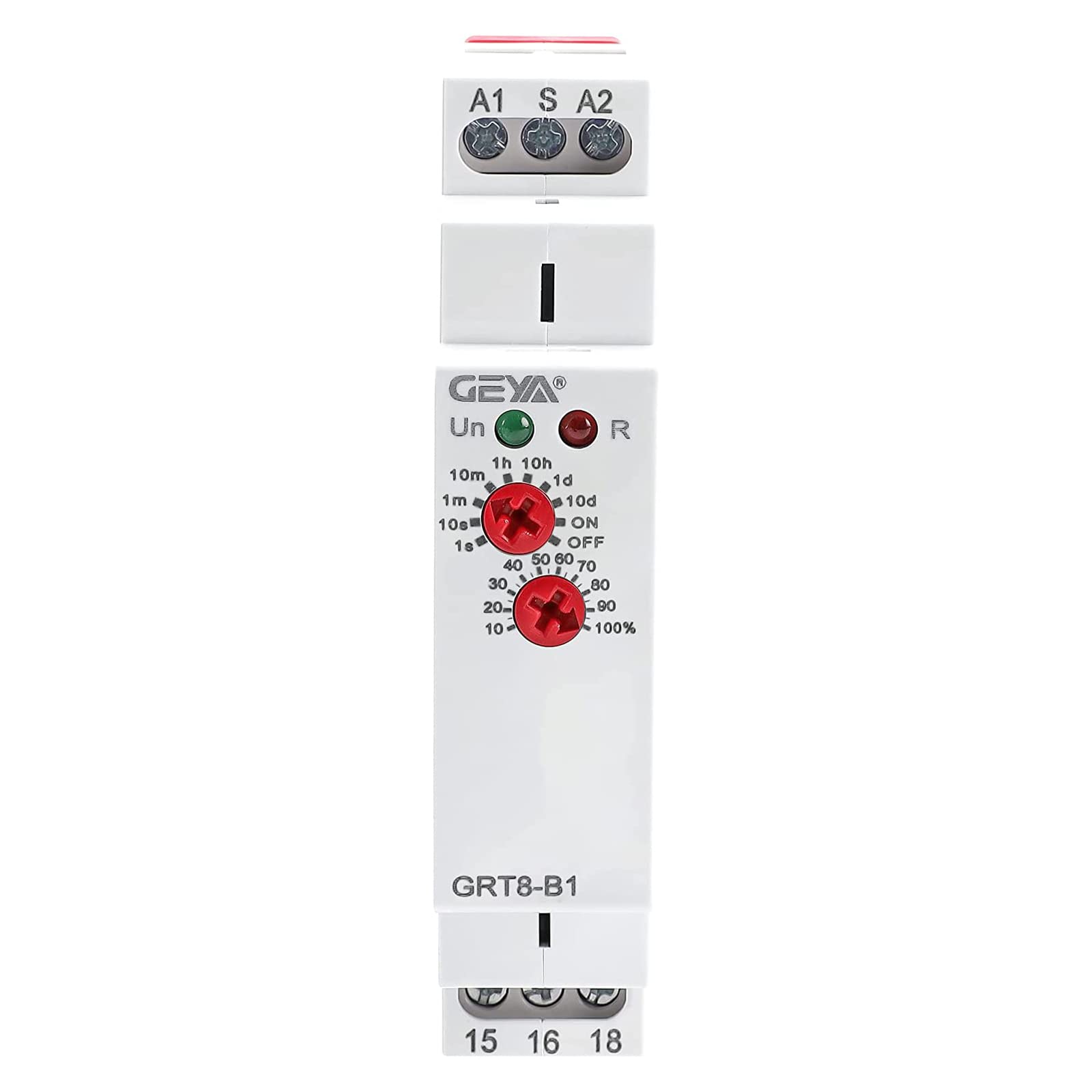

Figur 3.1: Forside view of the GEYA GRT8-B1 Delay Off Time Relay, showing the adjustment knobs and terminal labels.

Nøglefunktioner:

• Justerbar forsinkelse: Delay can be set directly via panel knobs for convenience.
• Funktionstilstand: Specifically designed for 'Delay OFF' operation.
• Tidsskala: Offers 10 time ranges from 0.1s to 10 days, including 'only ON' and 'only OFF' options.
• Voltage Support: This model supports AC230V.
• Outputkontakt: 1SPDT (1 Normally Open, 1 Normally Closed) output contact.
• LED-indikation: Relay status is indicated by LED lights (Green for Supply, Red for Output).
• Montering: 1-MODULE, DIN rail mounting for easy installation.
• Kompakt størrelse: Ultra-small size with only 18mm width.

4. Installation

The GRT8-B1 time relay is designed for DIN rail mounting. Follow the wiring diagrams carefully to ensure correct and safe installation.

4.1 Ledningsdiagram

Figure 4.1: Wiring diagram for GRT8-B1 (1SPDT) and GRT8-B2 (2SPDT) models, showing connections for supply, trigger, and output contacts. Dimensions are also provided.

4.2 Relay Wiring Example (Delay Off)

Denne example demonstrates how to wire the GRT8-B1 to control a lamp with a delay off function.

Figur 4.2: Eksample wiring for a GEYA GRT8-B1 AC230V relay to control a lamp, illustrating the connection of Line (L), Neutral (N), Trigger, and the lamp belastning.

5. Betjeningsvejledning

The GRT8-B1 operates as a Delay OFF relay. The load turns on immediately with power application and turns off after the set delay time. The delay can be reset using an external button.

5.1 Indstilling af tidsforsinkelsen

The delay time is set using two knobs on the front panel:

1. Knob 1 (Time Range Selection): Selects the desired time range (e.g., 0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only ON, only OFF).
2. Knob 2 (Time Percentage Setting %): Fine-tunes the delay within the selected range from 10% to 100%.

Figure 5.1: Illustration of the two adjustment knobs for setting the time delay: one for time range (e.g., 1s, 10s, 1m, 1h, 1d) and another for percentage (10%-100%).

Exampdet: To set a 5-minute delay, select the '10m' range with Knob 1 and set Knob 2 to 50%.

5.2 Delay OFF Function (GRT8-B1)

When power is applied, the output contact immediately closes (load turns ON). The relay then begins its timing cycle. After the set delay time expires, the output contact opens (load turns OFF).

Figure 5.2: Visual representation of the 'Delay OFF' function (Type B) where the load turns on with power and turns off after a set delay.

5.3 Resetting the Delay

An external button connected between terminals A1 and S can be used to reset the timing cycle. If the button is pressed during the timing delay, the load remains on, and the delay timer will not start until the button is released.

6. Tekniske specifikationer

Below are the detailed technical specifications for the GEYA GRT8-B1 Delay Off Time Relay.

Figure 6.1: Detailed technical parameters for the GRT8-B1 and GRT8-B2 models, including trigger and supply terminals, LED indications, time range selection, and time percentage indstilling.

7. Vedligeholdelse

The GEYA GRT8-B1 time relay is designed for reliable operation with minimal maintenance. Regular checks should include:

• Periodically inspect terminal connections to ensure they are secure.
• Hold enheden ren og fri for støv og snavs.
• Sørg for korrekt ventilation omkring enheden for at forhindre overophedning.
• Brug ikke slibende rengøringsmidler eller opløsningsmidler på enheden.

8. Fejlfinding

If you encounter issues with your GRT8-B1 time relay, consider the following common problems and solutions:

• Enheden tænder ikke: Kontroller strømforsyningen voltage and ensure all connections are correct and secure. Verify the circuit breaker is not tripped.
• Belastning skifter ikke: Confirm the output wiring is correct. Check the LED indicators for supply (green) and output (red) status. Ensure the time delay is set appropriately and has elapsed.
• Forkert timing: Re-check the settings on both time range and percentage knobs. Ensure the knobs are firmly set to the desired values.
• High-pitched tone: Some users have reported a high-pitched tone when operating at lower voltages (e.g., 12V). This may be related to the internal switching power supply and is generally not indicative of a fault, but if excessive, contact support.
• Load remains on indefinitely: If using a reset button, ensure it is not stuck in the pressed position. The delay will not start until the button is released.

If problems persist after checking these points, please contact GEYA customer support.

9. Garanti og support

GEYA products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official GEYA webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering til garantikrav.

Fabrikant: ZHEJIANG GEYA ELECTRICAL CO.,LTD
