1. Produktet er slutview
The Elitech ECB-5080S is an advanced electrical control box designed for precise temperature management in various applications. It integrates an MTC-6000N controller to manage cooling, defrosting, and fan operations. This unit is suitable for systems requiring 3-phase 380V power and up to 15Hp capacity, offering comprehensive protection features for reliable operation.

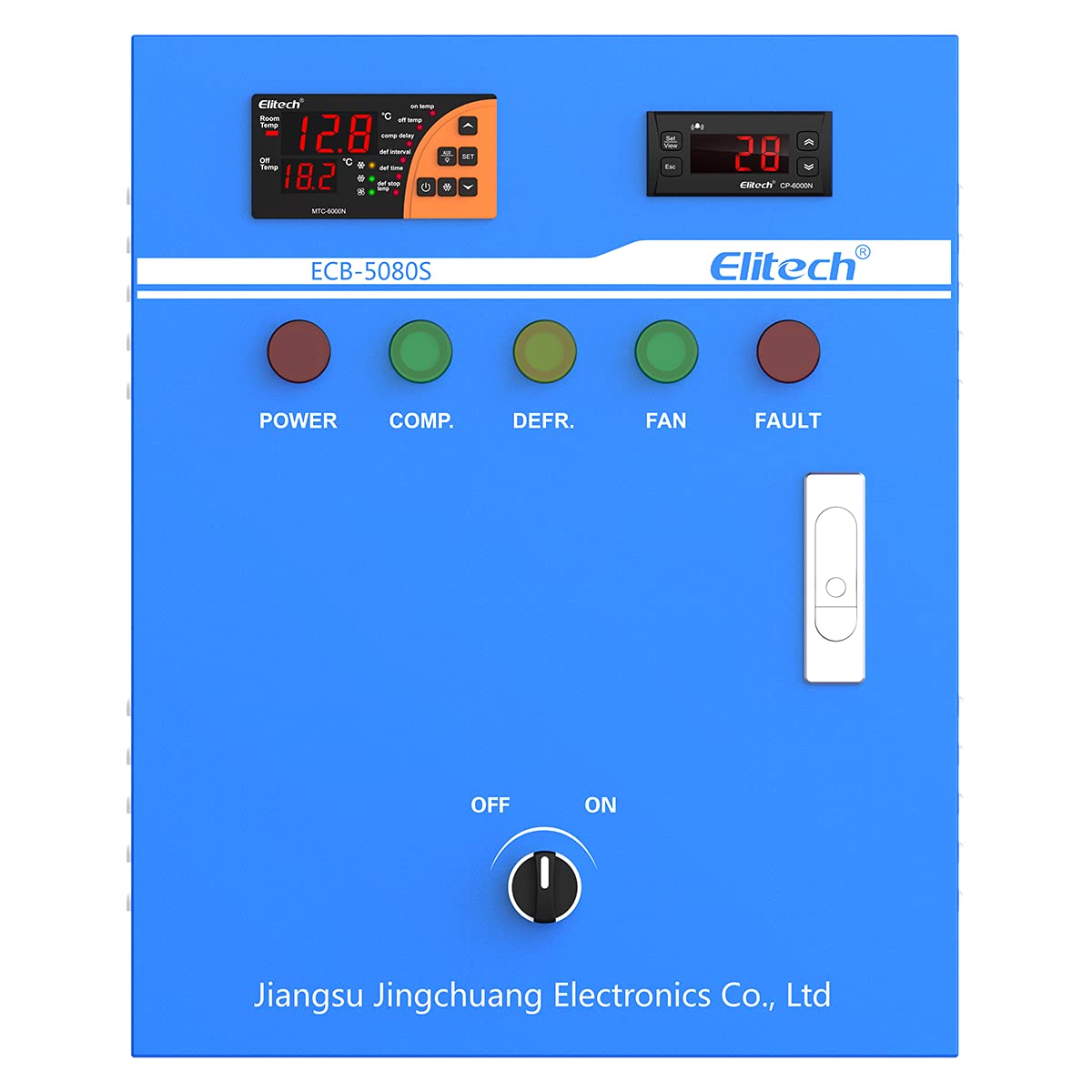

Billede 1: Forside view of the Elitech ECB-5080S Electrical Control Box, showing the control panel with two digital displays, indicator lights for Power, Comp, Defr, Fan, and Fault, and an ON/OFF switch.
2. Nøglefunktioner
- Fjernovervågning: Parameters can be viewed or set remotely via website and mobile application. Data and graph reports are available in real-time.
- Dobbelt skærm: Shows temperature on both integrated temperature controllers. Multiple indicator lights display the operational status of each connected device.
- Multi-Alarms: Provides alerts for temperature over-limit, over-range conditions, or sensor malfunctions.
- Omfattende beskyttelse: Includes high-pressure, low-pressure, module, overload, phase sequence, phase loss, three-phase unbalance, and inverse time protection.
- Funktionalitet: Offers refrigeration, defrosting, and fan three-way output. Equipped with two storage temperature sensors and one defrosting temperature sensor.
3. Opsætning og installation
Proper installation is crucial for the safe and efficient operation of the ECB-5080S control box. It is recommended that installation be performed by a qualified electrician.
- Montering: Securely mount the control box in a suitable location, ensuring adequate ventilation and protection from environmental elements.
- Strømtilslutning: Connect the 3-phase 380V power supply to the designated terminals. Verify correct phase sequence and voltage.
- Belastningsforbindelser: Connect the refrigeration unit, defrosting heaters, and fan motors to their respective output terminals as per the wiring diagram (refer to the detailed wiring diagram provided with the product packaging).
- Sensor installation: Install the two storage temperature sensors and one defrosting temperature sensor in their appropriate locations within the controlled environment. Ensure sensors are correctly positioned for accurate readings.
- Jording: Ensure the control box is properly grounded to prevent electrical hazards.
Billede 2: Vinklet view of the Elitech ECB-5080S Electrical Control Box, highlighting the side ventilation and overall robust construction.
4. Betjeningsvejledning
The ECB-5080S utilizes an MTC-6000N controller for its primary functions. Familiarize yourself with the controller's interface for optimal use.
- Tænd/sluk: Use the main ON/OFF switch on the front panel to power the unit.
- Temperaturvisning: The dual digital displays show current temperatures. Refer to the MTC-6000N controller manual for specific display interpretations.
- Indstilling af parametre: Access the controller's menu to set desired temperature ranges, defrost cycles, fan operation modes, and alarm thresholds. Consult the MTC-6000N controller's dedicated manual for detailed parameter setting procedures.
- Indikatorlys:
- MAGT: Indicates the unit is receiving power.
- COMP: Indicates the compressor (cooling) is active.
- DEFR: Angiver, at afrimningscyklussen er aktiv.
- VENTILATOR: Indicates the fan is operating.
- FEJL: Illuminates when an error or alarm condition is detected. Refer to troubleshooting for details.
- Fjernadgang: Utilize the Elitech website or mobile application for remote monitoring and parameter adjustments. Ensure the unit is connected to a network as per its network configuration guide.
Billede 3: Nærbillede view of the Elitech ECB-5080S control panel, emphasizing the ON/OFF switch and the two integrated temperature controllers.
5. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your ECB-5080S control box.
- Rensning: Periodically clean the exterior of the control box with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ventilation: Ensure that ventilation openings are clear of dust and obstructions to prevent overheating.
- Forbindelser: Kontrollér årligt alle elektriske forbindelser for tæthed og tegn på korrosion. Spænd eventuelle løse forbindelser.
- Sensorkontrol: Verify that temperature sensors are clean and securely mounted. Check sensor cables for damage.
- Softwareopdateringer: Check the Elitech website or app for any available firmware updates for the MTC-6000N controller to ensure optimal functionality and security.
6. Fejlfinding
This section provides solutions to common issues. For complex problems, contact Elitech technical support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | No power supply; main switch off; faulty wiring. | Check power source; ensure main switch is ON; inspect wiring connections. |
| Temperaturvisningen er unøjagtig. | Faulty sensor; sensor incorrectly placed; wiring issue. | Check sensor connections; verify sensor placement; replace faulty sensor if necessary. |
| FAULT indicator is lit. | Over-limit temperature; sensor error; protection activated (e.g., phase loss). | Check alarm messages on controller; inspect sensors; verify power supply and phase integrity. |
| Cooling/Defrost/Fan not operating. | Incorrect parameter settings; faulty output relay; motor/component failure. | Verify controller settings; check indicator lights; inspect connected components. |
7. Specifikationer
| Mærke | Elitech |
| Modelnummer | ECB-5080S |
| Voltage | 380 Volts (3 Phase) |
| Maksimal hestekræfter | 15 hk |
| Controller type | MTC-6000N |
| Funktioner | Refrigeration, Defrosting, Fan Control |
| Beskyttelsesfunktioner | High/Low Pressure, Module, Overload, Phase Sequence/Loss, Three-phase Unbalance, Inverse Time |
| ASIN | B097MXGKFP |
| UPC | 781454242337 |
