Indledning
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kuzco Lighting VL60536-BK Laurel Vanity LED fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Sikkerhedsoplysninger
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved afbryderen eller sikringsboksen før installation eller service.
- All electrical connections must be in accordance with local and National Electrical Code (NEC) standards. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- Do not install this fixture in wet locations unless specifically rated for such use. This fixture is rated for damp locations (e.g., bathrooms).
- Sørg for, at alle forbindelser er sikre og korrekt isolerede.
- Overskrid ikke den angivne voltage (120 volt).
- Handle the fixture with care to prevent damage to the LED components or glass/acrylic shades.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Laurel Vanity LED Fixture (VL60536-BK)
- Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
- Instruktionsmanual

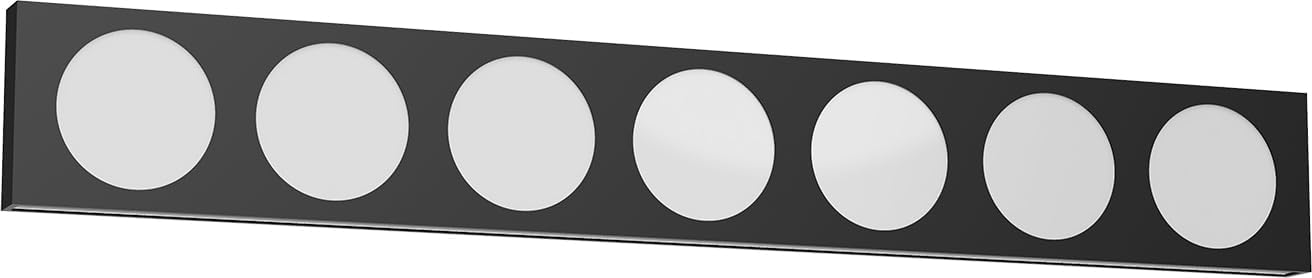

Image: The Kuzco Lighting VL60536-BK Laurel Vanity LED fixture, featuring a sleek black rectangular bar with seven circular, frosted light diffusers evenly spaced along its length.
Opsætning og installation
- Forbered til installation: Turn off power at the main circuit breaker or fuse box to avoid electrical shock. Ensure the power is off before proceeding.
- Montering af monteringsplade: Attach the mounting plate to the junction box using the provided screws. Ensure it is securely fastened to the wall or ceiling structure.
- Elektriske forbindelser:
- Connect the fixture's black wire to the supply circuit's black (hot) wire.
- Connect the fixture's white wire to the supply circuit's white (neutral) wire.
- Connect the fixture's ground wire to the supply circuit's ground wire (bare copper or green).
- Fastgør alle forbindelser med trådmøtrikker og pak dem ind med elektrikertape for ekstra sikkerhed.
- Sikre armaturet: Carefully align the fixture with the mounting plate and secure it using the provided screws or fasteners. Ensure the fixture is flush against the mounting surface.
- Gendan strøm: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker.
Betjeningsvejledning
The Kuzco Lighting VL60536-BK Laurel Vanity LED fixture is designed for simple operation.
- Tænd/sluk: Operate the fixture using a standard wall switch connected to the electrical circuit.
- Kontrolmetode: The product specifications indicate "App" as a control method. If your fixture includes smart features, refer to the separate instructions provided with the app for detailed control options such as dimming or scheduling.
Opretholdelse
- Rensning: Sørg for, at strømmen er slukket for at rengøre armaturet. Tør af med en blød, tør eller let fugtet klud.amp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or acrylic components.
- LED lyskilde: The LED light source in this fixture is non-removable and designed for long-term use. Do not attempt to replace individual LEDs.
- Inspektion: Undersøg regelmæssigt armaturet for tegn på skader eller løse forbindelser. Hvis der findes problemer, skal strømmen afbrydes og en kvalificeret elektriker kontaktes.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Armaturet lyser ikke. |
|
|
| Lysudgangen er svag eller flimrer. |
|
|
Specifikationer
| Mærke | Kuzco belysning |
| Modelnummer | VL60536-BK |
| Produktdimensioner | 1 x 36 x 5 tommer |
| Varens vægt | 8.7 pund |
| Materiale | Akryl, glas |
| Farve | Sort |
| Lyskildetype | AC Module (Integrated LED) |
| Lysstyrke | 3600 lumen |
| Farvetemperatur | 3000 Kelvin |
| Voltage | 120 volt |
| Finish Type | Sort finish |
| Værelsestype | Badeværelse |
| Kontrolmetode | App (if smart features are enabled) |
| Montering påkrævet | Ingen |
Garanti og support
This Kuzco Lighting fixture is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact Kuzco Lighting directly.
For technical support, replacement parts, or any questions regarding your product, please contact Kuzco Lighting customer service. Contact information can typically be found on the manufacturer's webwebstedet eller på produktemballagen.
