Severin HV 7168

SEVERIN HV 7168 2-i-1 ledningsfri stav- og håndstøvsuger brugermanual

Model: HV 7168

1. Vigtige sikkerhedsinstruktioner

Please read these instructions carefully before using the appliance and keep them for future reference. Always observe all safety notes. Failure to do so may result in personal injury or damage to the appliance.

  • Dette apparat er kun beregnet til husholdningsbrug.
  • Do not use the appliance to vacuum liquids, glowing ashes, or sharp objects.
  • Hold apparatet væk fra børn.
  • Ensure the power adapter is compatible with your mains voltage.
  • Do not operate the appliance if it or its power cord is damaged.
  • Only use original SEVERIN spare parts and accessories.

2. Produktet er slutview

The SEVERIN HV 7168 is a versatile 2-in-1 cordless vacuum cleaner, designed for both stick and handheld use. It features a powerful digital motor, multiple suction modes, and a hygienic filtration system.

SEVERIN HV 7168 2-in-1 Cordless Stick Vacuum Cleaner
Image: The SEVERIN HV 7168 in its full stick vacuum configuration.
SEVERIN HV 7168 Cordless Stick Vacuum Cleaner side view
Billede: Side view of the SEVERIN HV 7168 stick vacuum, highlighting its slim profile.

Inkluderede komponenter:

  • Main unit (motor and dust container)
  • Sugerør af aluminium
  • High-speed electric brush with LED lighting
  • 2 x 2500 mAh Lithium-ion batteries
  • Charging station with wall mount
  • 3-in-1 accessories: upholstery nozzle, furniture brush, crevice tool
  • Hygiene E12 exhaust air filter
SEVERIN HV 7168 Crevice Tool and Upholstery Brush
Image: The included crevice tool and upholstery brush accessories for detailed cleaning.

3. Opsætning og montering

3.1 Indledende opladning

  1. Before first use, fully charge both Lithium-ion batteries.
  2. Tilslut ladestationen til en stikkontakt.
  3. Place the battery into the charging station. The charging indicator lights will illuminate.
  4. A full charge takes approximately 3-4 hours per battery.
SEVERIN HV 7168 Detached Battery Pack
Image: The detachable battery pack for the SEVERIN HV 7168 vacuum cleaner.

3.2 Samling af stavsugeren

  1. Insert the aluminum suction tube into the main unit until it clicks into place.
  2. Attach the high-speed electric brush to the other end of the suction tube, ensuring it clicks securely.
  3. Insert a fully charged battery into the main unit until it locks.

3.3 Samling af håndstøvsugeren

  1. To use as a handheld vacuum, detach the aluminum suction tube from the main unit by pressing the release button.
  2. Attach desired accessories (e.g., crevice tool, upholstery brush) directly to the main unit until they click into place.

4. Betjeningsvejledning

4.1 Tænd/sluk og sugefunktioner

  1. Press the power button on the main unit to turn the vacuum cleaner on. It will start in the default suction mode.
  2. Press the mode selection button to cycle through the available suction modes: Øko, Midten, og Magt.
  3. Tryk på tænd/sluk-knappen igen for at slukke apparatet.

4.2 Using the Stick Vacuum

The stick configuration is ideal for cleaning floors, carpets, and larger areas. The high-speed electric brush with LED lighting ensures thorough cleaning and illuminates dark areas under furniture.

SEVERIN HV 7168 Vacuuming a carpet
Image: The SEVERIN HV 7168 being used to vacuum a carpeted floor.
SEVERIN HV 7168 Floor Nozzle Articulation
Image: The flexible articulation of the floor nozzle, allowing easy maneuverability.

4.3 Using the Handheld Vacuum

The handheld configuration is perfect for cleaning upholstery, car interiors, stairs, and hard-to-reach areas. Attach the appropriate 3-in-1 accessory for specific cleaning tasks.

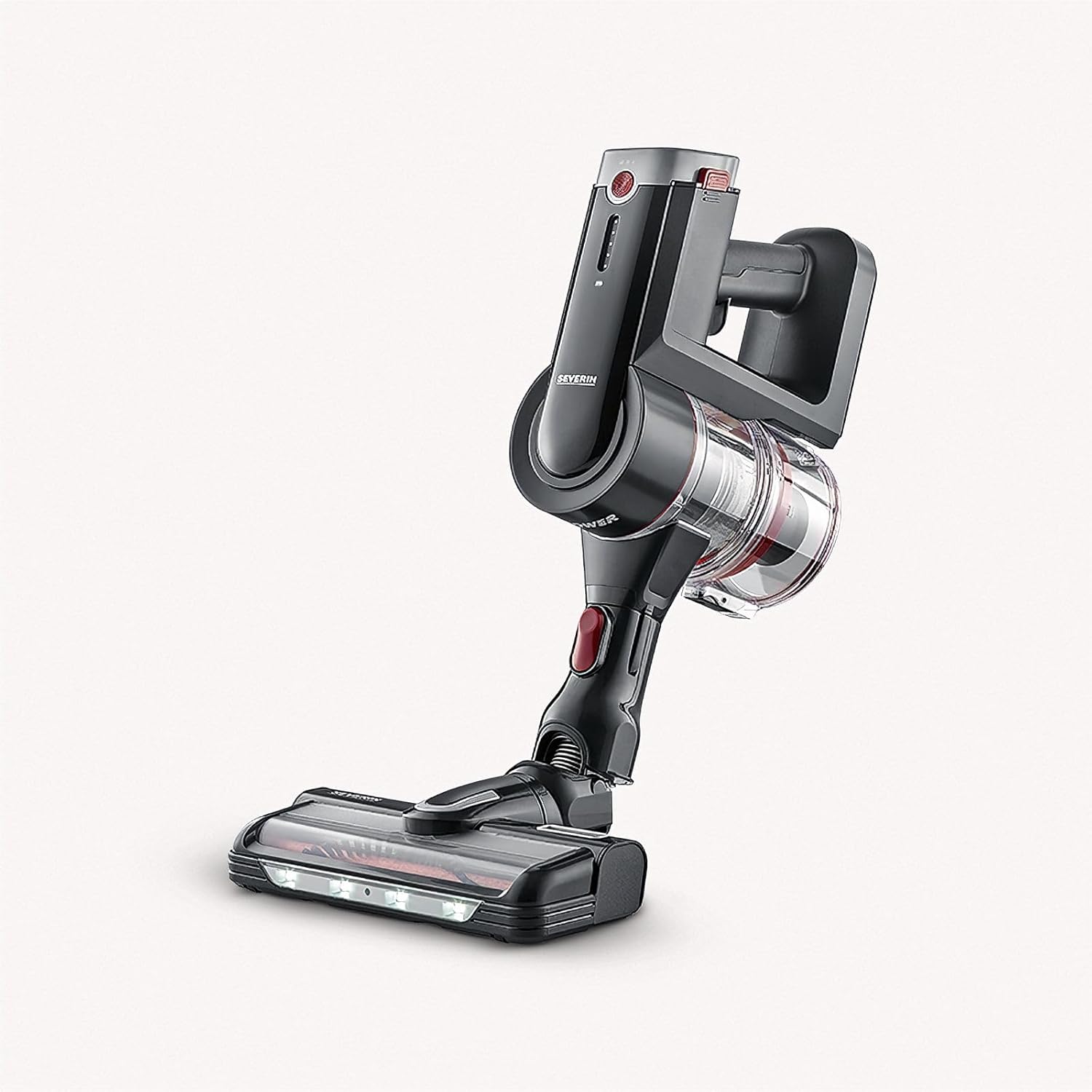

SEVERIN HV 7168 Handheld Vacuum with Floor Nozzle
Image: The SEVERIN HV 7168 configured as a handheld vacuum with the floor nozzle attached.
SEVERIN HV 7168 Handheld Vacuum side view
Billede: Side view of the SEVERIN HV 7168 in handheld mode, demonstrating its compact design.

5. Vedligeholdelse og rengøring

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

5.1 Tømning af støvbeholderen

  1. Sørg for, at støvsugeren er slukket.
  2. Press the release button on the dust container and detach it from the main unit.
  3. Åbn låget til støvbeholderen, og tøm indholdet i en skraldespand.
SEVERIN HV 7168 Dust Container and Cyclone Filter Removal
Image: Removing the dust container and cyclone filter for emptying and cleaning.

5.2 Rengøring af filtrene

The Hygiene E12 exhaust air filter and pre-filter are washable. Clean them regularly to maintain suction power.

  1. Fjern støvbeholderen som beskrevet ovenfor.
  2. Carefully remove the pre-filter and the E12 Hygiene filter from the dust container.
  3. Rinse both filters under running water until the water runs clear. Do not use detergents.
  4. Allow the filters to air dry completely for at least 24 hours before reinserting them. Do not expose to direct sunlight or heat.
SEVERIN HV 7168 E12 Hygiene Filter and Pre-filter
Image: The E12 Hygiene filter and the cylindrical pre-filter, ready for cleaning.

5.3 Cleaning the Brush Roll and Cyclone

If the vacuum cleaner's run time is short or suction decreases, the brush roll and cyclone may be dirty and require cleaning.

  1. Turn off the vacuum cleaner and detach the floor nozzle.
  2. Remove any tangled hair or debris from the brush roll. A pair of scissors may be helpful.
  3. Inspect the cyclone inside the dust container for blockages and clear them if necessary.

5.4 Pleje af batterier

The HV 7168 comes with two replaceable batteries for extended cleaning time. To replace a battery:

  1. Ensure the vacuum cleaner is off.
  2. Press the battery release buttons on the sides of the battery pack.
  3. Slide the battery out of the main unit.
  4. Insert a fully charged battery until it clicks securely into place.
SEVERIN HV 7168 Battery Removal
Image: The process of removing the battery from the main vacuum unit.

6. Fejlfinding

If you encounter issues with your SEVERIN HV 7168, please refer to the following common problems and solutions:

ProblemMulig årsagLøsning
Vakuum tænder ikkeBatteriet er ikke opladet eller ikke isat korrekt.Sørg for, at batteriet er fuldt opladet og isat sikkert.
Nedsat sugeeffektDust container full, filters clogged, or brush roll/tube blocked.Empty dust container, clean filters, clear any blockages from brush roll or suction tube.
Kort driftstidBattery not fully charged or brush roll/cyclone dirty.Fully charge the battery. Clean the brush roll and cyclone as described in the maintenance section.
Børsterullen roterer ikkeBrush roll blocked by hair or debris.Turn off the vacuum and remove any obstructions from the brush roll.

7. Specifikationer

Technical specifications for the SEVERIN HV 7168 vacuum cleaner:

FeatureSpecifikation
MærkeSeverin
Modelnummer7168
FarveBlack - Garnet Red
Produktmål (L x B x H)30 x 35 x 12 cm
Varens vægt1.7 kilo
Magt400 watt
Voltage25.2 volt
Antal hastigheder3 (Eco, Middle, Power)
Støjniveau75 dB
Batteritype2 x 2500 mAh Lithium-ion (included)
KøretidOp til 120 minutter (med 2 batterier)
FiltertypeHygiene E12 Exhaust Filter (washable)
OverfladeanbefalingHårdt gulv
Særlige funktioner2 batteries, additional upholstery nozzle, E12 hygienic exhaust filter, charging station with wall mount, aluminum suction tube (75 cm), comfortable ergonomic handle, LED lighting on brush.

8. Garanti og support

8.1 Produktgaranti

The SEVERIN HV 7168 vacuum cleaner comes with a 2 års producentgaranti. Additionally, there is a 10-year warranty on the digital motorGem venligst din købsbevis i tilfælde af garantikrav. Garantien dækker materiale- og fabrikationsfejl ved normal brug.

8.2 Kundesupport

For technical assistance, spare parts, or warranty inquiries, please contact SEVERIN customer service or your retailer. You can find more information and contact details on the official SEVERIN webwebsted.
