1. Introduktion
The INKBIRDPLUS AK3 Indoor Air Quality Monitor is designed to provide real-time measurements of key indoor air pollutants and environmental factors. This device accurately detects Carbon Dioxide (CO2), Total Volatile Organic Compounds (TVOC), Formaldehyde (HCHO), as well as ambient temperature and relative humidity. This manual provides essential information for the proper setup, operation, and maintenance of your air quality monitor.
2. Produktfunktioner
Image: The INKBIRDPLUS AK3 monitor showcasing its ability to measure multiple air quality parameters.
- Måling i realtid: Accurately detects CO2, TVOC, HCHO, temperature, and humidity, updating results per second on a colorful display.
- Nøjagtige resultater: Utilizes a high-precision infrared sensor and a high-performance chip for precise carbon dioxide measurement.
- Smart alarmsystem: Features a three-level air quality indicator (GOOD, OK, POOR) with distinct visual and audible alerts for changes in air quality.
- Langtidsholdbart batteri: Equipped with a 1200mAh built-in lithium battery, providing 6 to 8 hours of operation on a 2.5-hour charge. Can operate while connected to power.
- Bred anvendelse: Suitable for monitoring air quality in various environments such as cafeterias, restaurants, schools, offices, greenhouses, factories, hotels, and hospitals.
3. Pakkens indhold
- INKBIRDPLUS AK3 Air Quality Monitor
- USB opladningskabel
- Brugermanual
4. Produktet er slutview
Image: The INKBIRDPLUS AK3 Air Quality Monitor, front view.
4.1 Display og indikatorer
Image: The monitor's 3.5-inch LCD screen provides a clear, color-coded display of all measurements.
The monitor features a 3.5-inch LCD screen that displays all measured parameters simultaneously. Readings include CO2 (in ppm), TVOC (in mg/m³), HCHO (in mg/m³), temperature (in °F or °C), and relative humidity (in %). Battery status and air quality level indicators are also visible.
4.2 Physical Design
Image: The monitor features an anti-slip bottom for stable placement and a hook design for versatile mounting options.
The device is designed with ventilation grilles on the sides for optimal air circulation to the sensors. It includes an anti-slip bottom for stable placement on surfaces and a hook design for hanging, offering flexible placement options.
5. Opsætning
5.1 Opladning af enheden

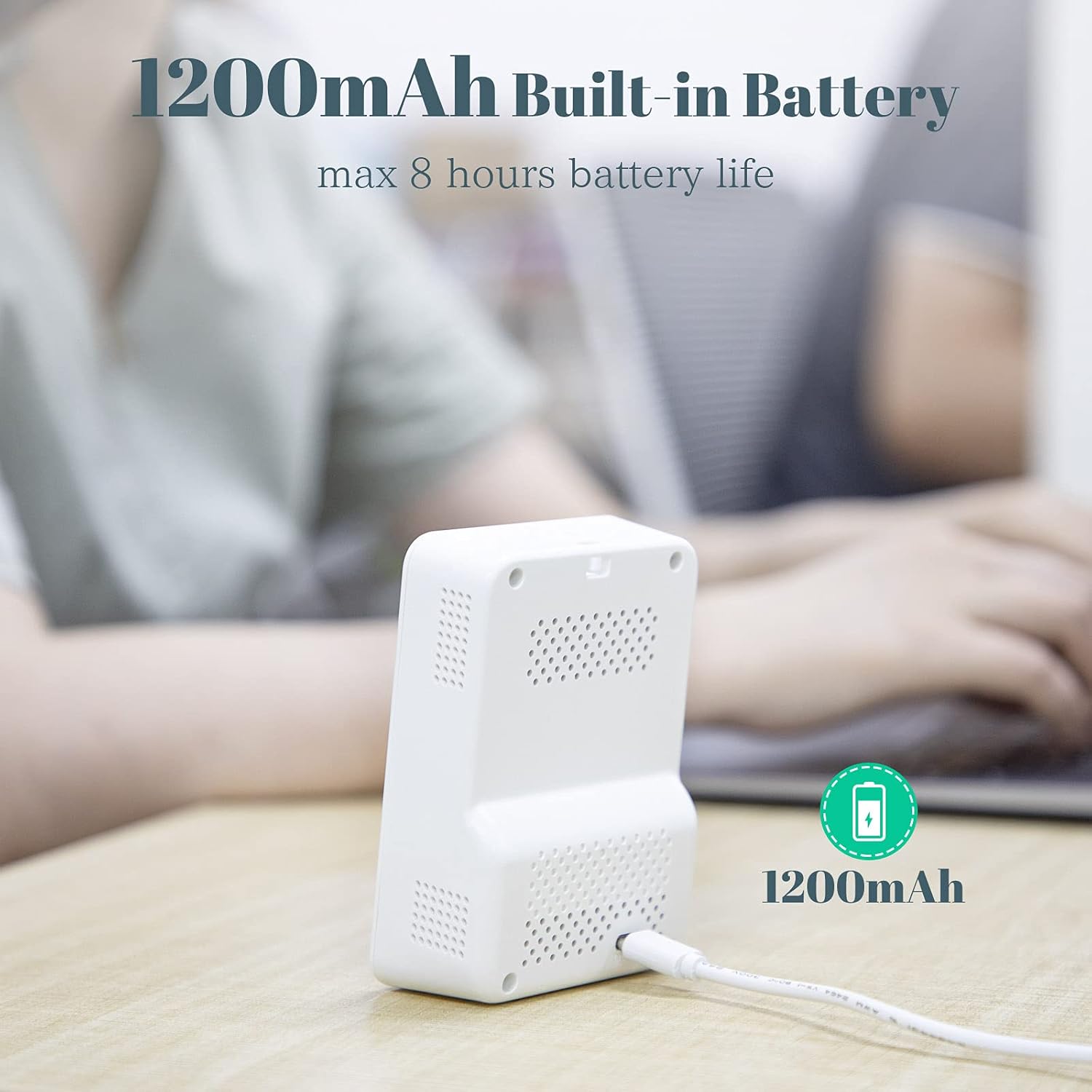

Image: The monitor being charged via its USB port.
Before initial use, fully charge the monitor. Connect the provided USB charging cable to the device's charging port and a standard USB power adapter (not included). A full charge takes approximately 2.5 hours and provides 6 to 8 hours of operation. The device can be used while charging.
5.2 Tænd/sluk
- For at tænde skal du trykke på og holde tænd/sluk-knappen nede, indtil displayet lyser.
- For at slukke skal du trykke på og holde tænd/sluk-knappen nede, indtil skærmen slukker.
6. Betjening
6.1 Forstå skærmen
The monitor's colorful display provides real-time readings for:
- CO2 (kuldioxid): Målt i dele per million (ppm).
- TVOC (Total Volatile Organic Compounds): Målt i milligram pr. kubikmeter (mg/m³).
- HCHO (formaldehyd): Målt i milligram pr. kubikmeter (mg/m³).
- Temperatur: Measured in degrees Fahrenheit (°F) or Celsius (°C).
- Fugtighed: Measured in relative humidity (%).
The display also shows a battery indicator and a color-coded air quality level (GOOD, OK, POOR).
6.2 Smart Alarm Function
The device features a smart alarm system to alert you to changes in air quality:
- GODT: Air quality is optimal. The indicator will typically be green.
- OK: Air quality is acceptable but warrants attention. The indicator will turn YELLOW, and the device will emit two "Bee--Bee" sounds.
- FATTIGE: Air quality is unhealthy. The indicator will turn RED, and the device will emit two "Bee--Bee--Bee" sounds.
6.3 Kalibrering
To trigger the calibration function, long press the switch button and release it after hearing two beeps. Refer to the on-screen prompts for further instructions during calibration.
7. Understanding Air Quality Parameters
Image: Common sources of indoor and outdoor air pollutants.
- Carbon Dioxide (CO2): A natural component of the atmosphere, but high indoor levels can indicate poor ventilation and lead to drowsiness or headaches.
- Total Volatile Organic Compounds (TVOC): A group of chemicals that can be emitted from paints, cleaning supplies, furniture, and other household products. High levels can cause irritation and other health issues.
- Formaldehyd (HCHO): A common VOC found in building materials, furniture, and some fabrics. It can cause respiratory and skin irritation.
Air quality can change constantly. For a comprehensive understanding of your environment's air quality, focus on measurements taken over longer periods (e.g., over 60 minutes).
8. Ansøgninger
Image: The INKBIRDPLUS AK3 monitor is suitable for a wide range of indoor environments.
The INKBIRDPLUS AK3 Air Quality Monitor is versatile and can be used in numerous indoor settings to ensure a healthy environment:
- Homes and Bedrooms
- Offices and Workspaces
- Classrooms and Educational Institutions
- Hospitals and Healthcare Facilities
- Factories and Industrial Settings
- Restaurants and Cafeterias
- Hotels and Accommodation
- Vehicles (e.g., cars)
9. Vedligeholdelse
- Hold enheden ren ved at tørre den af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Ensure the ventilation grilles are free from dust and obstructions to maintain accurate readings.
- Opbevar enheden på et køligt, tørt sted, når det ikke er i brug.
10. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Lavt batteri eller ingen opladning | Oplad enheden ved hjælp af det medfølgende USB-kabel. |
| Unøjagtige aflæsninger | Sensor obstruction, device not calibrated, or environmental factors | Ensure ventilation grilles are clear. Perform calibration as described in Section 6.3. Allow device to stabilize in the environment for at least 10 minutes. |
| Alarmen lyder ofte | High levels of detected pollutants | Improve ventilation in the area. Identify and remove sources of pollution if possible. |
11. Specifikationer
| Parameter | Værdi |
|---|---|
| Model | AK3 (Manufacturer Reference: AQM-01) |
| Strømkilde | Battery Powered (1200mAh Lithium Battery) |
| Opladningstid | Ca. 2.5 timer |
| Operating Time (Full Charge) | 6-8 timer |
| Varens vægt | 224 gram |
| Pakkedimensioner | 14.2 x 10.1 x 7.2 cm |
| Alarmtype | Hørbar |
| Driftsfugtighed | Op til 99 % |
| Sensortype | Electrochemical (for certain gases) |
12. Sikkerhedsoplysninger
- Udsæt ikke enheden for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
- Undgå at tabe eller udsætte enheden for kraftige stød.
- Forsøg ikke selv at adskille eller reparere enheden. Kontakt kundesupport for at få hjælp.
- Opbevares utilgængeligt for børn.
- This device is for informational purposes regarding air quality and should not be used as a substitute for professional medical advice or emergency equipment.
13. Garanti og support
INKBIRDPLUS products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided on the official INKBIRDPLUS webwebstedet eller din købsdokumentation. Gem venligst din købsbevis i tilfælde af garantikrav.
